 |  SKU: 630000CE-4

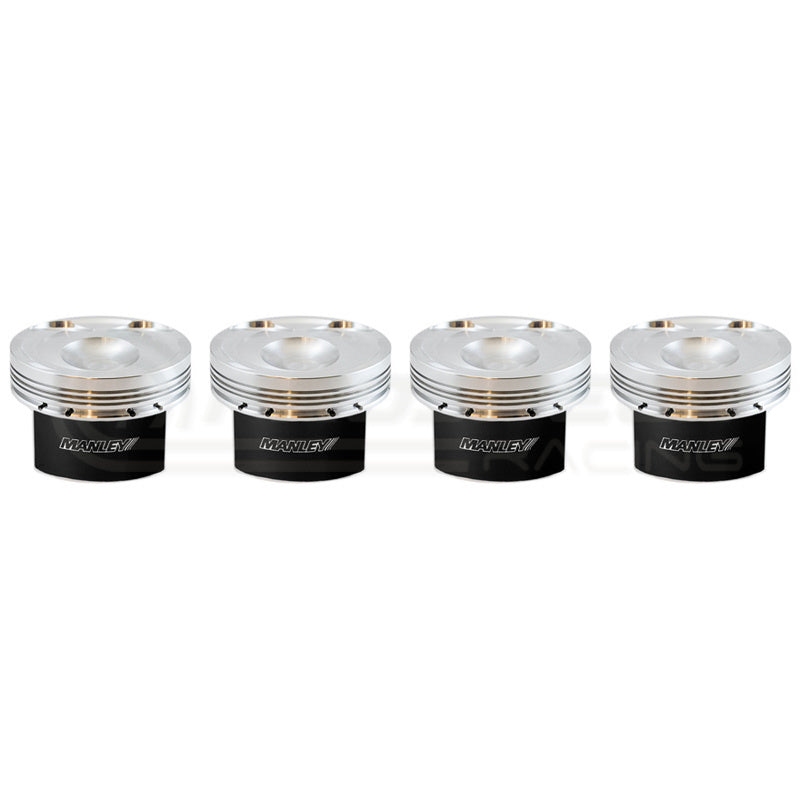

Manley Platinum Extreme Duty Lightweight Pistons Set of 4

Mazda 3 MPS BK/BL
$1,749.95
Bore

Earn [points_amount] when you buy this item.

Description

Manley Piston Information:

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. Recommended clearance: .0030" measured 1.100" from the bottom of the oil ring groove.



Features:

  • .150" wall Premium Chrome Moly pin (Standard Series) included P/N 42248
  • 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42548
  • Pressure balance groove
  • Will accommodate +1mm valve sizes



Vehicle Fitment:

  • Mazda 3 MPS BK (2.3L MZR Turbo)
  • Mazda 3 MPS BL (2.3L MZR Turbo)



Technical Specifications

Part # Extreme Duty
Part #		 Bore Size
(mm)		 Over
Size		 Rod
Length		 Stroke Comp.
Distance		 Dome Volume (cc) Cylinder
Head (cc)		 Comp.
Ratio		 Piston
Type		 Piston
Wt / Gms		 Included
Ring Set
  Mazda Speed 3 MZR 2.3L DISI Turbo (.8868"/22.5mm x 2.250" Pin)
 94mm STD STROKE
630000C-4 630000CE-4 87.5 STD 5.927" 94 1.270" -13.3 42 9.5 Dish 372 46875-4
630002C-4 630002CE-4 87.75 +.25mm 5.927" 94 1.270" -13.3 42 9.5 Dish 375 46877-4
630005C-4 630005CE-4 88 +.5mm 5.927" 94 1.270" -13.3 42 9.5 Dish 379 46880-4
