 |  SKU: 608020C-4

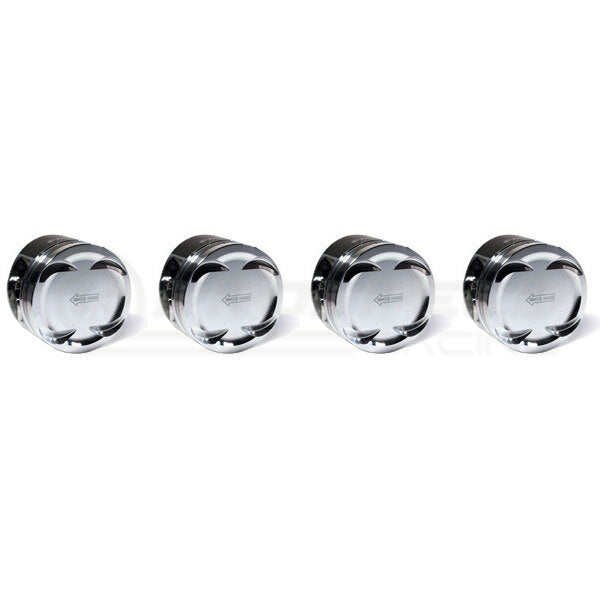

Manley Platinum Lightweight Pistons 87mm - Mitsubishi 4G64 w/4G63 Head

Mitsubishi 4G64 w/4G63 Head

In Stock :

This product is in stock & ready to be dispatched.

Very low inventory :

This product has very limited stock remaining.

Incoming :

Product will be in stock soon.

Usually Ships In :

This product is not ready for immediate dispatch and will ship in the timeframe displayed.

Sold Out - Out of stock :

This product is not available at this time. Request ETA Information

$1,479.95

Earn [points_amount] when you buy this item.


Description



Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.



Part # Extreme Duty
Part #
Bore Size
(mm)
Over Size Rod
Length
Stroke Comp.
Distance
Dome Volume
(cc)
Cylinder
Head (cc)
Comp.
Ratio
Piston
Type
Piston
Wt / Gms
Included
Ring Set
608020C-4 608020CE-4 87 +2.0mm 150 100 1.130" -22 47 / 43 8.5 / 9.0 Dish 308 46870-4





Fitment Table

Fitment Notes

General Notes:

  • Suitable for 4G64 2.4L bottom end with 4G63 2.0L heads only.
