612000C-4

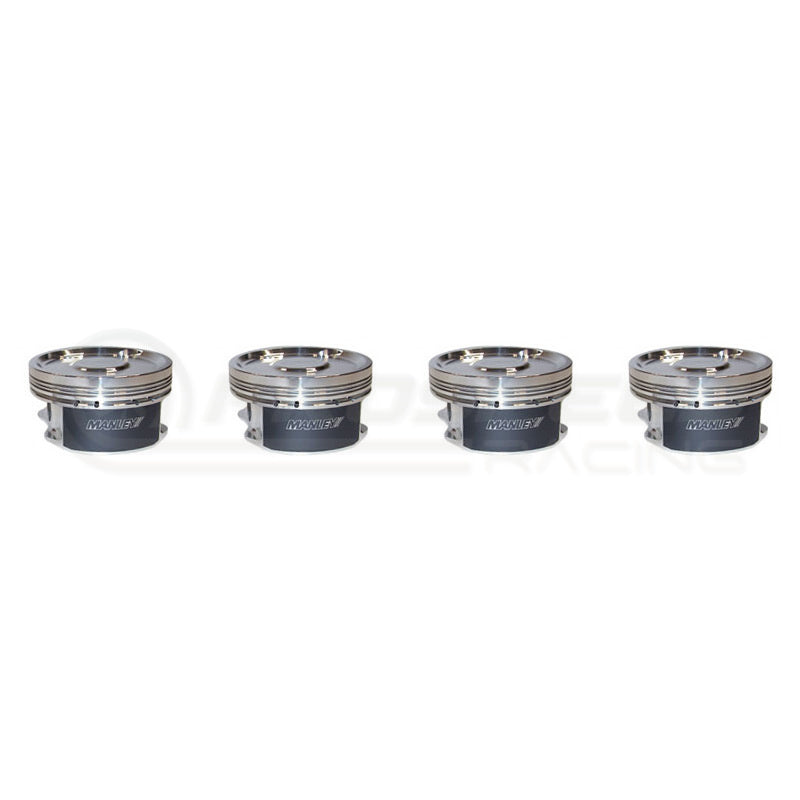

Manley Platinum Lightweight Pistons Set 79mm Stroke
Subaru WRX/STI/FXT/LGT (EJ25)
This product is in stock & ready to be dispatched.
This product has very limited stock remaining.
Product will be in stock soon.
This product is not ready for immediate dispatch and will ship in the timeframe displayed.
This product is not available at this time. Request ETA Information
Earn [points_amount] when you buy this item.
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description

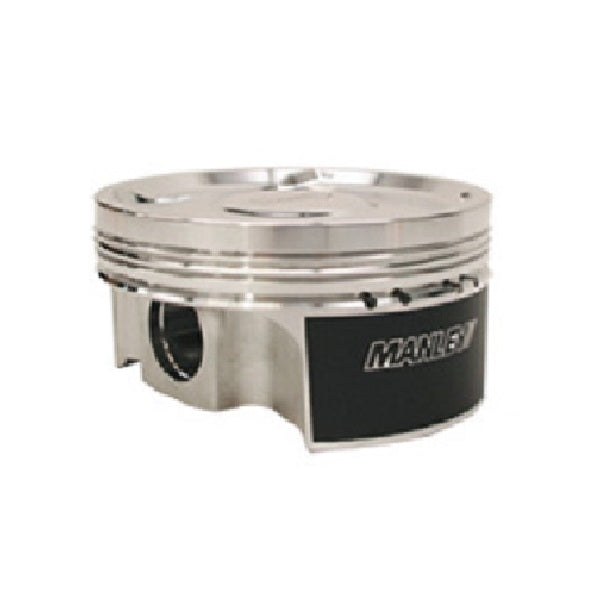

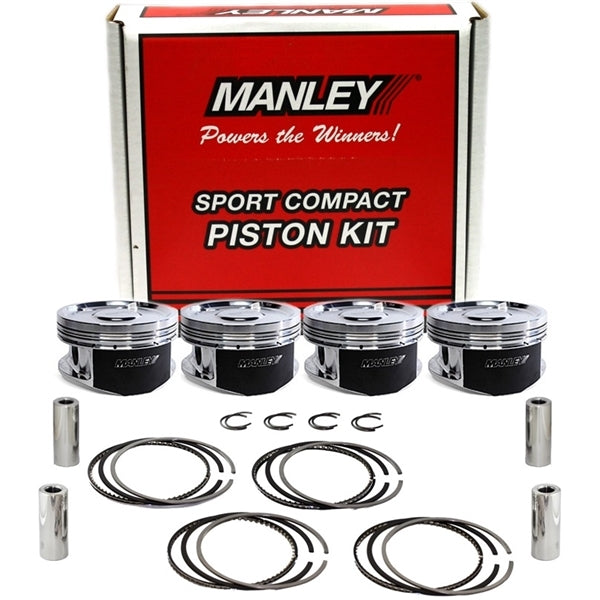

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available. Recommended clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" (79/83mm Strokes) and 1.100" (75mm Stroke) from the bottom of the oil ring groove.
Manley Subaru EJ257 pistons now include Napier style second rings and higher tension oil rings (by Total Seal) for superior oil control.
Technical Specifications
Technical Specifications
Subaru EJ257 - .9055"/23mm x 2.500" Pin x .210" Wall
| Part # | Bore Size (mm) | Over Size | Rod Length | Stroke | Comp. Distance | Dome Volume (cc) | Cylinder | Comp. Ratio | Piston Type | Piston Wt / Gms | Included Ring Set |
| 612000C-4 | 99.5 | STD | 5.137" | 79 | 1.209" | -22 | 51 | 8.5 | Dish | 395 | 46995DT-4 |
| 612001C-4 | 99.55 | +.05mm | 5.137" | 79 | 1.209" | -22 | 51 | 8.5 | Dish | 395 | 46995DT-4 |
| 612002C-4 | 99.75 | +.25mm | 5.137" | 79 | 1.209" | -22 | 51 | 8.5 | Dish | 398 | 46997DT-4 |
| 612005C-4 | 100 | +.5mm | 5.137" | 79 | 1.209" | -22 | 51 | 8.5 | Dish | 402 | 461000DT-4 |
| 612007C-4 | 100.25 | +.75mm | 5.137" | 79 | 1.209" | -22 | 51 | 8.5 | Dish | 405 | 461002DT-4 |
| 612200C-4 | 99.5 | STD | 5.137" | 79 | 1.209" | -17 | 57 | 8.5 | Dish | 411 | 46995DT-4 |
| 612201C-4 | 99.55 | +.05mm | 5.137" | 79 | 1.209" | -17 | 57 | 8.5 | Dish | 412 | 46995DT-4 |
| 612202C-4 | 99.75 | +.25mm | 5.137" | 79 | 1.209" | -17 | 57 | 8.5 | Dish | 414 | 46997DT-4 |
| 612205C-4 | 100 | +.5mm | 5.137" | 79 | 1.209" | -17 | 57 | 8.5 | Dish | 420 | 461000DT-4 |
| 612207C-4 | 100.25 | +.75mm | 5.137" | 79 | 1.209" | -17 | 57 | 8.5 | Dish | 423 | 461002DT-4 |
| 612100C-4 | 99.5 | STD | 5.137" | 79 | 1.209" | -10 | 51 | 9.8 | Dish | 419 | 46995DT-4 |
| 612102C-4 | 99.75 | +.25mm | 5.137" | 79 | 1.209" | -10 | 51 | 9.8 | Dish | 423 | 46997DT-4 |
| 612105C-4 | 100 | +.5mm | 5.137" | 79 | 1.209" | -10 | 51 | 9.8 | Dish | 426 | 461000DT-4 |
