| SKU:
637000C-4

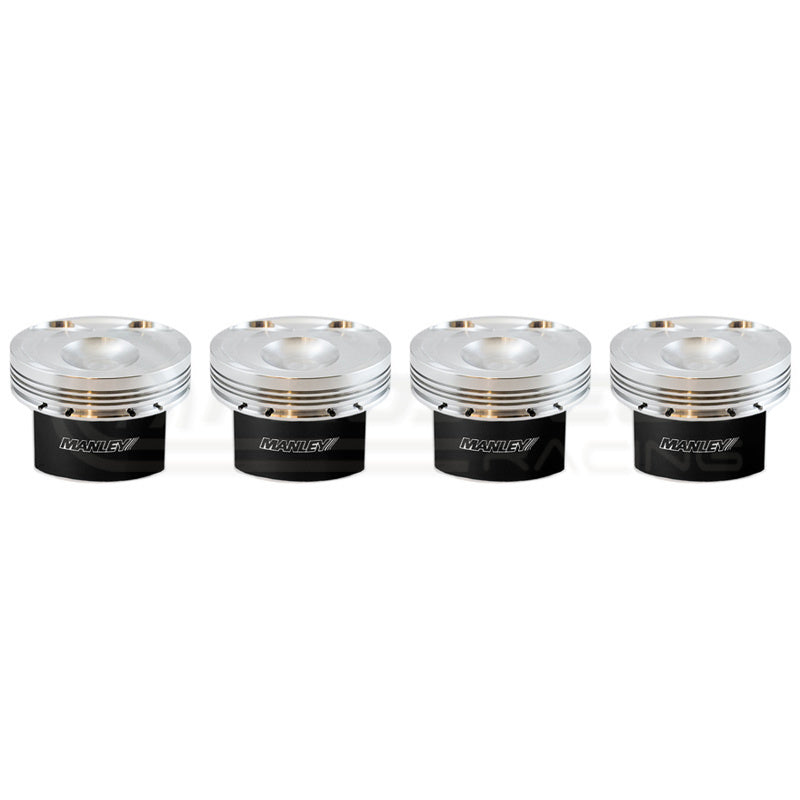

Manley Platinum Lightweight Pistons Set of 4
Ford Focus RS/Mustang Ecoboost (2.3L)
Earn [points_amount] when you buy this item.
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.2, 1.2, 2.8mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locks and pressure balance grooves are included with every set at no additional charge.
Premium Chrome Moly wrist pins are included in the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.
Vehicle Fitment:
- 2016-2017 Ford Focus RS LZ Mk3
- 2015-2021 Ford Mustang Ecoboost FM/FN
Technical Specifications
Technical Specifications
| Standard Part No. | Extreme Duty Part No. | Bore Size mm | Over Size | Rod Length | Stroke mm | Comp Distance | Dome Volume (cc) | Comp Ratio | Piston Type | Piston Wt/Gms | Included Ring Set |
 | |||||||||||
| Ford Focus RS 2016-Up, Mustang 2015-Up (.886"/22.5mm x 2.250" Pin) | |||||||||||
| |||||||||||
| 637000C-4 | 637000CE-4 | 87.5 | STD | 5.875" | 94 | 1.291" | -8.2 | 9.5 | Dish | 382 | 46875-4 |
| |||||||||||
| 637001C-4 | 637001CE-4 | 87.6 | +.1mm | 5.875" | 94 | 1.291" | -8.2 | 9.5 | Dish | 384 | 46876-4 |
| |||||||||||
| 637005C-4 | 637005CE-4 | 88.0 | +.5mm | 5.875" | 94 | 1.291" | -8.2 | 9.5 | Dish | 390 | 46880-4 |
