| SKU:
632200C-4

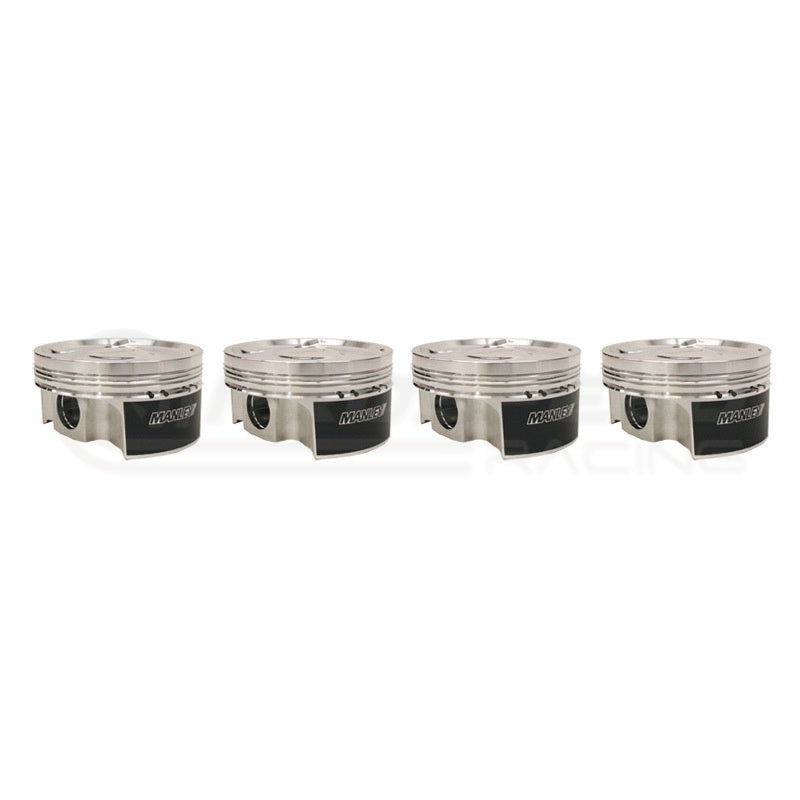

Manley Platinum Turbo Tuff Pistons Set 79mm Stroke
$1,649.95
Unit price
/
Unavailable
Option
Standard Duty
Extreme Duty
Piston Size
79mm Stroke, 99.5mm Bore, -22cc Dome Volume, 8.5:1 CR
79mm Stroke, 99.55mm Bore, -22cc Dome Volume, 8.5:1 CR
79mm Stroke, 99.75mm Bore, -22cc Dome Volume, 8.5:1 CR
79mm Stroke, 100mm Bore, -22cc Dome Volume, 8.5:1 CR
79mm Stroke, 99.5mm Bore, -10cc Dome Volume, 9.8:1 CR
79mm Stroke, 99.75mm Bore, -10cc Dome Volume, 9.8:1 CR
79mm Stroke, 100mm Bore, -10cc Dome Volume, 9.8:1 CR
79mm Stroke, 99.5mm Bore, -17cc Dome Volume, 8.5:1 CR
79mm Stroke, 99.55mm Bore, -17cc Dome Volume, 8.5:1 CR
79mm Stroke, 99.75mm Bore, -17cc Dome Volume, 8.5:1 CR
79mm Stroke, 100mm Bore, -17cc Dome Volume, 8.5:1 CR
Product variants
Standard Duty / 79mm Stroke, 99.5mm Bore, -22cc Dome Volume, 8.5:1 CR
- $1,649.95
Extreme Duty / 79mm Stroke, 99.5mm Bore, -22cc Dome Volume, 8.5:1 CR
- $1,899.95
Standard Duty / 79mm Stroke, 99.55mm Bore, -22cc Dome Volume, 8.5:1 CR
- $1,649.95
Extreme Duty / 79mm Stroke, 99.55mm Bore, -22cc Dome Volume, 8.5:1 CR
- $1,899.95
Standard Duty / 79mm Stroke, 99.75mm Bore, -22cc Dome Volume, 8.5:1 CR
- $1,649.95
Extreme Duty / 79mm Stroke, 99.75mm Bore, -22cc Dome Volume, 8.5:1 CR
- $1,899.95
Standard Duty / 79mm Stroke, 100mm Bore, -22cc Dome Volume, 8.5:1 CR
- $1,649.95
Extreme Duty / 79mm Stroke, 100mm Bore, -22cc Dome Volume, 8.5:1 CR
- $1,899.95
Standard Duty / 79mm Stroke, 99.5mm Bore, -10cc Dome Volume, 9.8:1 CR
- $1,649.95
Extreme Duty / 79mm Stroke, 99.5mm Bore, -10cc Dome Volume, 9.8:1 CR
- $1,899.95
Standard Duty / 79mm Stroke, 99.75mm Bore, -10cc Dome Volume, 9.8:1 CR
- $1,649.95
Extreme Duty / 79mm Stroke, 99.75mm Bore, -10cc Dome Volume, 9.8:1 CR
- $1,899.95
Extreme Duty / 79mm Stroke, 100mm Bore, -10cc Dome Volume, 9.8:1 CR
- $1,899.95
Extreme Duty / 79mm Stroke, 99.5mm Bore, -17cc Dome Volume, 8.5:1 CR
- $1,899.95
Extreme Duty / 79mm Stroke, 99.55mm Bore, -17cc Dome Volume, 8.5:1 CR
- $1,899.95
Standard Duty / 79mm Stroke, 99.75mm Bore, -17cc Dome Volume, 8.5:1 CR
- $1,649.95
Extreme Duty / 79mm Stroke, 99.75mm Bore, -17cc Dome Volume, 8.5:1 CR
- $1,899.95
Standard Duty / 79mm Stroke, 100mm Bore, -17cc Dome Volume, 8.5:1 CR
- $1,649.95
Extreme Duty / 79mm Stroke, 100mm Bore, -17cc Dome Volume, 8.5:1 CR
- $1,899.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Ā

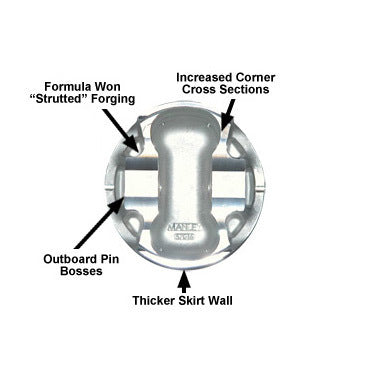

The best aftermarket Subaru piston company just got even better with our new Turbo Tuff lineup targeted specifically for EJ25 engines. By incorporating proven design enhancements from our "Formula-Won" piston forging, we've created the ultimate Subi piston to withstand the rigors of the highest boosted and stressed applications yet still run "quietly" and trouble-free for the daily driver. Like all Manley Subaru pistons, these are made from 2618 alloy, utilize an offset wrist pin design, are skirt coated and include our standard 2.500" x .180" wall premium chrome moly wrist pin (P/N 42346). 9310 alloy .250" wall pin upgrades are available. Simply order the EXTREME DUTY part number. These come equipped with the 9310 pins (P/N 42547). Premium steel top rings with Napier style second rings and higher tension oil rings for ultimate oil control are included with each set along with round wire locks. Recommended clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" (79/83mm Strokes) and 1.100" (75mm Stroke) from the bottom of the oil ring groove.
Manley Subaru EJ257 pistons now include Napier style second rings and higher tension oil rings (by Total Seal) for superior oil control.
Ā
Standard Part #
Extreme Duty Part #
Bore Size (mm)
Over Size
Rod Length
Comp. Distance
Dome Volume (cc)
Cylinder Head (cc)
Comp. Ratio
Piston Type
Piston Wt / Gms
Included Ring Set
632200C-4
632200CE-4
99.5
STD
5.137"
1.209"
-22
51
8.5
Dish
405
46995DT-4
632201C-4
632201CE-4
99.55
+.05mm
5.137"
1.209"
-22
51
8.5
Dish
405
46995DT-4
632202C-4
632202CE-4
99.75
+.25mm
5.137"
1.209"
-22
51
8.5
Dish
408
46997DT-4
632205C-4
632205CE-4
100
+.5mm
5.137"
1.209"
-22
51
8.5
Dish
412
461000DT-4
632800C-4
632800CE-4
99.5
STD
5.137"
1.209"
-17
57
8.5
Dish
417
46995DT-4
632801C-4
632801CE-4
99.55
+.05mm
5.137"
1.209"
-17
57
8.5
Dish
419
46995DT-4
632802C-4
632802CE-4
99.75
+.25mm
5.137"
1.209"
-17
57
8.5
Dish
421
46997DT-4
632805C-4
632805CE-4
100
+.5mm
5.137"
1.209"
-17
57
8.5
Dish
423
461000DT-4
632300C-4
632300CE-4
99.5
STD
5.137"
1.209"
-10
51
9.8
Dish
429
46995DT-4
632302C-4
632302CE-4
99.75
+.25mm
5.137"
1.209"
-10
51
9.8
Dish
433
46997DT-4
632305C-4
632305CE-4
100
+.5mm
5.137"
1.209"
-10
51
9.8
Dish
436
461000DT-4
