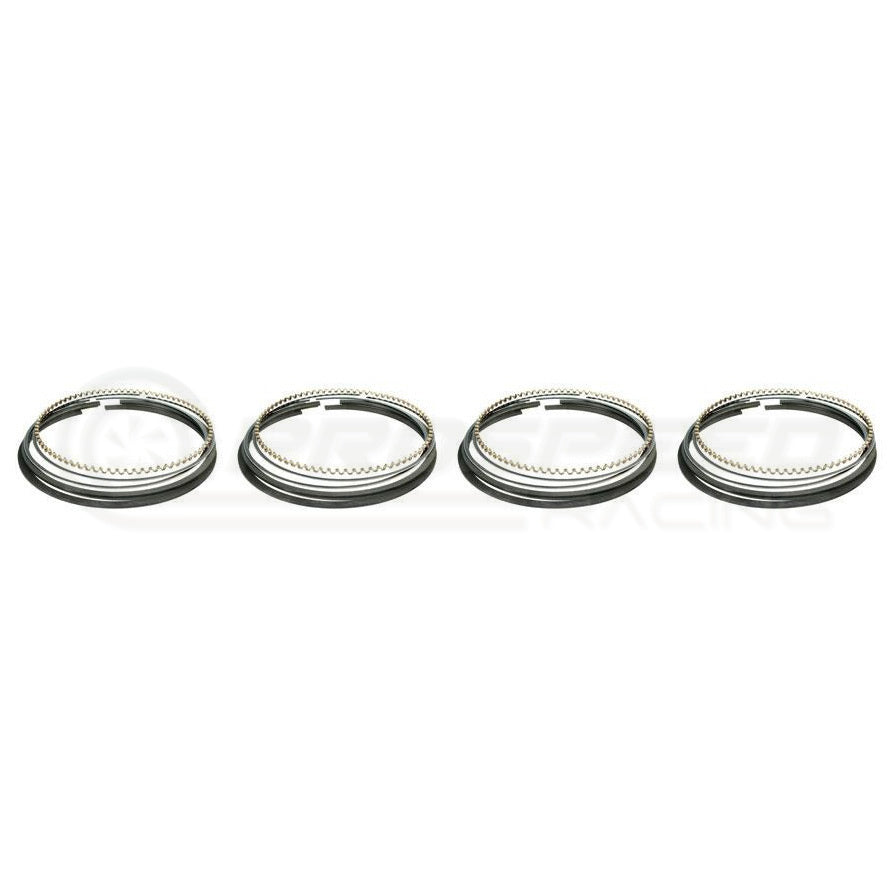

Manley Replacement Piston Ring Kit

Subaru WRX/STI/FXT/LGT (EJ25)
$93.95
Ring Quantity
Size
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Manley Piston Rings provide minimal blowby and increased horsepower while maintaining cooler, cleaner oil resulting in longer engine life. Manley ring sets feature a ductile iron plasma moly top ring, a conventional reverse twist cast iron second ring, and a 3 piece standard tension oil ring.



Select correct ring size from drop down box.



Ring Set Part # Suits Piston # Bore Size (mm) Over Size
46995DT-1 632200CA-1* 99.5 Grade A STD
46995DT-1 632200CEA-1* 99.5 Grade A STD
46995DT-1 632200CB-1* 99.5 Grade B STD
46995DT-1 632200CEB-1* 99.5 Grade B STD
46995DT-1 612000CA-1* 99.50 Grade A STD
46995DT-1 612200CA-1* 99.50 Grade A STD
46995DT-1 612000CB-1* 99.50 Grade B STD
46995DT-1 612200CB-1* 99.50 Grade B STD
46995DT-1 632800CA-1* 99.5 Grade A
46995DT-1 632800CB-1* 99.5 Grade B
46995DT-1 632800CEA-1* 99.5 Grade A
46995DT-1 632800CEB-1* 99.5 Grade B
46995DT-4 621000C-4 99.5 STD
46995DT-4 621100C-4 99.5 STD
46995DT-4 612000C-4 99.5 STD
46995DT-4 612200C-4 99.5 STD
46995DT-4 612100C-4 99.5 STD
46995DT-4 622000C-4 99.5 STD
46995DT-4 622100C-4 99.5 STD
46995DT-4 632000C-4 99.5 STD
46995DT-4 632100C-4 99.5 STD
46995DT-4 632200C-4 99.5 STD
46995DT-4 632800C-4 99.5 STD
46995DT-4 632300C-4 99.5 STD
46995DT-4 632400C-4 99.5 STD
46995DT-4 632500C-4 99.5 STD
46995DT-4 632000CE-4 99.5 STD
46995DT-4 632100CE-4 99.5 STD
46995DT-4 632200CE-4 99.5 STD
46995DT-4 632800CE-4 99.5 STD
46995DT-4 632300CE-4 99.5 STD
46995DT-4 632400CE-4 99.5 STD
46995DT-4 632500CE-4 99.5 STD
46995DT-4 612001C-4 99.55 +.05mm
46995DT-4 612201C-4 99.55 +.05mm
46995DT-4 632201C-4 99.55 +.05mm
46995DT-4 632801C-4 99.55 +.05mm
46995DT-4 632201CE-4 99.55 +.05mm
46995DT-4 632801CE-4 99.55 +.05mm
46997DT-4 621002C-4 99.75 +.25mm
46997DT-4 621102C-4 99.75 +.25mm
46997DT-4 612002C-4 99.75 +.25mm
46997DT-4 612202C-4 99.75 +.25mm
46997DT-4 612102C-4 99.75 +.25mm
46997DT-4 622002C-4 99.75 +.25mm
46997DT-4 622102C-4 99.75 +.25mm
46997DT-4 632002C-4 99.75 +.25mm
46997DT-4 632102C-4 99.75 +.25mm
46997DT-4 632202C-4 99.75 +.25mm
46997DT-4 632802C-4 99.75 +.25mm
46997DT-4 632302C-4 99.75 +.25mm
46997DT-4 632402C-4 99.75 +.25mm
46997DT-4 632502C-4 99.75 +.25mm
46997DT-4 632002CE-4 99.75 +.25mm
46997DT-4 632102CE-4 99.75 +.25mm
46997DT-4 632202CE-4 99.75 +.25mm
46997DT-4 632802CE-4 99.75 +.25mm
46997DT-4 632302CE-4 99.75 +.25mm
46997DT-4 632402CE-4 99.75 +.25mm
46997DT-4 632502CE-4 99.75 +.25mm
461000DT-4 621005C-4 100 +.5mm
461000DT-4 621105C-4 100 +.5mm
461000DT-4 612005C-4 100 +.5mm
461000DT-4 612205C-4 100 +.5mm
461000DT-4 612105C-4 100 +.5mm
461000DT-4 622005C-4 100 +.5mm
461000DT-4 622105C-4 100 +.5mm
461000DT-4 632005C-4 100 +.5mm
461000DT-4 632105C-4 100 +.5mm
461000DT-4 632205C-4 100 +.5mm
461000DT-4 632805C-4 100 +.5mm
461000DT-4 632305C-4 100 +.5mm
461000DT-4 632405C-4 100 +.5mm
461000DT-4 632505C-4 100 +.5mm
461000DT-4 632005CE-4 100 +.5mm
461000DT-4 632105CE-4 100 +.5mm
461000DT-4 632205CE-4 100 +.5mm
461000DT-4 632805CE-4 100 +.5mm
461000DT-4 632305CE-4 100 +.5mm
461000DT-4 632405CE-4 100 +.5mm
461000DT-4 632505CE-4 100 +.5mm
461002DT-4 612007C-4 100.25 +.75mm
461002DT-4 612207C-4 100.25 +.75mm


Fitment Table
