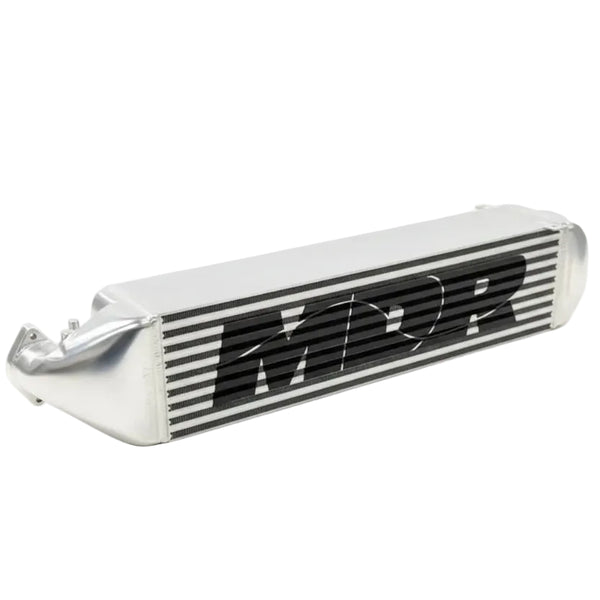

MDR Industries Billet Bar and Plate Front Mount Intercooler Upgrade
Honda Civic Type R FL5 22+
In Stock:
This product is in stock & ready to be dispatched.
Limited Stock Available:
Stock is running low. Order soon to avoid missing out!
Almost Gone:
Stock is critically low! This product may sell out soon.
Incoming:
Product will be in stock soon.
Usually Ships In:
This product is out of stock and will usually ship in the timeframe displayed.
Sold Out:
This product is currently out of stock.
Request ETA
$1,849.95
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.

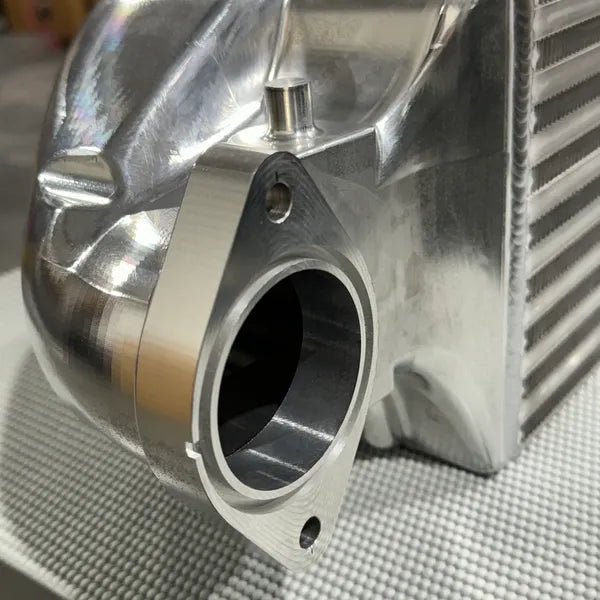

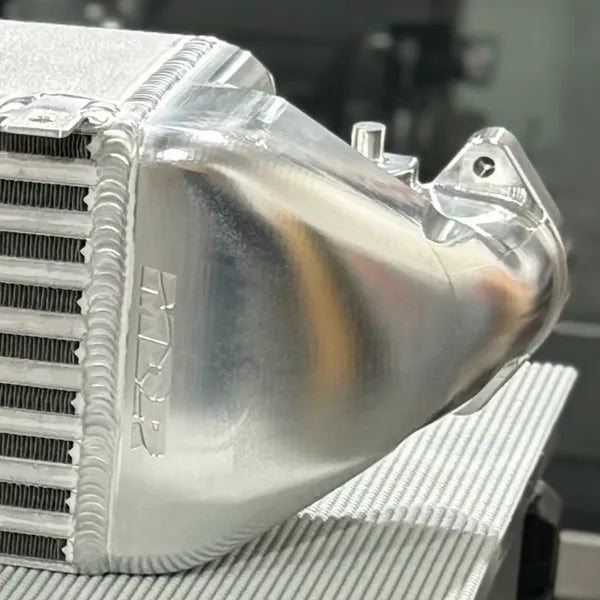

MDR's Billet Intercooler Upgrade for the 2023+ Honda Civic Type-R FL5 & 2024+ Acura Integra Type S is made in the USA, with machined Billet 6061-T6 aluminum end tanks and a 5.50” core to replace the factory’s plastic end tanks and 2.5” core.
Throughout our testing period, we calculated heat transfers for different types of fins, with different fin heights, and fin densities to determine the best combination internal and external fin to achieve the highest heat transfer effectiveness, with the lowest pressure drop. We then designed our cores with the most effective fin combinations, which in this case we determined was the bar and plate aluminum core design.
The bar and plate core allows the utilization of the entire envelope space, without larger than core sized end plates as compared to the factory tube and fin. Bar and plate cores are designed to withstand high pressure and high vibration applications. Braze sheets seal the entire row as compared to the 0.125” wide sealing surface of the end plate to the extruded tube on tube and fin cores.
Engineered with cutting-edge technology and precision craftsmanship, the FL5 & DE5 intercooler proudly delivers 50-State Legal compliance under CARB's Executive Order D-895.
After months of testing, street driving, several dyno sessions at different phases, and datalogging, our prototype has exceeded our expectations, both in cooling and performance gains. Dynos were conducted pre-installation with the factory intercooler and compared with the prototype unit.
Results and side-by-side comparisons are noted in the graphs to the right.
Factory Intercooler
302.40 HP / 334.16 ft-lbs Torque @ 28.03 psi
MDR Intercooler
331.34 HP / 352.10 ft-lbs Torque @ 27.54 psi
Engineered with cutting-edge technology and precision craftsmanship, the FL5 & DE5 intercooler proudly delivers 50-State Legal compliance under CARB's Executive Order D-895.
Features and Benefits
Billet 6061-T6 aluminum machined end tanks
No ECU calibrations required
Utilizes all factory intercooler mounting locations / brackets
Core size maximizes the opening on the front bumper
Notable increase in air density
100% pressure tested
TIG welded
Assembled in Simi Valley, CA
Technical Specifications
Core size – 5.50” thick x 7.02” stack up height x 28.0” wide
Surface area – 196.56 in2 / 25.17% increase
Volume – 1,081.08 in3 / 175.38% increase
Average pressure drop – 0.85 psi
Average temperature drop (Entire 3rd Run) – 151.15 deg. F
