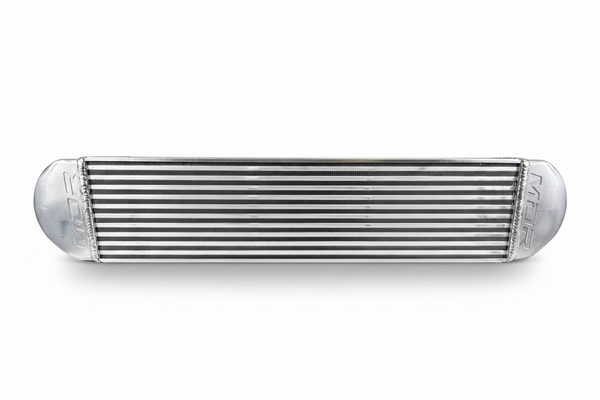

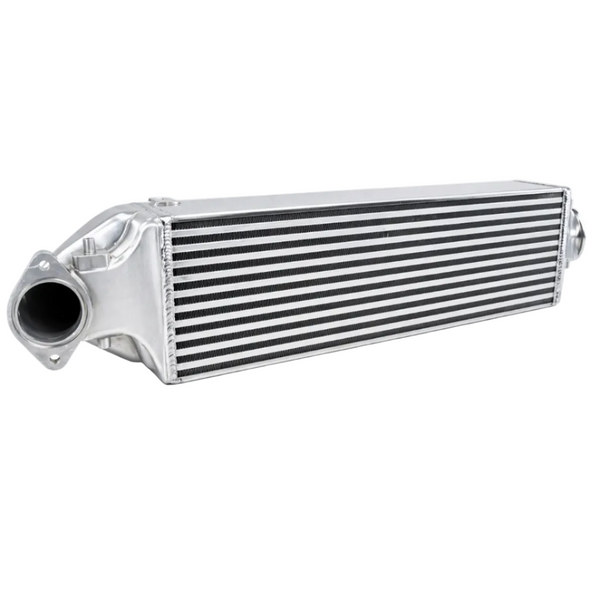

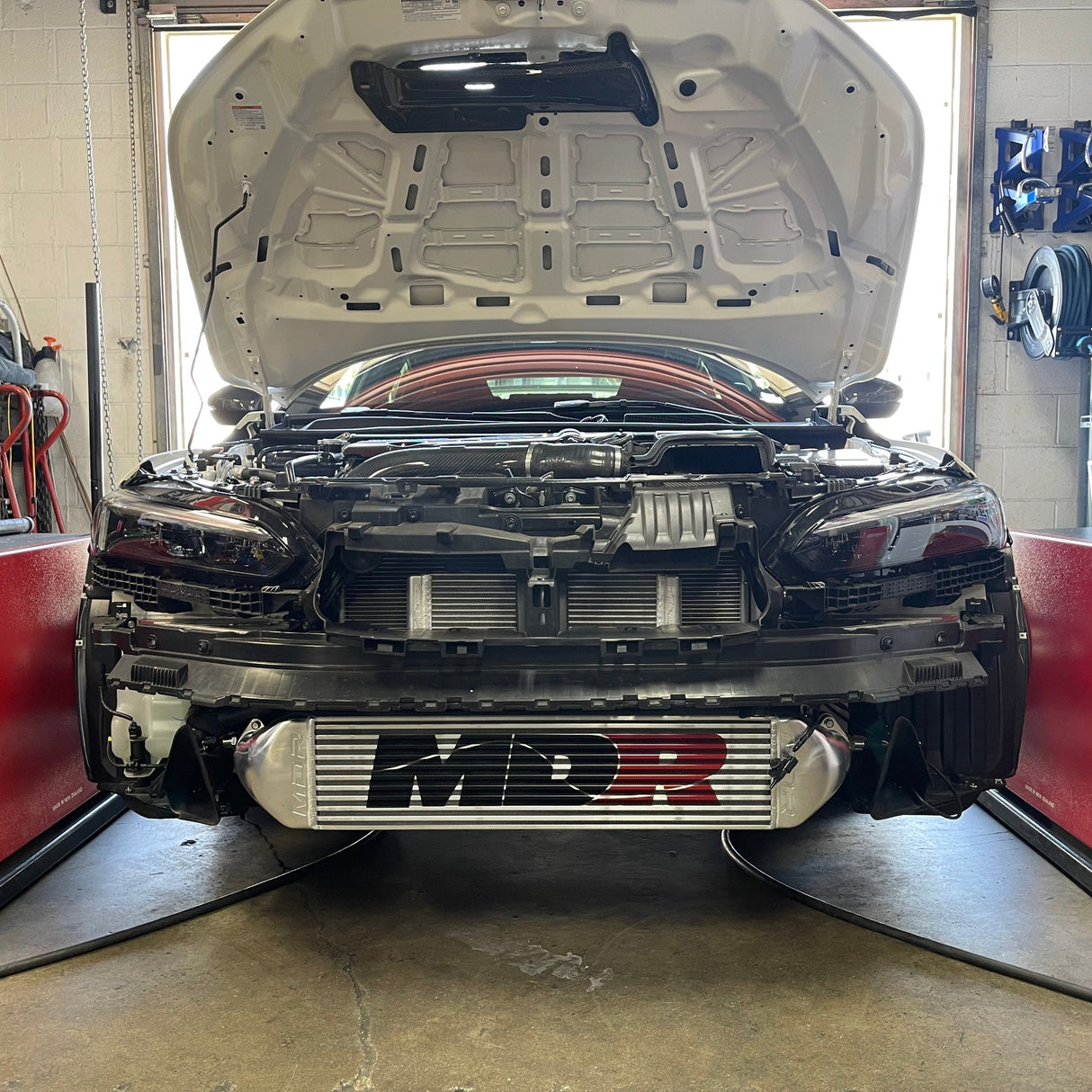

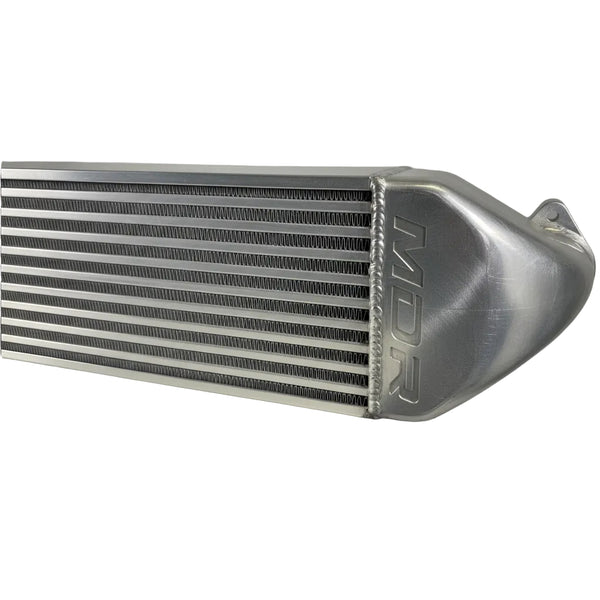

MDR Industries Billet Tube & Fin Front Mount Intercooler Upgrade
Honda Civic Type R FL5 22+
In Stock:
This product is in stock & ready to be dispatched.
Limited Stock Available:
Stock is running low. Order soon to avoid missing out!
Almost Gone:
Stock is critically low! This product may sell out soon.
Incoming:
Product will be in stock soon.
Usually Ships In:
This product is out of stock and will usually ship in the timeframe displayed.
Sold Out:
This product is currently out of stock.
Request ETA
$1,849.95
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.
MDR's Billet Intercooler Upgrade for the 2023+ Honda Civic Type-R FL5 & 2024+ Acura Integra Type S is made in the USA, with machined Billet 6061-T6 aluminum end tanks and a 5.50” core to replace the factory’s plastic end tanks and 2.5” core.
Throughout our testing period, we calculated heat transfers for different types of fins, with different fin heights, and fin densities to determine the best combination internal and external fin to achieve the highest heat transfer effectiveness, with the lowest pressure drop. We then designed our cores with the most effective fin combinations, which in this case we determined was the tube and fin aluminum core design.
Engineered with cutting-edge technology and precision craftsmanship.
MDR INTERCOOLER PERFORMANCE DATA:
Core size – 5.50” thick x 7.02” stack up height x 28.0” wide
Surface area – 196.56 in2 / 25.17% increase
Volume – 1,081.08 in3 / 175.38% increase
Average pressure drop – 1.17 psi
Average temperature drop – 174.81 deg. F
Max Inlet Temp. - 337.2 deg. F
Outlet Temp. - 90.3 deg. F (246.9 deg. F of Drop)
Pressure Drop - 1.12 psi
Features and Benefits
Tube and fin core
Billet 6061-T6 aluminum machined end tanks
No ECU calibrations required
Utilizes all factory intercooler mounting locations / brackets
Core size maximizes the opening on the front bumper
