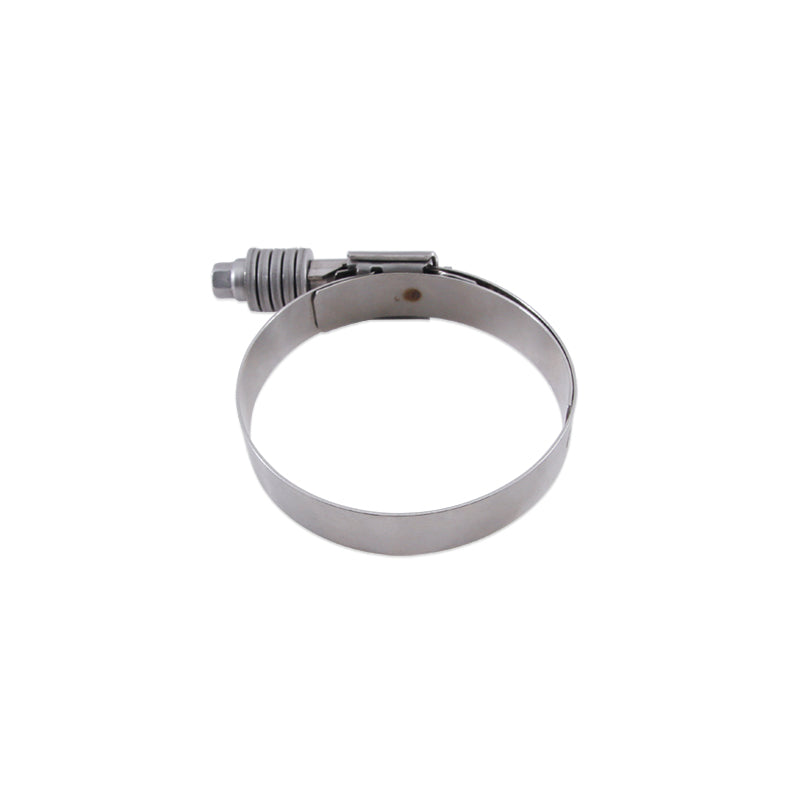

Mishimoto Constant Tension Worm Gear Clamp

Universal
$14.95
Size
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Just like our high-torque worm gear clamps, Mishimoto's Constant Tension Worm Gear Clamps are an effective solution to a wide range of clamping needs. Where this 1. 26in - 2. 13in (32mm - 54mm) constant tension worm gear clamp excels, however, is in high-temperature applications. The spring on the adjustment bolt allows the clamp to exert continuous pressure through a wide range of temperatures to ensure your parts stay clamped as strong as the day you installed them. This 1. 26in - 2. 13in (32mm - 54mm) constant tension worm gear clamp is made from stainless steel to weather any environment and ensure a tight seal for years to come. Our constant tension worm gear clamps are also available in a wide variety of other sizes to suit everything from coolant lines to intake pipes. Like all Mishimoto products, this 1. 26in - 2. 13in (32mm - 54mm) constant tension worm gear clamp is backed by our Mishimoto Lifetime Warranty.



Note:

  • If using this clamp, we recommend purchasing:
  • MMICP-2250
  • MMICP-2259
  • MMICP-SS-2251

Features and Benefits

  • Securely clamps pipes, couplers, and hoses with an outer diameter from 1.26- 2.13-in (32mm-54mm)
  • Constant tension spring maintains clamping pressure through a wide range of temperatures
  • Worm gear design for quick and easy tightening

Technical Specifications

  • Band Width (inches): 0.62
  • Clamp Style: Constant Tension Worm Gear Clamp
  • Installation Difficulty: 1
  • Material: Stainless Steel
  • Maximum Clamp Diameter (inches): 2.13
  • Minimum Clamp Diameter (inches): 1.26
  • Recommended Tightening Torque: 14 lb-ft (20 NM)
  • SAE Number: 212

Included Components

  • (1) Mishimoto Constant Tension Worm Gear Clamp
  • Mishimoto Lifetime Warranty
