Mishimoto Fluid Extractor Manual and Pneumatic 9.5L

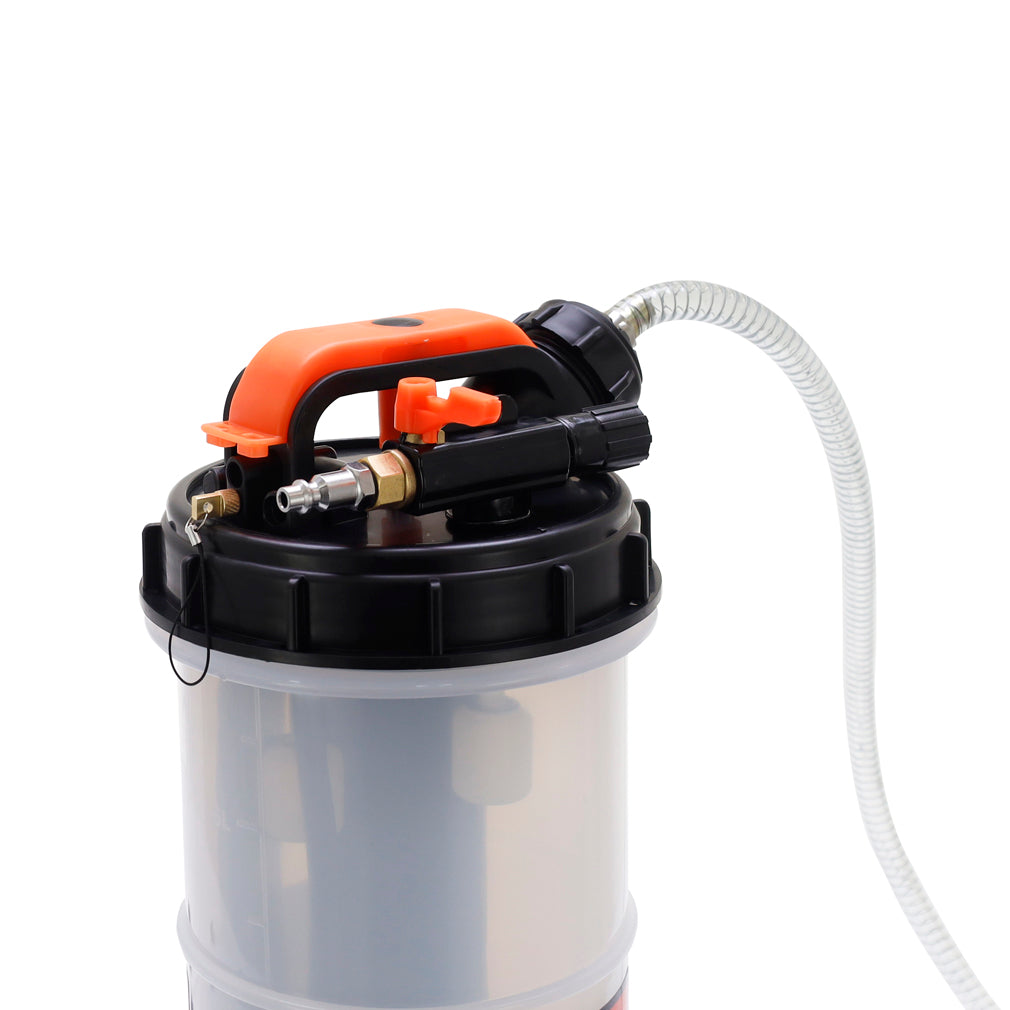

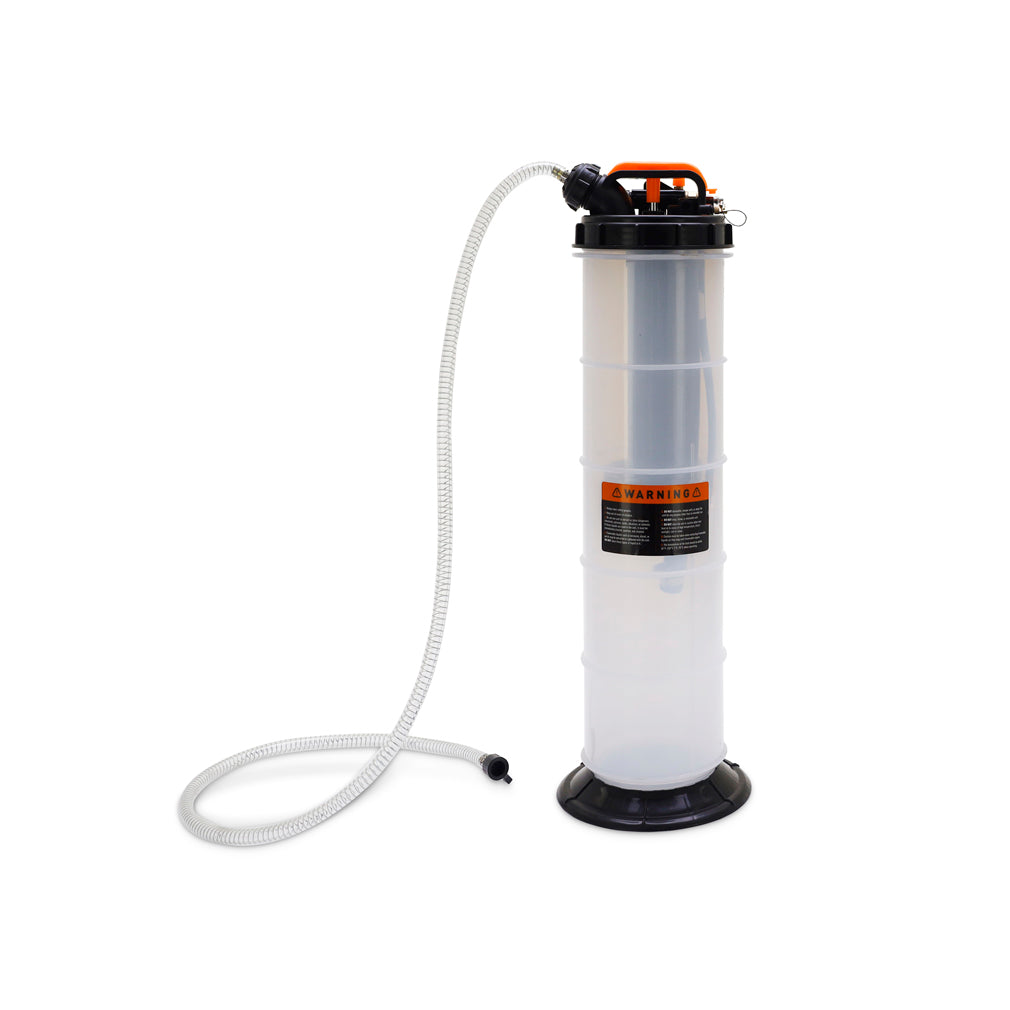

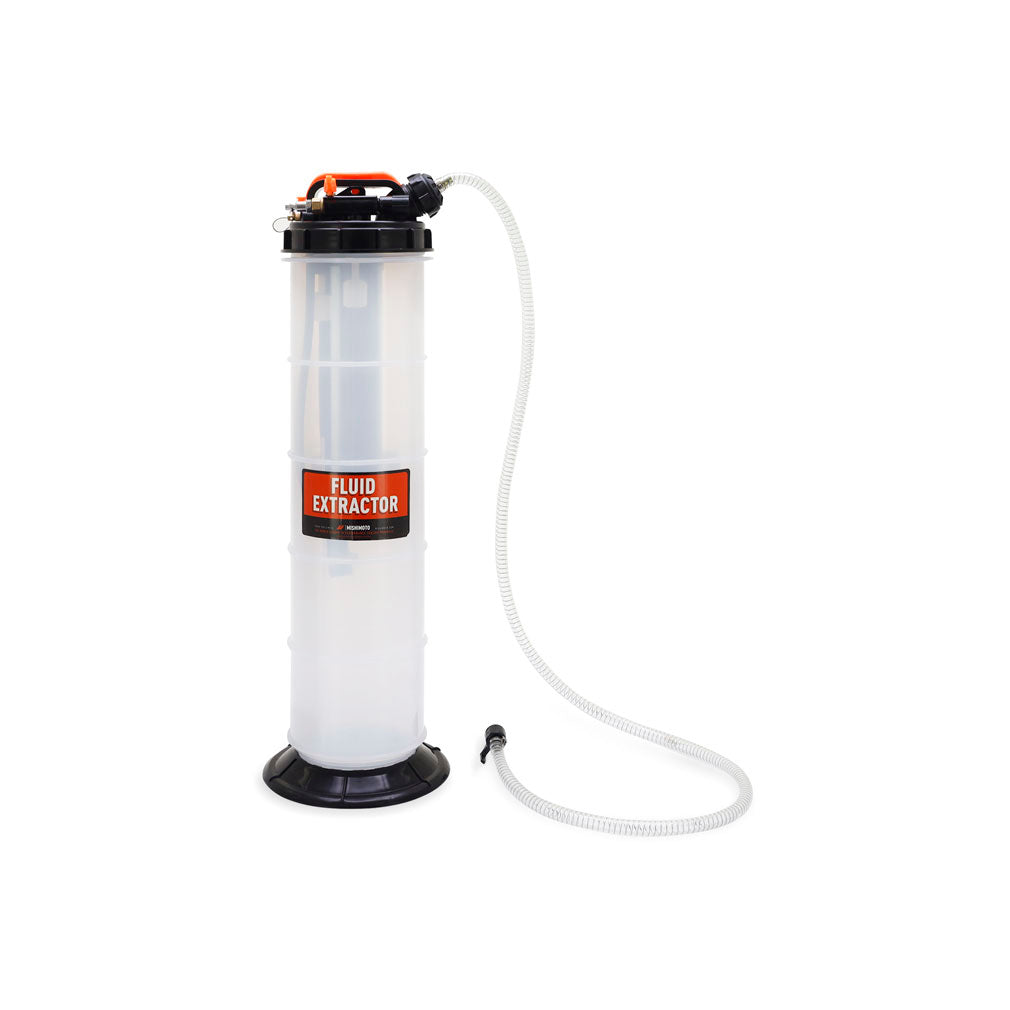

The Mishimoto line of fluid extractors saves you time and money on your vehicle’s maintenance. Fluid extractors are the mess and hassle-free way of changing common automotive fluids. You no longer have to lie on the ground or in your driveway, spilling dirty oil over yourself and your floor, contorting into awkward positions to reach that pesky drain plug. The Mishimoto fluid extractors offer two modes of operation: a pneumatic function that draws fluid into the unit by way of shop air and a manual mode for use when shop air is not accessible or convenient. Ranging in capacity from 5. 6 to 9. 5 liters, we offer a size for any job you have. Each kit comes with four draw straws ranging from 2 to 7mm in diameter and four feet long, enabling you to fit most dipstick tubes and small orifices. Additionally, an adapter for bleeder screws makes brake and clutch fluid services a breeze. Low-viscosity fluids such as engine oil, ATF, coolant, power steering, and brake fluid are easily managed with the extractor. When the job is done, the lid unscrews, making recycling your fluid seamless. All this, backed by our Mishimoto Lifetime Warranty, means years of trouble and spill-free service

Installation Notes: Manual and Pneumatic

• Extract common automotive fluids easily, mess-free

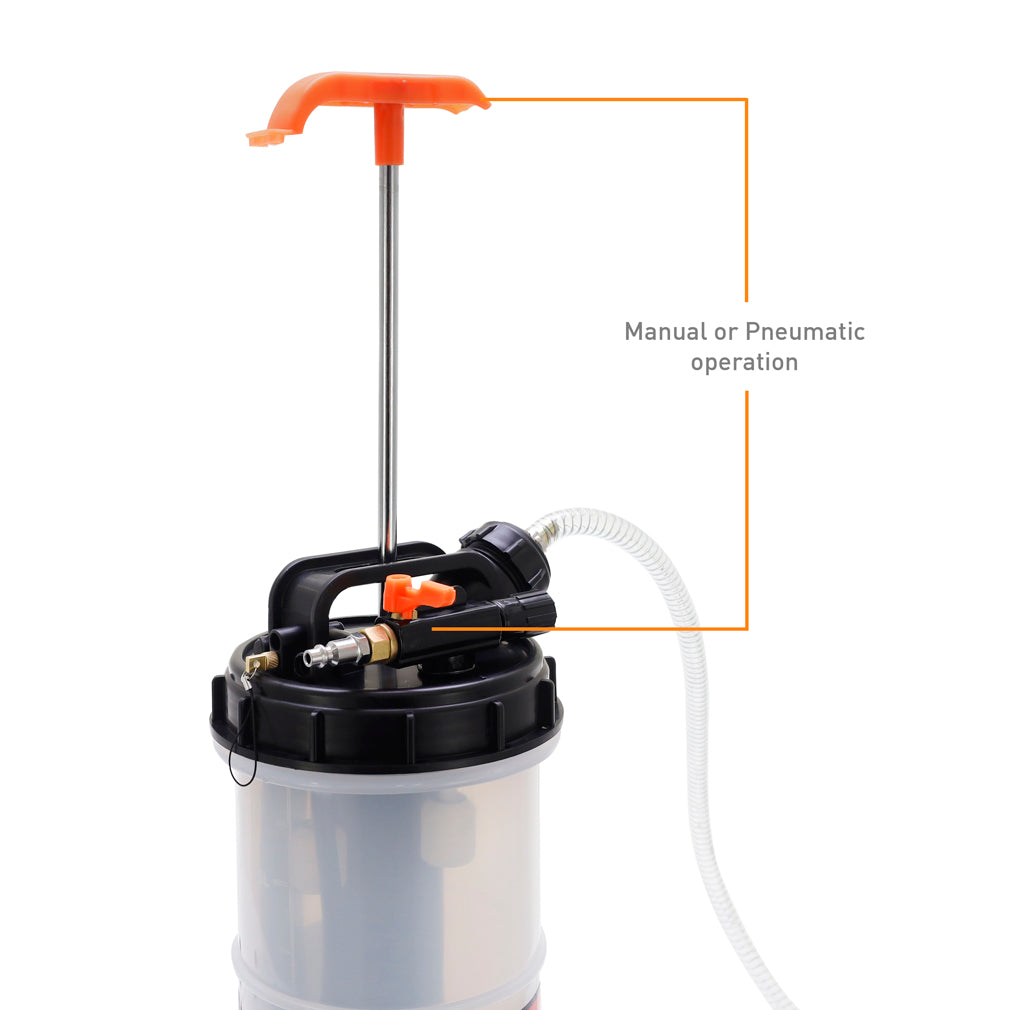

• Pneumatic and Manual options allow for extraction in and out of your shop or garage
• Robust construction stands up to the weekend warrior or professional technician
• Multiple adapters fit most applications

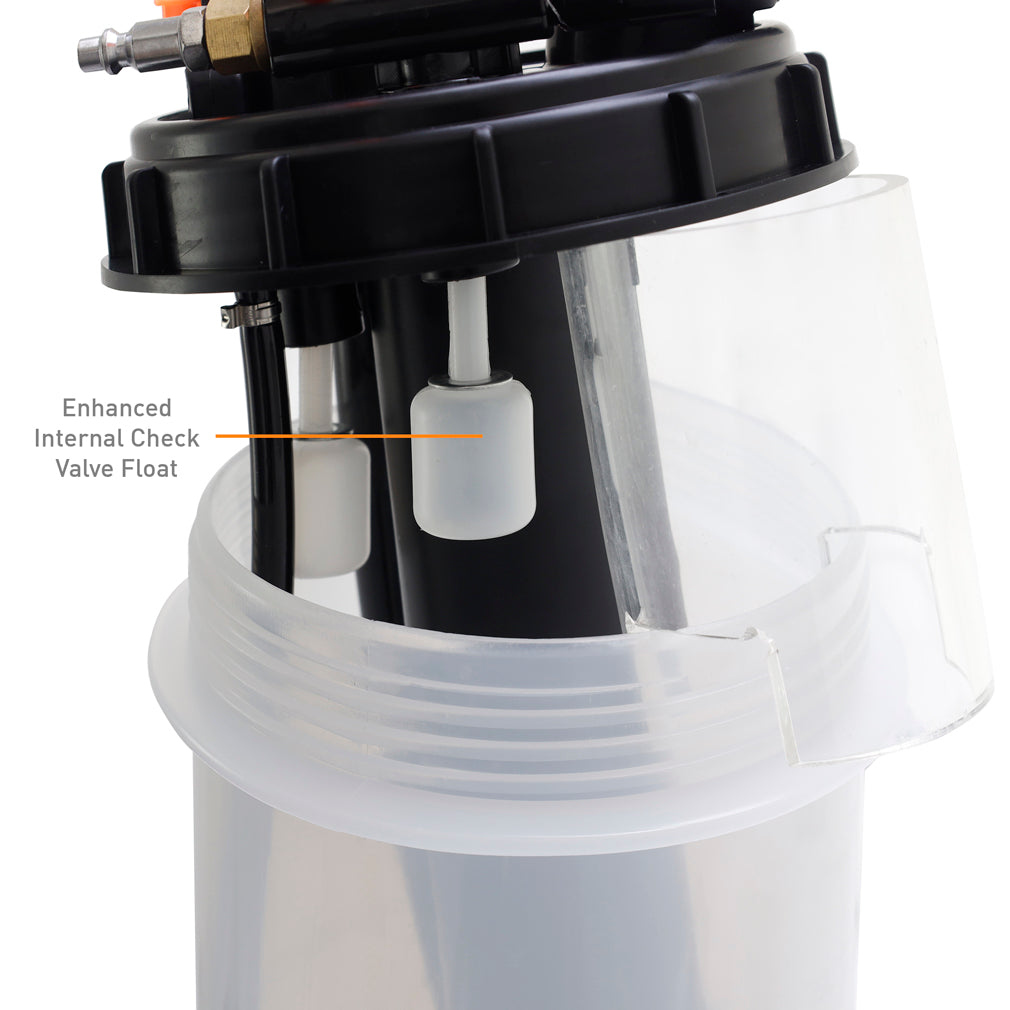

• Automatic shut-off float prevents overfilling the canister
• Removable lid makes recycling the extracted fluid a breeze
• Mishimoto Lifetime Warranty

• Material: Plastic
• Overall Height (in): 30in
• Diameter (in): Lid: 7.75, Body: 7.25in, Base: 8.63in
• Max Temperature (F): Do not extract fluids above 175F
• Fluid Capacity (gal): 2.5gal
• Weight (lbs): 14.64lbs
• Overall Length (in): 9in
• Overall Width (in): 9in
• Compatible Fluids: Engine Oil, ATF, Power Steering Fluid, Coolant, Brake Fluid

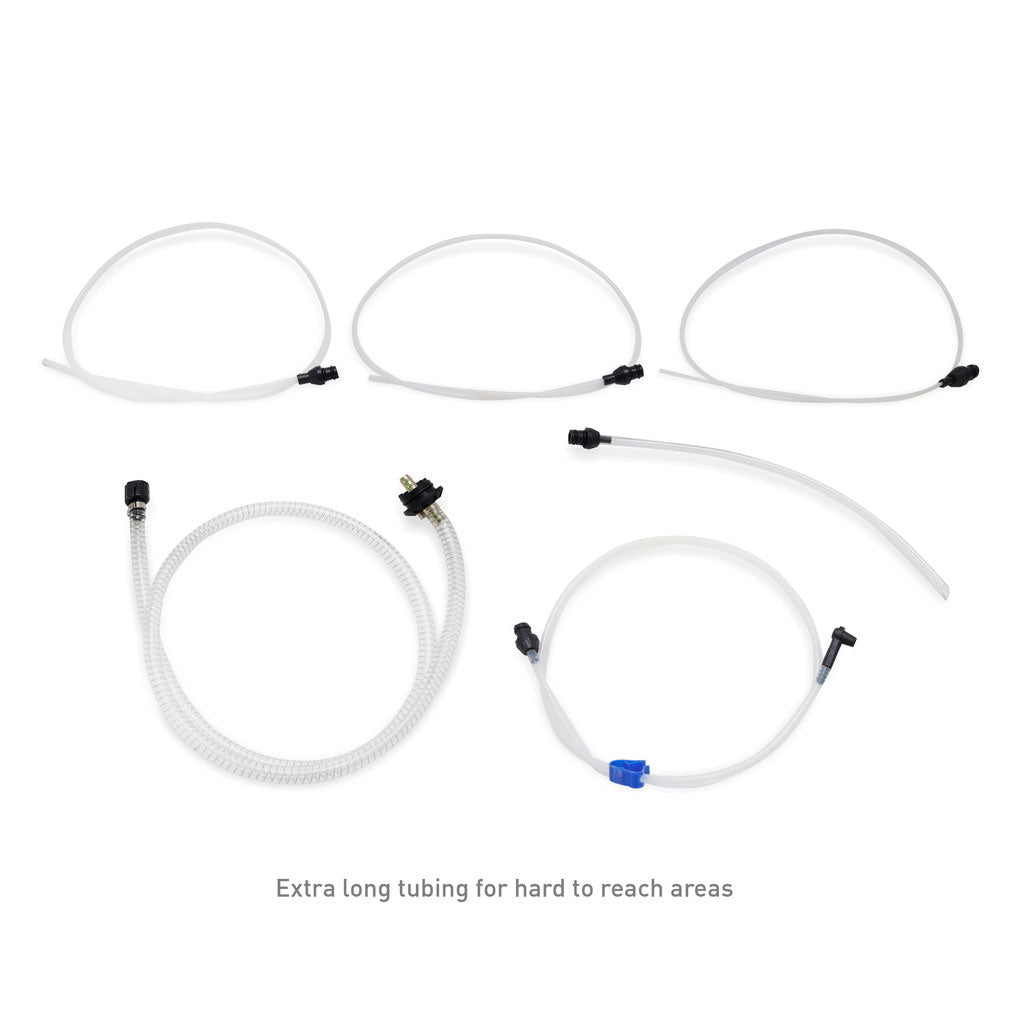

• Fluid Extractor
• Adapter Hose
• 2mm Straw
• 4mm Straw
• 6mm Straw
• 7mm Straw
• Bleeder Screw Adapter
• (1) Air Fitting
• Mishimoto Lifetime Warranty

• Installation Instructions
