 |  SKU: MMFAN-16HD

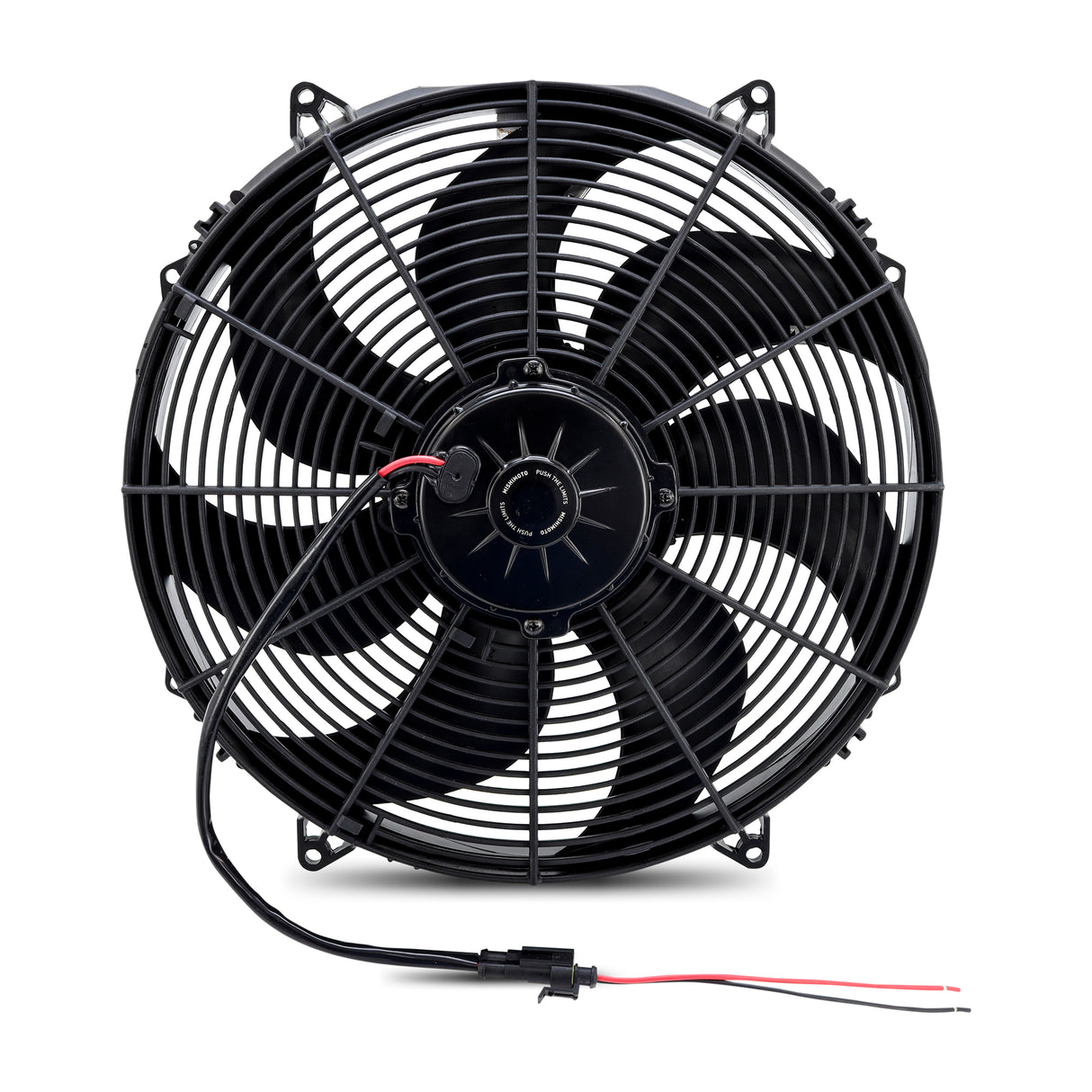

Mishimoto High-Flow Fan 16"

Universal
$459.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Provide your radiator with the maximum amount of airflow with our new 16in Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However, this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 2200 CFM of airflow to cool the largest and most powerful of engines! For universal installation, use the Mishimoto Electric Fan Mounting Kit.



Installation Notes: Mishimoto recommends the use of a fan shroud and additional hardware in addition to the included mounting kit for a secure installation.

  • Wiring Connection: Yazaki Tab Terminal
  • Install Difficulty: 3
    •

    Technical Specifications

    • CFM: 2200
    • Depth (in): 4.35
    • Diameter (in): 16
    • RPM: 2000
    • Amp Draw (Start): 22.1
    • Blade Style: Curved
    • Airflow Direction: Pull
    • Reversible?: TRUE
    • Amp Draw (Running): 18
    • Wiring Connection: Yazaki Tab Terminal
    • Install Difficulty: 3

    Included Components

    • (1) Mishimoto Fan
    • Mounting Kit:
    • (4) Heavy-Duty Plastic Fasteners
    • (8) Adhesive Foam Protective Pads
    • (4) Dampening Springs
    • (4) Fastener End Connectors
    • Mishimoto Lifetime Warranty
