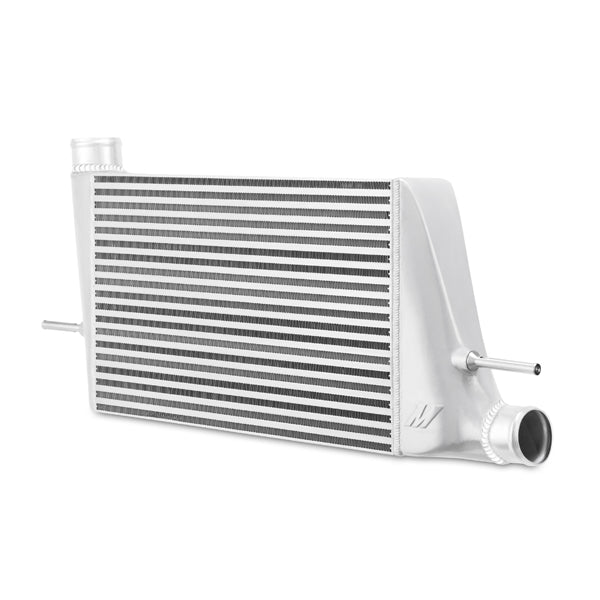

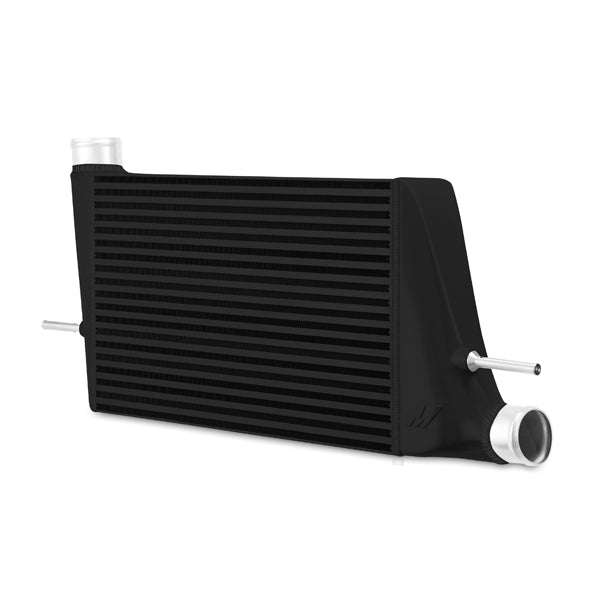

Mishimoto Intercooler Core

A high-horsepower Evo demands an intercooler that provides optimal airflow and a cool, dense charge of air. Modified vehicles running high-boost pressures often suffer from increased air intake temperatures (AITs) and heat soak, which can result in diminished performance. Keep your intake temperatures under control with the Mishimoto Lancer Evolution X Performance Intercooler. This intercooler is a direct bolt-on unit engineered specifically for the Evo X. Thanks to an efficient 3. 5-inch thick bar-and-plate core, this intercooler provides optimal heat dissipation and low AITs. The robust cast aluminum end tanks provide superior durability and smooth, uninterrupted airflow. The Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler provides a dyno-proven increase of 10 hp and 10 tq, and it will support modified vehicles up to 600 hp! This intercooler core is equipped with a strategic fin design that promotes substantial heat exchange while providing minimal pressure loss across the core. Whether you are making a pass at the drag strip or sliding around a rally stage, this intercooler will provide the cooling that your engine needs to perform at its best. This intercooler is available with a powder-coated finish in either silver or stealth black. As with all our products, this intercooler includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Note:

• This intercooler can be used with stock or aftermarket intercooler pipes. The CNC mounting pegs must be installed by the customer.
• Install Difficulty: 3

• Direct fit for the 2008-2015 Mitsubishi Lancer Evolution X
• 10 whp and 10 tq bolt-on power increase
• Efficient 3.5-in thick bar-and-plate core provides optimal heat dissipation and low AITs
• Full aluminum cast end tanks provide increased durability and smooth, uninterrupted airflow
• Strategically designed fins for minimal pressure loss
• Substantial core volume will support vehicles up to 600 whp
• Available with a powder-coated finish in Sleek Silver or Stealth Black
• Mishimoto Lifetime Warranty

• Engine Codes: 4B11T
• Chassis Codes: CZ4A
• Overall Length (in): 28.3
• Overall Height (in): 13.7
• Overall Width (in): 4.5
• Core Type: Bar-and-Plate
• Core Length (in): 19.5
• Core Height (in): 12
• Inlet (in): 2.375
• Outlet (in): 2.5
• Weight (lbs): 23
• Install Difficulty: 3

• (1) Mishimoto Intercooler
• CNC Mounting Pegs
• Mishimoto Lifetime Warranty
