Mishimoto Intercooler Core

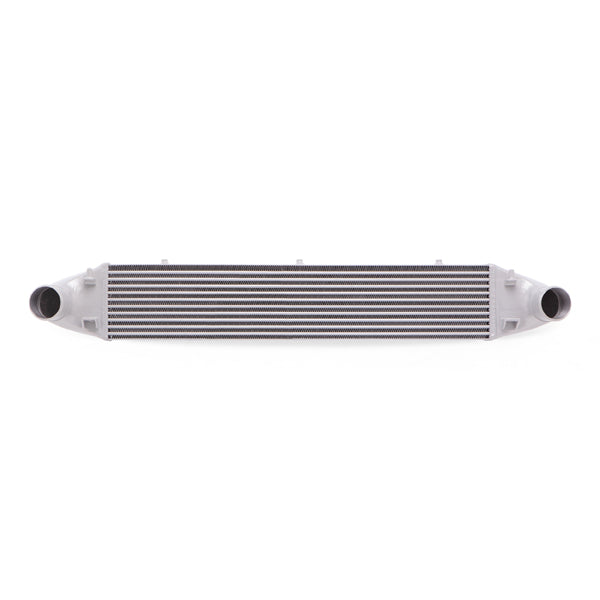

Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this 2014-2017 Fiesta ST intercooler, weighing the benefits and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51-percent larger than stock, and also provides a 25-percent increase in internal core volume. During testing, this 2014-2017 Fiesta ST intercooler dropped intake temperatures by a huge 26 F! This kit is designed to be a direct fit, and fits with the stock or Mishimoto 2014-2017 Fiesta ST Intercooler Pipes. Combine the two, and you'll have a complete high-performance charged air system. This Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The all-aluminum, TIG-welded construction is of the highest quality, and like all Mishimoto 2014-2017 Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!

Note:

• This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.

  Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.

• Install Difficulty: 3

• Direct-fit for the 2014-2019 Ford Fiesta ST
• 26F (15C) reduction in AIT
• 51-percent increase in core size
• 25-percent increase in internal core volume and 226-percent increase in external fin surface area

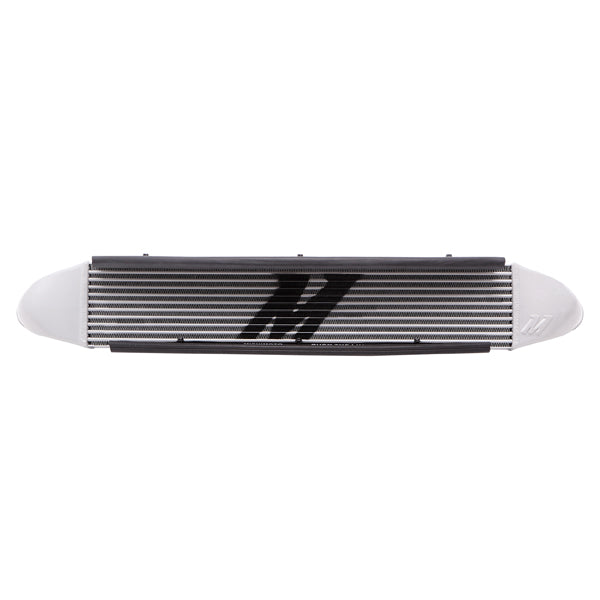

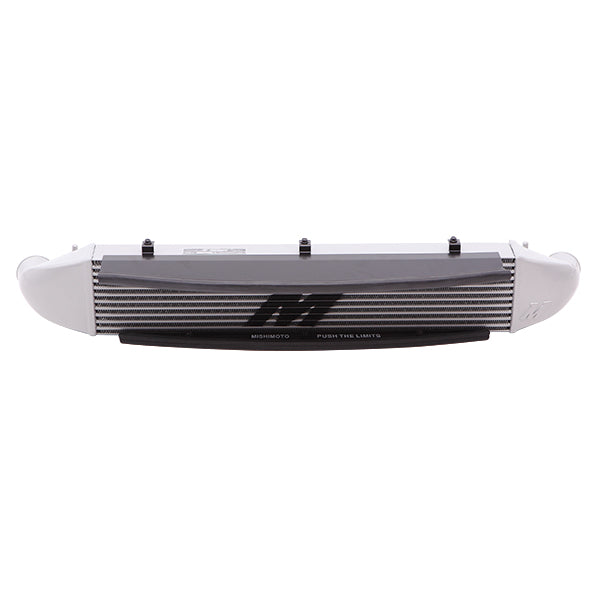

• Includes air diversion plates to direct air through the intercooler core for maximum efficiency
• Stock location prevents airflow blockage to radiator and AC condenser
• Tube and fin construction for added weight reduction over bar and plate cores

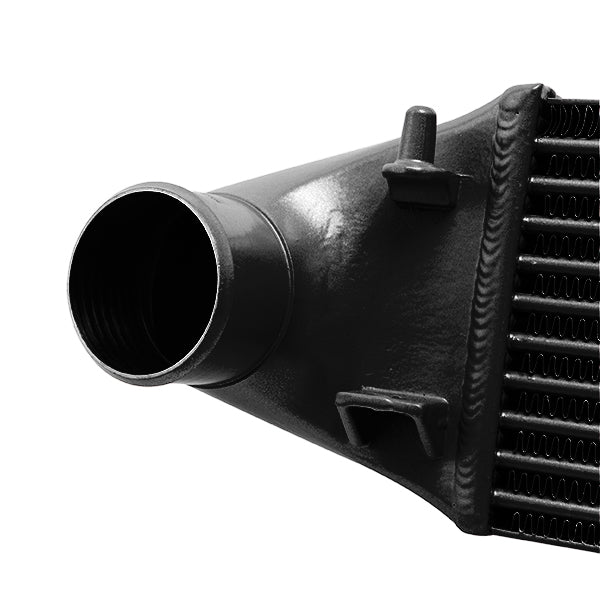

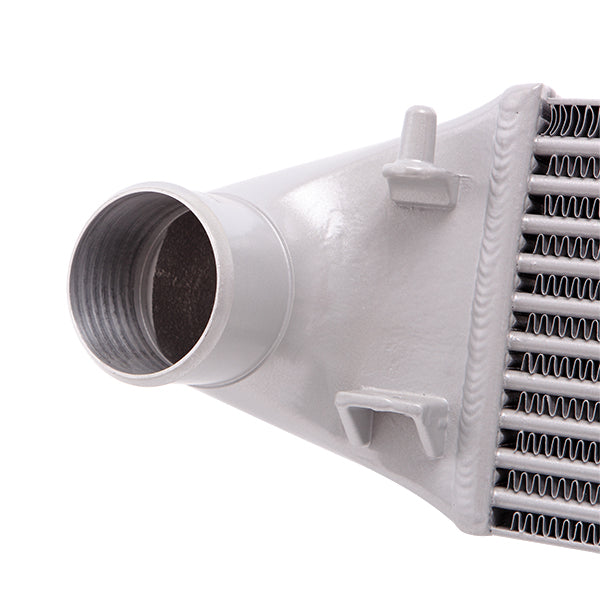

• All-aluminum, TIG-welded

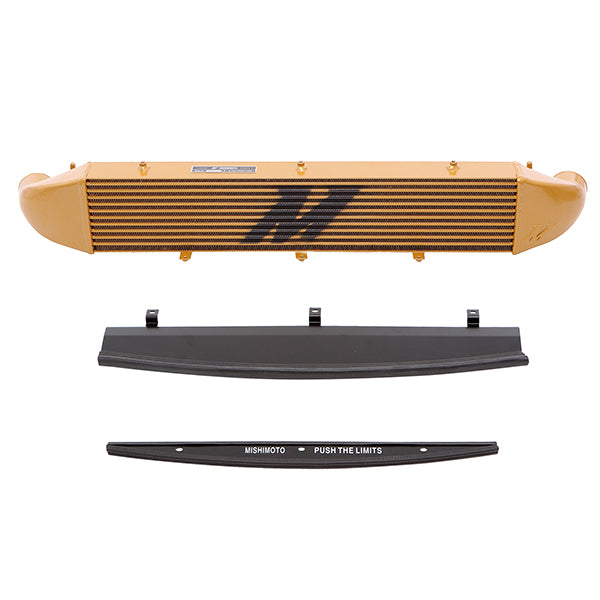

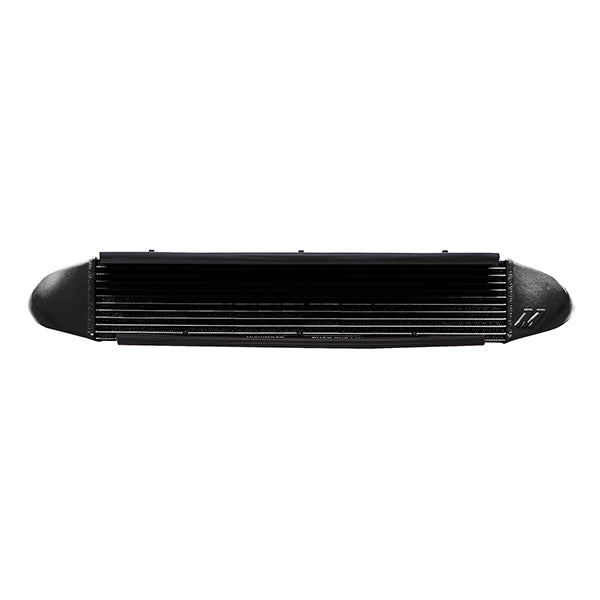

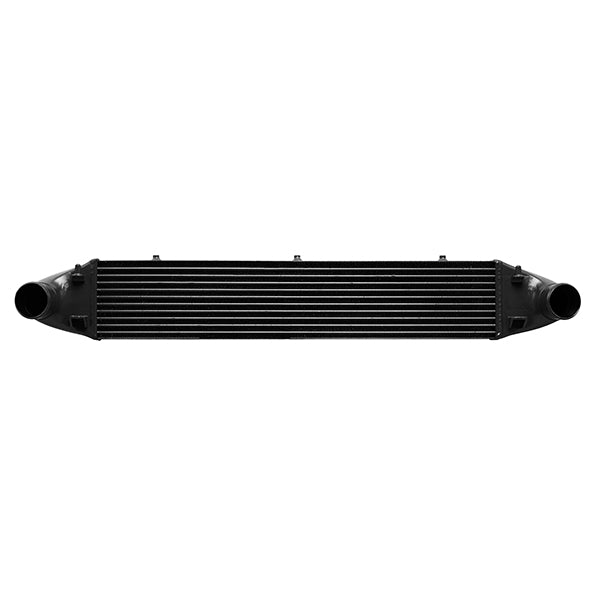

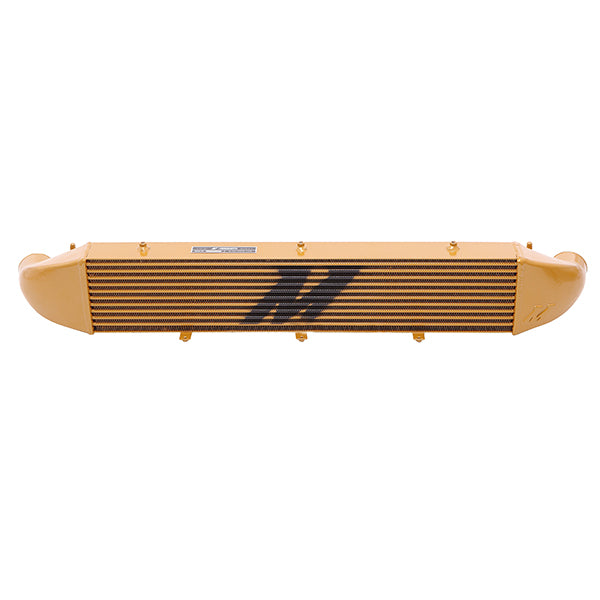

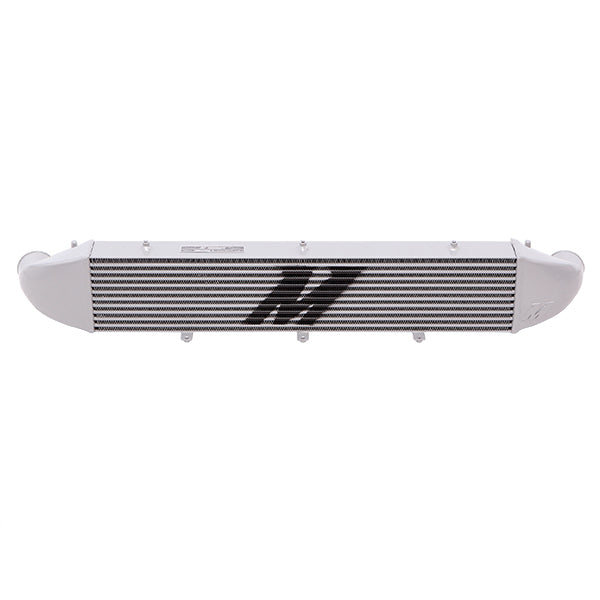

• Available in Sleek Silver or Stealth Black or Bold Gold
• Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
• Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
• Mishimoto Lifetime Warranty

• Engine Codes: 1.6L Ecoboost
• Chassis Codes: B3
• Max Recommended Boost Pressure (PSI): 40
• Max Recommended Horsepower: 325
• Overall Length (in): 40.1
• Overall Height (in): 6.36
• Overall Width (in): 6.15
• Core Type: Tube-and-Fin
• Core Thickness (in): 2.59
• Core Length (in): 28.8
• Core Height (in): 6.35
• Inlet (in): 2.55
• Outlet (in): 2.55
• Weight (lbs): 13.4
• Install Difficulty: 3

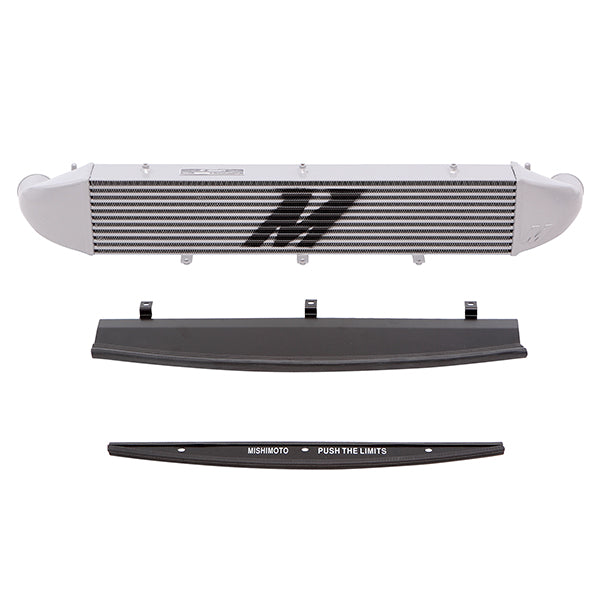

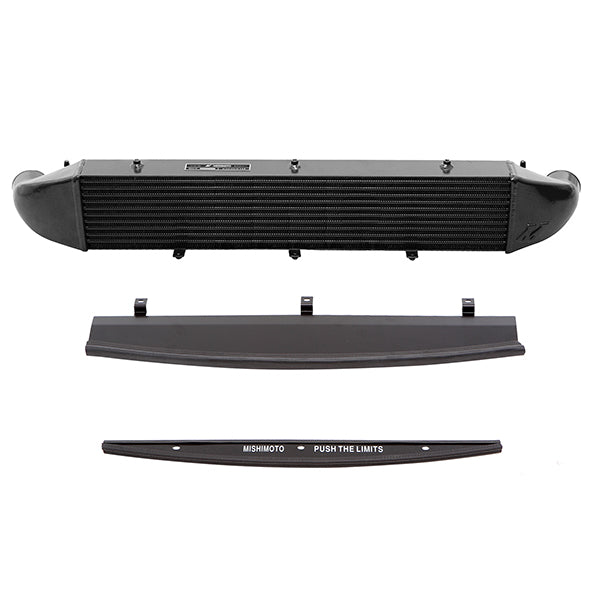

• (1) Mishimoto Intercooler
• (1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal
• (1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal
• Mishimoto Lifetime Warranty
