 |  SKU: MMINT-RGR-11KBKBK

Mishimoto Intercooler Kit

Ford Ranger 3.2L Diesel 11-21
$2,279.95
Core Finish
Piping Finish
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The 2011+ Ford Ranger 3. 2L diesel is one of the most capable small trucks on the planet and it deserves a cooling system that's equally capable. That's why Mishimoto has developed a performance intercooler kit that's as capable as the Ranger itself.



Note:

  • Trimming of the intercooler shrouding is required to fit this intercooler
  • Installation Notes: 11 lb-ft (15NM) recommended for all constant-tension worm gear clamps. These clamps have an operating range of 11-14 lb-ft (15-20NM). Do not exceed the maximum torque rating of 14 lb-ft (20NM)
  • Install Difficulty: 3

Technical Specifications

  • Engine Codes: 3.2L Duratorq
  • Core Type: Bar-and-Plate
  • Core Thickness (in): 3
  • Core Length (in): 27.56
  • Core Height (in): 9.84
  • Inlet (in): 2.09
  • Outlet (in): 2.09
  • Install Difficulty: 3

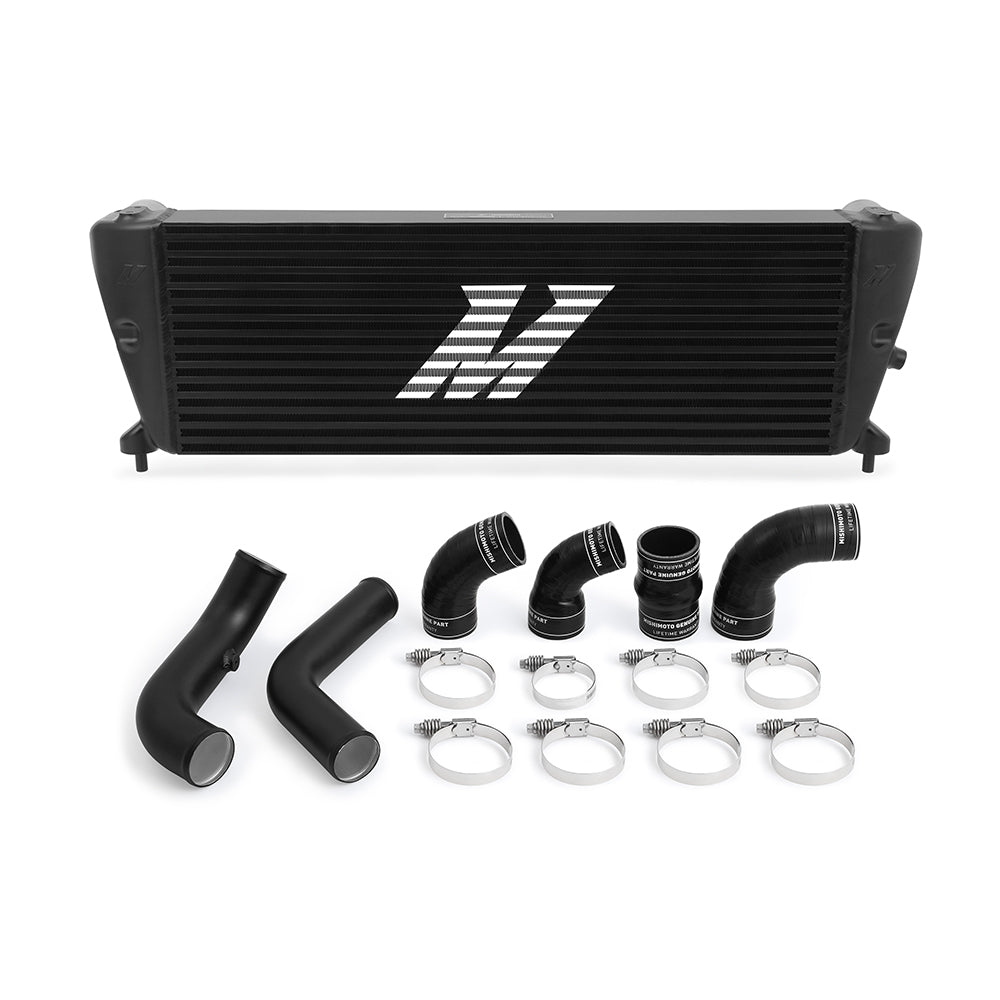

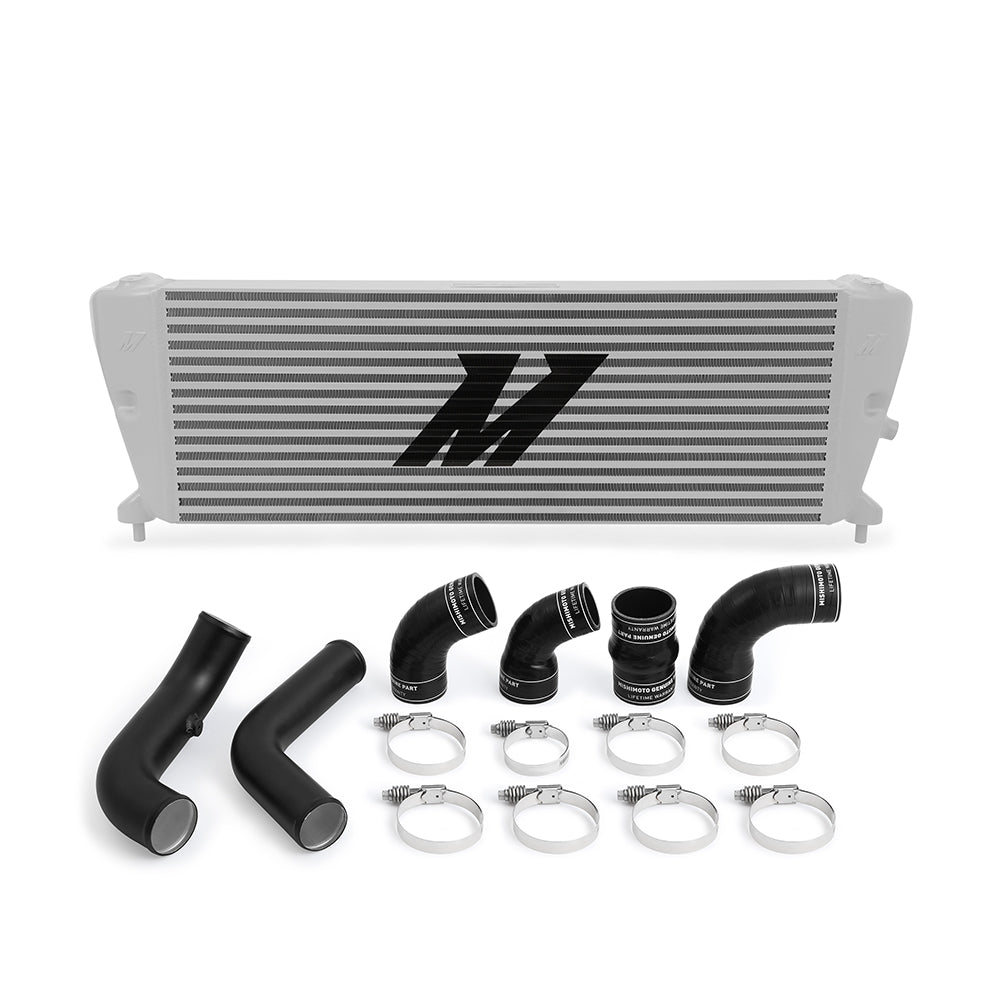

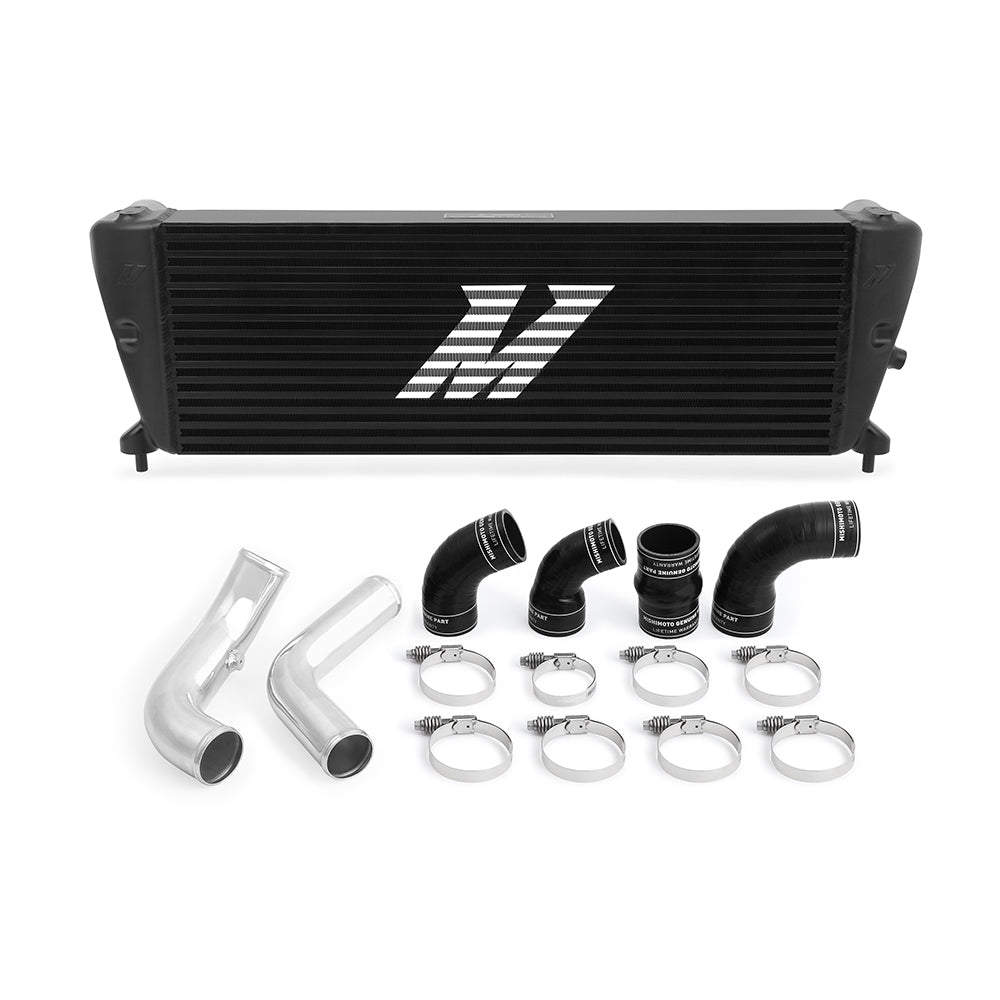

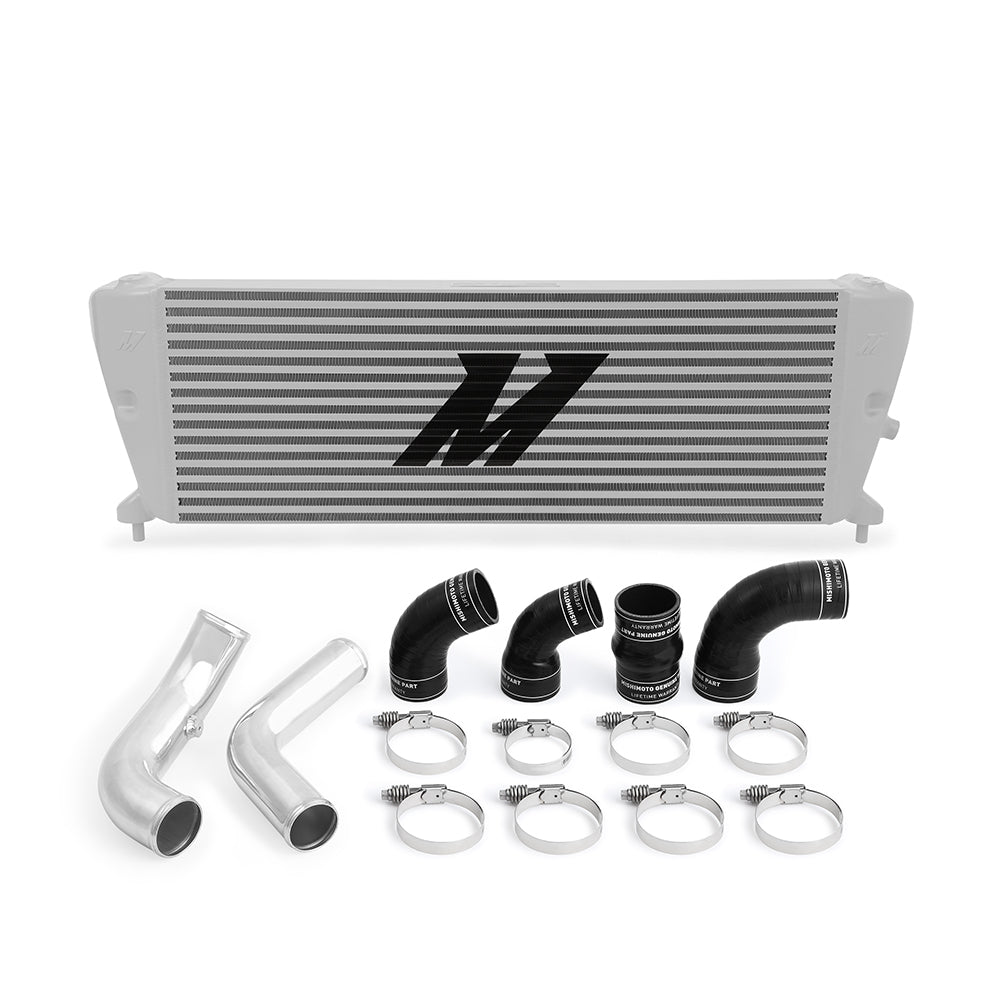

Included Components

  • (1) Mishimoto Performance Bar-and-Plate Intercooler
  • (1) Hot-Side Intercooler Pipe
  • (1) Cold-Side Intercooler Pipe
  • (2) DuraCore Hot-Side Couplers
  • (1) DuraCore Cold-Side Coupler
  • (8) Constant-Tension Worm Gear Clamps
  • (4) Mounting Brackets
  • Mounting Hardware
  • Mishimoto Lifetime Warranty

Fitment Table
