 |  SKU: MMOC-WRX-01

Mishimoto Oil Cooler Kit

Subaru WRX/STI 01-05
$989.95
Colour: Silver
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

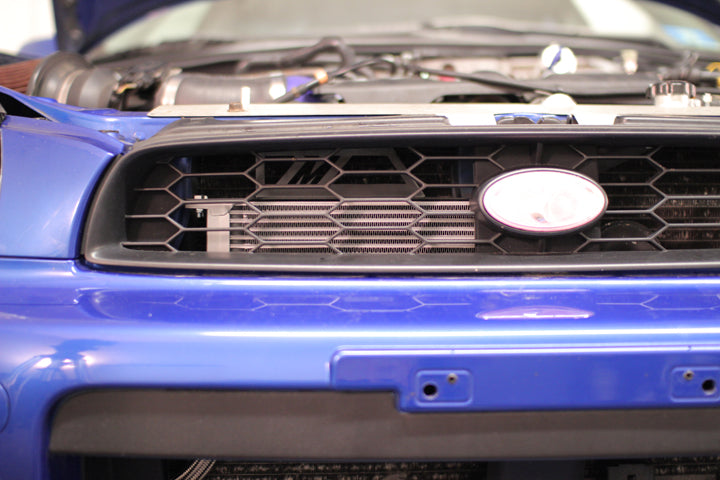

Mishimoto proudly announces the all-new 2001-05 Subaru WRX/STi Oil Cooler KIt'specially designed for your Subaru WRX and STi, the Mishimoto oil cooler is a direct fit and can be installed in just two hours! Mounted in the front grille for optimal airflow, the Mishimoto Subaru WRX/STi oil cooler kit drops temperatures over 20 degrees. You can be sure that this kit is perfect for keeping your Subaru WRX or STi cool under any driving conditions. The Mishimoto 2001-2005 Subaru WRX/STi Oil Cooler Kit comes with a Lifetime Warranty, so you know quality is guaranteed! Available with either silver or a stealth black cooler this kit is perfect for your street or track Subaru!



Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb

  • Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
  • Note:
    • Requires trimming of exhaust heat shield for proper installation. Will not fit on vehicles equipped with front mount intercoolers. Fits automatic and manual applications.
    • Install Difficulty: 3
    •

    Features and Benefits

    • Provides Dramatic Temperature Drop
    • 2 psi pressure loss
    • Direct fit for the Subaru WRX/STI 2001-2005
    • Thermostatic option available

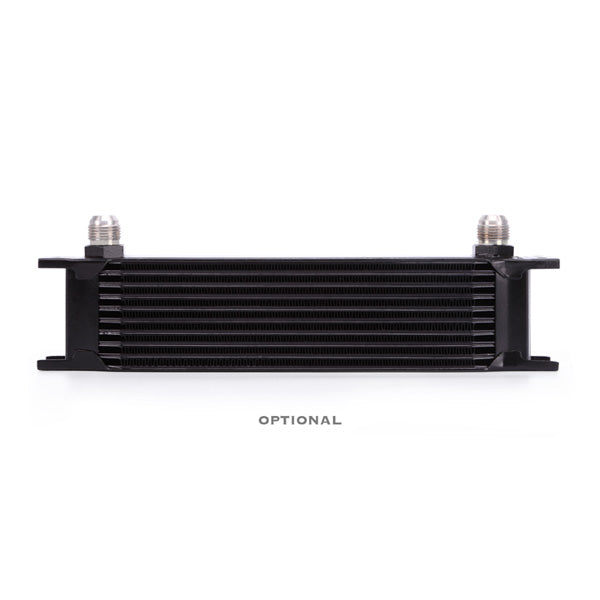

    • Stealth black and sleek silver cooler options
    • Lifetime Warranty

    Technical Specifications

    • Rows: 10
    • Core Length (in): 11
    • Core Height (in): 2.76
    • Core Thickness (in): 1.97
    • Engine Codes: EJ205, EJ255
    • Chassis Codes: GD
    • Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
    • Install Difficulty: 3

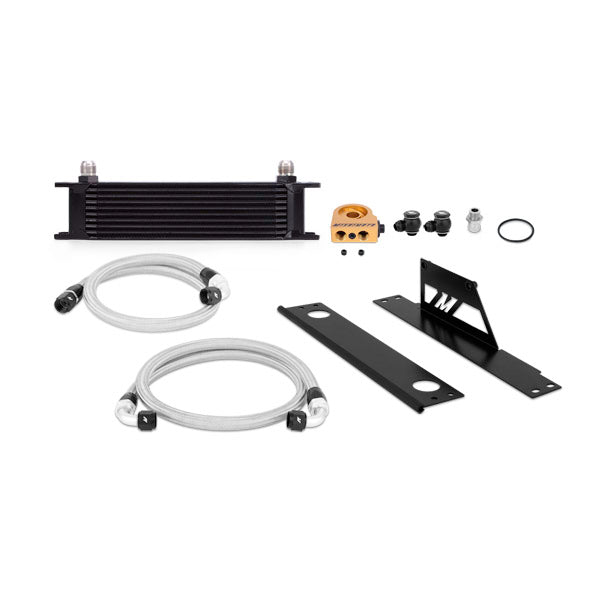

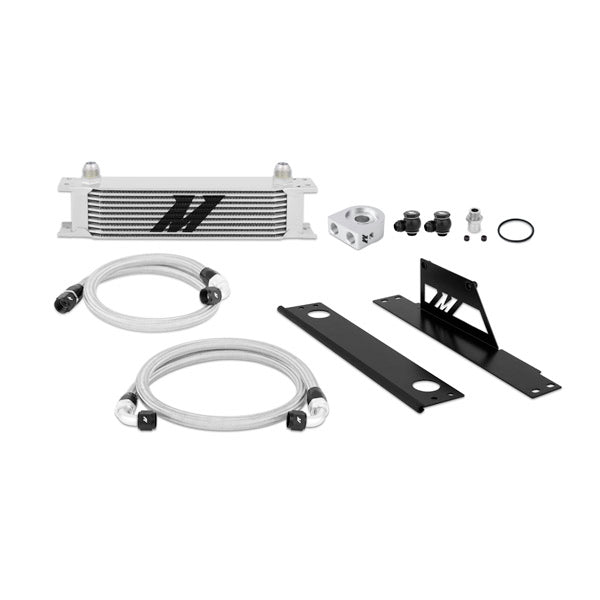

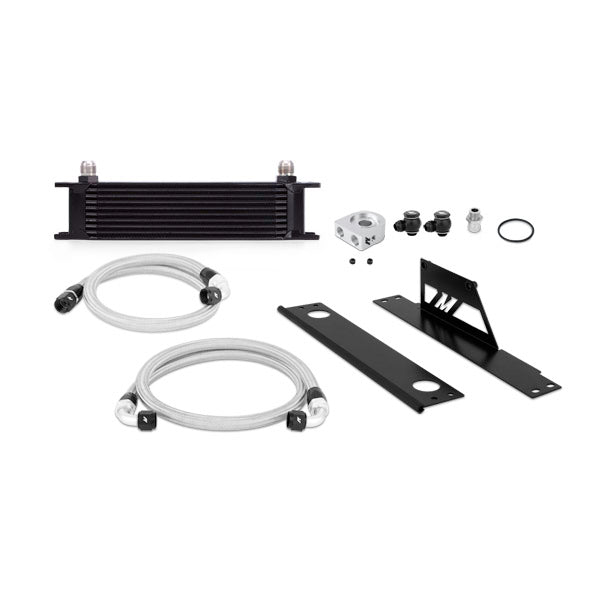

    Included Components

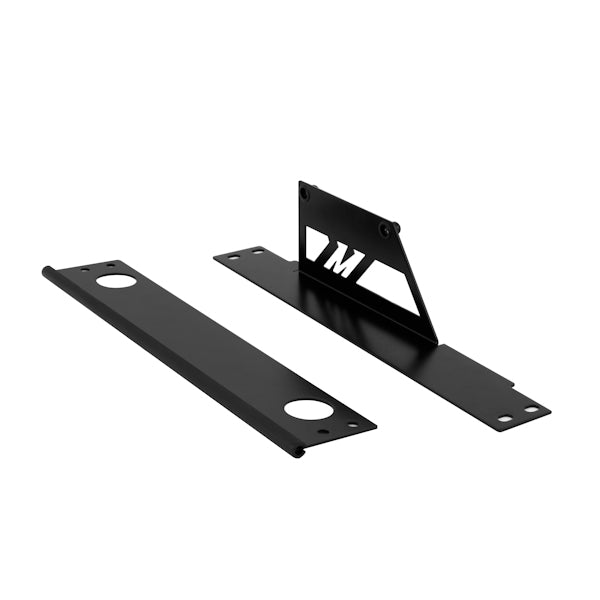

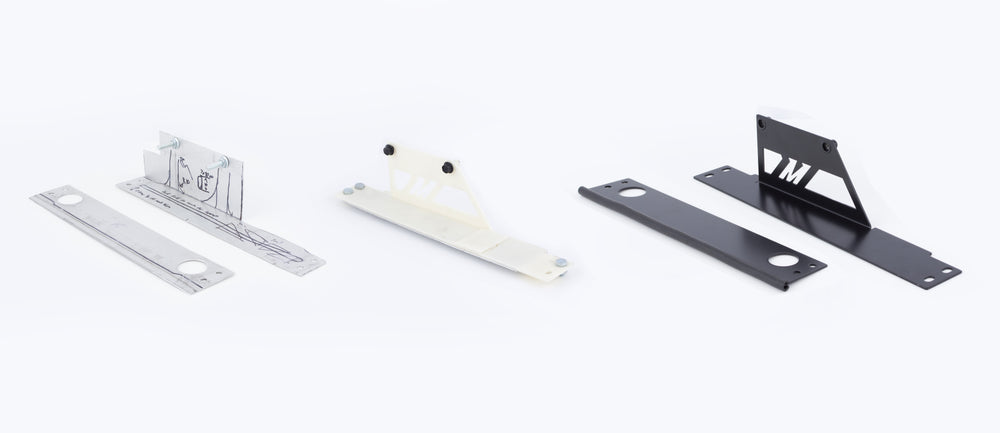

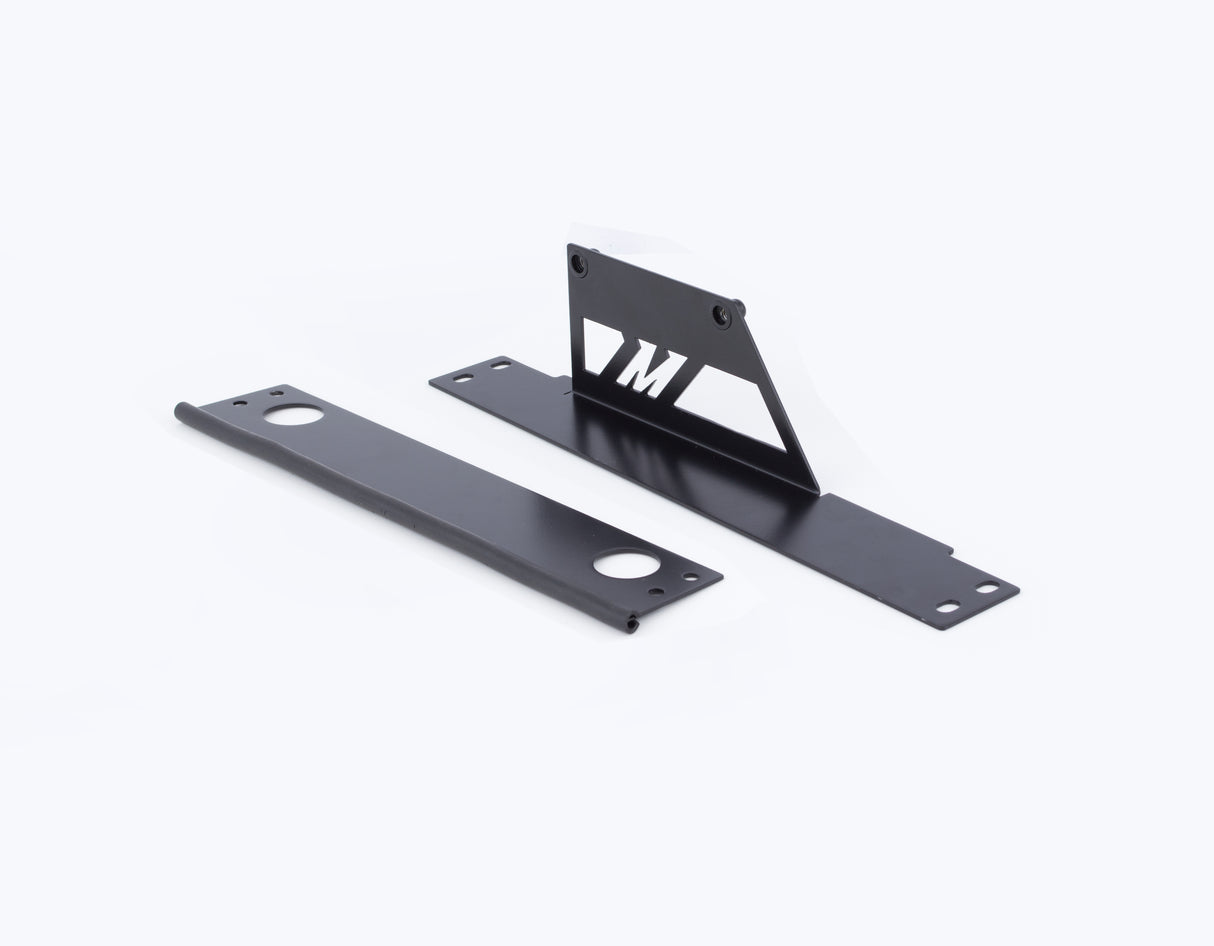

    • Application-Specific Mounting Brackets
    • 10-Row Oil Cooler
    • 3-ft Stainless Steel Braided Hose w/ -10AN Fittings
    • 4-ft 4-in Stainless Steel Braided Hose w/ -10AN Fittings

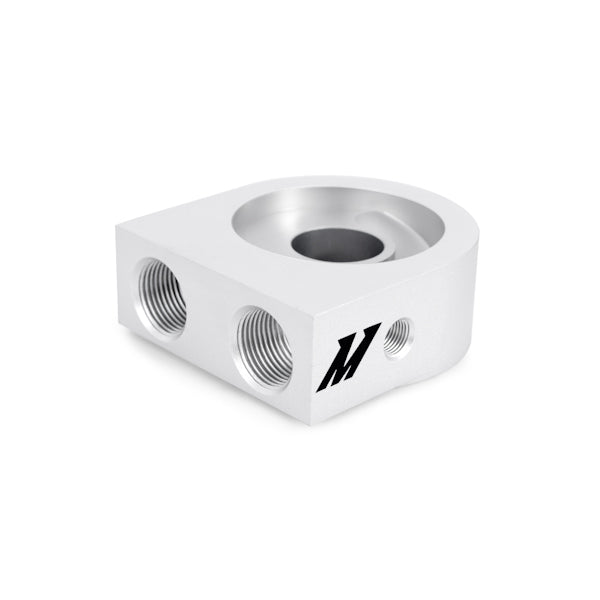

    • Oil Sandwich Plate
    • Stainless Steel Sandwich Plate Adapter, M20
    • Banjo Fitting w/ Bolt M20 x -10AN, Black
    • Black Rubber Seal
    • Mounting Hardware Set
    • Mishimoto Lifetime Warranty

    Fitment Table
