 |  SKU: MMOC-WRX-06

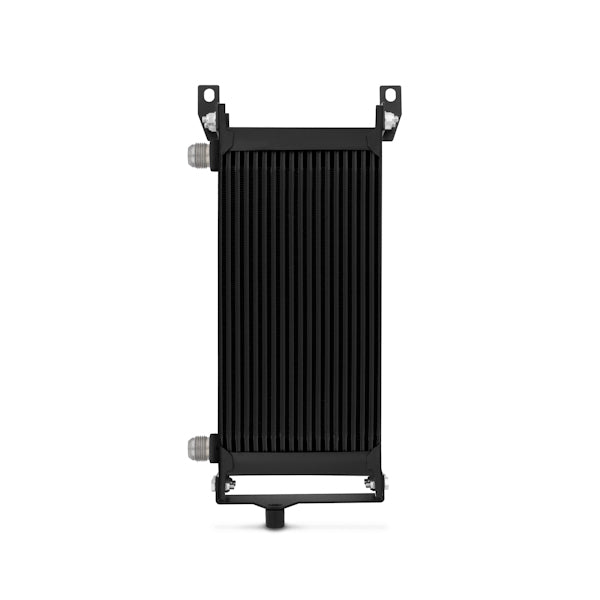

Mishimoto Oil Cooler Kit

Subaru WRX/STI 06-07
$1,059.95
Colour: Silver
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Keep your Hawkeye cool on the street or track with the all-new Mishimoto direct-fit oil cooler kit. A high horsepower Subaru needs a reliable and efficient means of reducing and maintaining proper oil temperatures. High engine temperatures can result in rapid oil degradation and potential engine damage. The Mishimoto oil cooler kit features a large 19-row oil cooler mounted behind the front bumper and grill for optimum airflow and cooling efficiency. This oil cooler kit adds . 65 qt to the total oil capacity and substantially reduces temperatures with minimal pressure loss. The Mishimoto direct-fit oil cooler kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of a stealth black or silver cooler. As with all our products, this kit includes the Mishimoto lifetime warranty.

Ā

Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb

  • Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
  • Note:
    • Will not fit on vehicles equipped with front mount intercoolers.

      Fits automatic and manual applications.

      Please inspect oil filter housing for installation compatibility. Fitment confirmed with Subaru part 21311AA051

    • Install Difficulty: 3
    •

    Features and Benefits

    • 50 F (34 C) temperature drop
    • Minimal pressure loss
    • Direct fit for the WRX
    • CNC-machined spacer for easy install without heat shield removal
    • Stealth Black and Sleek
    • Silver cooler options
    • Thermostatic option available
    • Mishimoto Lifetime Warranty

    Technical Specifications

    • Rows: 19
    • Core Length (in): 11
    • Core Height (in): 5.43
    • Core Thickness (in): 1.97
    • Engine Codes: EJ255, EJ257
    • Chassis Codes: GD
    • Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
    • Install Difficulty: 3

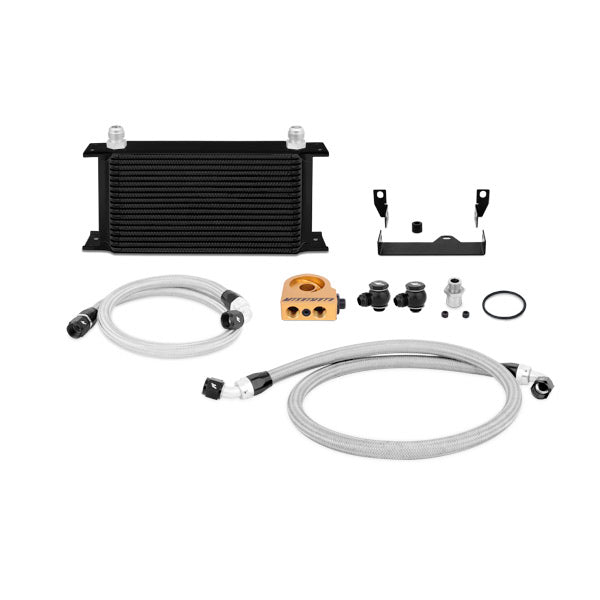

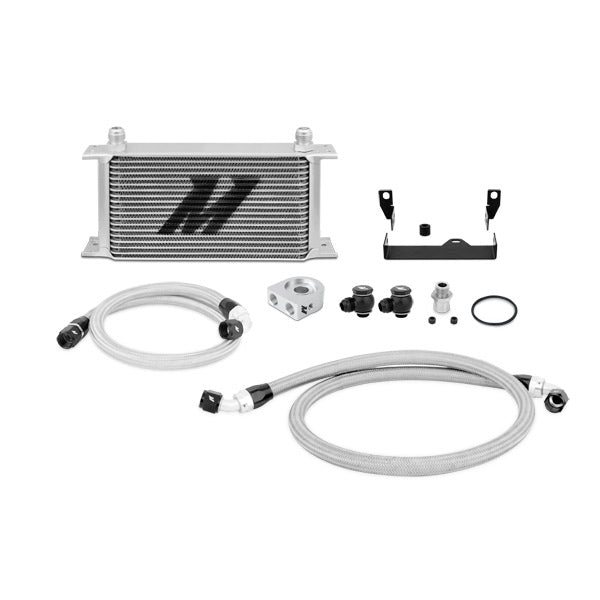

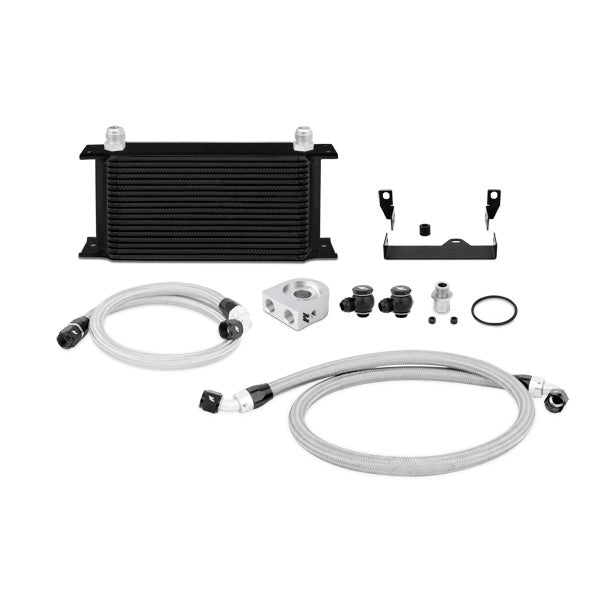

    Included Components

    • Application Specific Mounting Brackets
    • 19-Row Oil Cooler
    • 2ft 2in Stainless Steel Braided Hose w/ -10AN Fittings
    • 2ft 8in Stainless Steel Braided Hose w/ -10AN Fittings
    • Oil Sandwich Plate
    • Stainless Steel Sandwich Plate Adapter, M20
    • Banjo Fitting w/ Bolt M20 x -10AN, Black
    • 2ƍ Thermashield Silver Braided Line Protector
    • Black Rubber Protector Square
    • Mounting Hardware Set
    • Mishimoto Lifetime Warranty

    Fitment Table
