 |  SKU: MMBCC-PPTWO

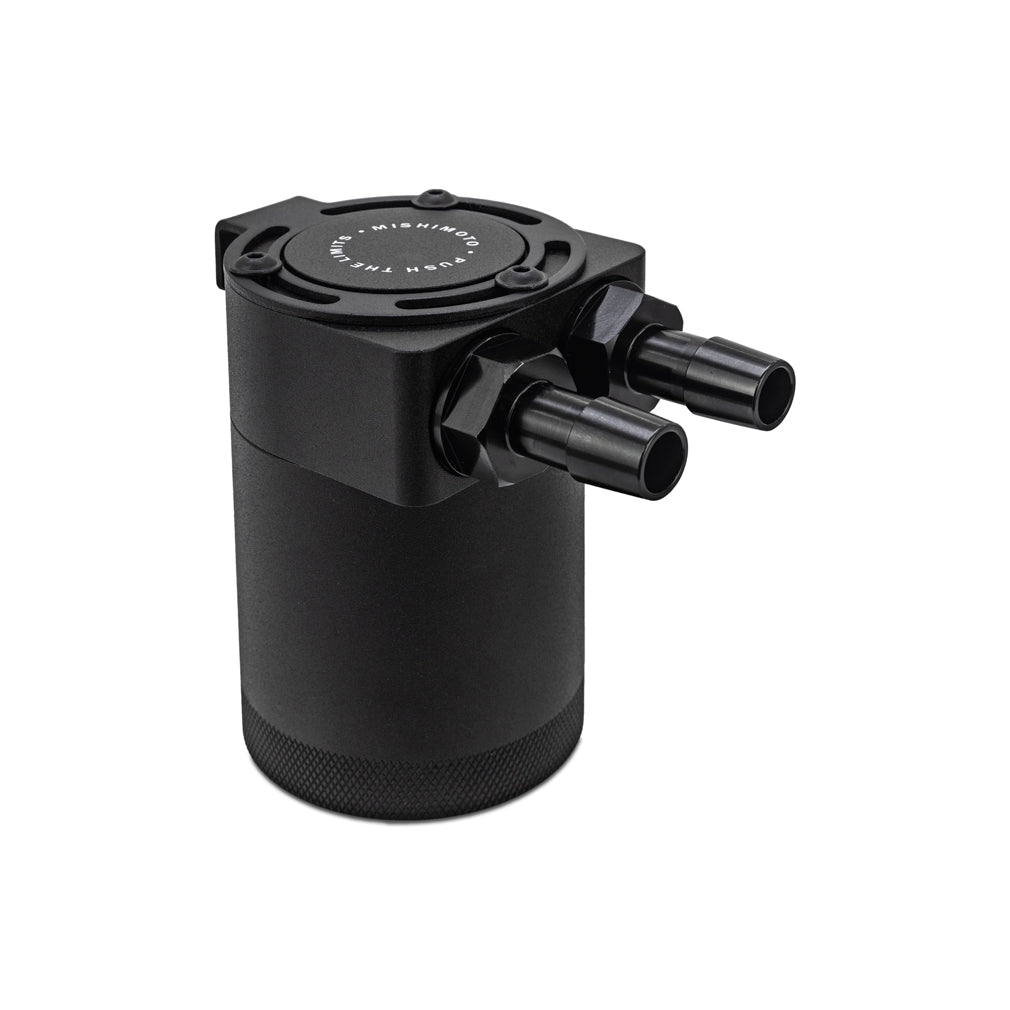

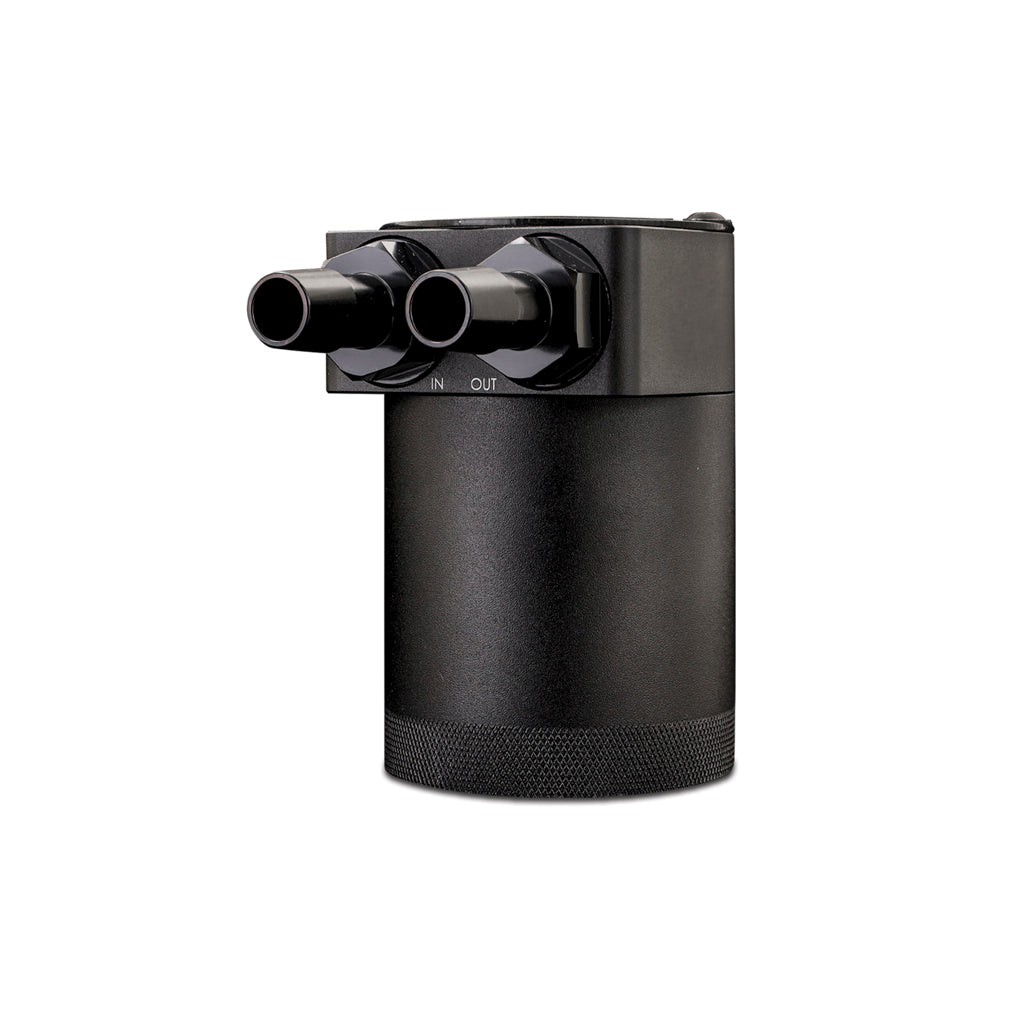

Mishimoto Parallel Port Universal Baffled Oil Catch Can

Universal
$399.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Keep your crankcase free of harmful oil, fuel, and water vapors with the Mishimoto Universal High-Flow Baffled Catch Can Kit. Compatible with a wide range of makes and models, this kit includes a powder coated universal bracket that lets you mount it in the most convenient and secure location. The fully-serviceable design features a detachable bottom for quick and easy maintenance, while the removable 50-micron bronze filter improves oil separation to keep your engine breathing right. The inlet and outlet ports accept multiple fitting sizes to accommodate a variety of hose sizing, and the all-aluminum billet barbed fittings ensure easy, secure hose installation. M20 ORB threading provides a tight, pressure-resistant seal to prevent leakage—even in demanding conditions.



Note:

  • Threads for O-Ring Faced Fittings are M20 x 1. 5
  • Install Difficulty: 2

Features and Benefits

  • Universal design works with various makes and models
  • 50-micron bronze filter for improved oil separation

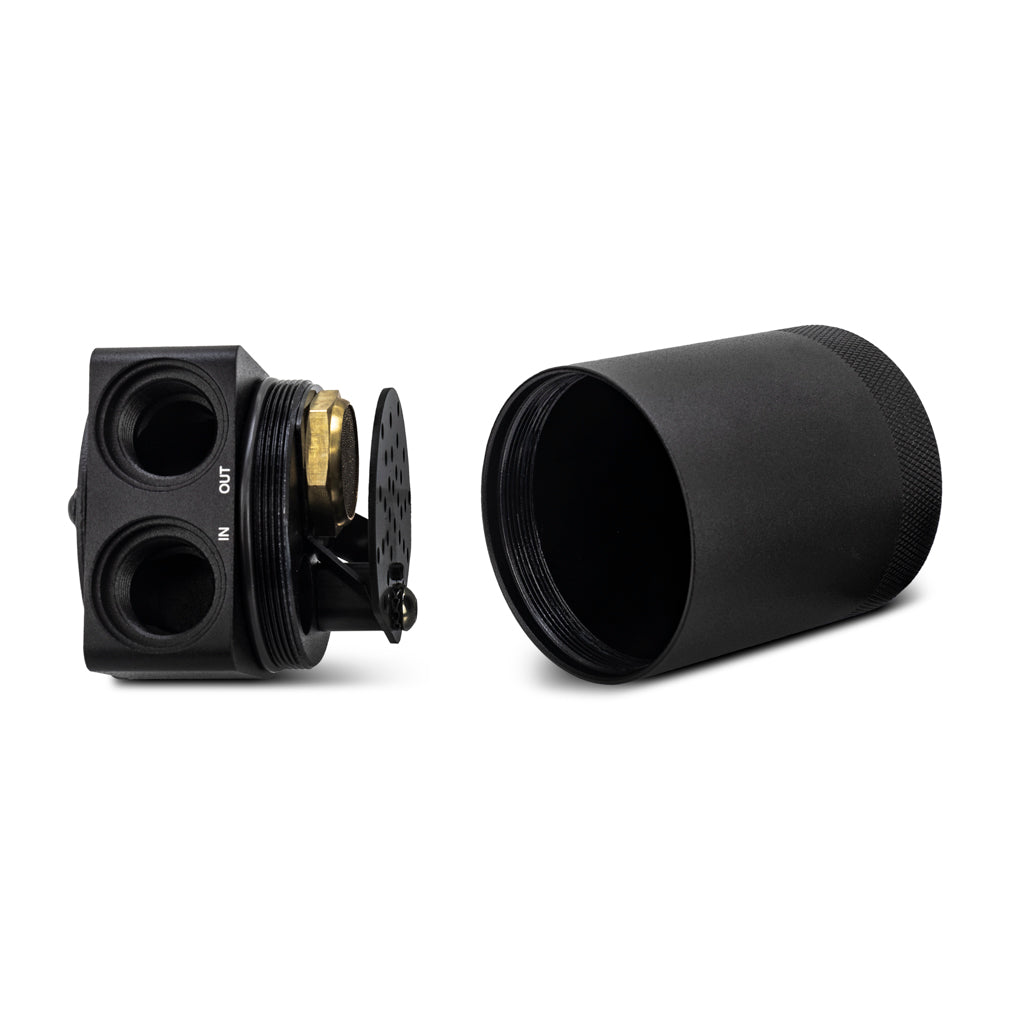

  • Fully serviceable can with detachable bottom

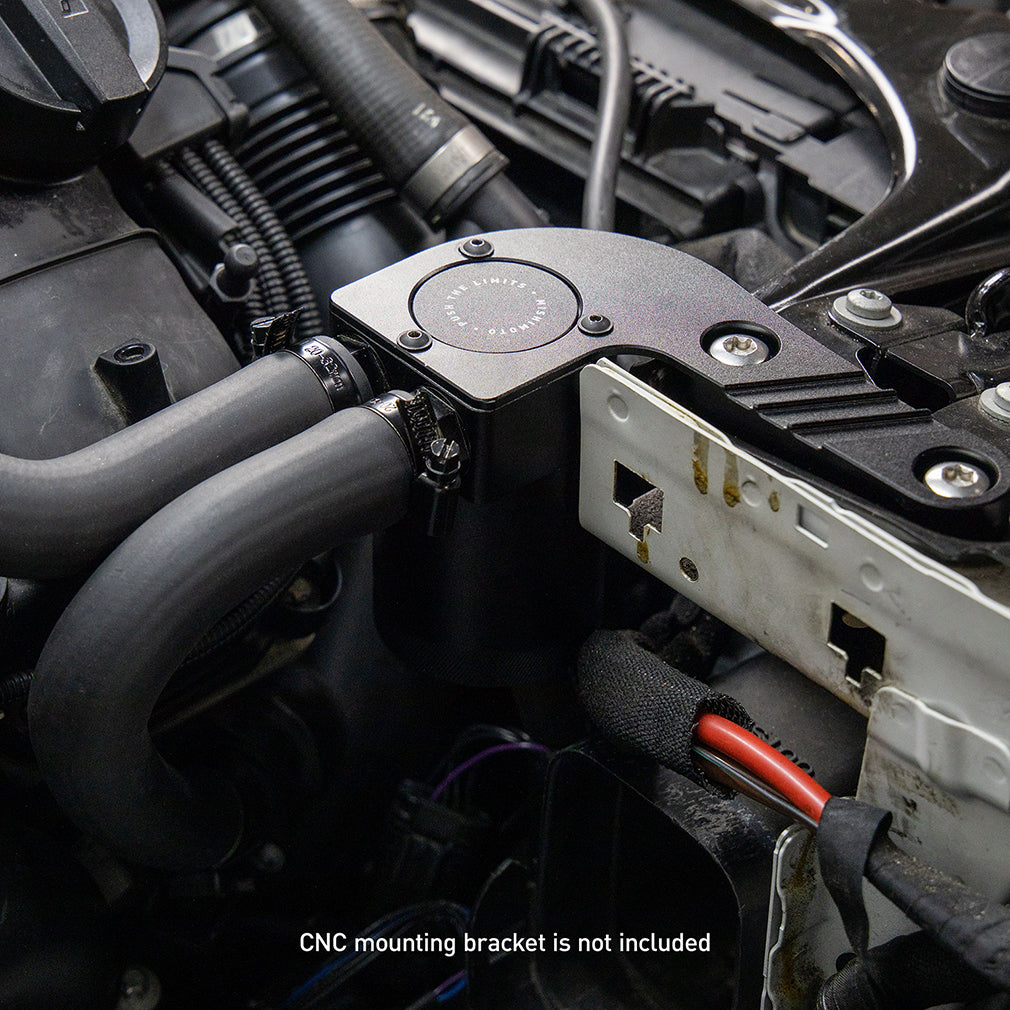

  • Universal bracket lets you mount the catch can in the most convenient and secure location
  • All-aluminum billet barbed fittings for easy and secure hose installation
  • Inlet and outlet ports accept multiple sizes of barbed fittings for varied hose sizing
  • M20 ORB threading offers tight and pressure-resistant seal to prevent leakage
  • Optional Petcock Drain Kit allows one-turn drainage of all blow-by contents
  • US Patent # D966,372 S
  • Mishimoto Lifetime Warranty

Technical Specifications

  • Height (in): 3.9
  • Catch Can Diameter (in): 2.5
  • Inlet: 0.5
  • Outlet: 0.5
  • Drain Plug Thread Size: 3/8"-18 NPT
  • Material: 6061 Aluminum
  • Install Difficulty: 2

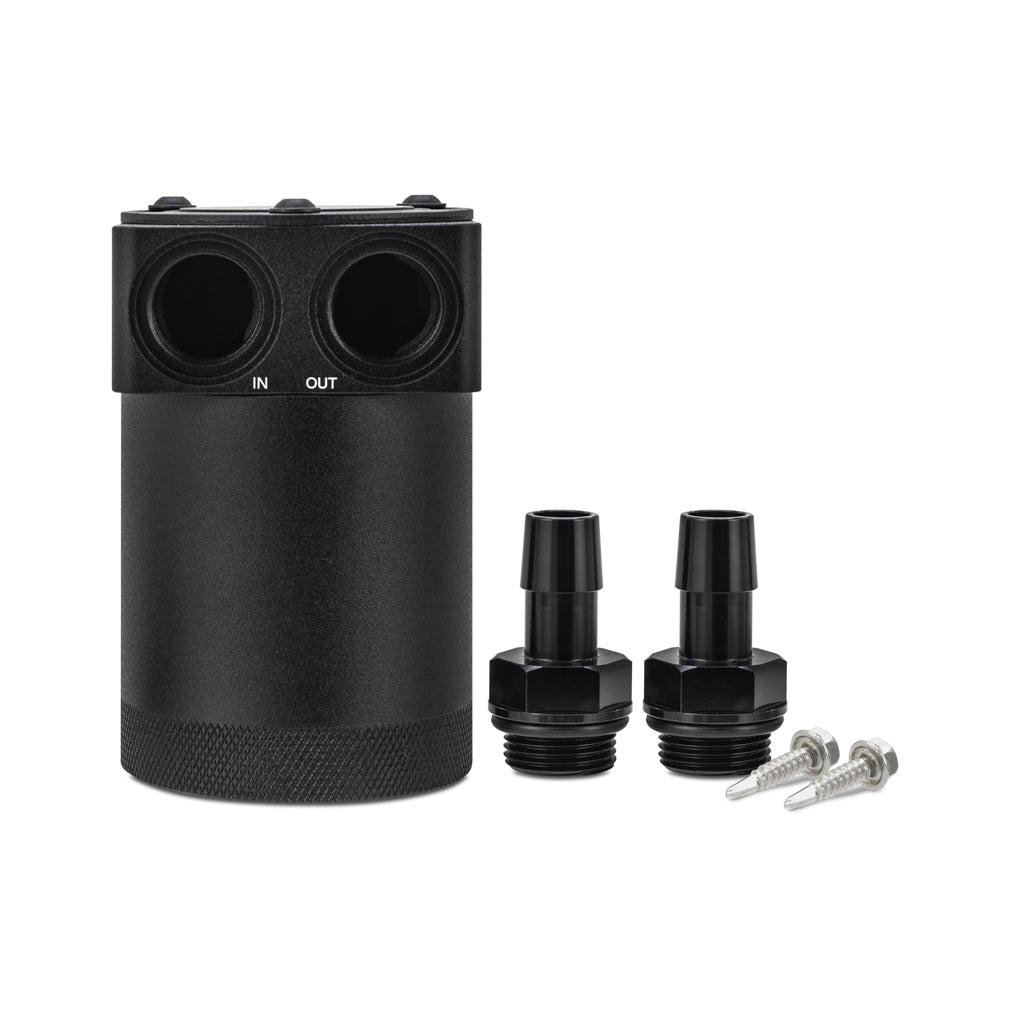

Included Components

  • (1) Mishimoto Parrallel Port Catch Can
  • (2) 1/2 inch M20 O-Ring Faced Aluminum Fittings
  • Universal Mounting Bracket
  • (2) Self Tapping Screws
  • Mishimoto Lifetime Warranty

Fitment Table
