 |  SKU: MMRAD-EVO-01H

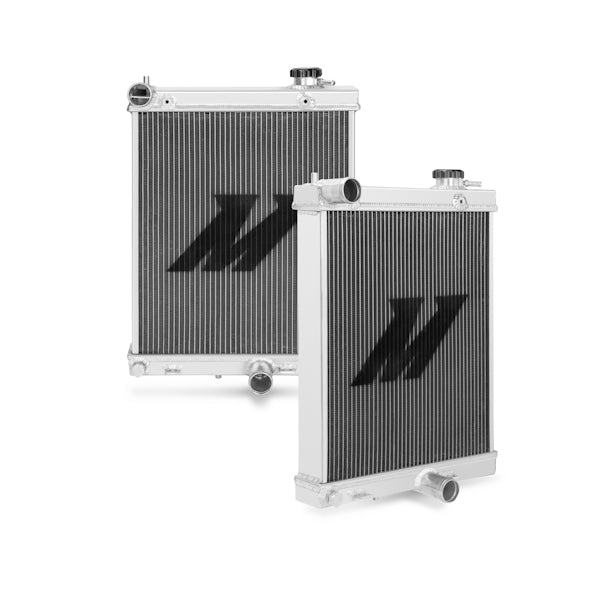

Mishimoto Performance Half-Size Radiator

Mitsubishi Evo 7-9
$829.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Freeing up engine bay space for a front-facing or large turbocharger can be a challenge in the Mitsubishi Lancer Evolution. Keep your high-horsepower Evo cool with the Mishimoto Lancer Evolution 7/8/9 Half-Size Performance Aluminum Radiator. This radiator features full-aluminum construction with precision TIG-welded end tanks for superior heat dissipation and durability. The large 2. 05-inch thick brazed aluminum core provides clearance for upgraded turbocharger setups while maintaining optimal coolant temperatures for runs at the drag strip or through the autocross course. This radiator features a unique internal baffle that provides superior fluid dispersion resulting in lower coolant temperatures. Included with this radiator is a Mishimoto Magnetic Oil Drain Plug, M12 x 1. 5 with high-quality dowty seal for removal of any metal fragments in your cooling system. The radiator also includes a Mishimoto 1. 3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system. The Mishimoto Lancer Evolution Half-Size Performance Aluminum Radiator works perfectly with factory coolant hoses or a Mishimoto silicone Radiator Hose Kit and includes an upper radiator stay, making this a hassle-free, bolt-on installation. Installing a capable fan solution is easy with the Mishimoto radiator thanks to the incorporated stock shroud-mounting points. Optionally a slim fan can be installed for improved clearance. This radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Technical Specifications

  • Overall Height (in): 19.4
  • Overall Length (in): 14
  • Overall Width (in): 4.4
  • Core Length (in): 13.38
  • Core Height (in): 15
  • Fluid Capacity (gal): 1.79
  • Rows: 3
  • Inlet (in): 1.38
  • Outlet (in): 1.38
  • Core Thickness (in): 2.05
  • Drain Plug Thread Size: M12
  • Engine Codes: 4G63
  • Chassis Codes: CT9-A
  • Install Difficulty: 3

Included Components

  • Mishimoto Radiator
  • Mishimoto Radiator Cap
  • Magnetic Drain Plug
  • Upper Radiator Aluminum Stay
  • Mishimoto Lifetime Warranty

Fitment Table
