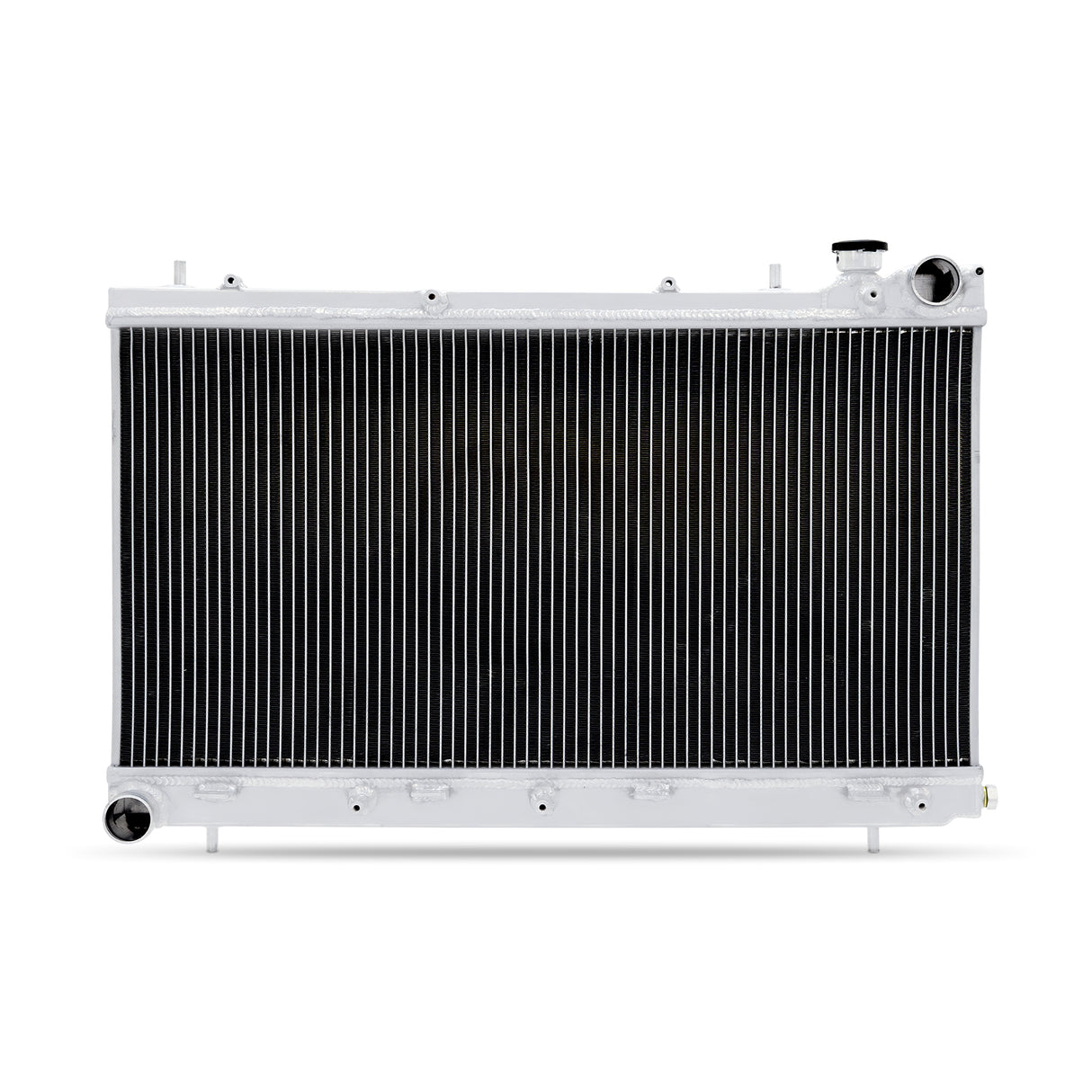

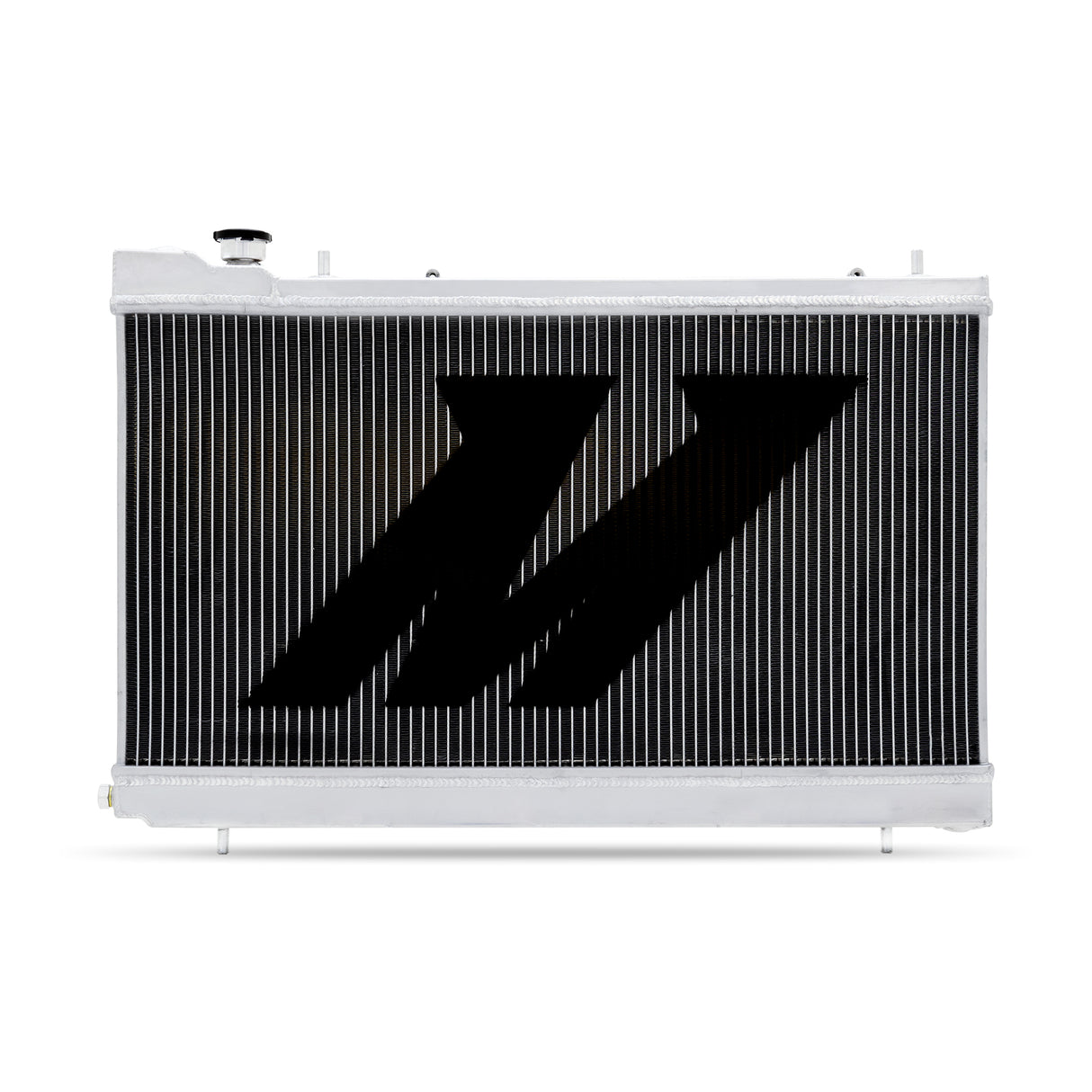

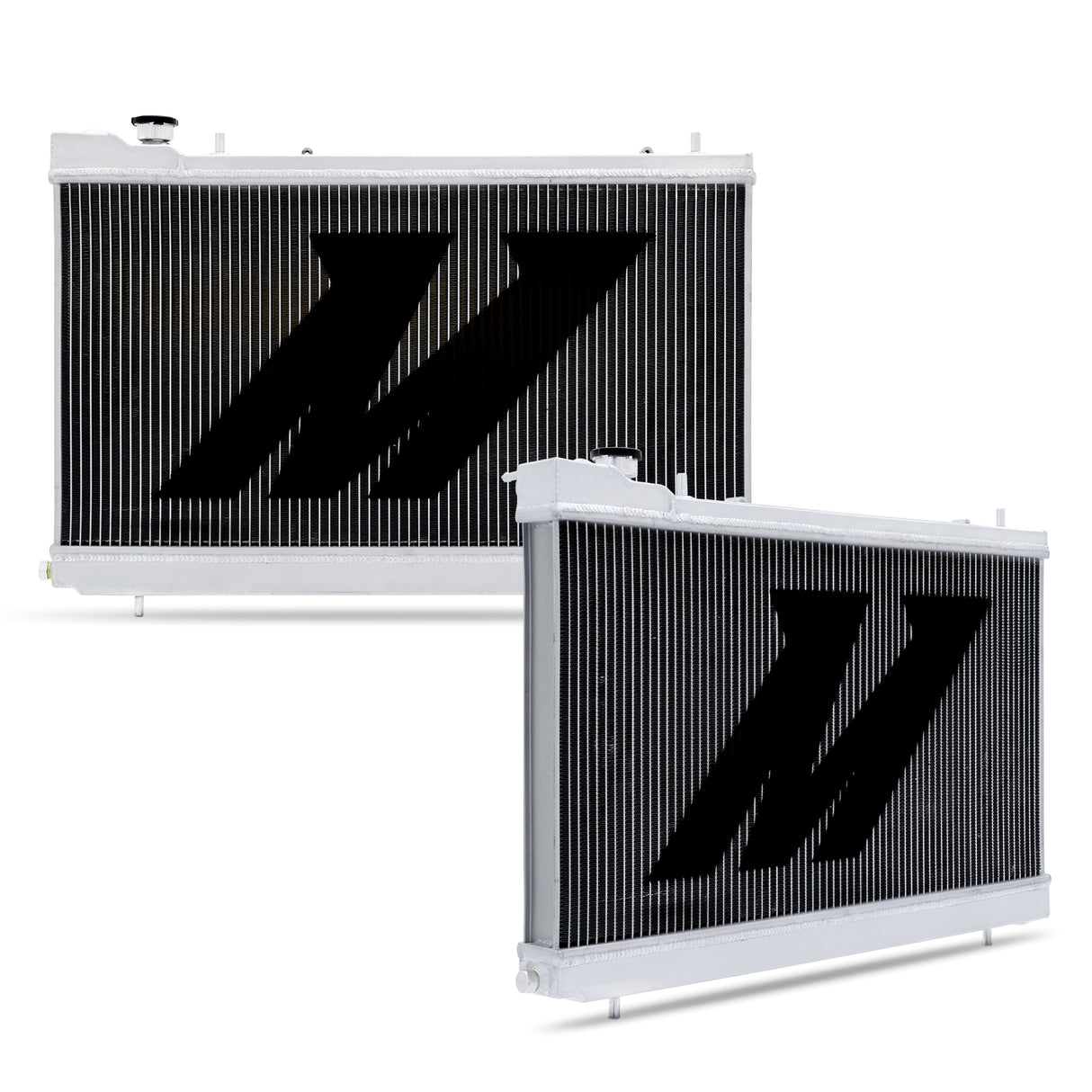

Mishimoto Performance Radiator

Keeping your turbocharged Forester XT cool is essential to maintaining performance and reliability, whether you’re navigating rush-hour traffic or exploring winding back roads. The factory radiator can struggle to keep up with the heat generated by the 2. 5L turbo engine, especially under heavy loads or in warm weather. The Mishimoto Performance Aluminum Radiator for the Subaru Forester XT is engineered to provide improved cooling efficiency and durability, ensuring your engine runs at its best in any driving situation.

Featuring a lightweight, dual-row core and 100% brazed aluminum construction, this radiator offers superior heat dissipation and greater pressure tolerance than the stock unit. The TIG-welded polished end tanks add strength and a refined appearance under the hood, while the direct OEM fit design means installation is quick and straightforward, with no cutting or modifications required.

With its combination of performance, durability, and easy fitment, the Mishimoto Subaru Forester XT Performance Aluminum Radiator is the ideal upgrade for drivers who want to keep their turbocharged engine cool and protected for years to come.

Note:

• This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.

  Caution

  The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).

  It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact support@mishimoto. com.

• Install Difficulty: 3

• Direct fit for the 2004-2008 Subaru Forester XT
• Full aluminum construction with durable, TIG-welded end tanks
• Features a two-row, 1.65-in thick efficient brazed aluminum core, providing ideal fluid temperature reduction
• Features a two-row, 1.65” thick efficient brazed aluminum core, providing ideal fluid temperature reduction
• Increased fluid capacity and superior heat dissipation
• Perfect upgrade to the failure prone stock plastic end tank radiator
• Perfect upgrade to the failure-prone stock plastic end tank radiator
• Ideal for use on the street, track, or rallycross course
• Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• Now includes two 1.3 bar high-pressure caps, raising the boiling point of engine coolant to provide a safer, more efficient system

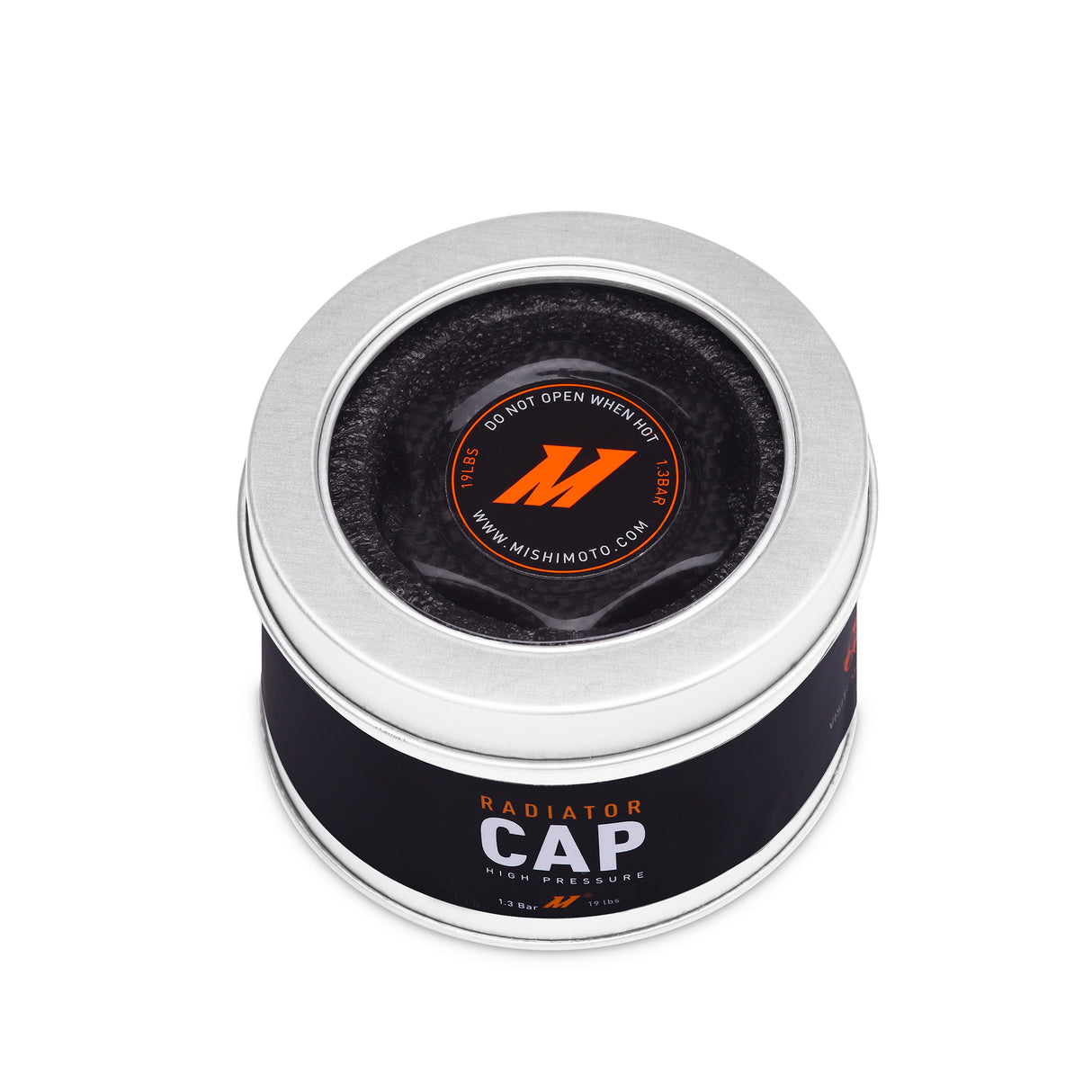

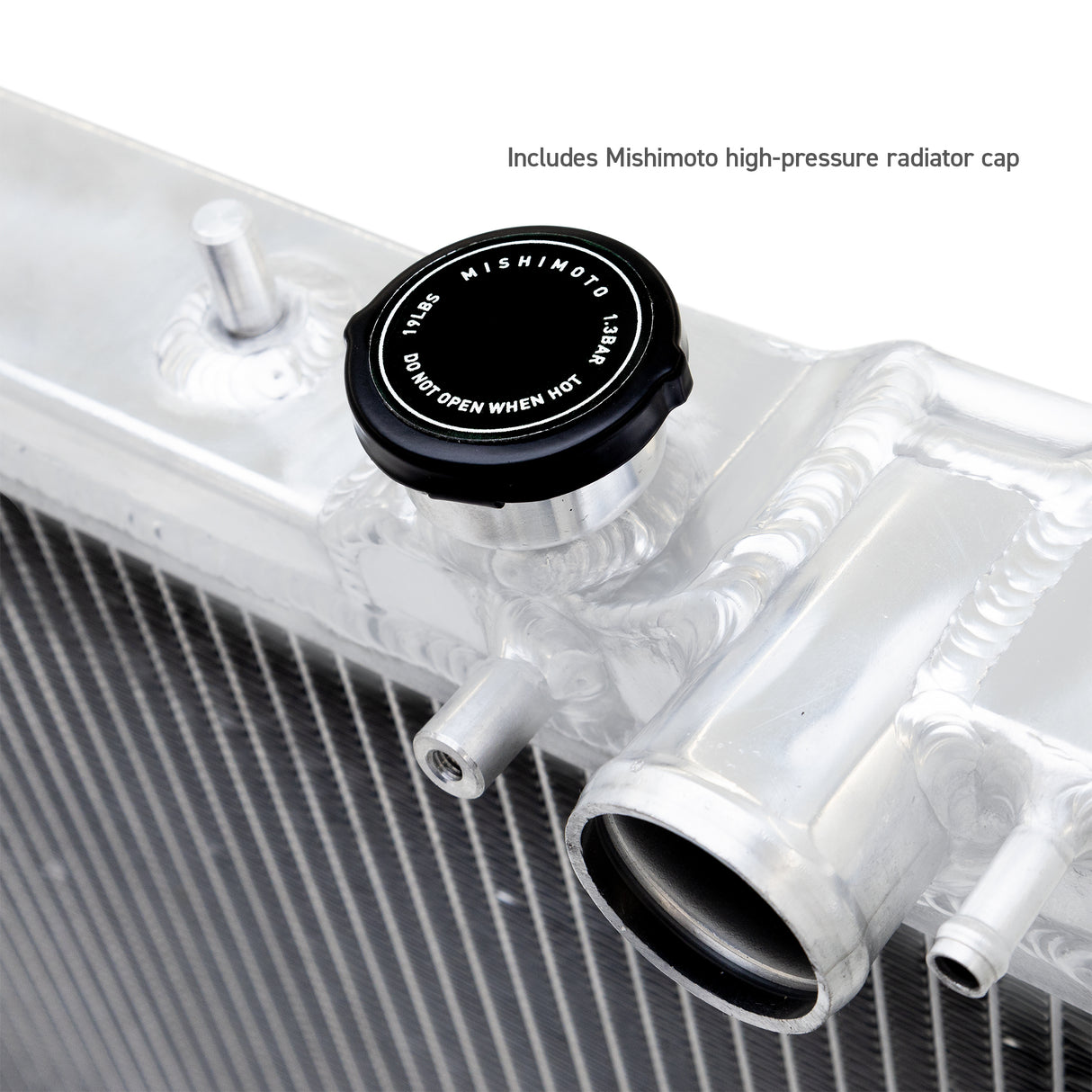

• Includes high-pressure 1.3 bar radiator cap designed for Subaru applications with non-directional sticker
• Two-way expansion tank cap and one-way radiator cap ensure proper flow and function of cooling system to avoid overheating
• Second radiator cap is included for use on expansion tank
• Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• Mishimoto Lifetime Warranty

• Overall Height (in): 27.7
• Overall Length (in): 17.4
• Overall Width (in): 2.2
• Core Length (in): 14.1
• Core Height (in): 27
• Fluid Capacity (gal): 2.21
• Rows: 2
• Inlet (in): 1.57
• Outlet (in): 1.57
• Core Thickness (in): 1.65
• Drain Plug Thread Size: M12 x 1.5
• DPI: 2812
• Engine Codes: EJ255
• Chassis Codes: SG5
• Install Difficulty: 3

• (1) Mishimoto Radiator
• (1) Mishimoto Two-Way Radiator Cap
• (1) Mishimoto One-Way Radiator Cap
• (1)1/16-inch NPT Plug
• (1) Magnetic Drain Plug
• Mishimoto Lifetime Warranty

• Installation Instructions
