 |  SKU: MMRAD-MUS-94BA

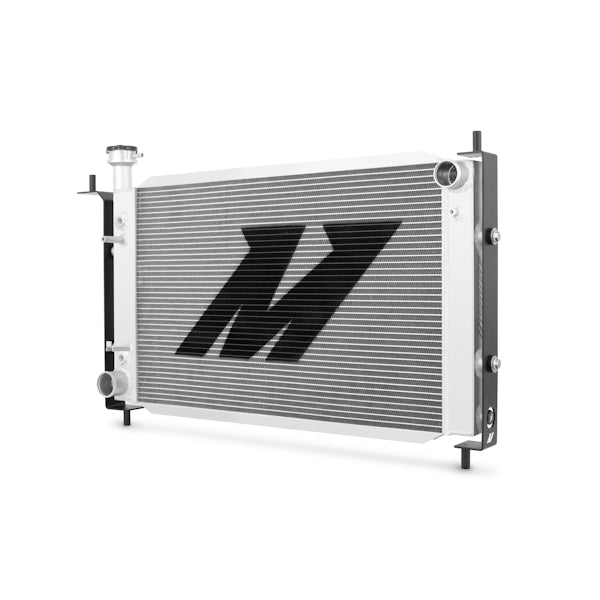

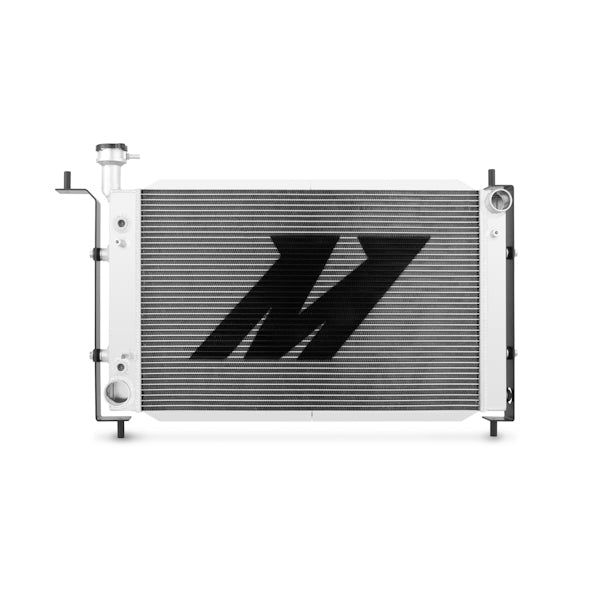

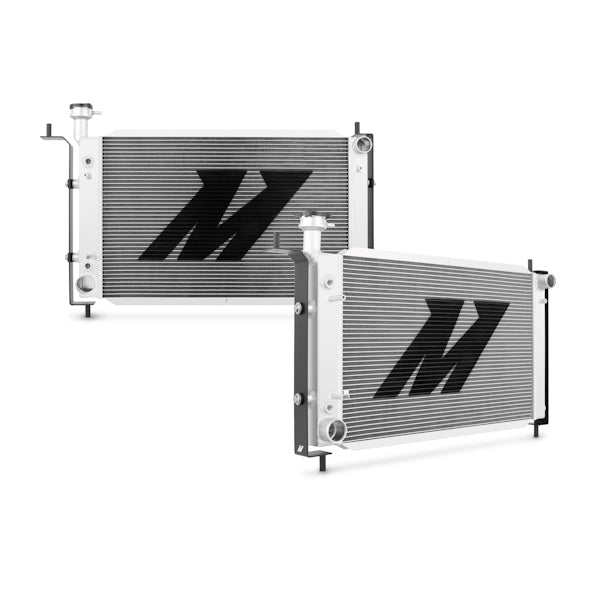

Mishimoto Performance Radiator

Ford Mustang GT 94-95
$1,039.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Mishimoto has released a revolutionary new radiator for the automatic 1994-1995 Ford Mustang. The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores. Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency. The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required. All Mishimoto radiators come with a high pressure 1. 3 bar Mishimoto radiator cap and an excellent warranty.



Note:

  • Transmission cooler thread size: 1/4-inch-18 NPT
  • Install Difficulty: 3

Features and Benefits

  • Direct fit for the 1994-1995 Ford Mustang 5.0L with automatic transmission
  • Full aluminum construction including durable, TIG-welded end tanks
  • Features a two-row, 1.57-in thick, efficient brazed aluminum core
  • Increased fluid capacity and optimal heat dissipation
  • Perfect for use on the street or strip
  • Efficient temperature regulation for both stock and modified vehicles
  • Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
  • Features internal transmission fluid cooler which accepts factory cooler lines

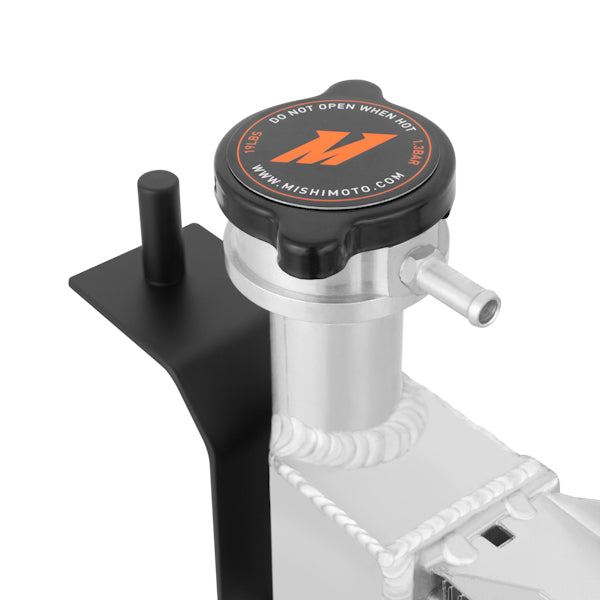

  • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

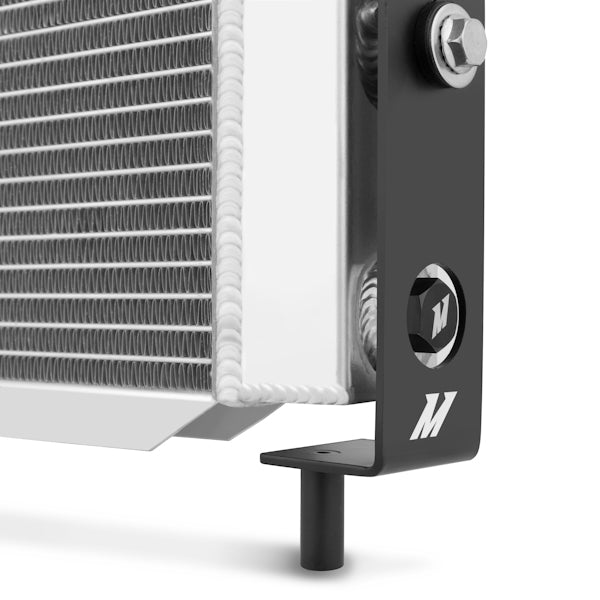

  • Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
  • Patent Number D703,126
  • Mishimoto Lifetime Warranty

Technical Specifications

  • Overall Height (in): 34.8
  • Overall Length (in): 20.5
  • Overall Width (in): 4.2
  • Core Length (in): 24.02
  • Core Height (in): 15.28
  • Fluid Capacity (gal): 3.97
  • Rows: 2
  • Inlet (in): 1.5
  • Outlet (in): 1.77
  • Core Thickness (in): 1.57
  • Drain Plug Thread Size: M12 x 1.5
  • DPI: 1488
  • Material: Aluminum
  • Engine Codes: 302ci (5.0L), 3.8L V6
  • Chassis Codes: SN-95
  • Install Difficulty: 3

Included Components

  • Mishimoto Radiator
  • Mishimoto Radiator Cap
  • Magnetic Drain Plug w/ Dowty Oil Seal
  • Left & Right Brackets
  • (4) - Rubber Bushings & Metal Collars
  • (4) - M8 Flange Head Bolts
  • (4) - M8 Washers
  • Mishimoto Lifetime Warranty

Fitment Table
