 |  SKU: MMCLAMP-25T

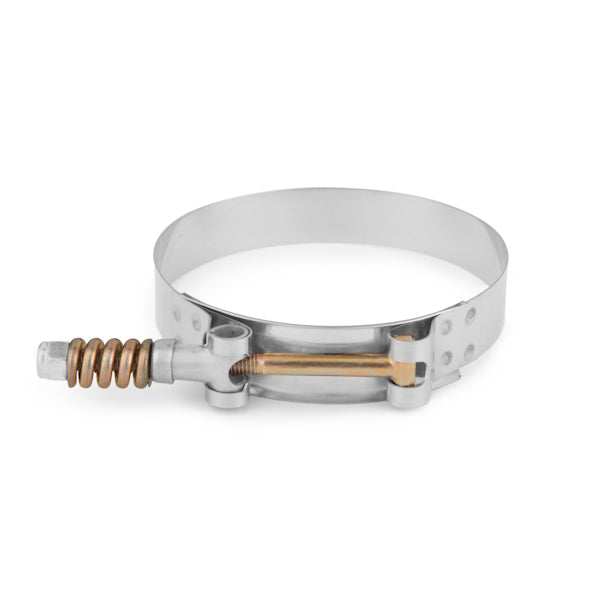

Mishimoto Stainless Steel Constant Tenstion T-Bolt Clamp

Universal
$24.95
Size
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Mishimoto's Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 2. 48in - 2. 76in (63mm - 70mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration. Like all Mishimoto clamps, this 2. 48in - 2. 76in (63mm - 70mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.



Note:

  • If using this clamp, we recommend purchasing:

    MMICP-AL-2750

    MMICP-AL-2759

    MMICP-AL-2751

    MMICP-AL-30

    MMICP-AL-39

    MMICP-AL-31

    MMICP-AL-40

    MMICP-AL-41

    MMICP-SS-151

    MMICP-SS-1751

  • Install Difficulty: 1

Features and Benefits

  • Securely clamps pipes, couplers, and hoses with an outer diameter from 2.48-in-2.76-in (63mm-70mm)
  • Constant tension spring maintains clamping pressure through a wide range of temperatures
  • Included self-locking nut prevents loosening with movement and vibration
  • Stainless steel construction resists corrosion longer than zinc-plated clamps
  • Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
  • Clamps sold individually
  • Mishimoto Lifetime Warranty

Technical Specifications

  • Clamp Style: Constant Tension T-Bolt Clamp
  • Minimum Clamp Diameter (in): 2.48
  • Max Clamp Diameter (in): 2.76
  • Material: Stainless Steel
  • Recommended Tightening Torque: 27 in-lbs (3 NM)
  • Band Width (in): 0.75
  • Install Difficulty: 1

Included Components

  • (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp
  • Mishimoto Lifetime Warranty

Fitment Table
