 |  SKU: MMOC-350Z-03T

Mishimoto Thermostatic Oil Cooler Kit

Nissan 350Z 03-09
$1,239.95
Colour: Silver Cooler
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The Mishimoto oil cooler is a direct fit and works with both manual and automatic applications. Proven to reduce engine oil temperatures 25 degrees, this oil cooler kit is a must have. The Mishimoto oil cooler kit is available with an optional thermostatic sandwich plate for safe daily-driver warm up and additional operating temperature control.



Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb

  • Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
  • Overall Height (in): 12. 95
  • Overall Length (in): 6. 44
  • Overall Width (in): 1. 97
  • Inlet: -10AN
  • Outlet: -10AN
  • Note:
    • This oil cooler kit does not fit NISMO models.
    • Install Difficulty: 3
    •

    Features and Benefits

    • Direct fit for the 2003-2009 Nissan 350Z and 2003-2007 G35 coupe
    • Premade braided stainless steel oil lines with durable -AN fittings
    • Billet aluminum oil sandwich plate in standard or thermostatic form
    • 19-row stacked-plate oil cooler for optimal fluid temperature reduction
    • Reduces oil temperatures by 25F (14C)
    • Mishimoto Lifetime Warranty

    Technical Specifications

    • Rows: 19
    • Core Length (in): 11
    • Core Height (in): 5.43
    • Core Thickness (in): 1.97
    • Engine Codes: VQ35DE, VQ35HR
    • Chassis Codes: Z33, V35
    • Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
    • Overall Height (in): 12.95
    • Overall Length (in): 6.44
    • Overall Width (in): 1.97
    • Inlet: -10AN
    • Outlet: -10AN
    • Install Difficulty: 3

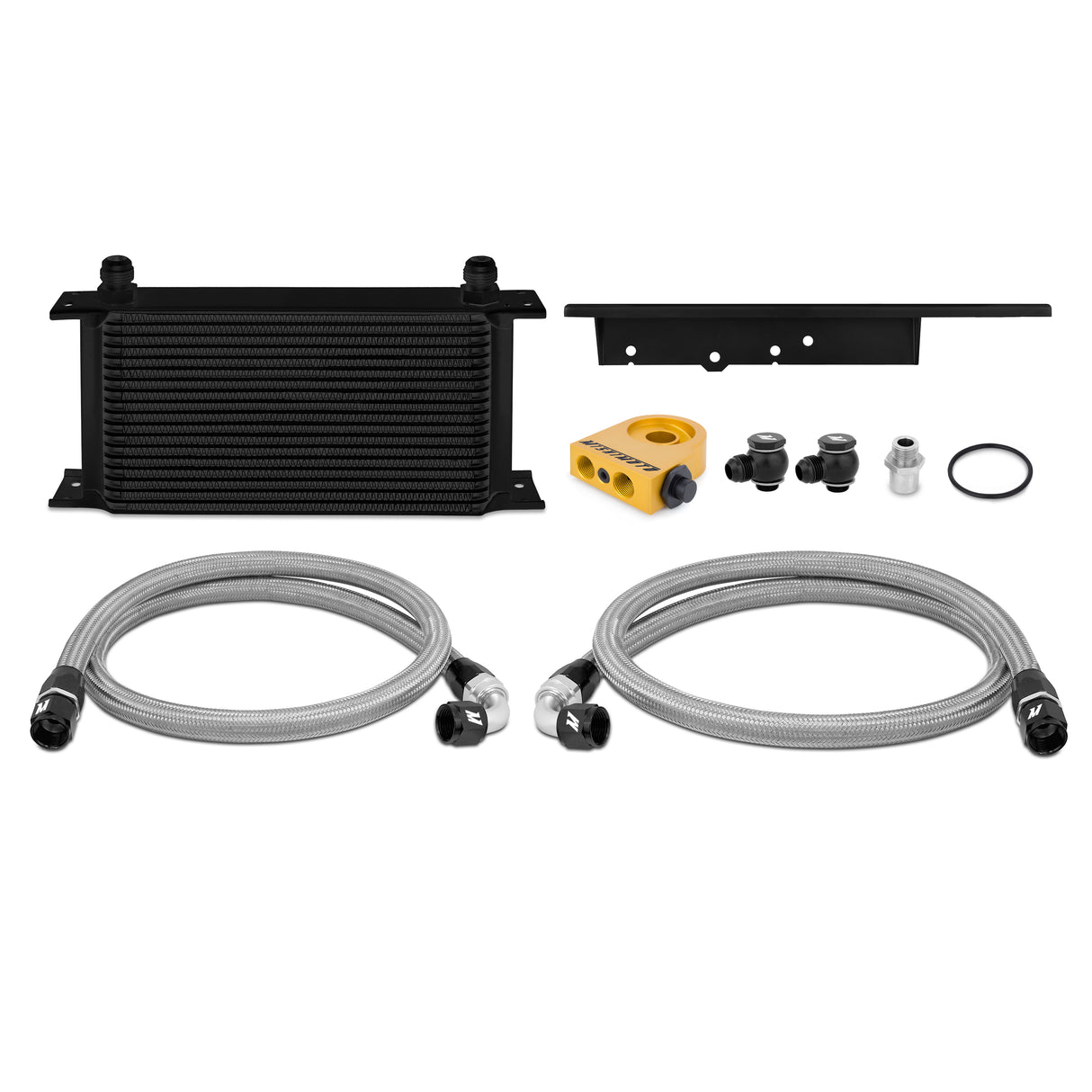

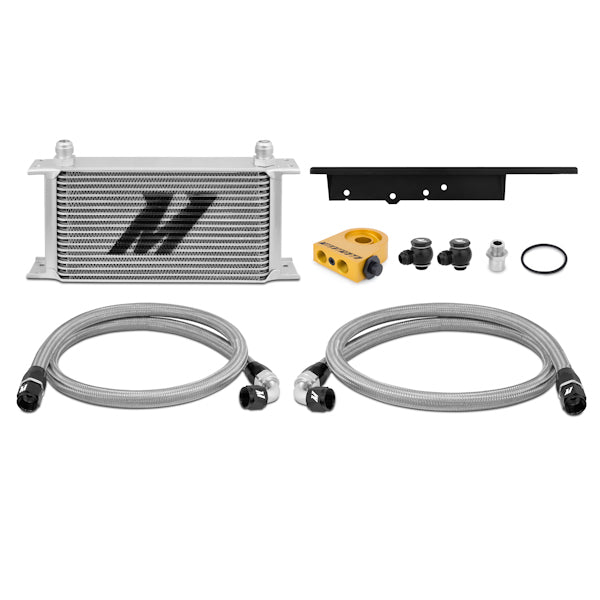

    Included Components

    • Application-Specific Mounting Bracket
    • 19-Row Oil Cooler
    • 4ft Stainless Steel Braided Hose w/ -10AN Fittings
    • 5ft Stainless Steel Braided Hose w/ -10AN Fittings
    • Oil Sandwich Plate M20
    • Stainless Steel Sandwich Plate Adapter, M20
    • Banjo Fitting w/ Bolt M20 x -10AN, Black
    • Mounting Hardware Set
    • Mishimoto Lifetime Warranty

    Fitment Table
