 |  SKU: MMOC-U

Mishimoto Universal 10-Row Oil Cooler Kit

Universal
$769.95
Colour: Silver
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

An oil cooler kit is a must for any car with a high performance engine. Even with optimal driving conditions, increased oil temperatures will cause a drop in pressure and will decrease the ability for your engine to be properly lubricated. This could potentially cause engine seizure. Keep your oil cool with the Mishimoto universal oil cooler kit. This oil cooler kit includes all needed adapters for any vehicle application.



Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb

  • Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
  • Note:
    • No dashes = M20 x 1. 5

      M20 x 1. 5

      2 dashes = 3/4" -16UNF

      3/4" -16UNF

    • Install Difficulty: 3
    •

    Features and Benefits

    • Universal fitment
    • 10-row stacked-plate cooler withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss
    • Includes either standard or thermostatic billet anodized aluminum sandwich plate
    • Includes preassembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak-free connections
    • Includes 3/4-in -16 and M20-1.5 sandwich plate adapters that support fitment for most makes and models

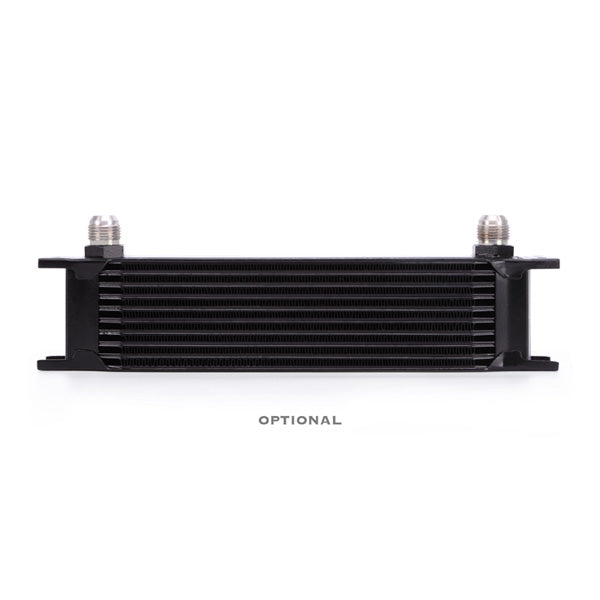

    • Available in Sleek Silver or Stealth Black
    • Lifetime Warranty

    Technical Specifications

    • Rows: 10
    • Core Length (in): 11
    • Core Height (in): 2.76
    • Core Thickness (in): 1.97
    • Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
    • Install Difficulty: 3

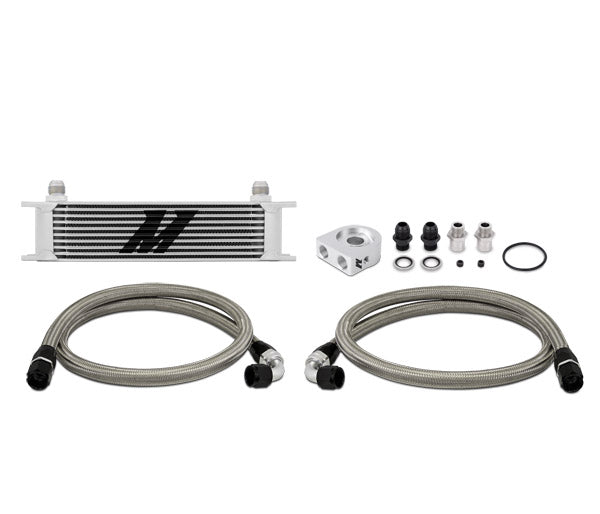

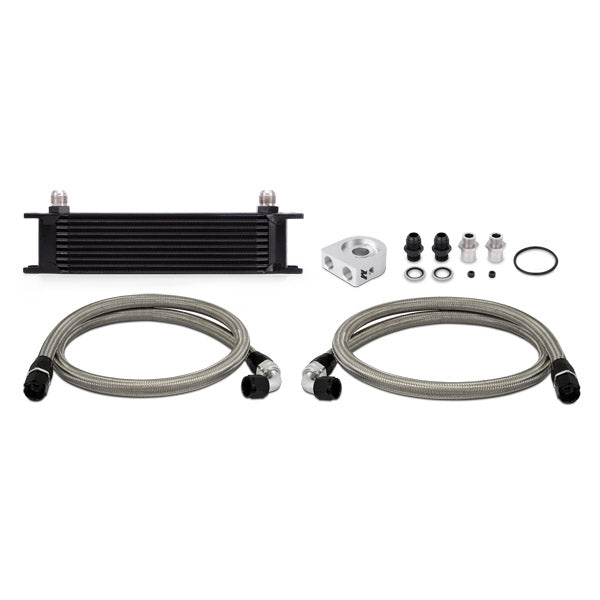

    Included Components

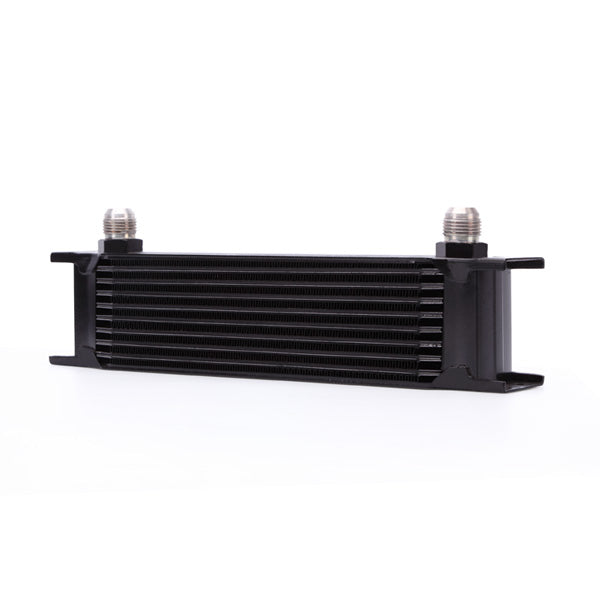

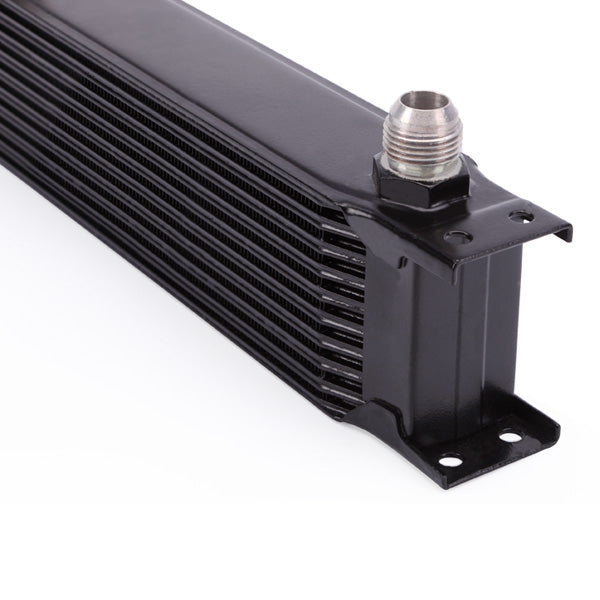

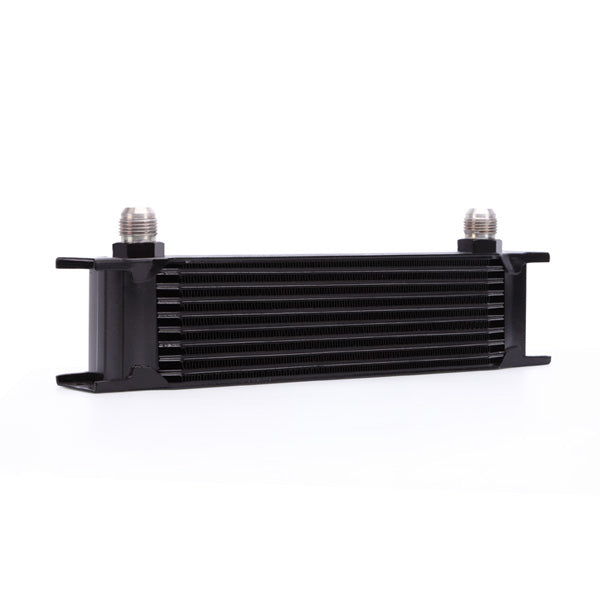

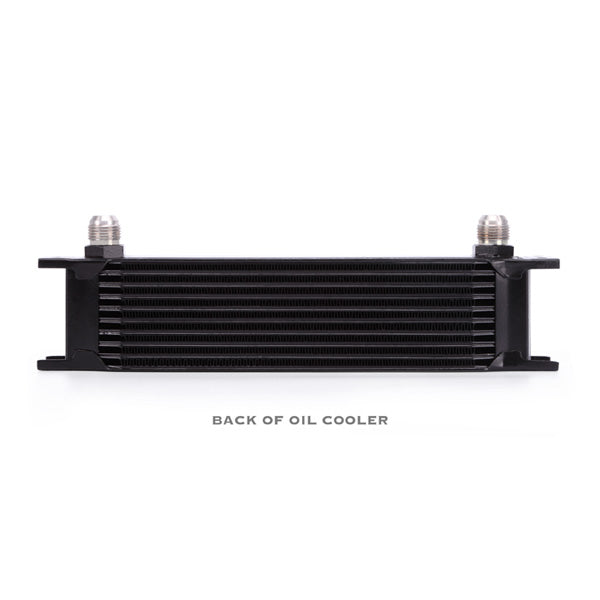

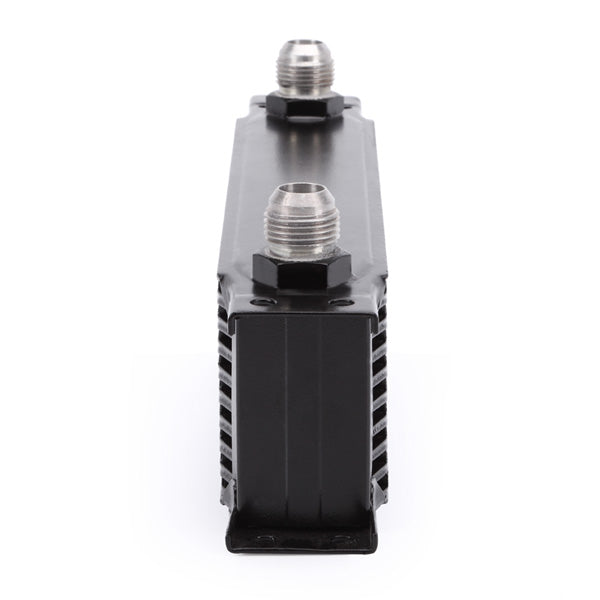

    • 10-Row Oil Cooler
    • 4ft Stainless Steel Braided Hose w/ -10AN fittings
    • One straight fitting and one 90 degree swivel fitting
    • 5ft stainless Steel Braided Hose w/ -10AN fittings
    • One straight fitting and one 90 degree swivel fitting

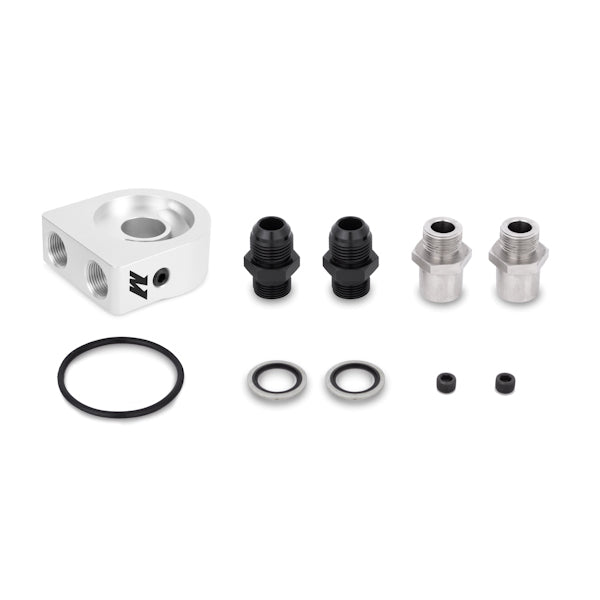

    • M20 Thermostatic Sandwich Plate
    • -10AN Fittings
    • Dowty Oil Seals
    • Large O-Ring
    • 1/8-in NPT Allen Key Plugs
    • Sandwich plate adapters
    • Mishimoto Lifetime Warranty

    Fitment Table
