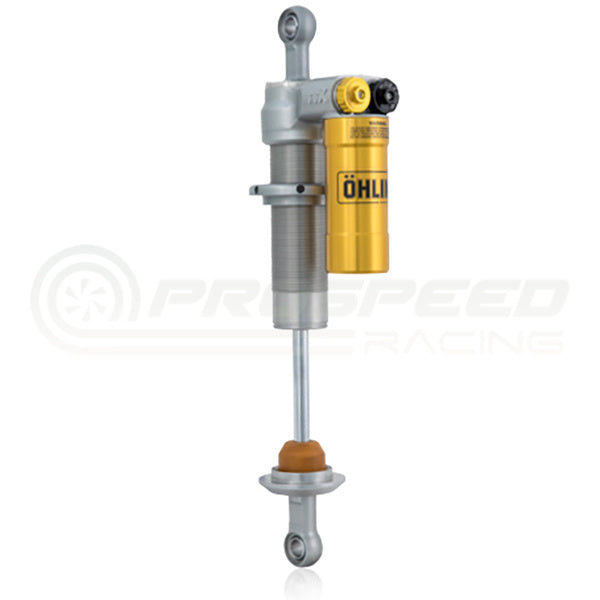

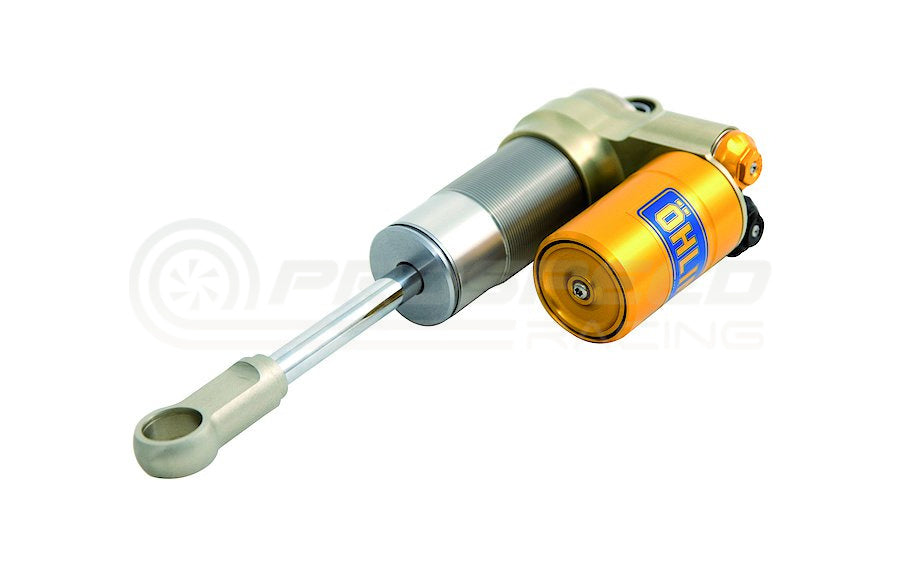

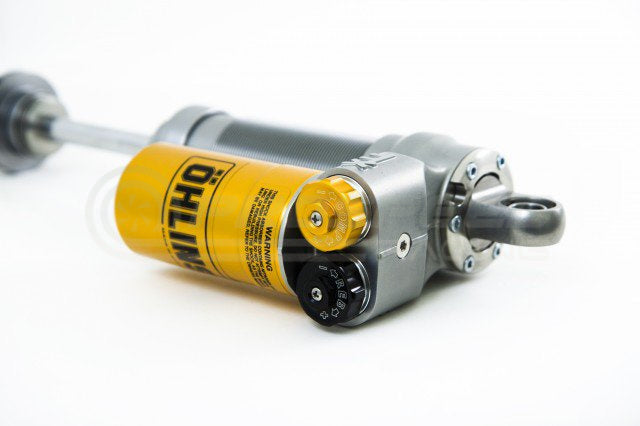

Ohlins TTX36 Universal Motorsport Damper External Reservoir SINGLE - NO SPRING

Universal
$1,699.00
Option
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The TTX 36 is a popular choice, especially for Touring- & GT-cars, as well as in single seater applications. The design is compact with light weight components. This version is a piggy back type with an external reservoir and is of a non-through rod type. The standard configuration is 2-way adjusted; 1-way compression and 1-way rebound, but is easy to upgrade to become 3- or even 4-way adjusted. It’s one of our most versatile dampers and is used for many different applications.

Five lengths are available from 283 mm up to 490 mm, measure without end- and top eye. Still with a compact light weight design this versatile racing shock absorber is 2-way adjustable but can also be upgraded to 3- and 4-way adjusted.



Features:

  • TTX-technology
  • Piggy back
  • 36 mm solid piston
  • 2-way adjusted, compression and rebound
  • Possible to upgrade to 3- and 4-way adjustable
  • Available in different lengths
  • Available with a internal blow-off piston kit
  • Available with high frequency piston
  • Fully rebuildable



Notes:

  • Sold Individually
  • Sold Without Springs

Fitment Table
