 |  SKU: PRH.TA.24.CK

Paragon Rotor T-Bobbin A Rotor Attachment Complete Hardware Kit

$299.00

Description

Paragon T-Bobbin (A) rotor attachment complete hardware kit for floating 2-piece rotors. Replacement for Alcon "Bobbin drive system with bolt" hardware. Corrosion resistant, allows secure mounting, and smooth expansion and contraction throughout heat cycles.

This complete kit includes enough hardware for two rotors.

We recommend using new hardware every time when replacing rotor rings. If there is no visible wear, bobbins and spring clips can be reused. Paragon hardware corrosion resistant, allows secure mounting, and smooth expansion and contraction throughout heat cycles. This bolt kit includes enough hardware for one rotor only.

Assemble torque specs: 10.5 lbf-ft / 14 Nm

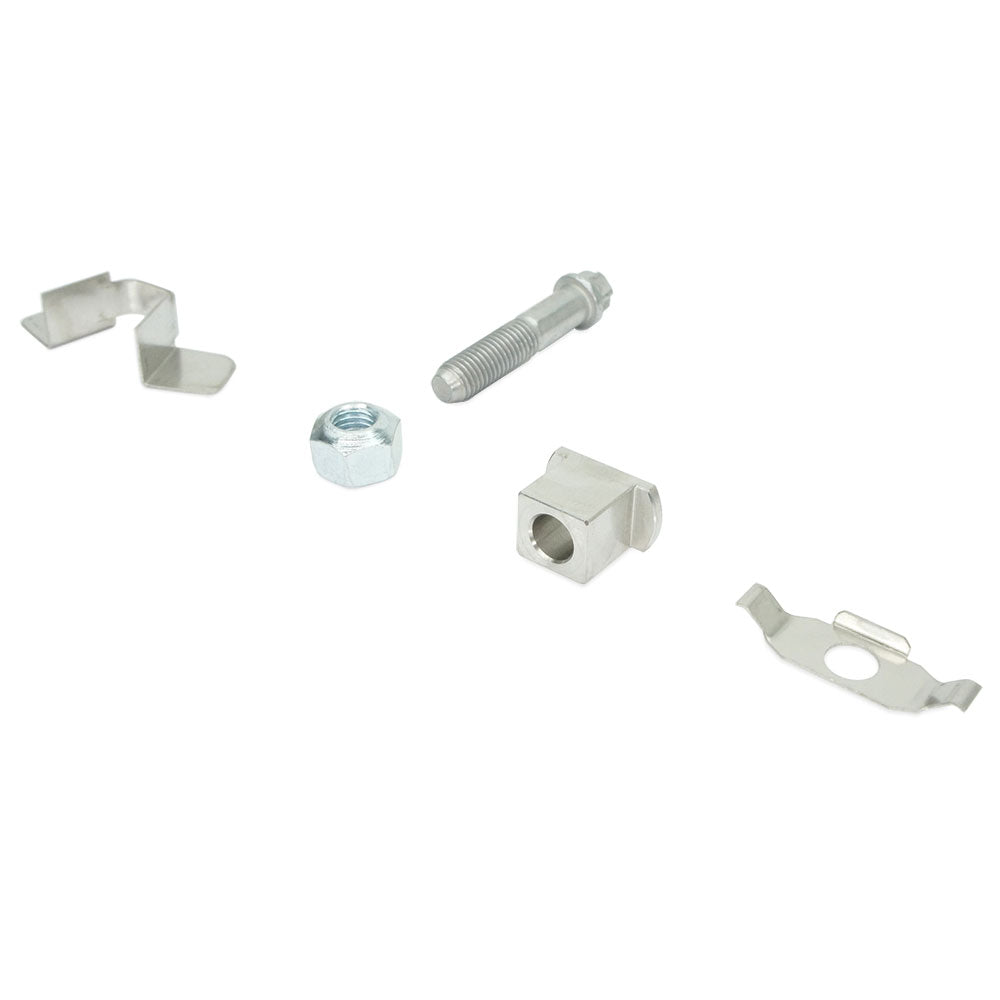

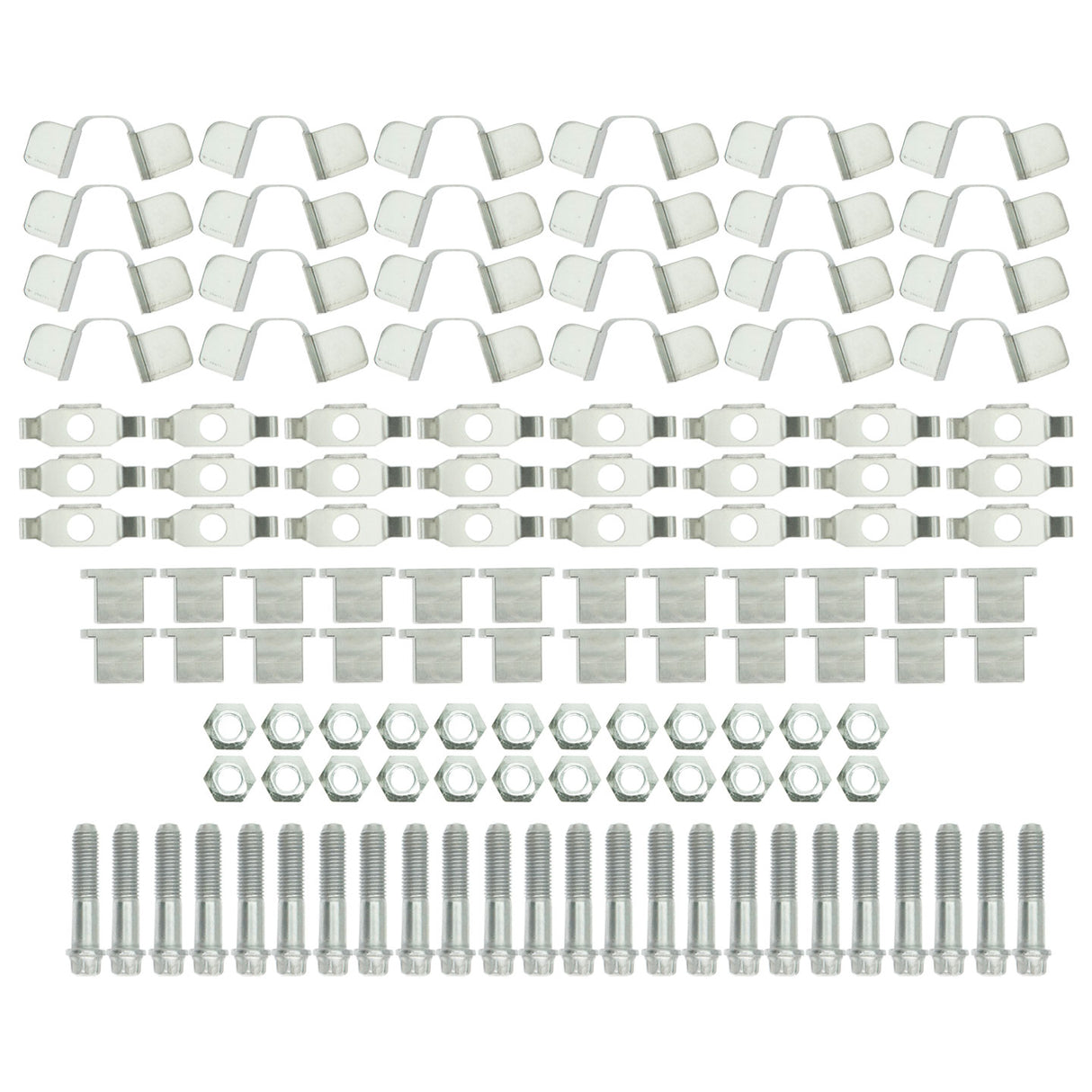

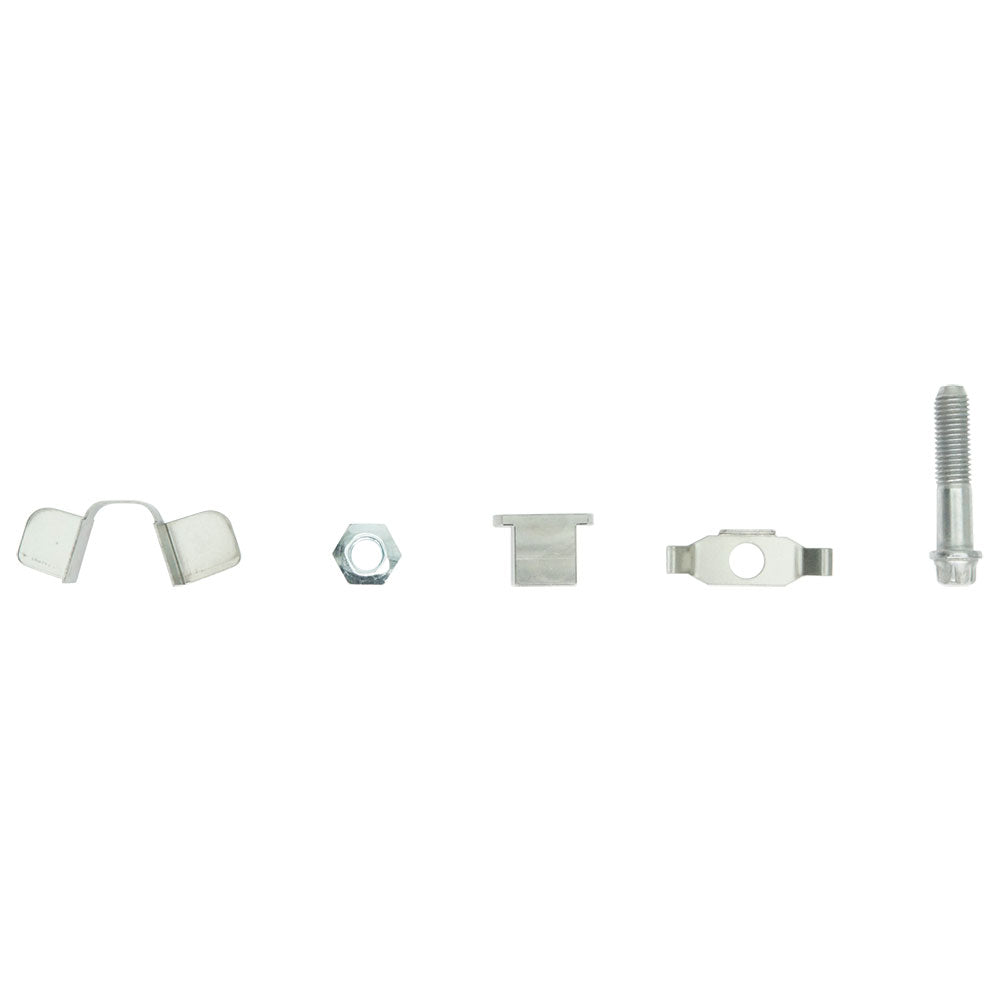

Included Components

  • 24x 1/4 UNF aerospace grade Geomet coated bolts
  • 24x Locking nuts
  • 24x McLaren Spring Clips
  • 24x "U" clips
  • 24x T-Bobbins (A)

Fitment Table
