PE Racing Aircraft Style Load Spreading Washers w/ Locating Shoulder - 10 Pack
In Stock:
This product is in stock & ready to be dispatched.
Limited Stock Available:
Stock is running low. Order soon to avoid missing out!
Almost Gone:
Stock is critically low! This product may sell out soon.
Incoming:
Product will be in stock soon.
Usually Ships In:
This product is out of stock and will usually ship in the timeframe displayed.
Sold Out:
This product is currently out of stock.
Request ETA
$39.99
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.

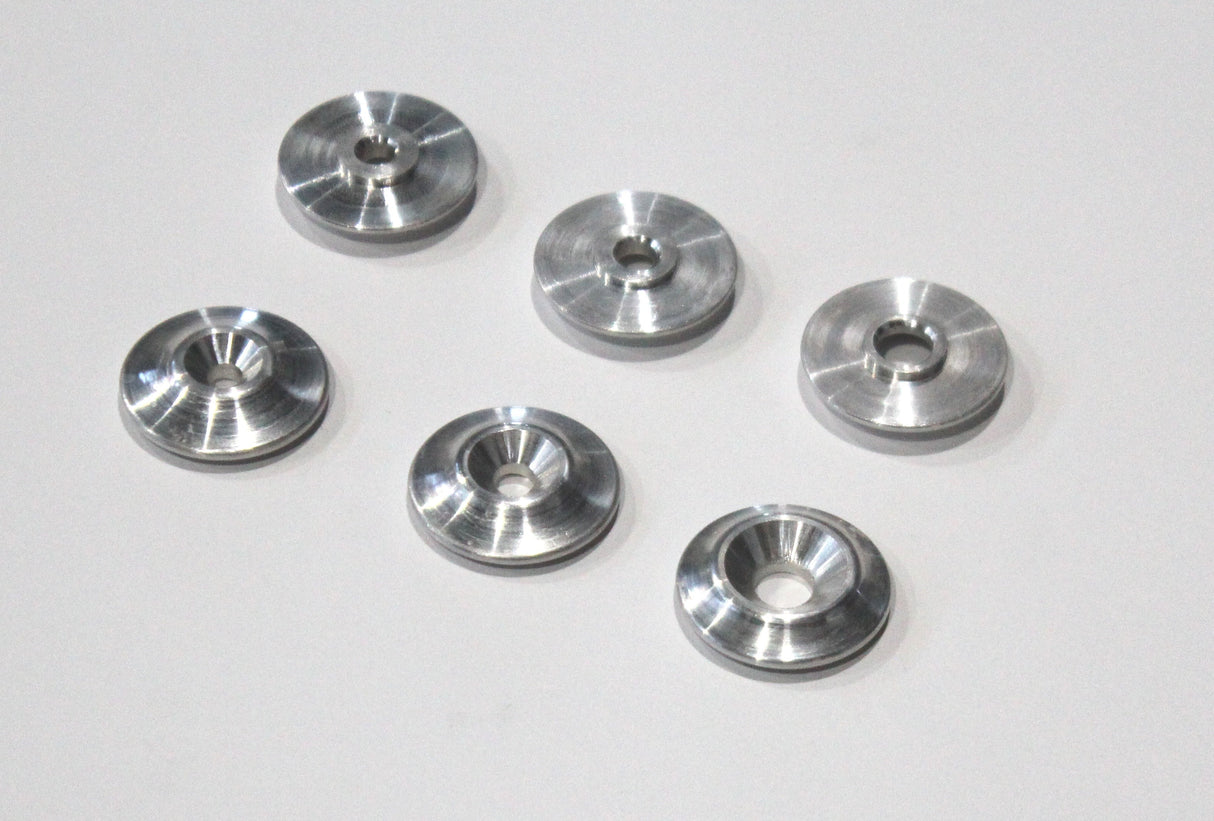

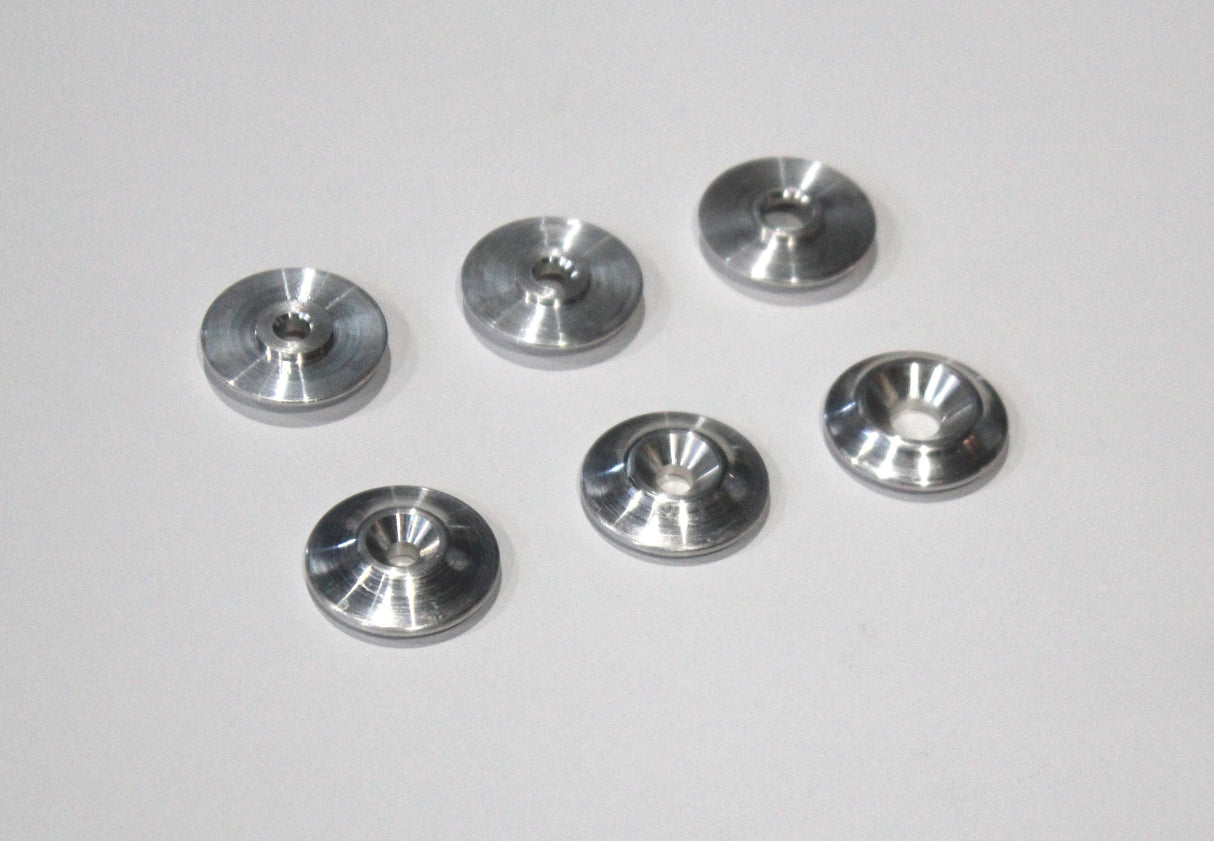

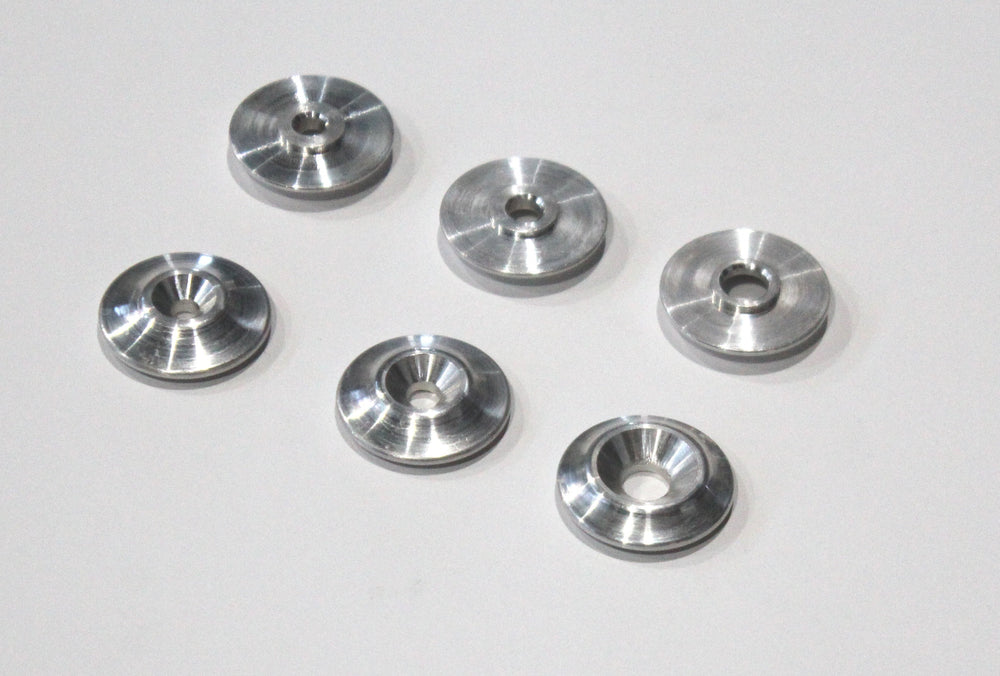

Load spreading Alloy Washers, with locating spigot to underside.
These washers have been designed to increase connection strength & reduce wear on panel holes.

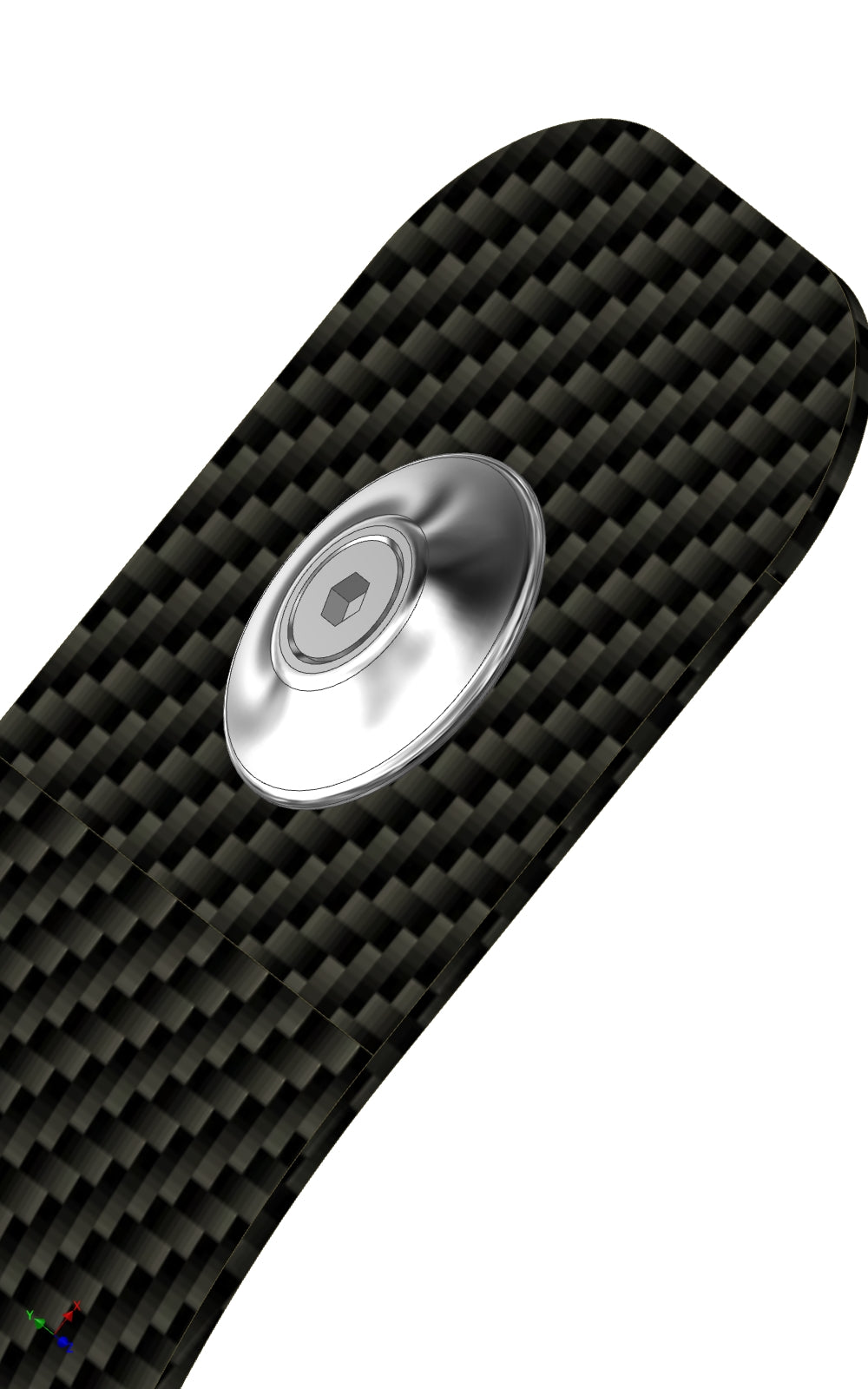

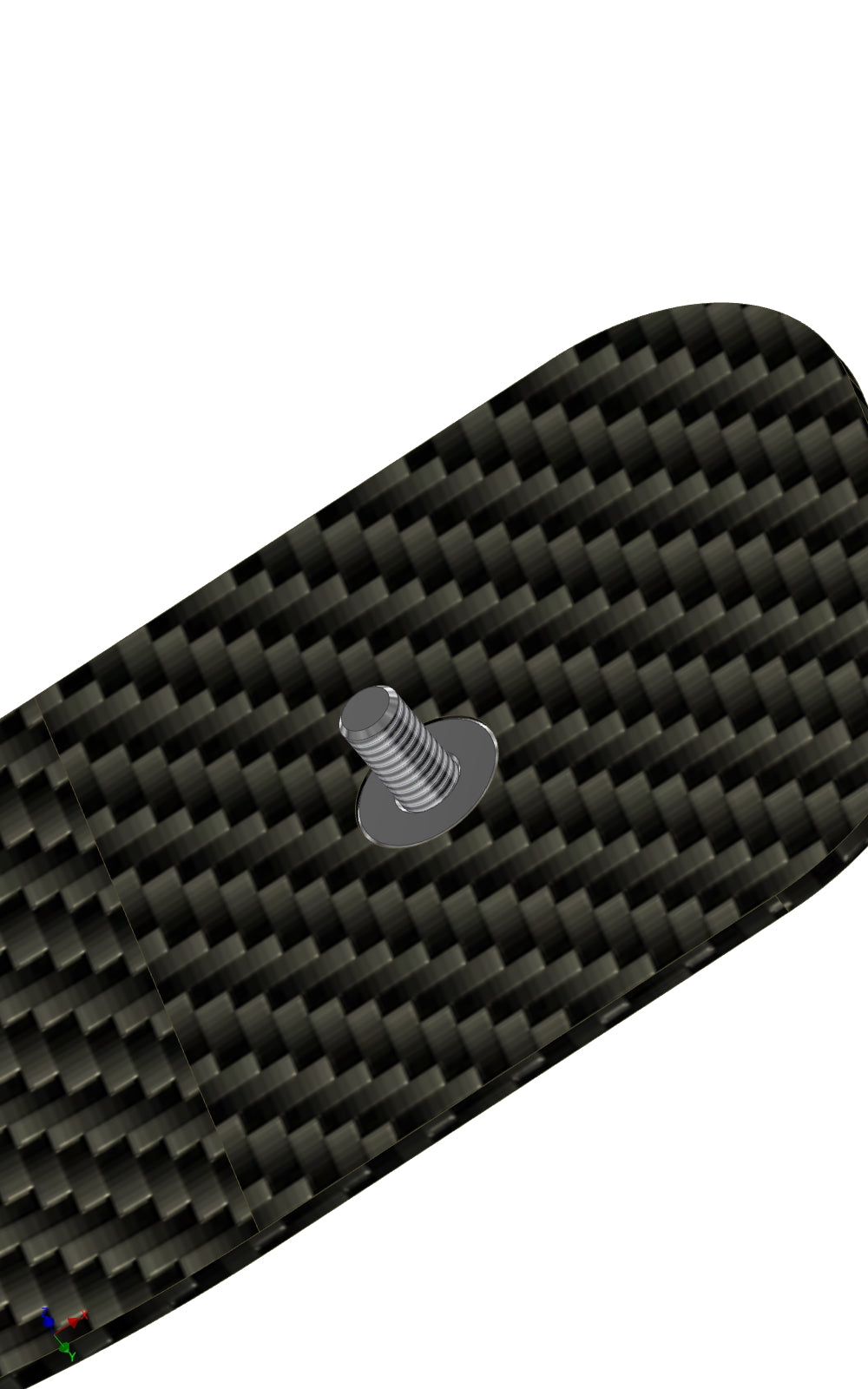

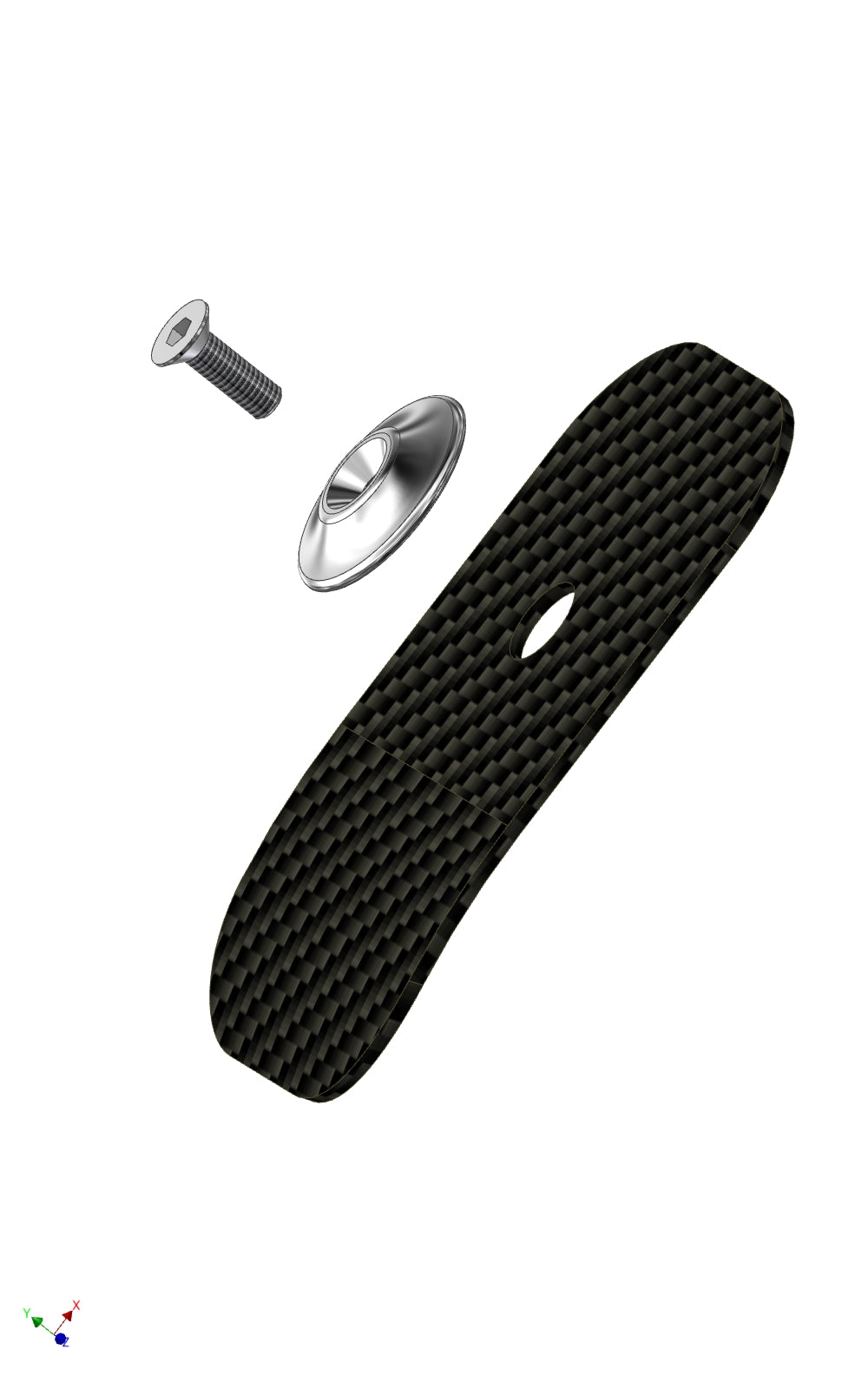

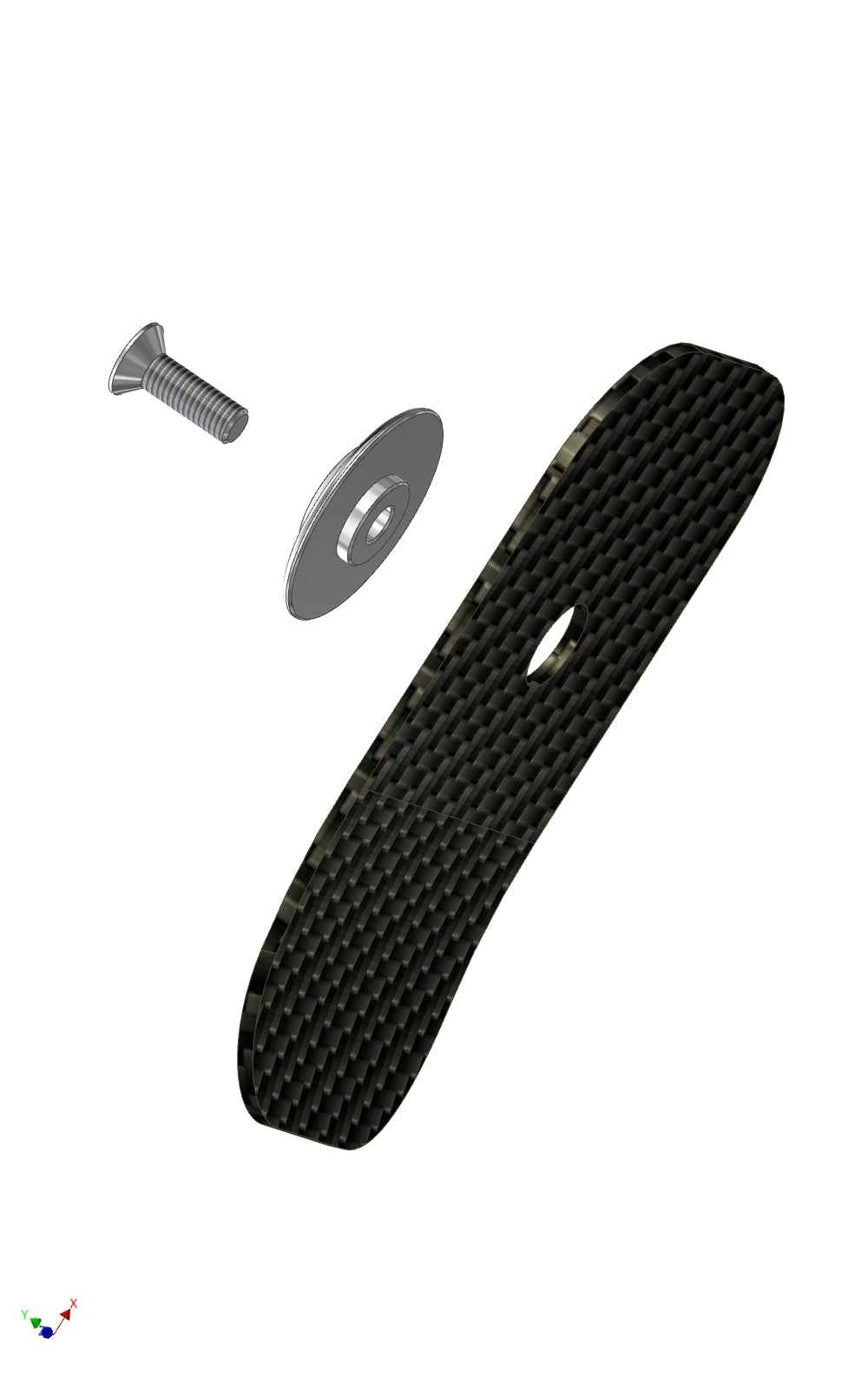

The underside has a 12mm diameter x 2mm deep locating boss, which engages the panel material. The panel connection is better supported by locating on the larger diameter shoulder. The shoulder eliminates contact of the bolt, increasing strength & reducing wear. Simply drill the panel to 12mm to accept all size washers M5, M6 or M8.
The problem we found is that when clamping softer materials such as composites, plastics etc the clamping load alone is not sufficient, the vibration & twisting forces often flog out the hole where the fastener passes through. The fastener thread or shank knocks out the internal hole surfaces.
Whether it's Aircraft, Go-karts, Motorcycles or Race Cars, you can benefit from using these panel mounting washers.
Step 1: Choose message placement
Click the button below and then hover over your page to select a placement.
Step 2: Paste and save
You have copied the placement for the Product Page.
Go back to the App Embeds section, and in the Paypal Advanced Settings, paste the copied value into the
Product Page field and click the 'Save' button in the top right corner.
| SKU:
PE-014-6001
