Nitto 2.3L Stroker Kit w/H Beam Rods 85.5mm Bore

Mitsubishi Evo 4-9 (4G63)
$6,935.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

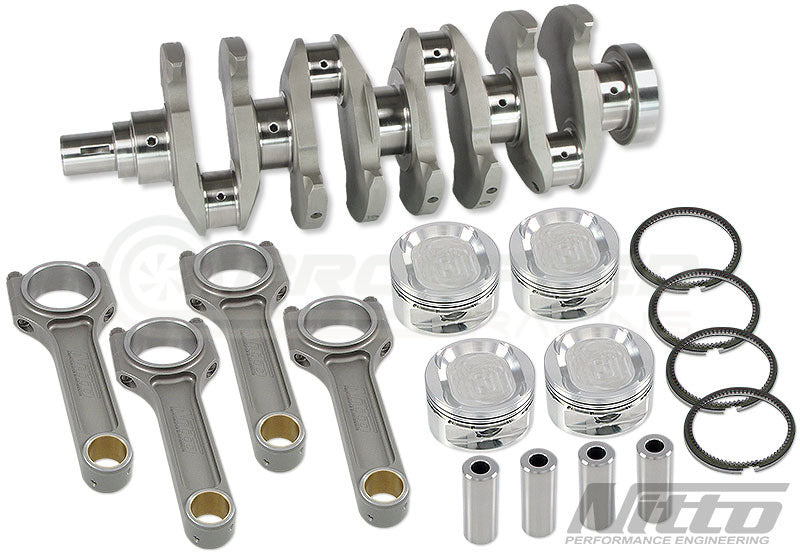

NITTO's 4G63 Stroker kits consist of an increased stroke crankshaft made from solid 4340 billet steel, 4340 one piece forged billet steel I-beam connecting rods and unique JE/Nitto forged piston set along with upgraded thick wall gudgeon pins and premium ring sets. Engine capacity is increased from 2.0ltr to 2.3ltr which provides more power and torque throughout the RPM range. All components have been meticulously machined to exacting tolerances and the highest standards. All Nitto stroker kits are far superior to the cheaper manufactured kits currently available that consist of cast forged crankshafts and high silicone content pistons

NITTO's 4G63 Stroker kits are designed for use in all motorsport classifications including drag racing, drifting and circuit racing. Rotational capability is lifted to 10,000+ RPM and power handling is rated to 1100 HP *. The changed harmonics due to the crankshaft material and design results in a much “freer revving” more balanced engine.

Continuous testing and development has allowed us to design a kit with extreme strength whilst retaining a sensible reciprocating mass weight.

Available in 2 configurations with H-beam or I-beam con rods.


  • CRANKSHAFT
    • 4340 Grade Billet Steel
    • Fully Counter Weighted
    • Nitrided Finish
    • Fully Balanced
  • CONNECTING RODS
    • 4340 Grade Billet Steel
    • Optional H-Beam or I-Beam
    • Quality ARP 2000 Series Bolts
    • Optional ARP Custom Age 625 Plus Series Bolts
  • PISTONS
    • JE / NITTO Produced Quality
    • Forged T6 2816 Alloy
    • Low Silicone Content
    • Contact Reduction Grooves
    • Accumulator Groove
    • 9310 Nickel/Carbon Alloy Pins
    • JE Pro Seal Premium Ring Sets





Fitment Table
