 |  SKU: PSR-OSP-006

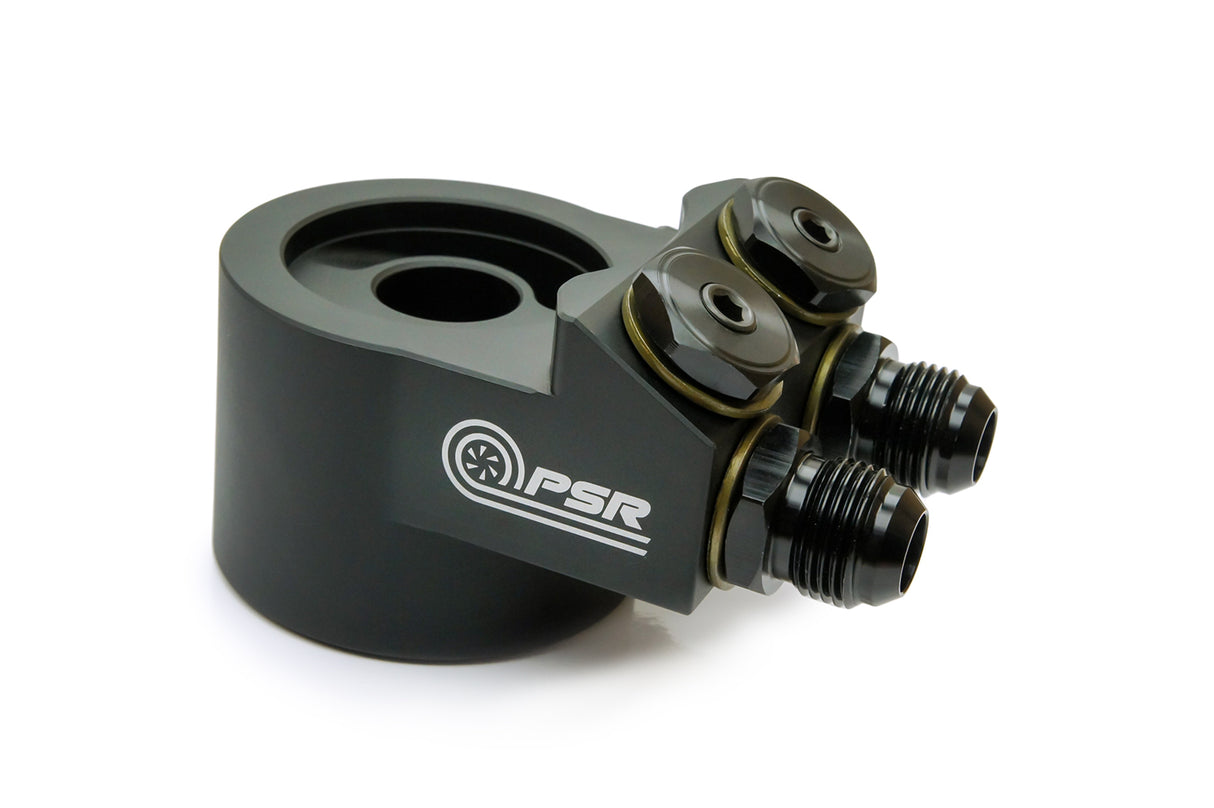

PSR Thermostatic 4-Port Oil Cooler Sandwich Plate w/10AN Fittings - Subaru WRX 15-21, 22+/BRZ & Toyota 86 12-21, 22+ (FA20/FA24)

Subaru WRX 15-21, 22+/BRZ & Toyota 86 12-21, 22+ (FA20/FA24)
$235.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
IMPORTANT : SPECIAL NOTES APPLY TO VEHICLE FITMENT FOR THIS PRODUCT, CLICK HERE TO VIEW

Description

Note, NOT suitable for use with OEM size oil filter. Will require narrow-body oil filter under 70mm diameter. OEM # 15208AA100 for EJ20/EJ25 is an example of a compatible filter.



PSR thermostatic sandwhich plate with 45Degree mounting position. Allows multiple positions for mounting oil lines and sensors with the included 1/8" NPT adaptor plugs. Ports are AN-8 and include two AN-10 Male Flare fittings as well as two pre-installed 1/8" NPT Blanking plugs. AN-8 ports are NOT O-Ring suitable so a dowty seal/crush washer will be required.



Designed for Subaru WRX/Forester/BRZ and Toyota 86 FA20/FA24 motors with top-mounted oil filter, however it is suitable for most vehicles with M20x1.5 and 3/4" -16UNF threaded oil filters.

Technical Specifications

  • Thermostat Opening Temperature: 75 Degrees Celsius
  • Thermostat Full Open Tempersature: 85 Degrees Celsius

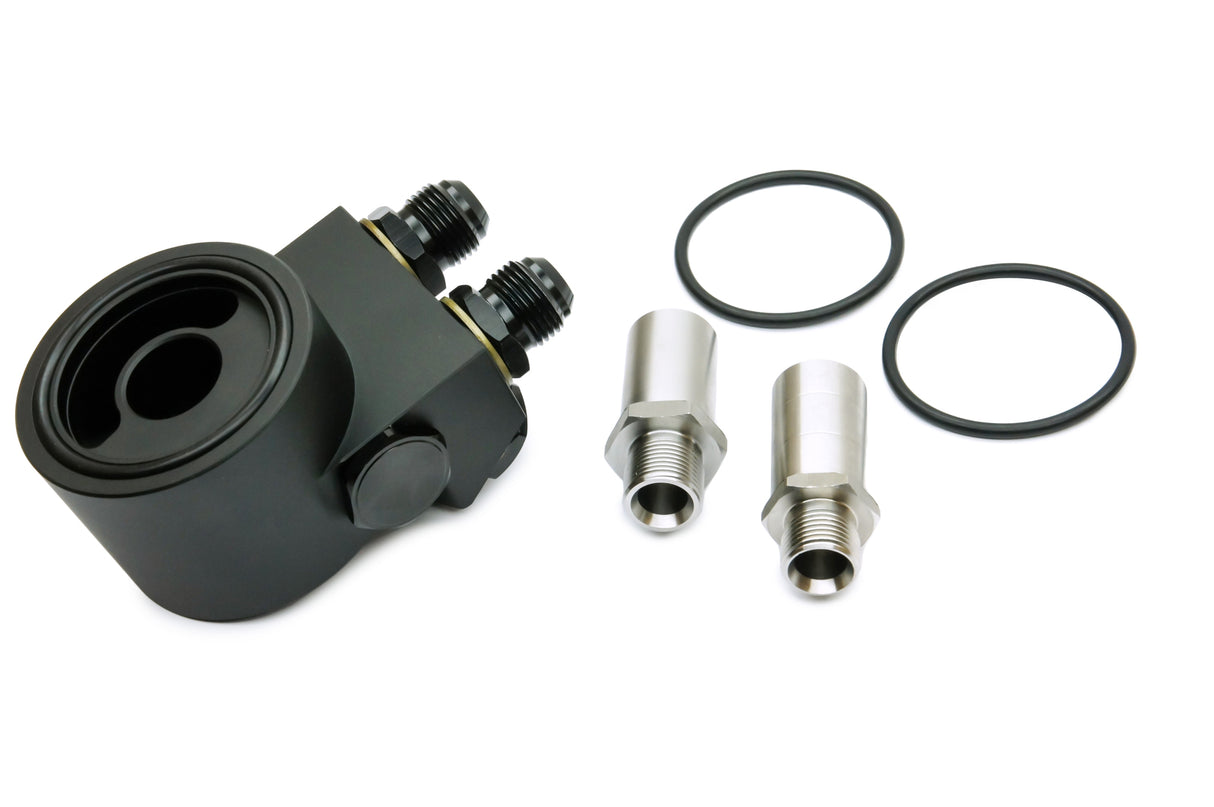

Included Components

  • 1 x Oil Sandwich Plate
  • 2 x AN-10 Male Flare Fittings w/Dowty Seals
  • 2 x AN-10 Plug to 1/8" NPT Port Fittings w/Dowty Seals
  • 1 x M20x1.5 Centre Fitting
  • 1 x 3/4" -16UNF Centre Fitting

Fitment Table

Fitment Notes

General Notes:

  • Note, NOT suitable for use with OEM size oil filter. Will require narrow-body oil filter under 70mm diameter. OEM # 15208AA100 for EJ20/EJ25 is an example of a compatible filter.
