Pulsar 5455G/G30-660 Dual Ball Bearing Turbo Internal Wastegate

The Pulsar PSR 5455G (G30-660) Turbocharger is designed for automotive enthusiasts aiming for powerful and reliable performance enhancements. Featuring a billet compressor wheel and advanced dual ceramic ball bearing technology, this turbocharger delivers rapid spool times and smooth, efficient power delivery. With a maximum horsepower rating of 660 HP, the PSR 5455G is perfect for those who demand a significant boost in performance for street and track applications alike.

The multiple internally wastegated turbine housing options provide seamless integration and increased flexibility for various setups, making installation straightforward and efficient. This combination allows for excellent exhaust flow and improved overall performance, enhancing the responsiveness and capability of your build.

Built with high-quality materials and precision engineering, the Pulsar PSR 5455G HP660 offers durability and reliability under high-stress conditions, ensuring consistent power output. For enthusiasts who seek to push their vehicle's limits, this turbocharger delivers an exceptional blend of innovation, performance, and dependability.

• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
• 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Internally Wastegated, Billet Actuator(Working pressure 12 psi)

• Compressor Wheel: 54*67mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 3″ Hose or 4″ Horse
• Compressor Outlet: 2″ Hose

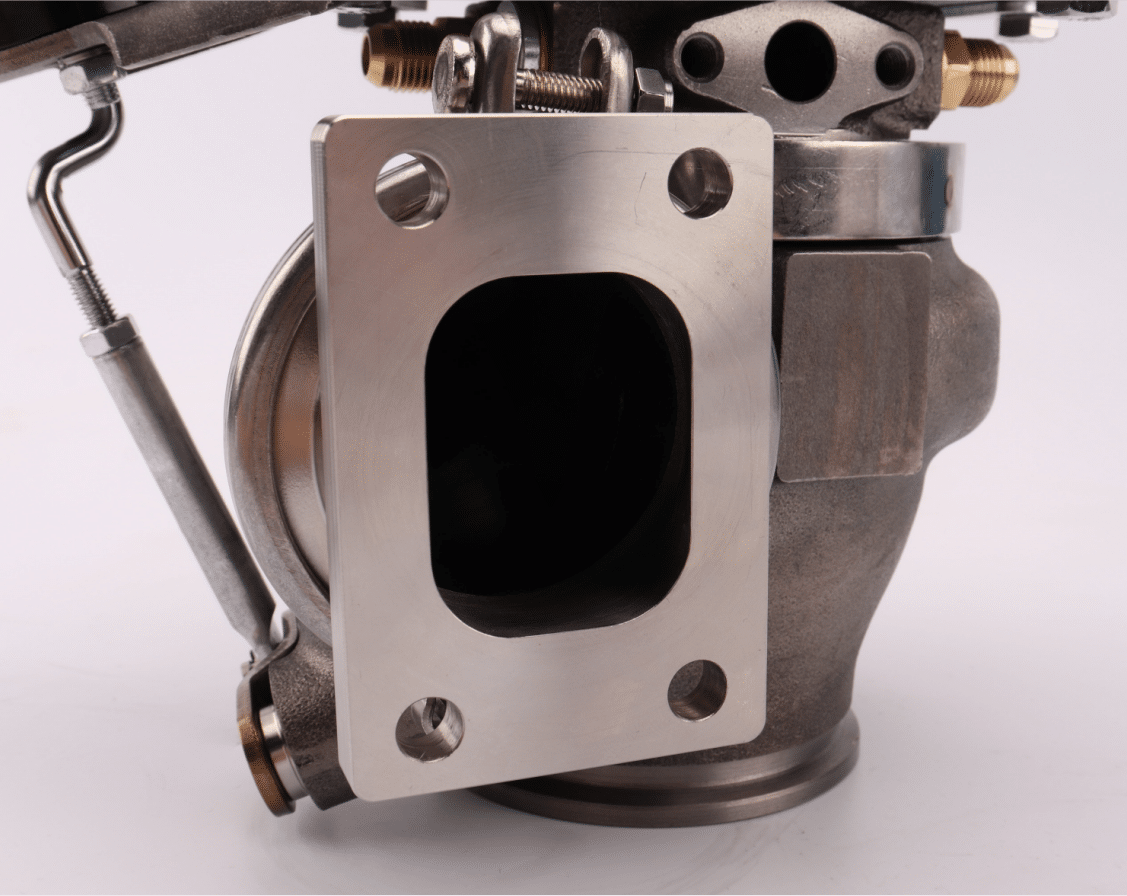

• Turbine Inlet: T25, T3, T4 or Vband
• Turbine Outlet: 3″ V-Band
• Water Ports: 2-M14 X 1.5
• Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
• Oil Outlet: Std T3 Oil Drain Flange
