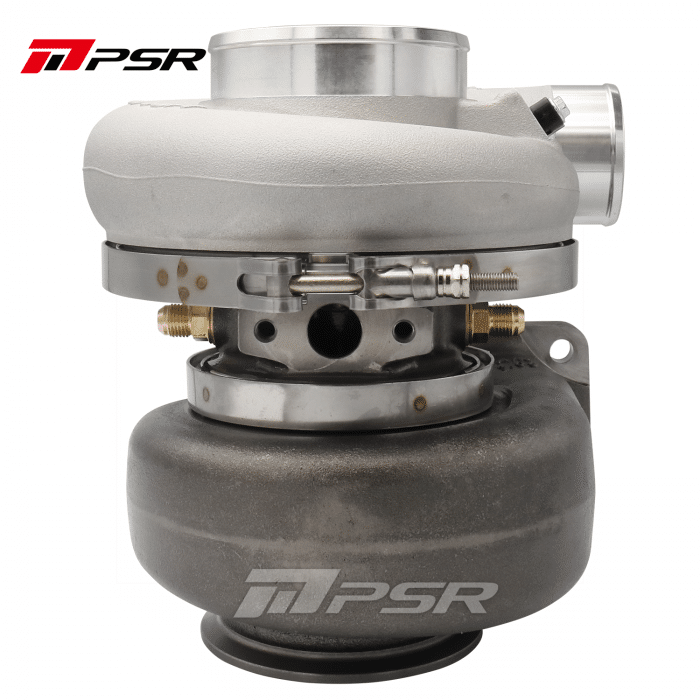

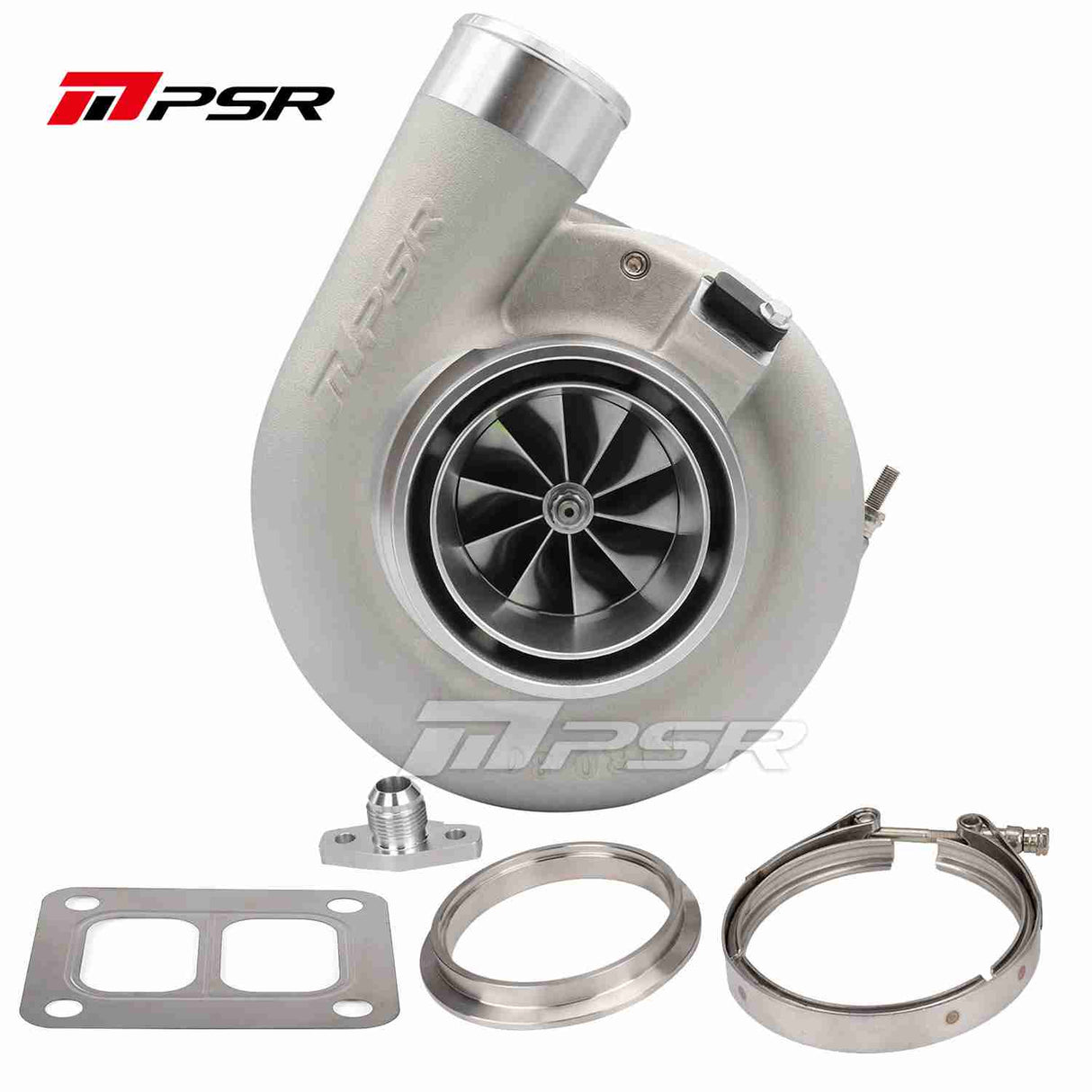

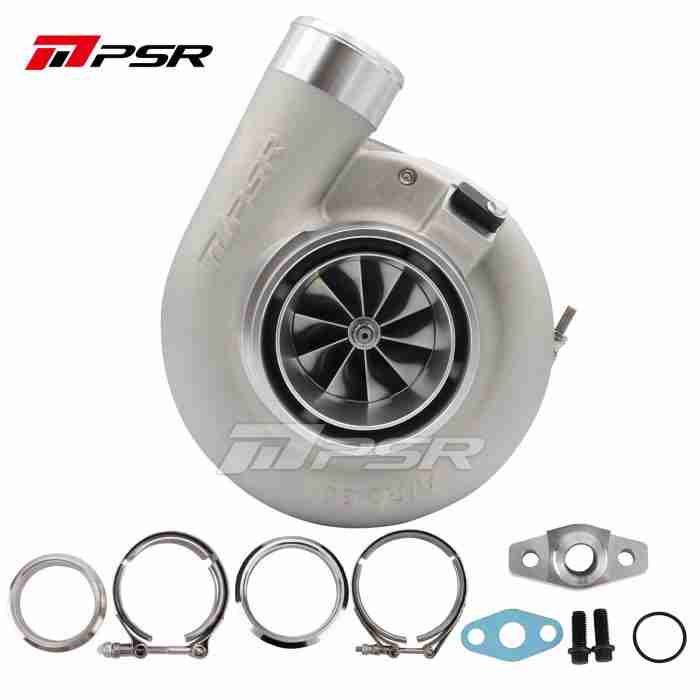

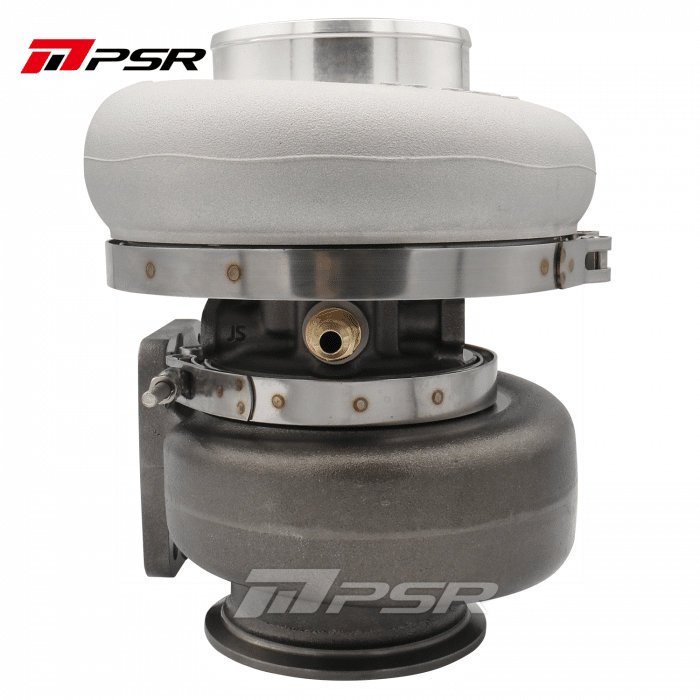

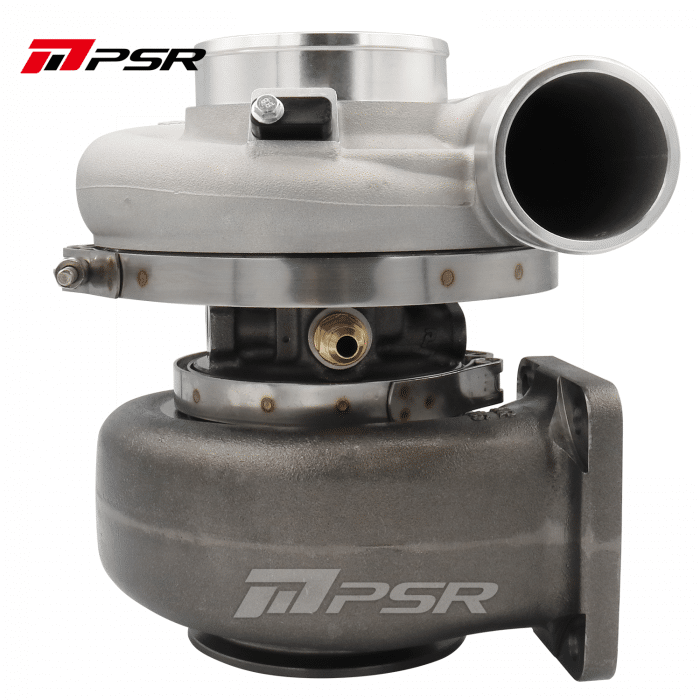

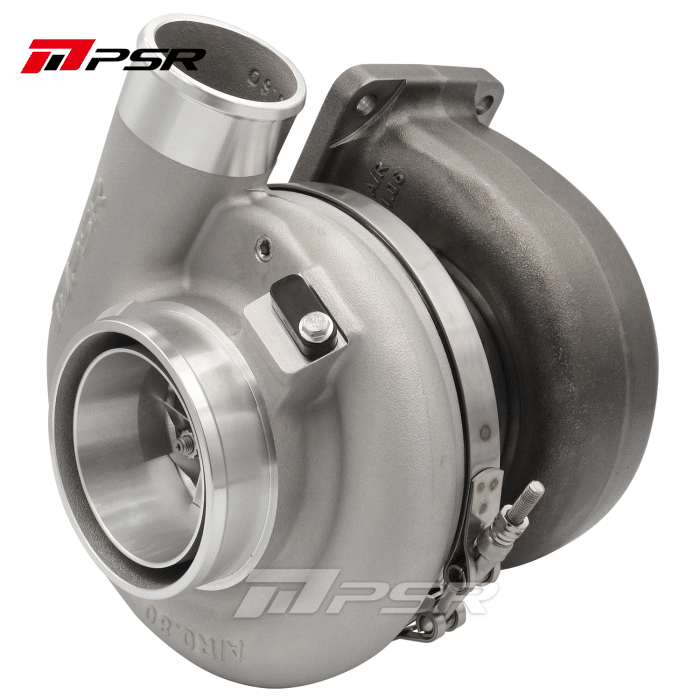

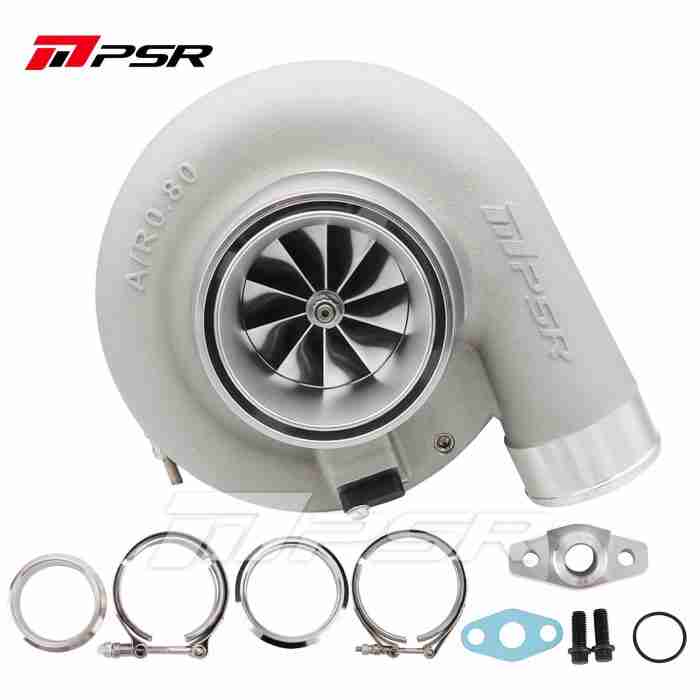

Pulsar 7170G/G40-1150 Dual Ball Bearing Turbo External Wastegate

Universal
$1,475.00
Turbine Housing
T51R Compressor Mod
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Goes well with

Subtitle

Description

The Pulsar 7170G (G40-1150) Turbocharger is a high-performance turbocharger designed for those seeking to achieve extreme horsepower and cutting-edge engineering. Capable of delivering up to 1,150 HP, this turbocharger is ideal for professional racing and high-output street builds where massive power is a priority. Featuring a billet compressor wheel and dual ceramic ball bearings, the PSR 7170G ensures quick spool-up, reduced friction, and consistent, reliable performance under the most demanding conditions.

Engineered for optimal airflow and thermal management, this turbocharger maximizes efficiency, even at high boost levels. The high-flow turbine housing further enhances exhaust flow, ensuring your engine performs at its peak with minimal lag.

Built to handle high-stress environments, the Pulsar 7170G offers the durability and power necessary for enthusiasts who are pushing the limits of their performance builds. This turbocharger is the ideal choice for those who need a reliable and powerful solution to propel their vehicle to the next level.

Features and Benefits

  • Dual ceramic ball bearing with steel cage provides optimal turbo response & better durability by reducing the shaft-motion
  • 71mm inducer 10 Blade G-Aero billet compressor wheel with extended tapered tip technology

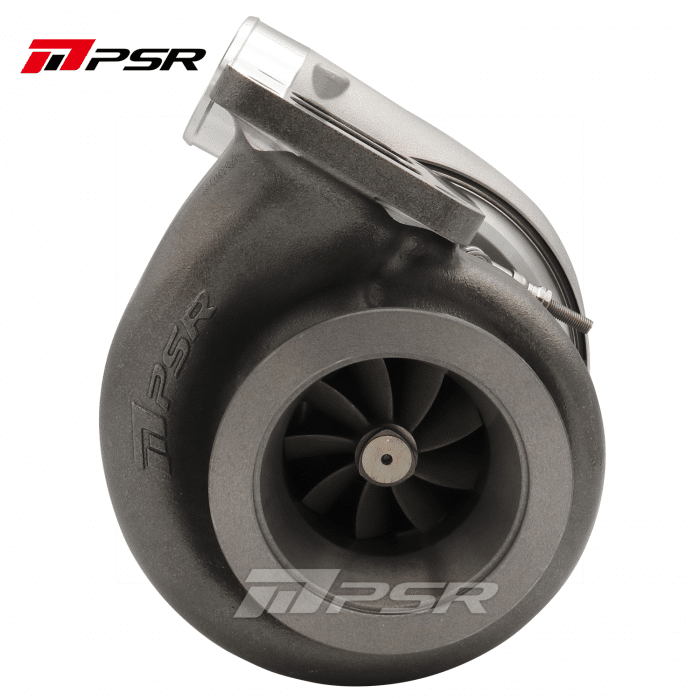

  • 9 Blade G-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
  • Water fittings included with the super core
  • 3 Options in Turbine Housing
  • Suitable engine size: 2.0-6.0L
  • HP rated at 1150HP at the flywheel

Technical Specifications

  • Bearing Systems: Dual Ceramic Ball Bearing
  • Compressor Wheel: 71*88mm
  • Turbine Wheel: 77*70mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ Hose

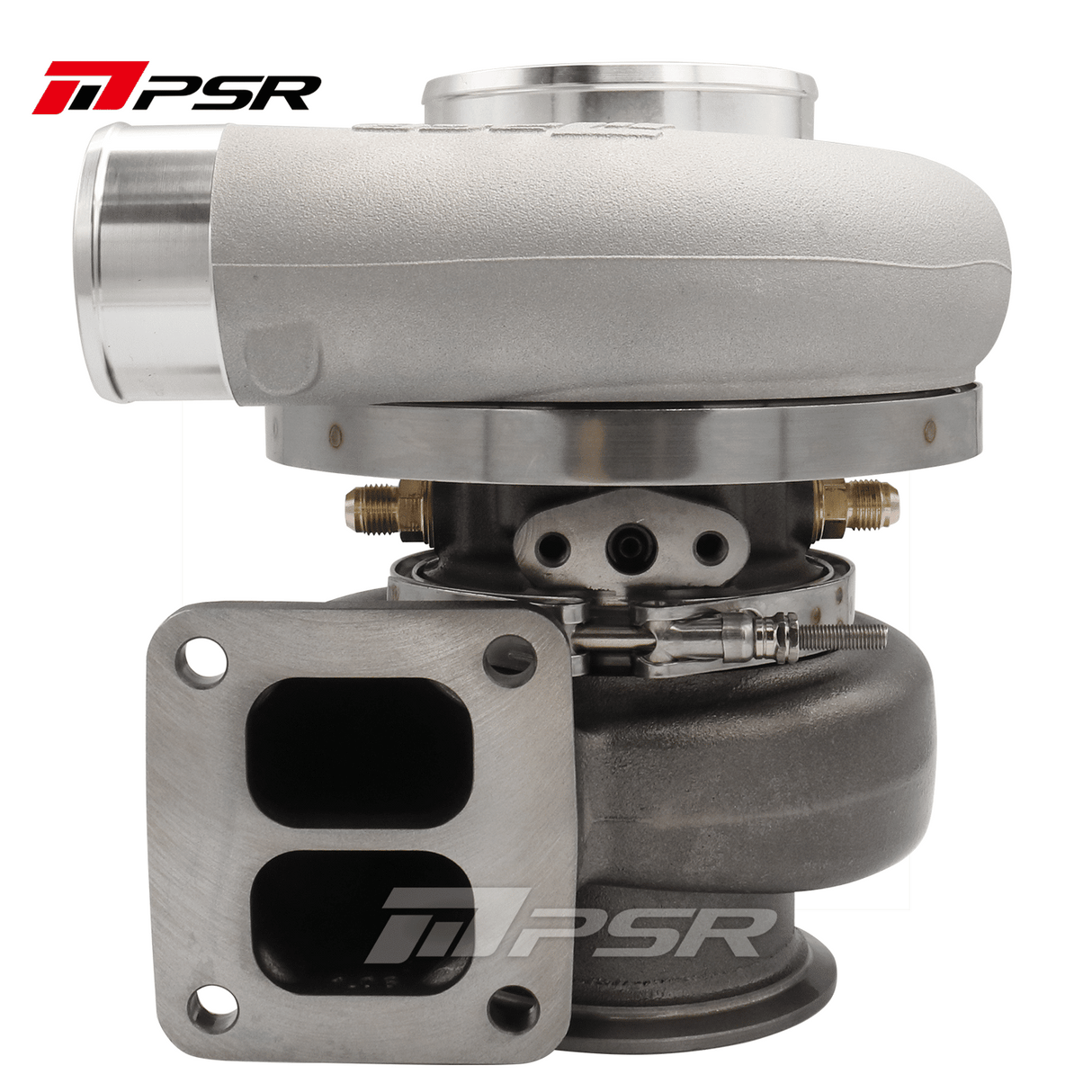

  • Turbine Inlet: V-band or T4 divided
  • Turbine Outlet: 3.5”or 4″ V-band (see details after housing selection)
  • Water Ports: -6AN
  • Oil Feed(excl’): Flange Required(Recommended size: -4AN Std T4 Flange )
  • Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
