 |  SKU: 102135298

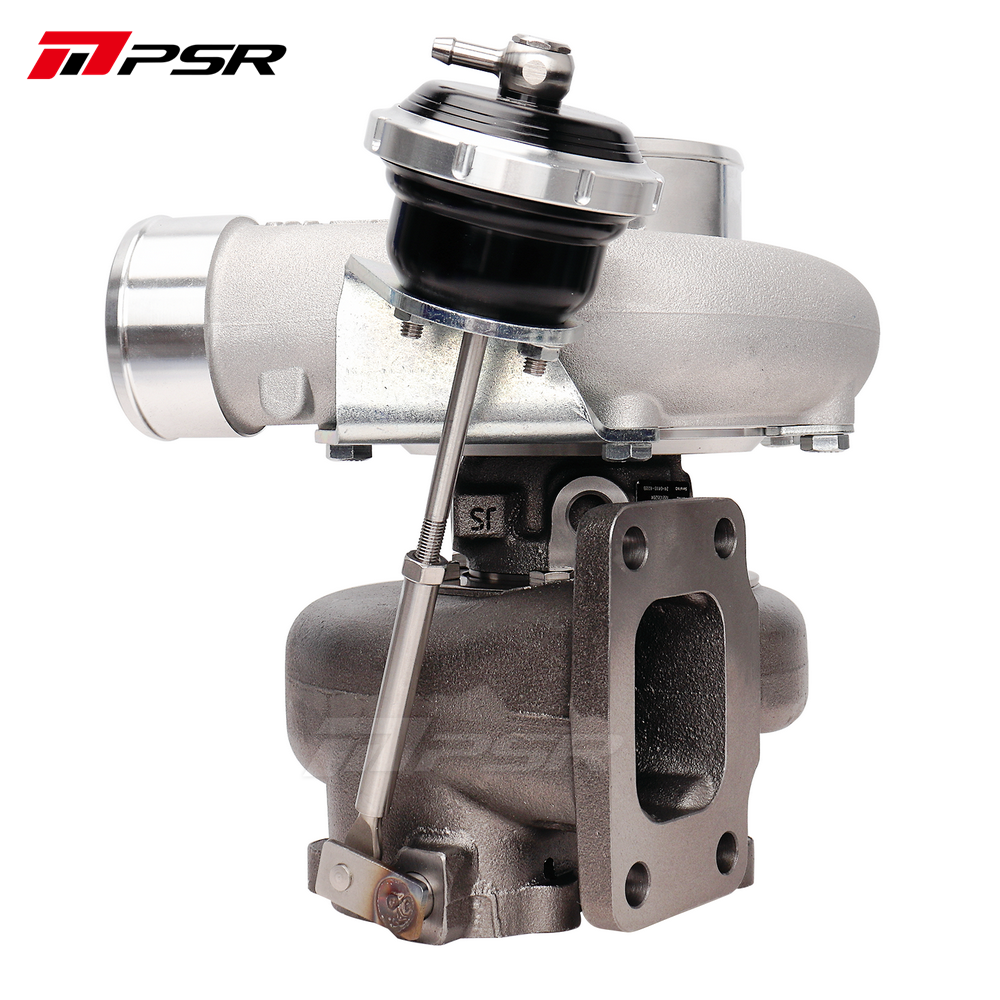

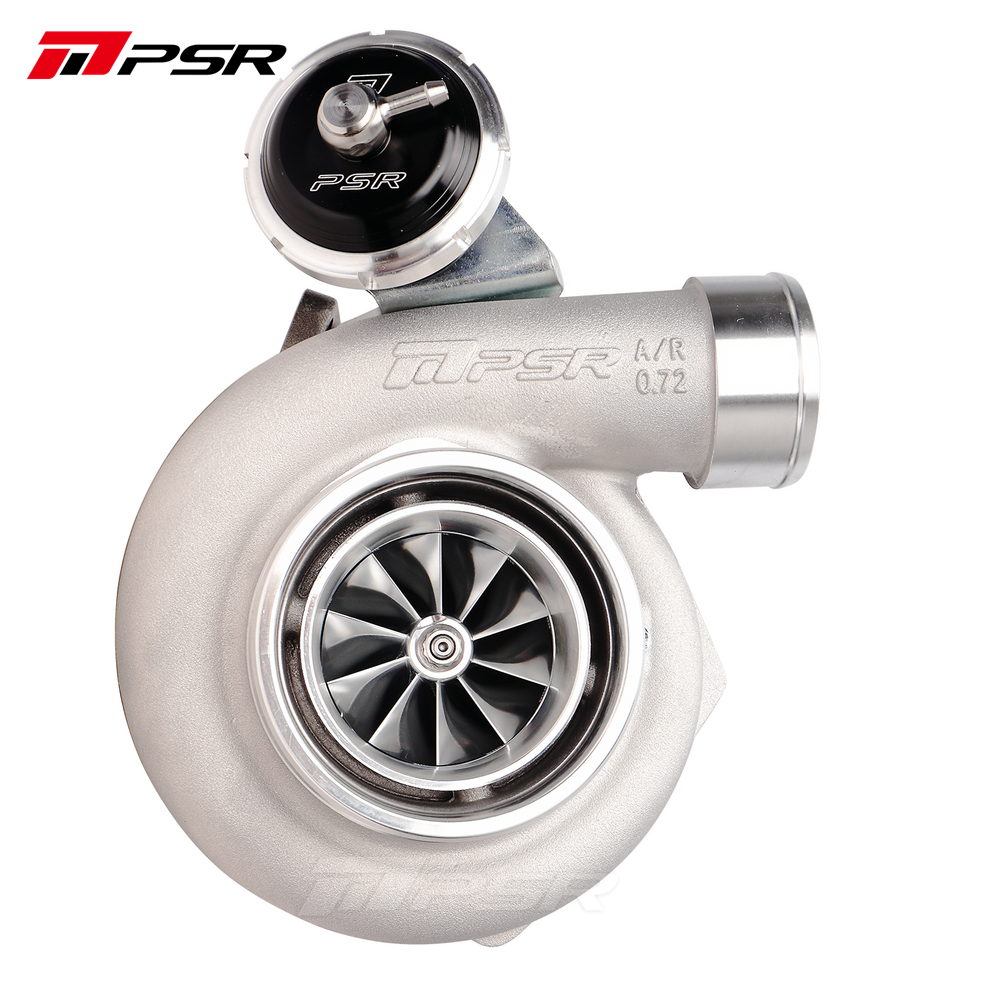

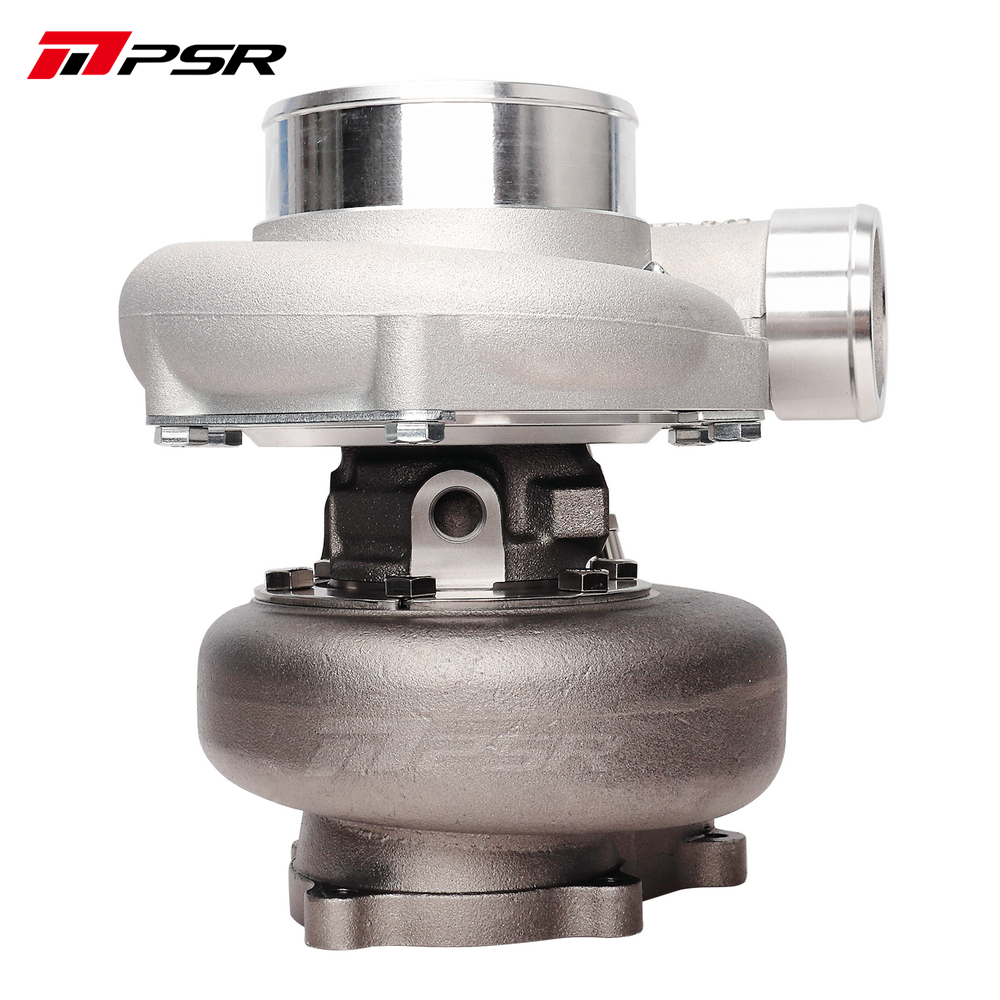

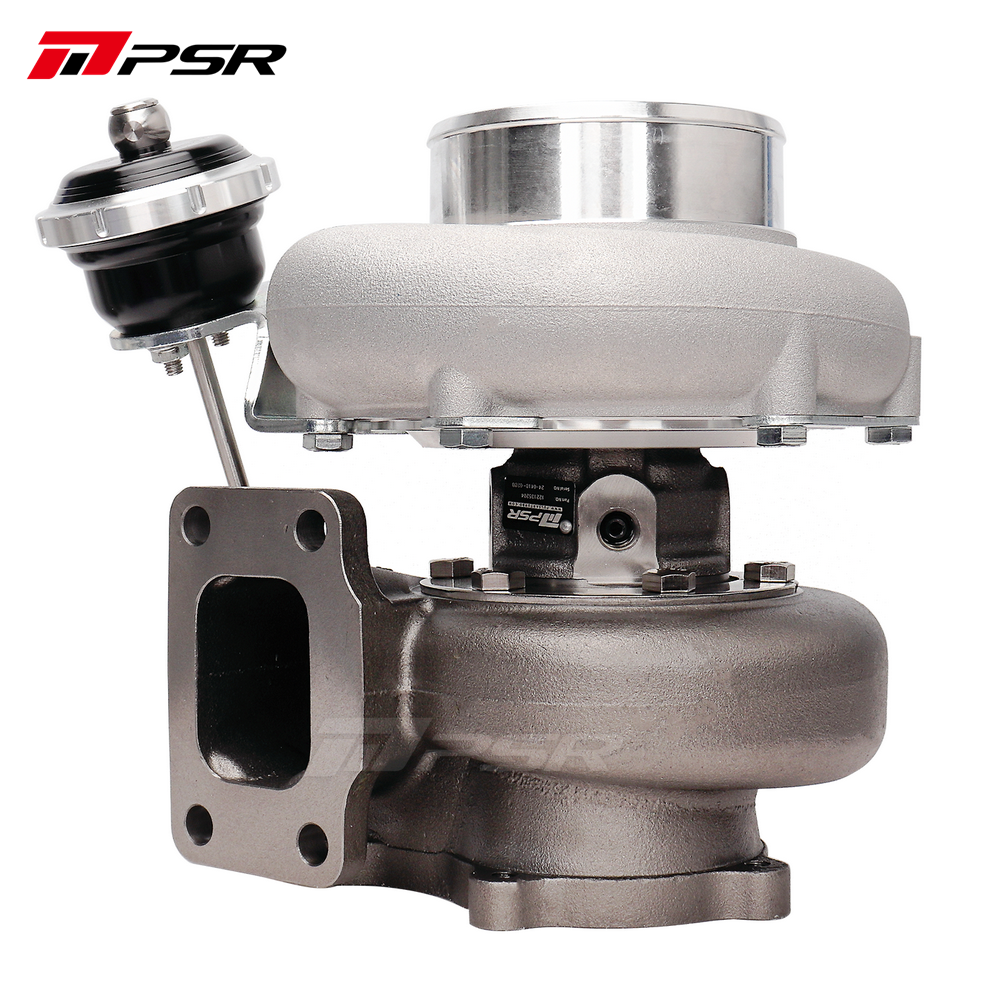

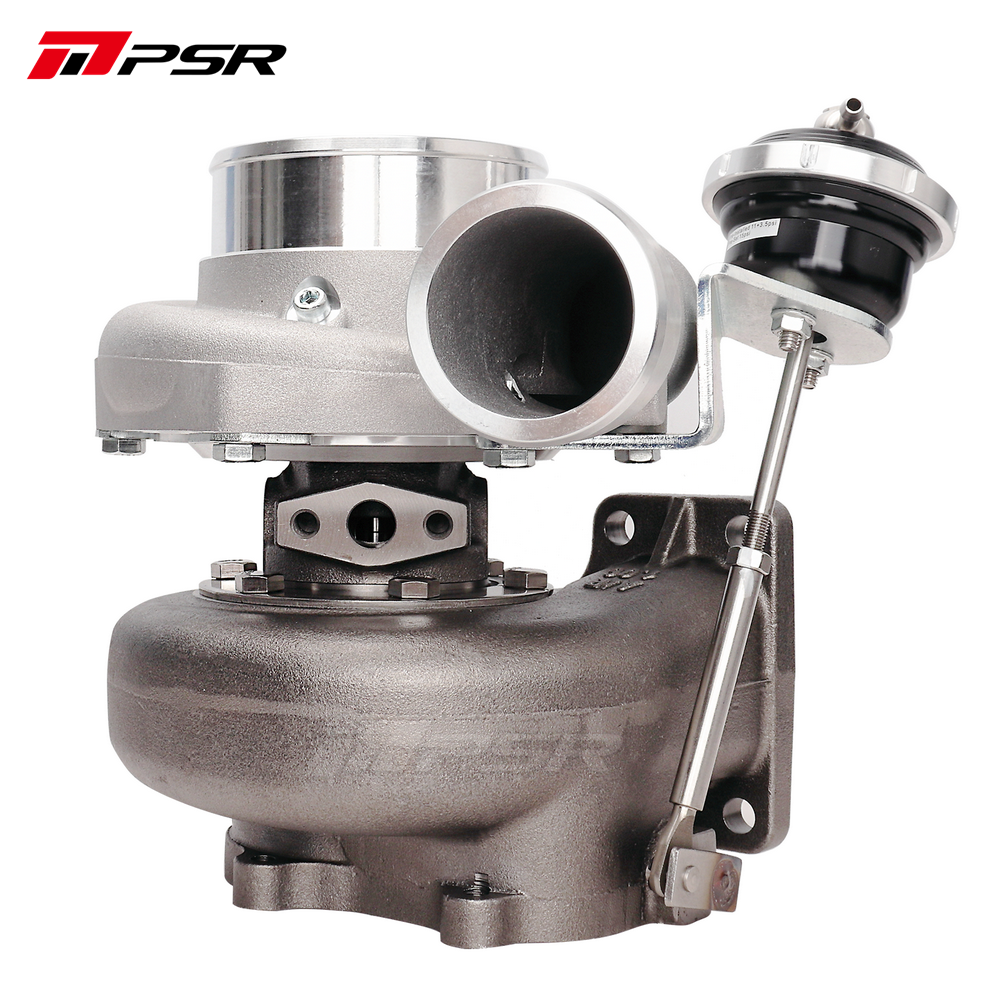

Pulsar Gen3 GTX3584RS Turbo

Ford Falcon XR6 Turbo/FPV BA, BF, FG
$1,625.00

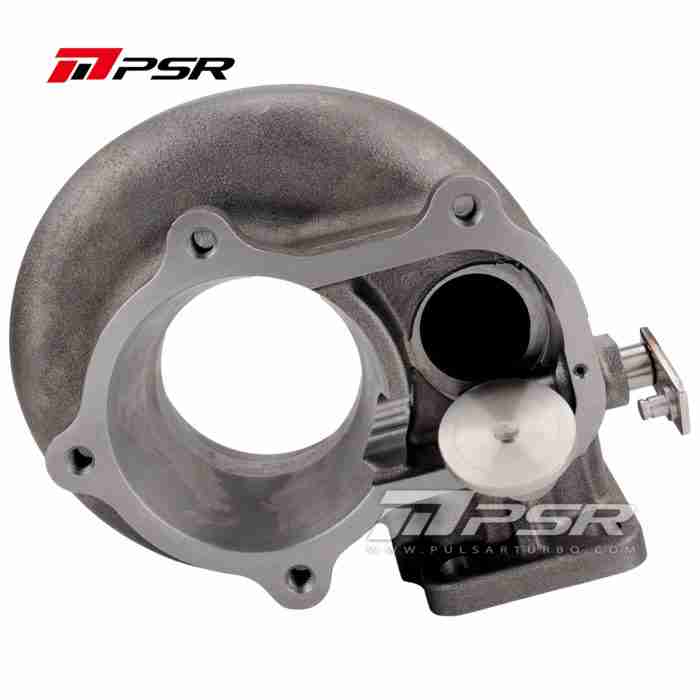

Turbine Housing
T51R Compressor Mod
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Goes well with

Subtitle

Description

The Pulsar PSR3584 Gen3 XR6 Turbocharger brings a new level of performance and efficiency to automotive tuning. The new, larger 74x66mm turbine wheel allows for higher horsepower over the Gen2 turbocharger while still providing excellent response.

Equipped with a 1.06 or 1.15 A/R turbine housing and standard compressor housing, this turbocharger is optimized for a balanced blend of power, boost, and flow. With a 5, 10 or 15 PSI actuator, the PSR3584 Gen3 XR6 provides controlled, consistent power gains and a broad torque curve, making it perfect for high-performance street and track applications. Built for enthusiasts who demand quick spool times, reliability, and robust power output, the PSR3584 Gen3 XR6 turbocharger redefines what’s possible in high-performance turbo technology.

Features and Benefits

New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP Larger Turbine Wheel for higher flowability Genuine structure and rebuildable dual ceramic ball bearing system Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet Billet actuator with black anodized coating 3 Layer Stainless Steel 5 Bolt Gasket

Technical Specifications

  • Compressor Wheel: 67.3*84.4mm(extended tip diameter: 87.3mm)
  • Larger Turbine Wheel for Higher Horsepower: 74*66mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ Hose
  • Turbine Inlet: T3 Open
  • Turbine Outlet: 5 Bolt
  • Turbine housing internal wastegate hole: 33mm
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange
  • Actuator working pressure: 15psi/12psi/5psi

Fitment Table
