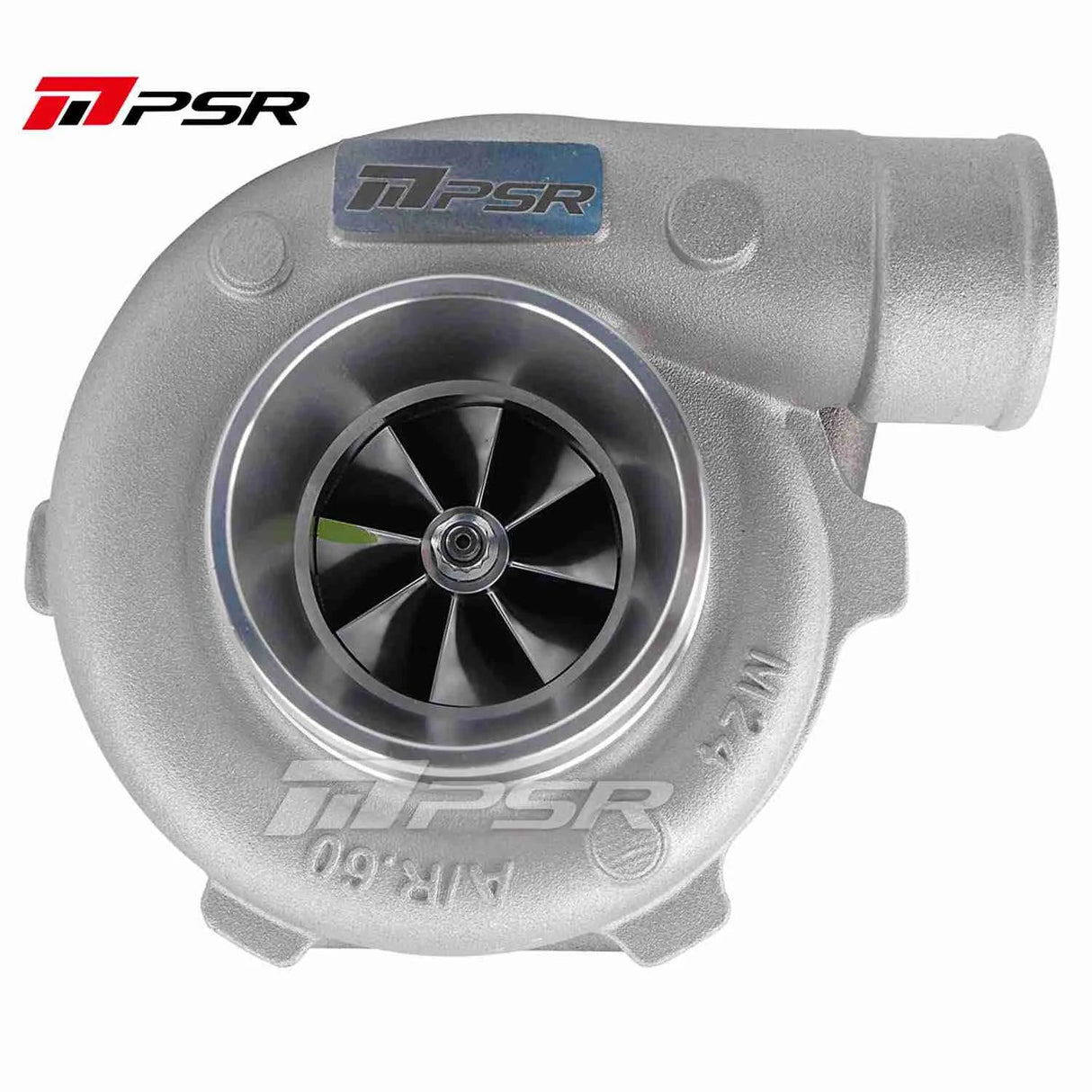

Pulsar GTX3071R Compact Gen2 Dual Ball Bearing Turbo External Wastegate

Universal
$1,069.00
Turbine Housing
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Goes well with

Subtitle

Description

The Pulsar PSR3071R Gen 2 Compact Dual Ball Bearing Turbocharger (External Wastegate) combines a compact form factor with exceptional performance, making it ideal for high-output builds with limited engine bay space. This Gen 2 turbocharger utilizes dual ball-bearing technology to minimize friction, delivering faster spool times and more efficient power delivery.

Designed with a high-efficiency compressor and turbine, the PSR3071R provides a smooth, responsive power curve that enhances both street driving and track performance. Its durable construction can withstand extreme conditions, ensuring consistent performance in high-stress applications.

With its compact design and advanced engineering, the Pulsar PSR3071R Gen 2 Turbocharger is the ultimate solution for drivers looking to balance space efficiency with powerful, reliable performance.

Note: We highly recommended running water cooling for better durability.

Features and Benefits

  • Compact compressor cover, 3” inlet, 2” outlet
  • Dual Ceramic Ball Bearing System
  • 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel
  • Multiple options for turbine housing
  • V-Band Flange kit(s) for the exhaust housing included

Technical Specifications

  • Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
  • Compressor Wheel: 54*71mm
  • Turbine Wheel: 60*55mm
  • Compressor Inlet: 3″ Hose
  • Compressor Outlet: 2″ Hose
  • Turbine Inlet: T3, T4, or 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band (3.55″ OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

Fitment Table
