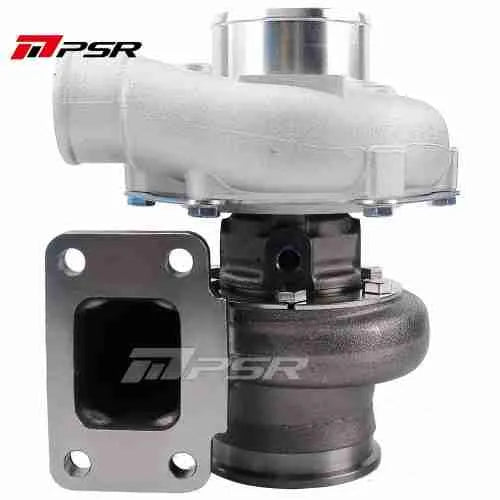

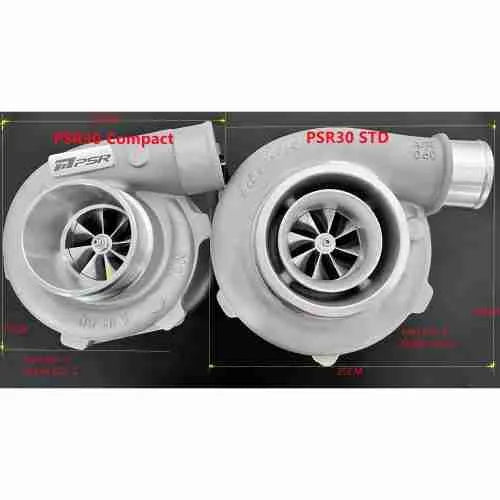

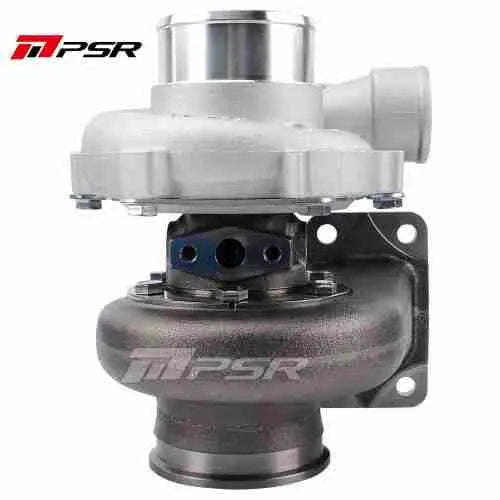

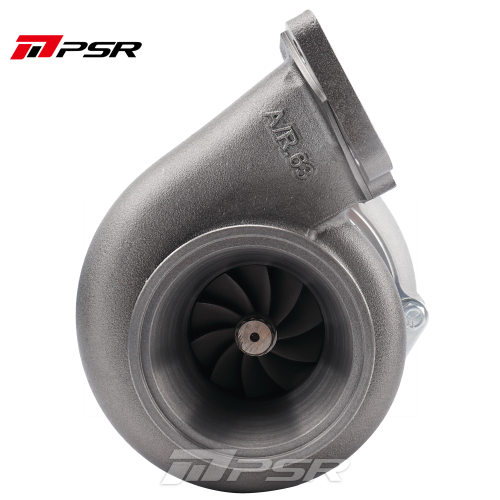

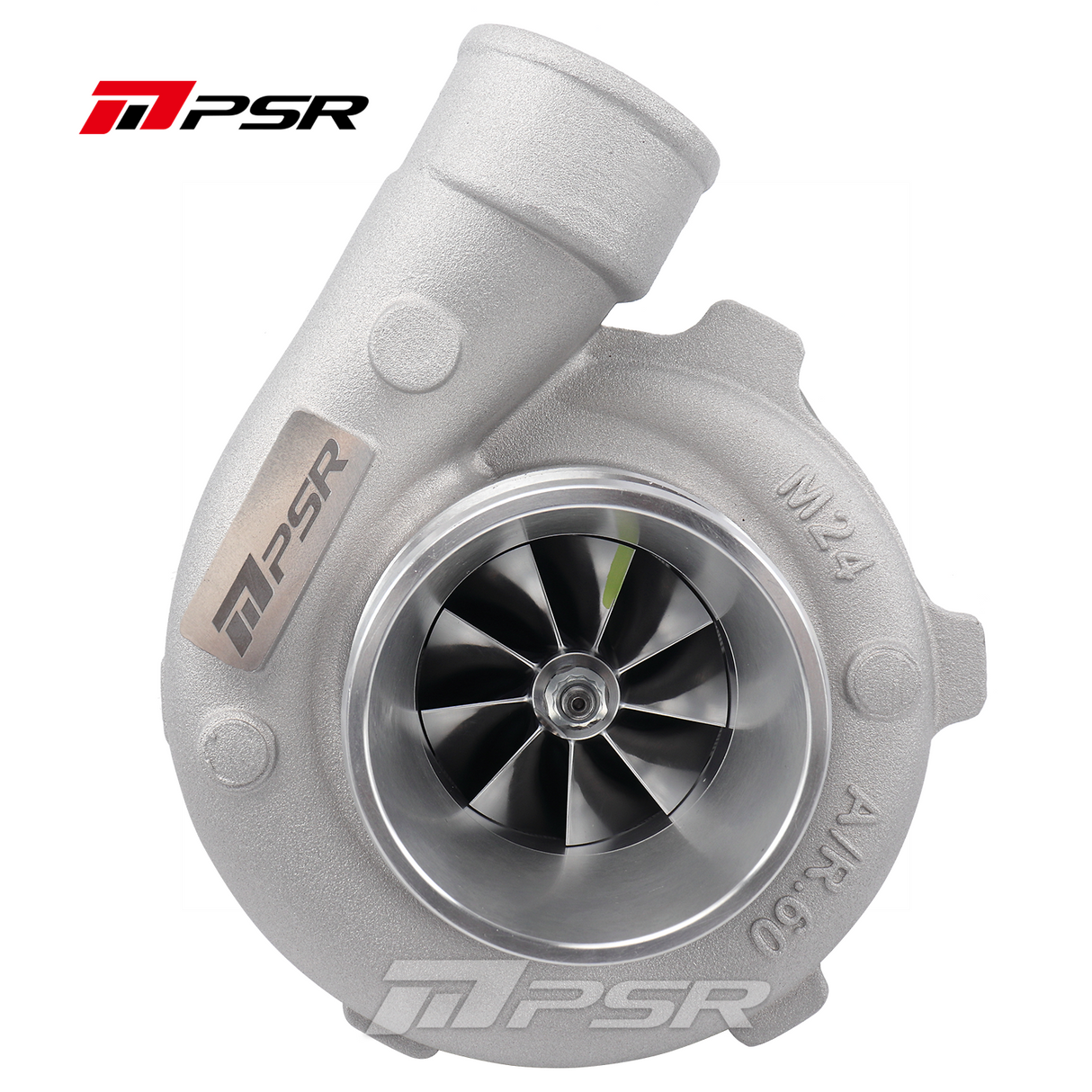

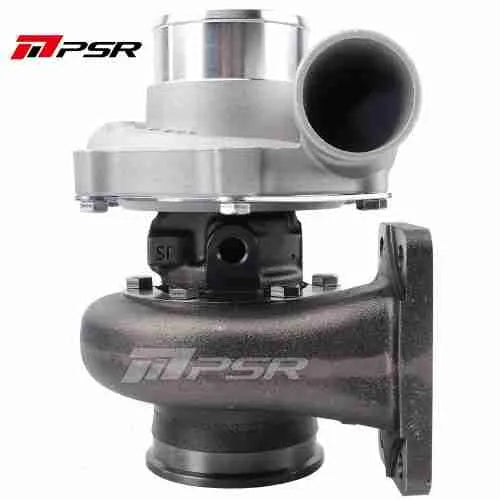

Pulsar GTX3576R Compact Gen2 Dual Ball Bearing Turbo External Wastegate

Universal
$1,069.00
Turbine Housing
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Goes well with

Subtitle

Description

The Pulsar PSR3576 Gen2 Compact Dual Ball Bearing Turbocharger is designed to deliver top-tier power and efficiency in a sleek, compact form. Featuring dual ball bearing technology, this Gen2 turbocharger offers rapid spool-up and smooth power delivery, allowing for quick acceleration and responsive handling across all RPM ranges.

Ideal for both street and track applications, the PSR3576’s compact design makes installation easy without compromising performance. The turbo’s high-flow compressor and turbine setup ensures efficient boost control, helping to maximize horsepower and torque. Engineered with premium materials and advanced cooling capabilities, this turbocharger provides exceptional durability and thermal stability even under demanding conditions.

The PSR3576 Gen2 Turbo is an excellent choice for those looking to elevate their vehicle’s performance with a turbo that combines reliability and cutting-edge engineering. Experience the power and precision of the Pulsar PSR3576 Gen2 Compact Dual Ball Bearing Turbocharger – designed to take your driving experience to the next level with consistent, high-powered performance.



Note: We highly recommended running water cooling for better durability.

Features and Benefits

  • Dual Ceramic Ball Bearing System
  • 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 9 Blade Turbine Wheel
  • Multiple options for turbine housing
  • V-Band Flange kit(s) for the exhaust housing included

Technical Specifications

  • Max Air Flow rate: 65 lb/min, rated @ 750 FWHP
  • Compressor Wheel: 58*76mm
  • Turbine Wheel: 68*62mm
  • Compressor Inlet: 3.0” Hose
  • Compressor Outlet: 2.0” Hose
  • Turbine Inlet: T3, T4, or 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band (3.55″OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

Fitment Table
