 |  SKU: 102135800

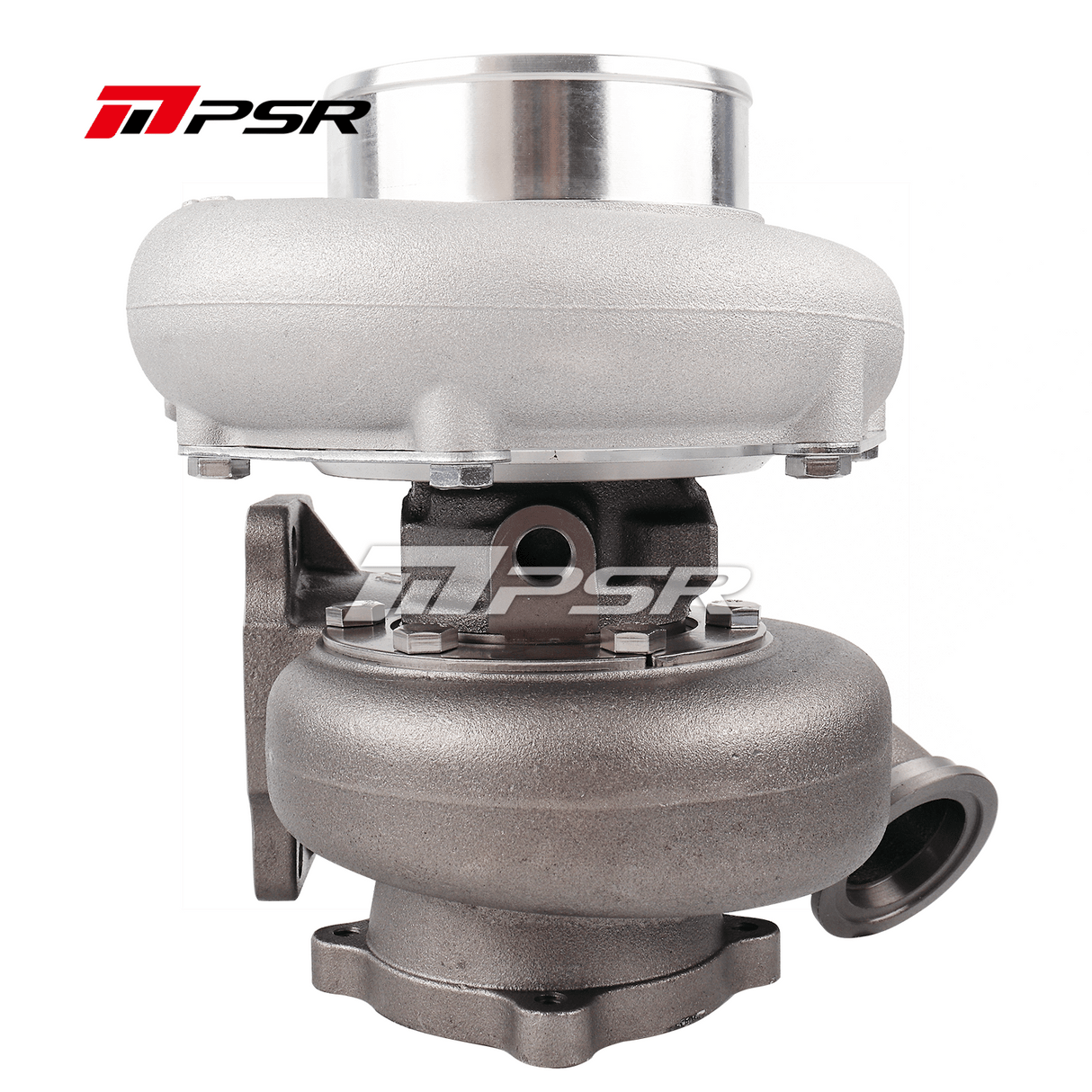

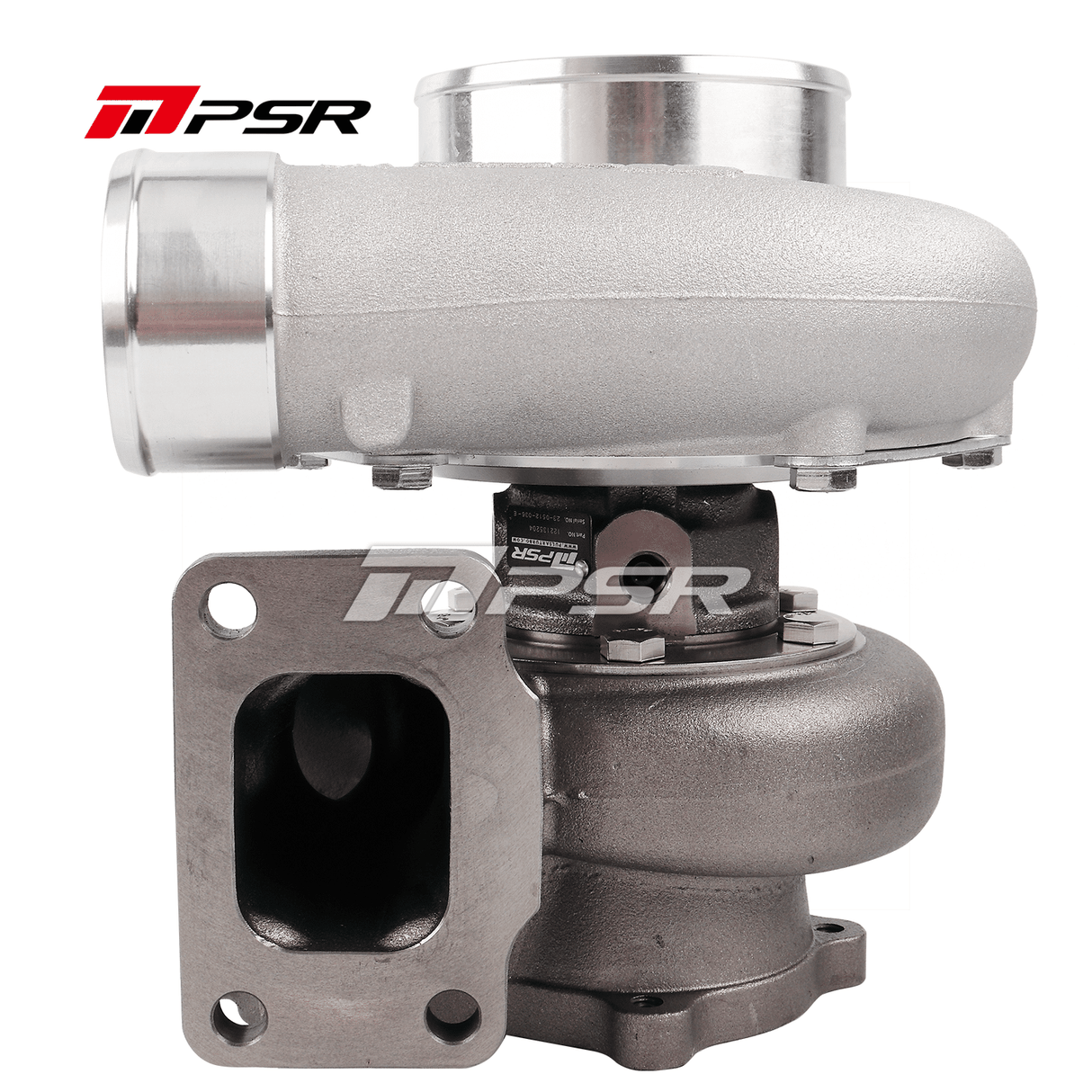

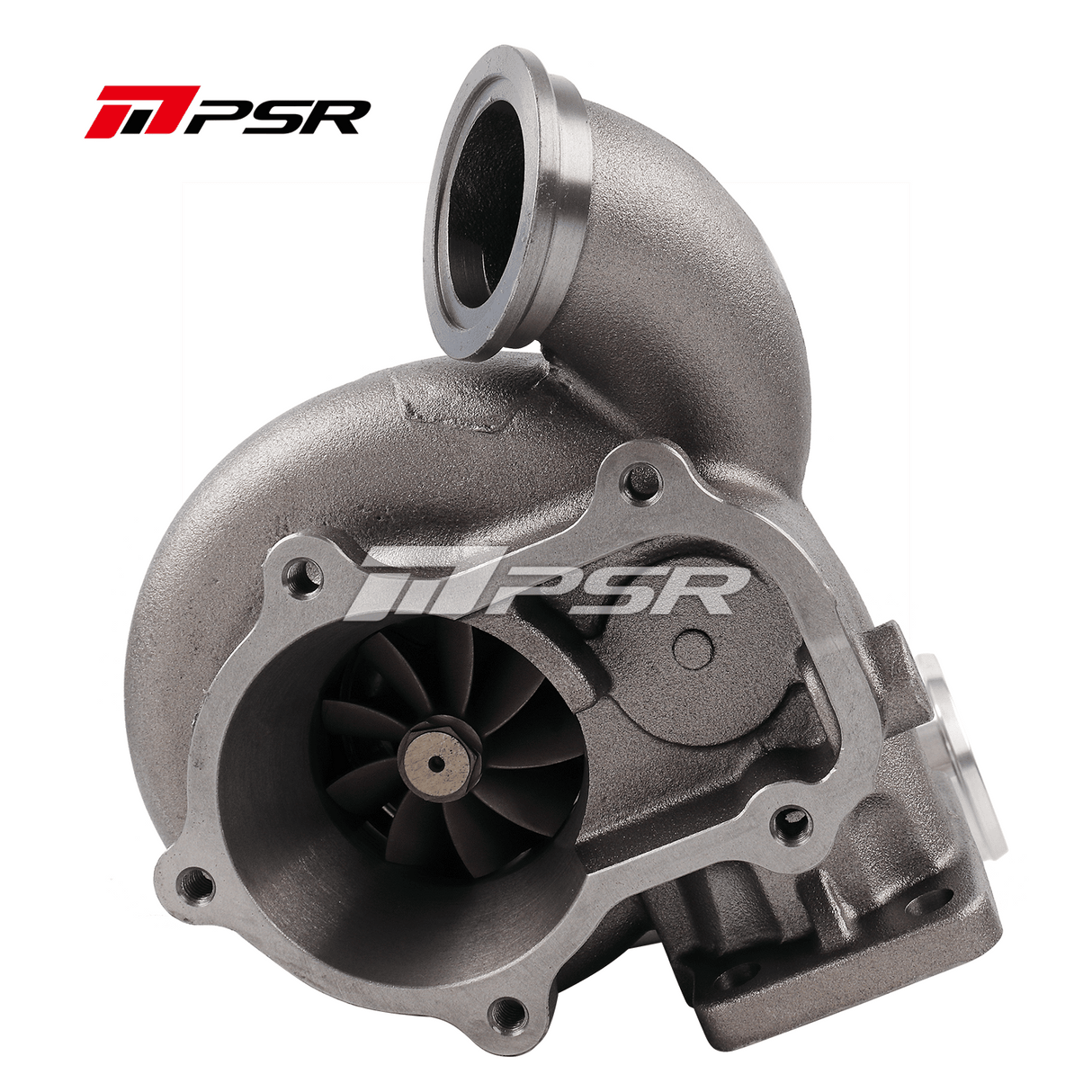

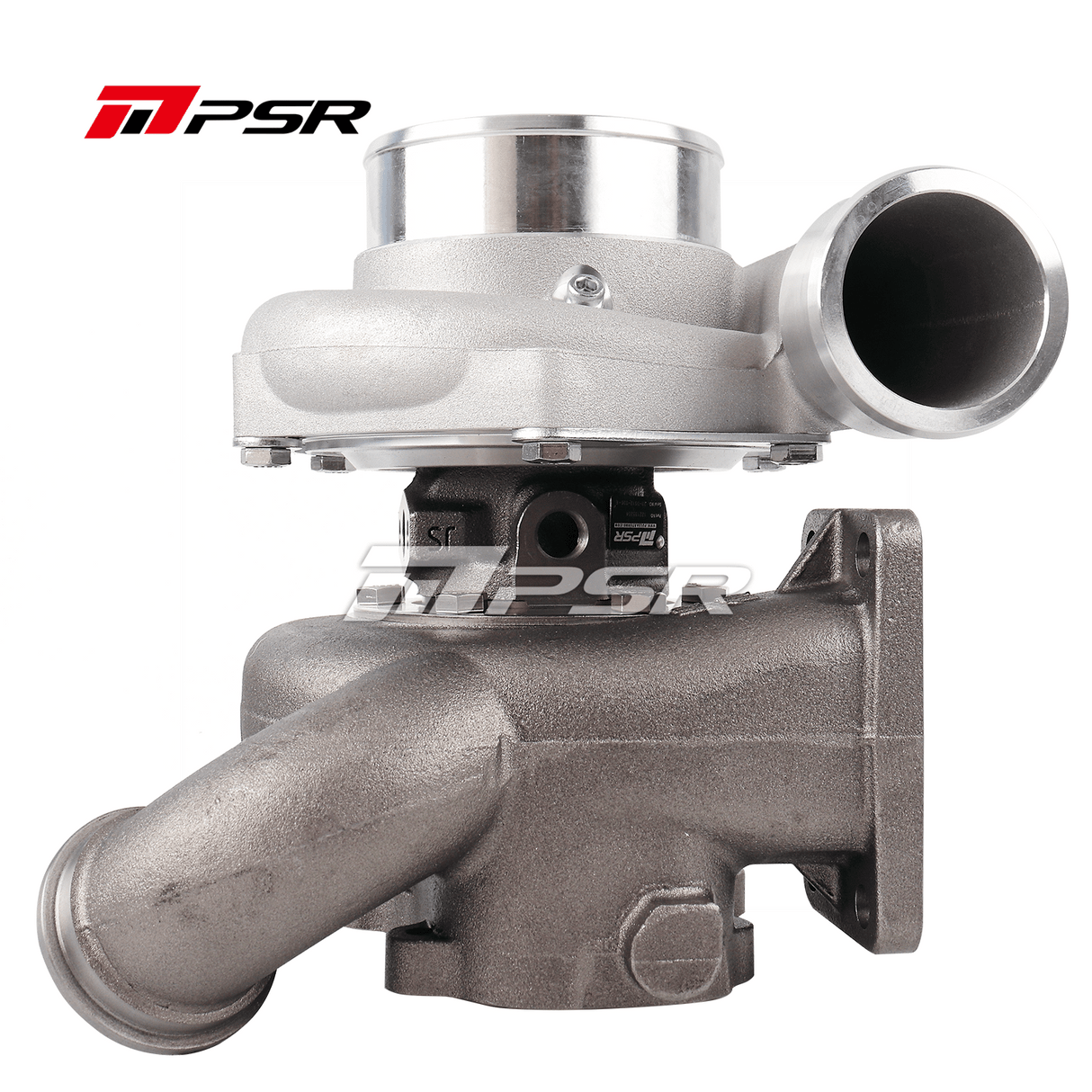

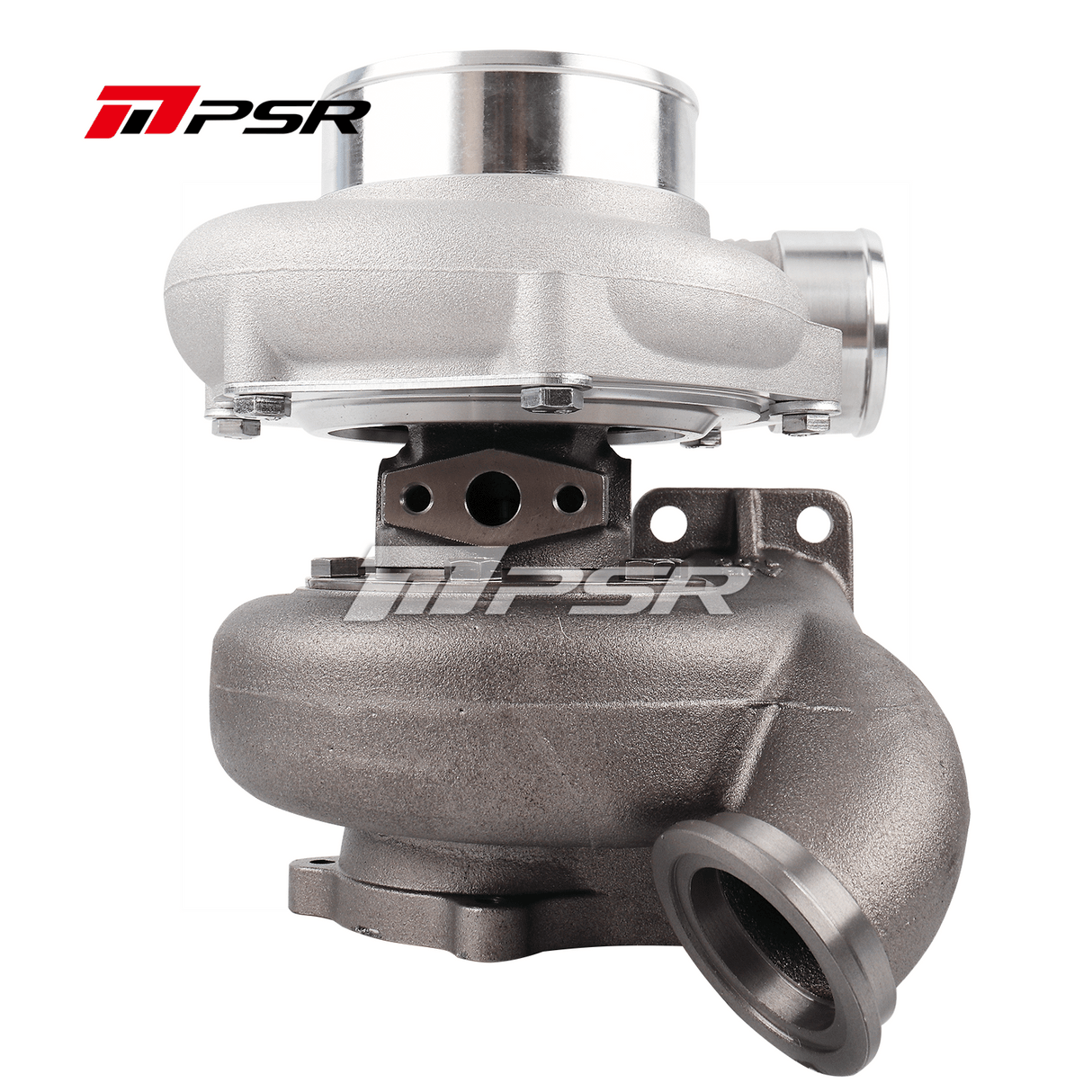

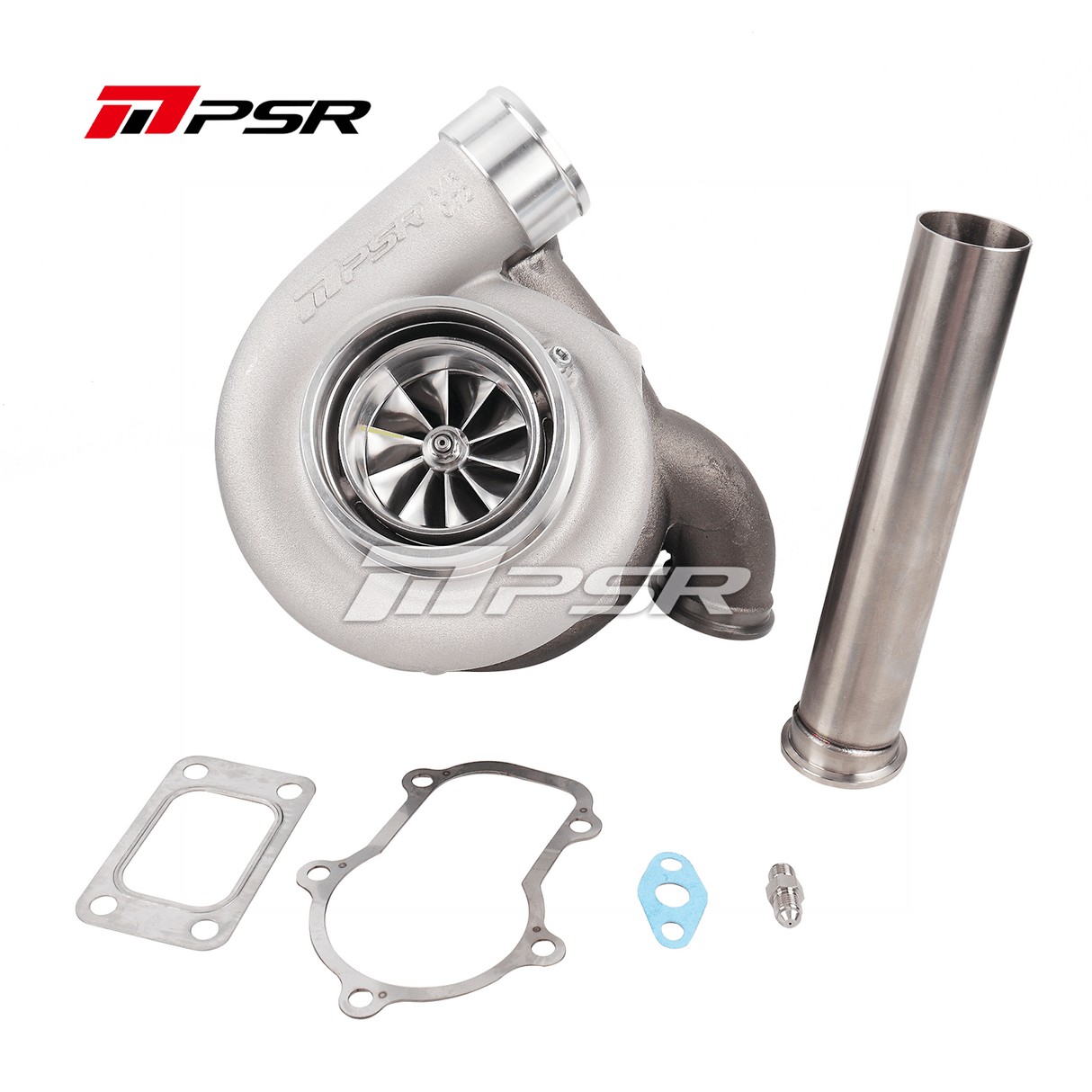

Pulsar GTX3582 Gen2 External Wastegate Turbo Kit

Ford Falcon XR6 Turbo/FPV F6 FG/FGX
$1,349.00
T51R Compressor Mod
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Goes well with

Subtitle

Description

The Pulsar Next Gen PSR6682 Turbocharger is the ideal high-performance upgrade for Ford Falcon enthusiasts looking to replace the factory PT3582R turbo. This turbo features an external wastegate for superior control and precise boost handling. The PSR6682 is engineered for rapid spool-up and reliable, consistent power delivery, enhancing overall vehicle performance. It’s perfect for drivers who demand both high output and dependable operation for street or track applications.

Note:

  • External Wastegate not included (Recommended to use Pulsar 45mm, Turbosmart 45mm or GFB 44m external wastegates)

Features and Benefits

  • New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
  • New Aerodynamic 9 blade turbine wheel, less weight, lower inertia, and higher flowability
  • Genuine structure and rebuildable dual ceramic ball bearing system
  • Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
  • Billet actuator with black anodized coating
  • 3 Layer Stainless Steel 5 Bolt Gasket

Technical Specifications

  • Compressor Wheel: 65.7*82.6mm(extended tip diameter: 85.29mm)
  • Turbine Wheel: 68*62.3mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ Hose
  • Turbine Inlet: T3 Open
  • Turbine Outlet: 5 Bolt
  • Turbine housing internal wastegate hole: 33mm
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange
  • Actuator working pressure: 15psi/10psi/5psi

Fitment Table
