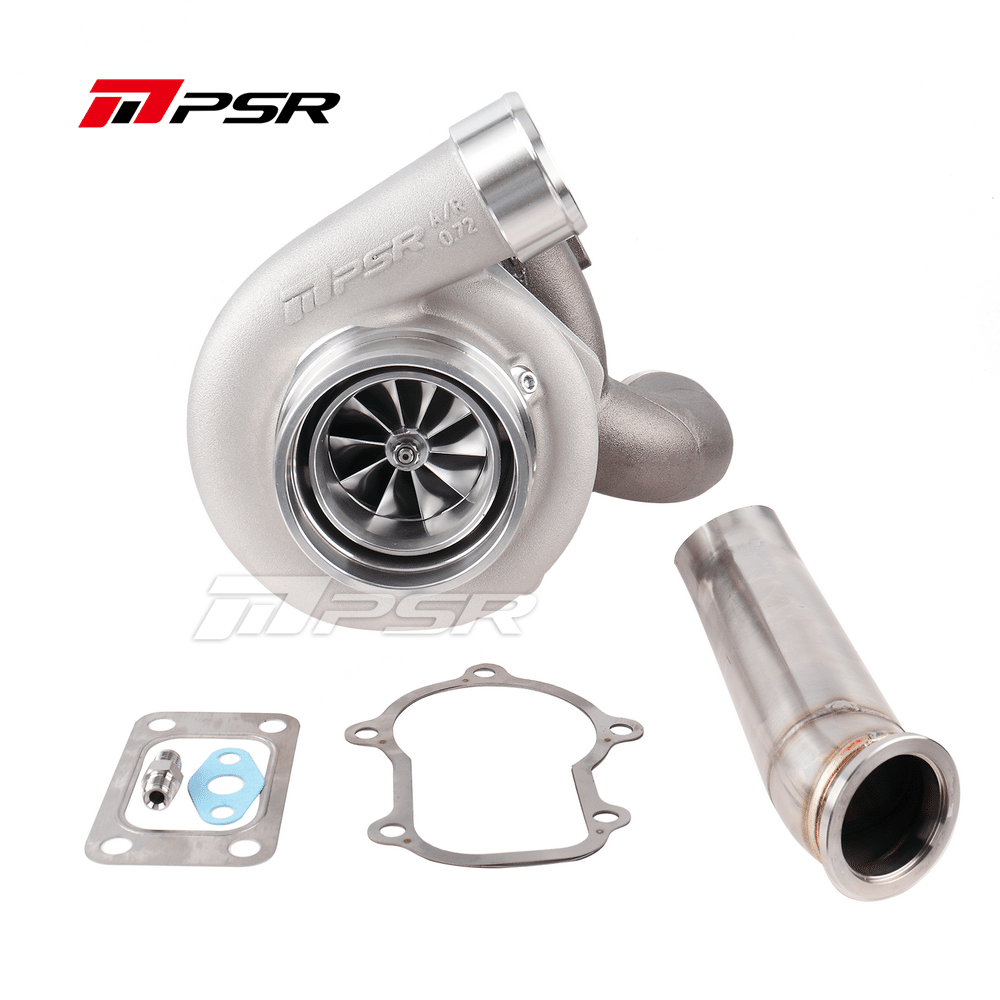

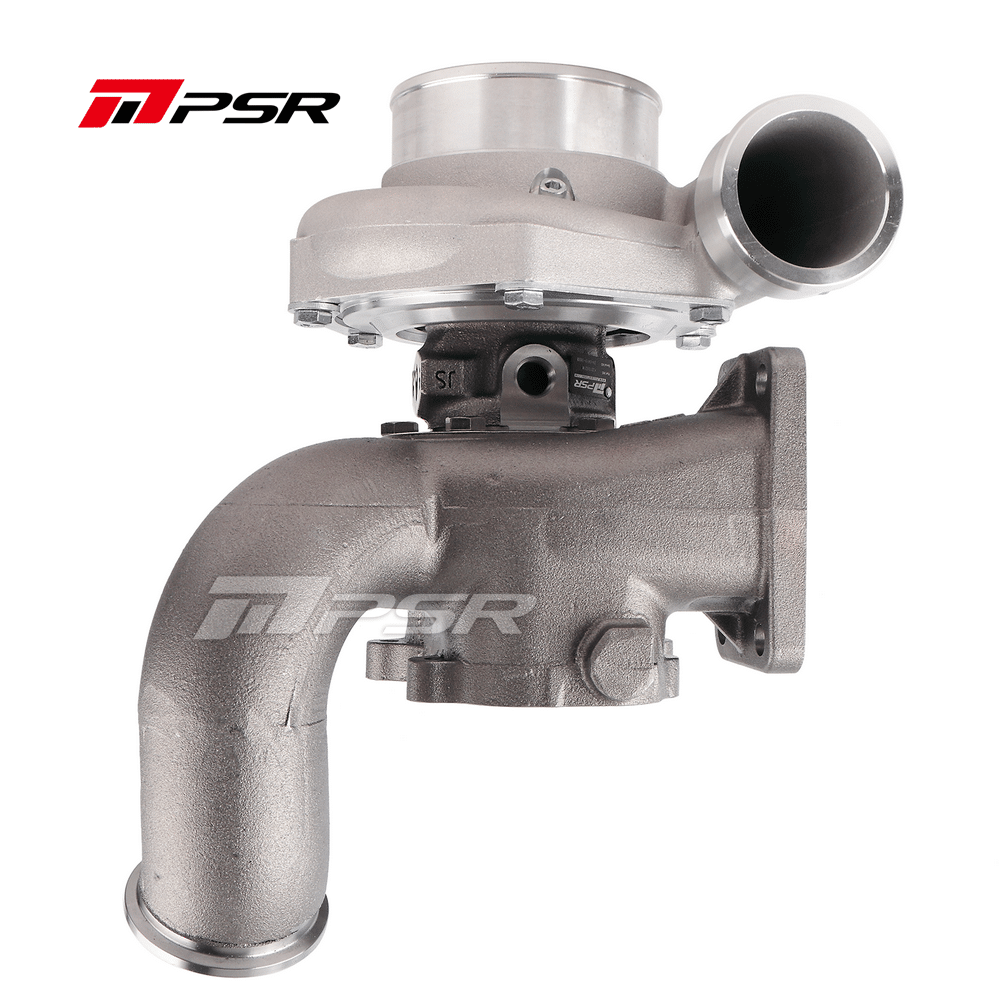

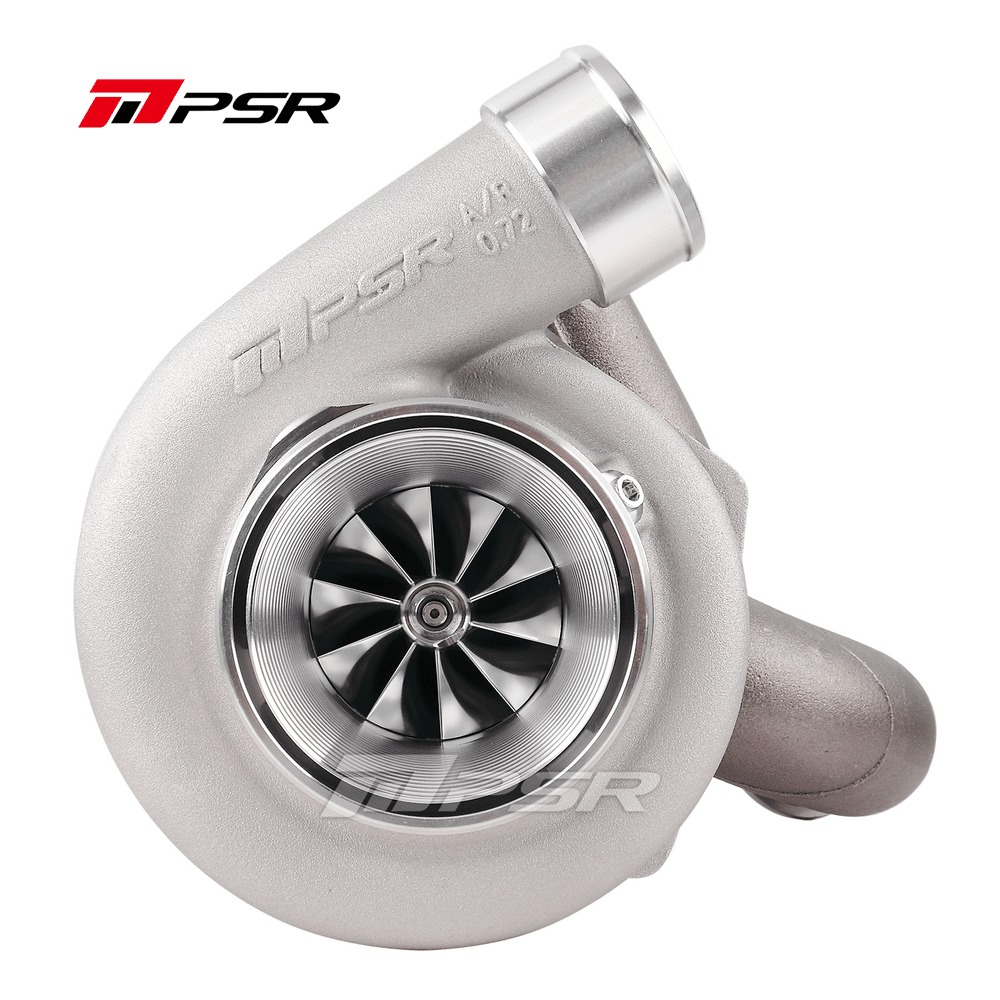

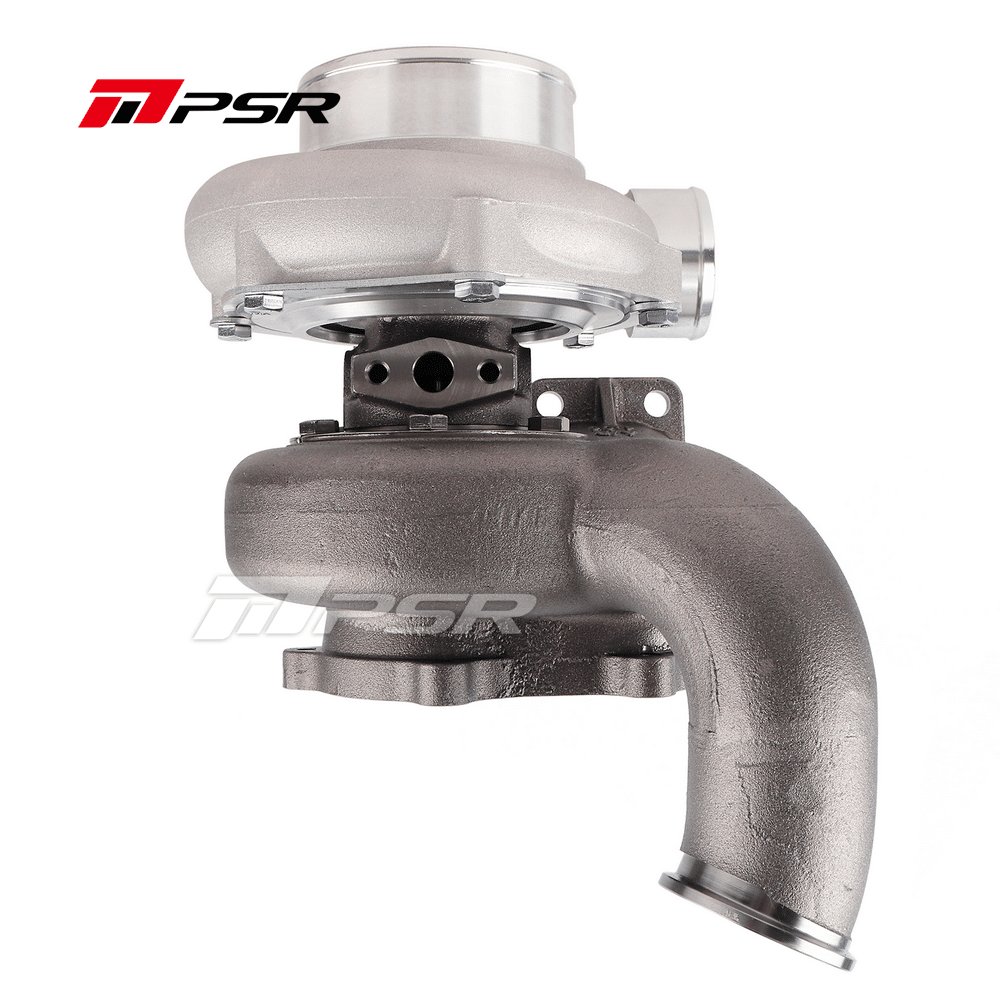

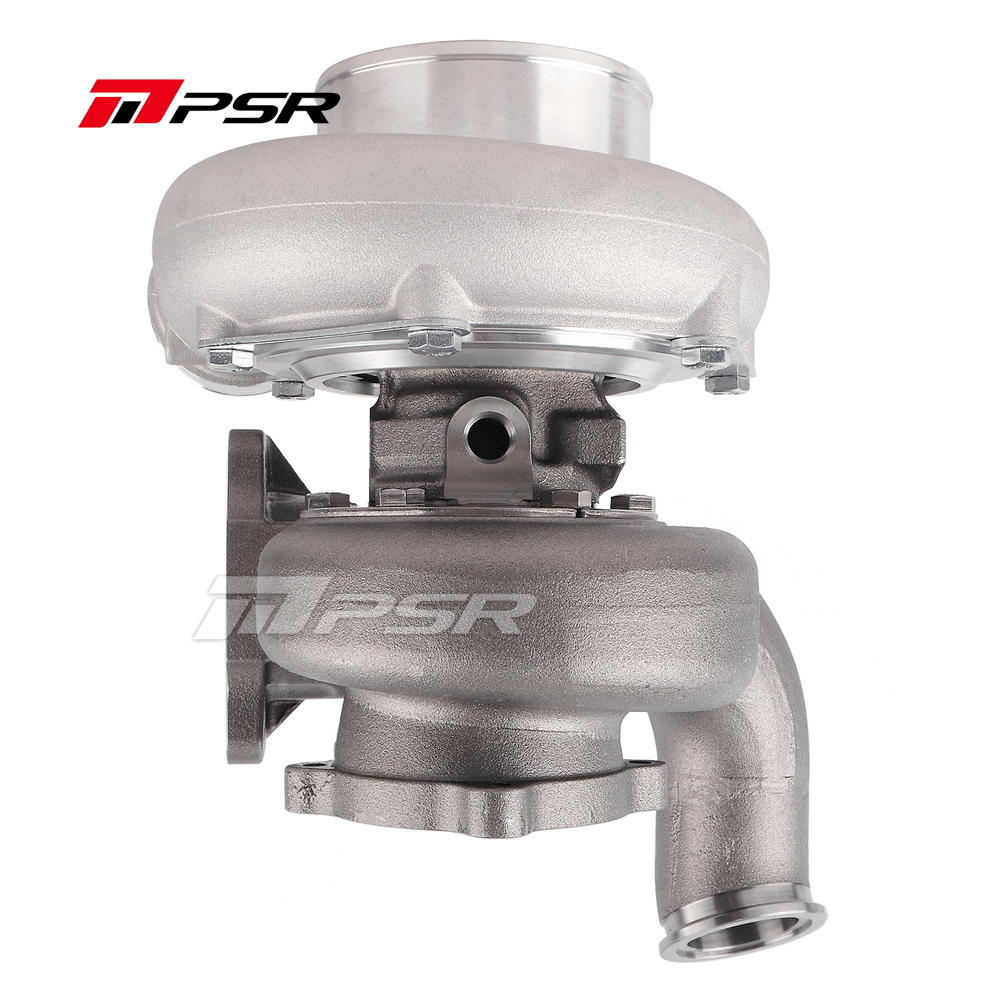

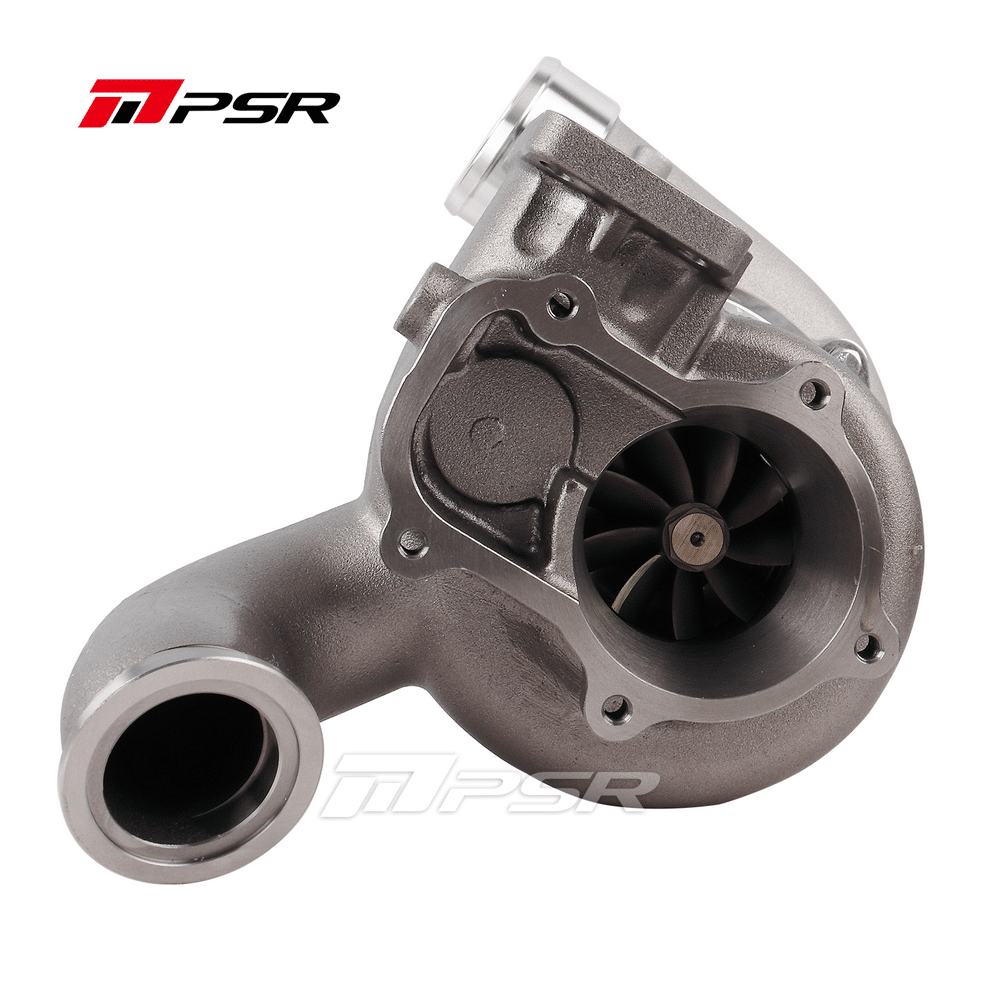

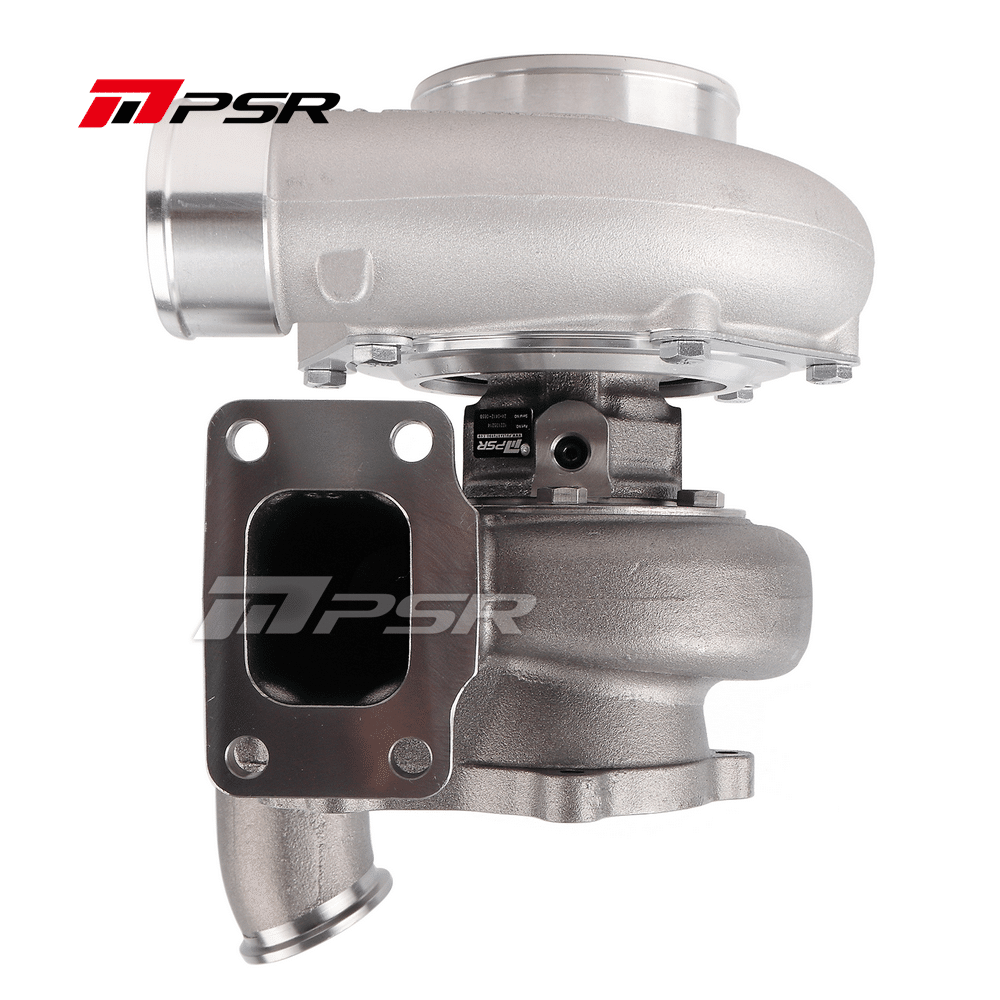

Pulsar GTX3582 Gen2 External Wastegate Turbo Kit

Ford Falcon XR6 Turbo/FPV F6 BA-BF
$1,349.00
T51R Compressor Mod
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Goes well with

Subtitle

Description

Experience enhanced performance with the Pulsar PSR3584 Gen 3 External Wastegate Turbocharger Kit designed for the Ford Falcon XR6. This high-precision turbo features a dual ball-bearing system for improved reliability and faster spool times. Engineered with an external wastegate for refined boost control, the turbo ensures maximum power output without sacrificing durability. Perfect for enthusiasts looking to elevate their vehicle's power and responsiveness, this turbo delivers exceptional performance gains with a balance of efficiency and high-speed capability.

Note:

  • External Wastegate not included (Recommended to use Pulsar 45mm, Turbosmart 45mm or GFB 44m external wastegates)

Features and Benefits

  • New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
  • Larger Turbine Wheel for higher flowability
  • Genuine structure and rebuildable dual ceramic ball bearing system
  • Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
  • 3 Layer Stainless Steel 5 Bolt Gasket

Technical Specifications

  • Max Air Flow rate: ~90 lb/min, rated @ 1000 RWHP
  • Compressor Wheel: 67.3*84.4mm(extended tip diameter: 87.3mm)
  • Larger Turbine Wheel for Higher Horsepower: 74*66mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ Hose
  • Turbine Inlet: T3 Open
  • Turbine Outlet: 5 Bolt
  • Turbine Housing: 1.06A/R
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange

Fitment Table
