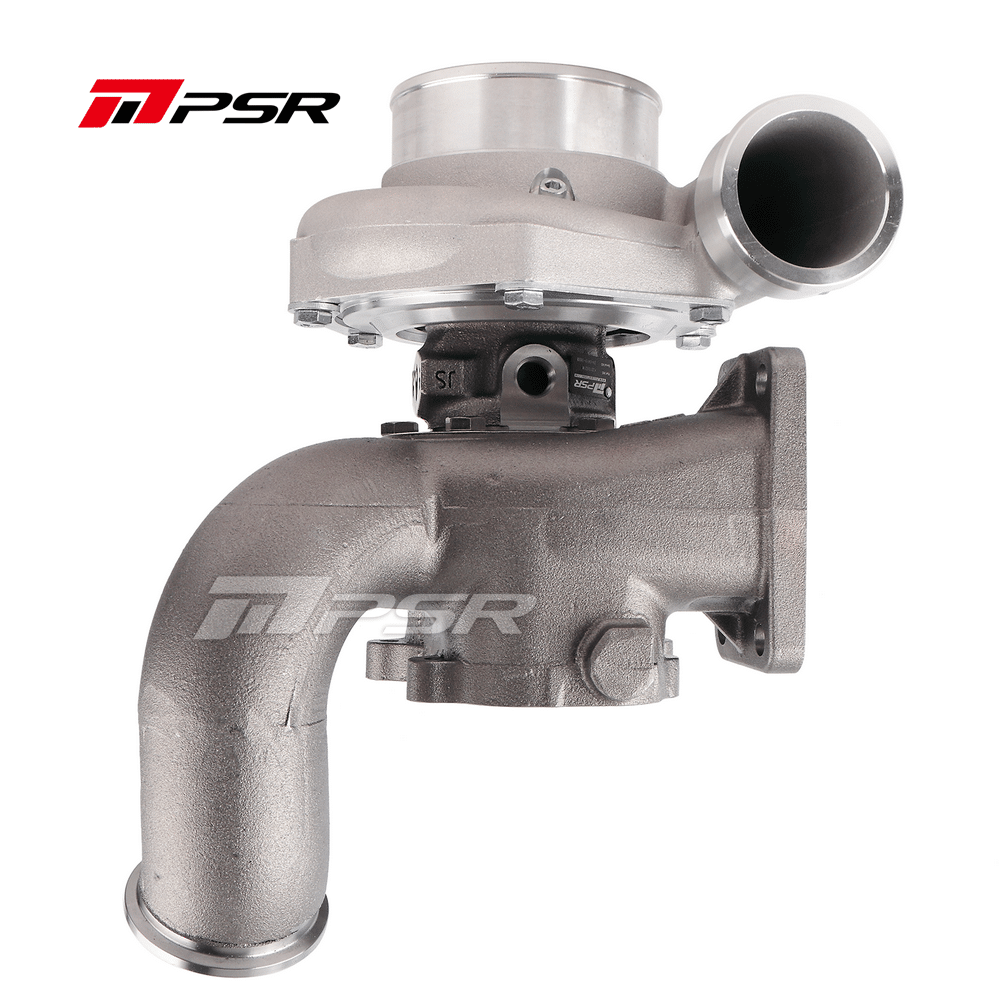

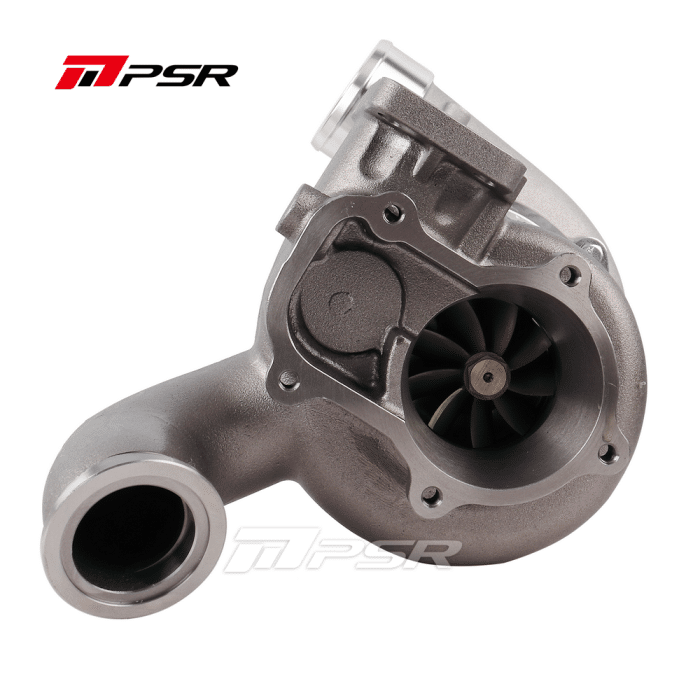

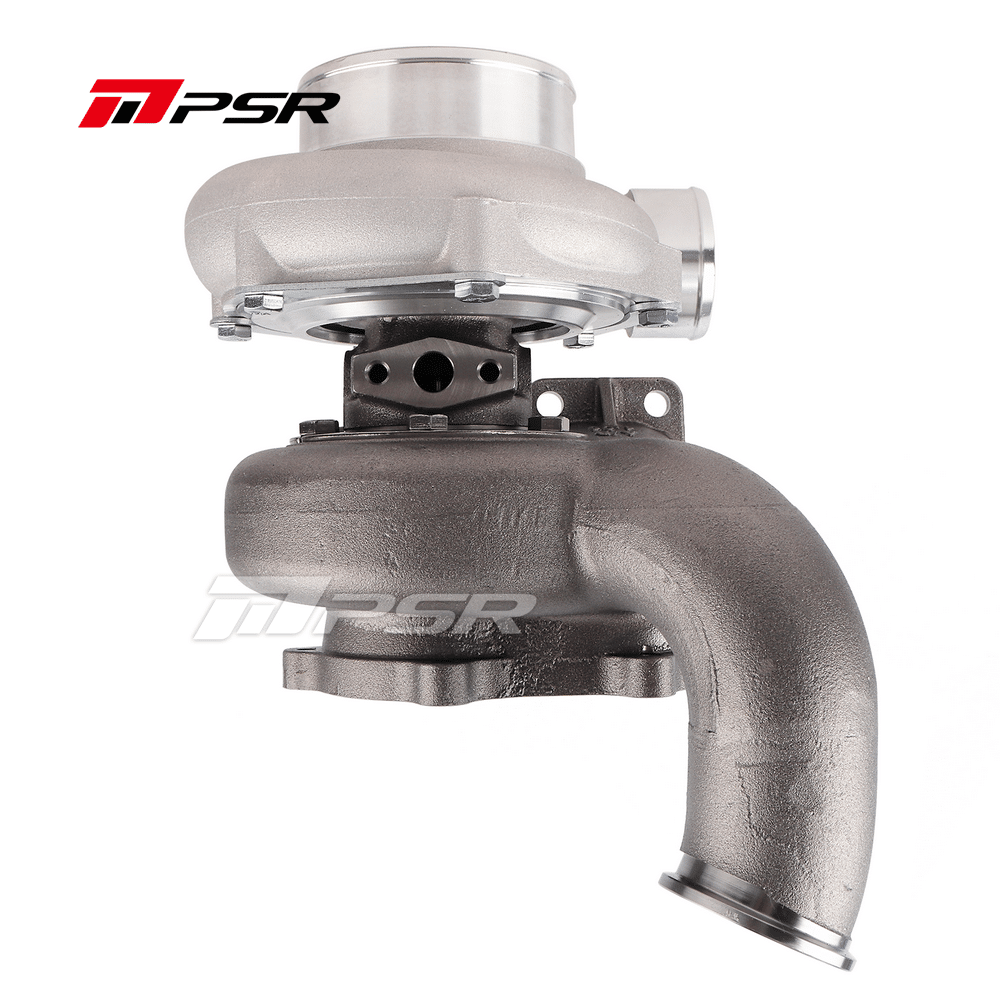

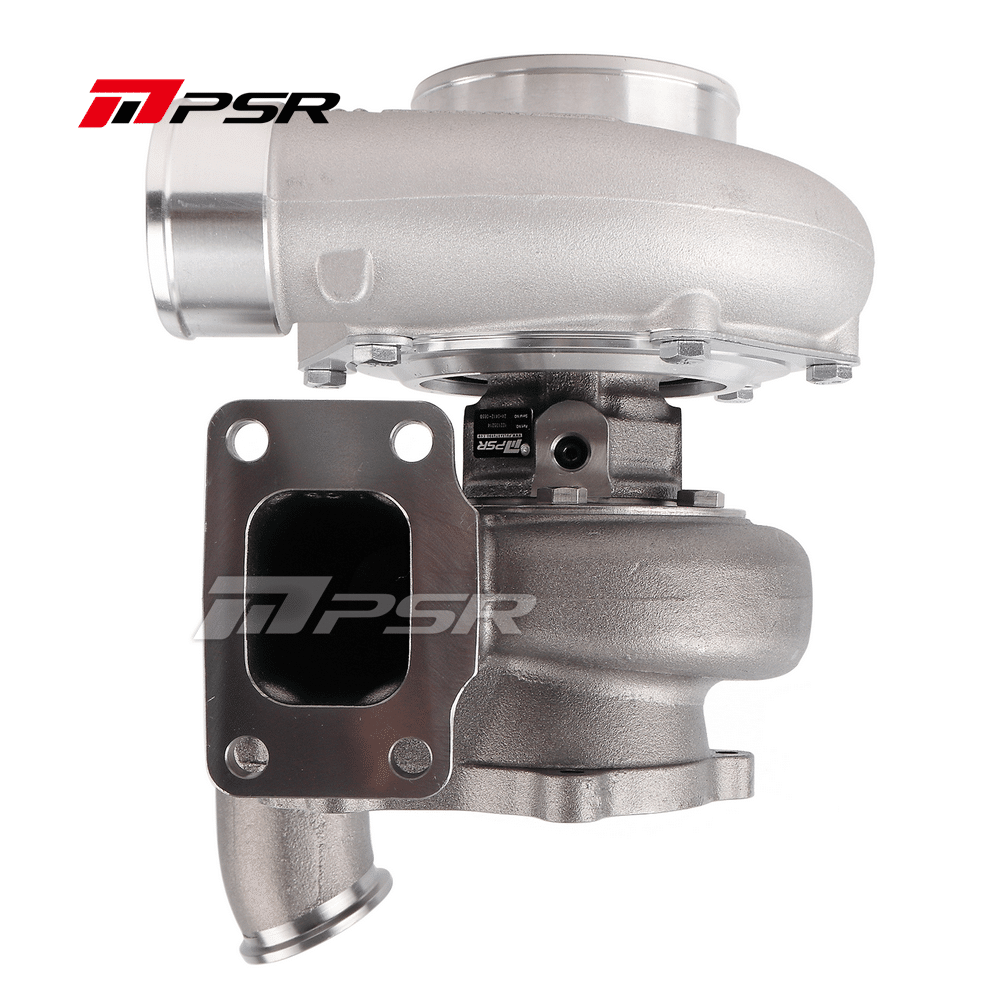

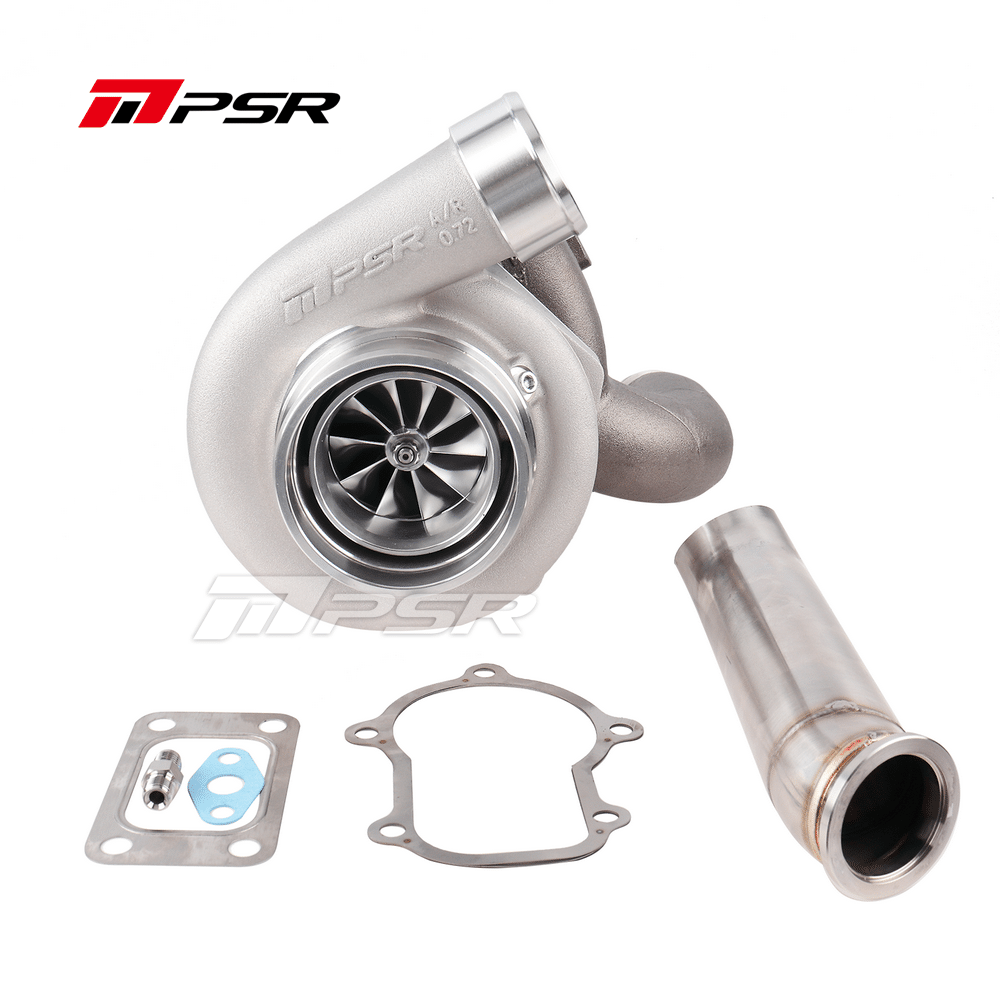

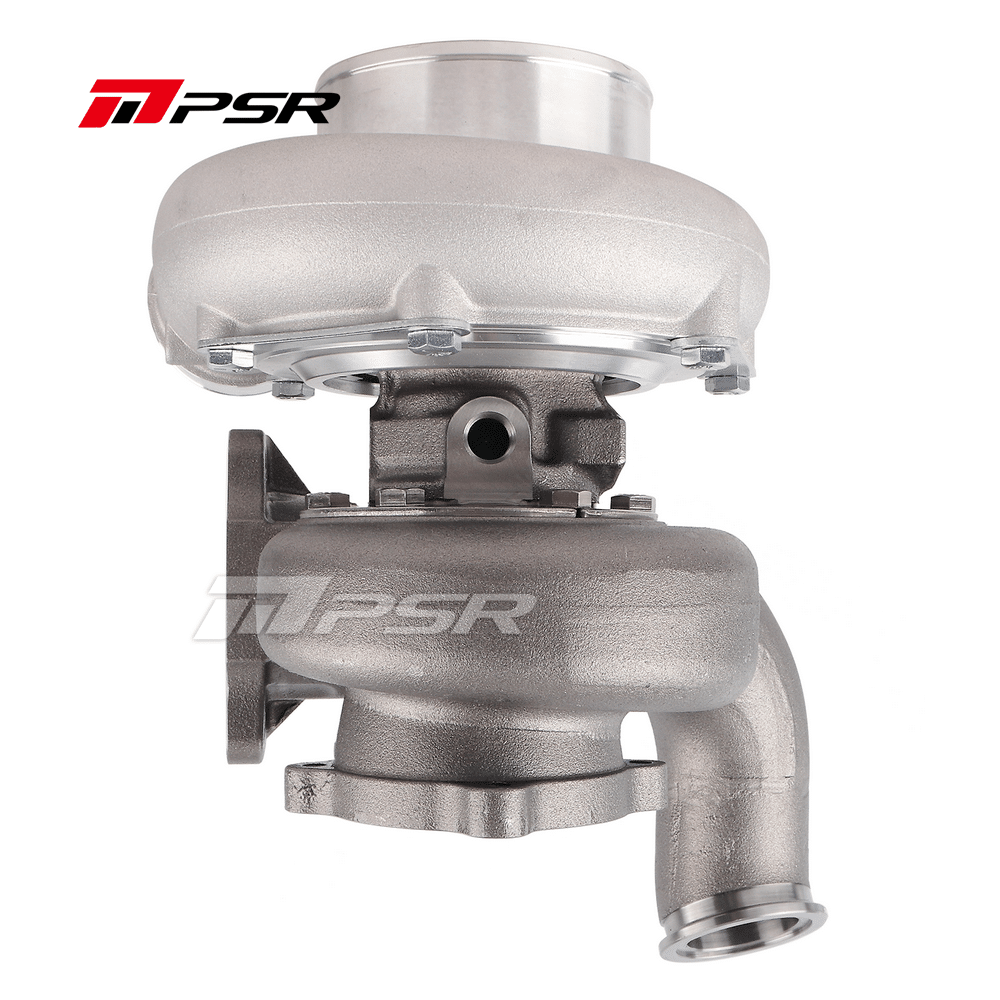

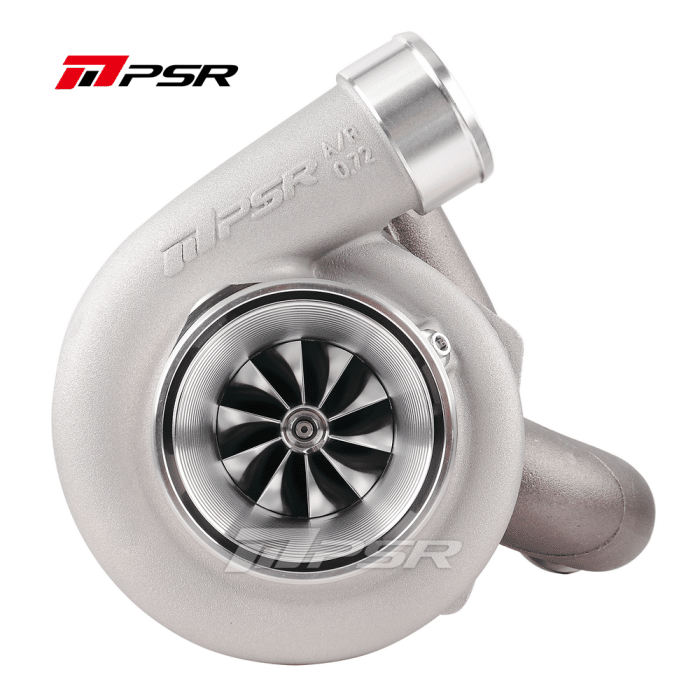

Pulsar GTX3584RS Gen2 External Wastegate Turbo Kit

Upgrade your Ford Falcon's performance with the Pulsar Next Gen PSR6784 Turbocharger. Designed as a high-performance replacement for the factory PT3582R turbo, this unit comes with an external wastegate for superior boost management and power delivery. The PSR6784 is built for durability and high-efficiency output, making it ideal for enthusiasts aiming for significant power gains while maintaining reliable operation. Experience quicker spooling and enhanced throttle response, ensuring your vehicle's peak performance on the road or track.

Note:

• External Wastegate not included (Recommended to use Pulsar 45mm, Turbosmart 45mm or GFB 44m external wastegates)

• New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
• New Aerodynamic 9 blade turbine wheel, less weight, lower inertia, and higher flowability
• Genuine structure and rebuildable dual ceramic ball bearing system
• Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
• Billet actuator with black anodized coating
• 3 Layer Stainless Steel 5 Bolt Gasket

• Compressor Wheel: 67.3*84.4mm(extended tip diameter: 87.3mm)
• RS Turbine Wheel for High Horsepower: 68*62.3mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2.5″ Hose
• Turbine Inlet: T3 Open
• Turbine Outlet: 5 Bolt
• Turbine housing: 1.06A/R
• Water Ports: -6AN
• Oil Feed: -4AN to the Oil Restrictor
• Oil Drain: Std T3 Oil Drain Flange
