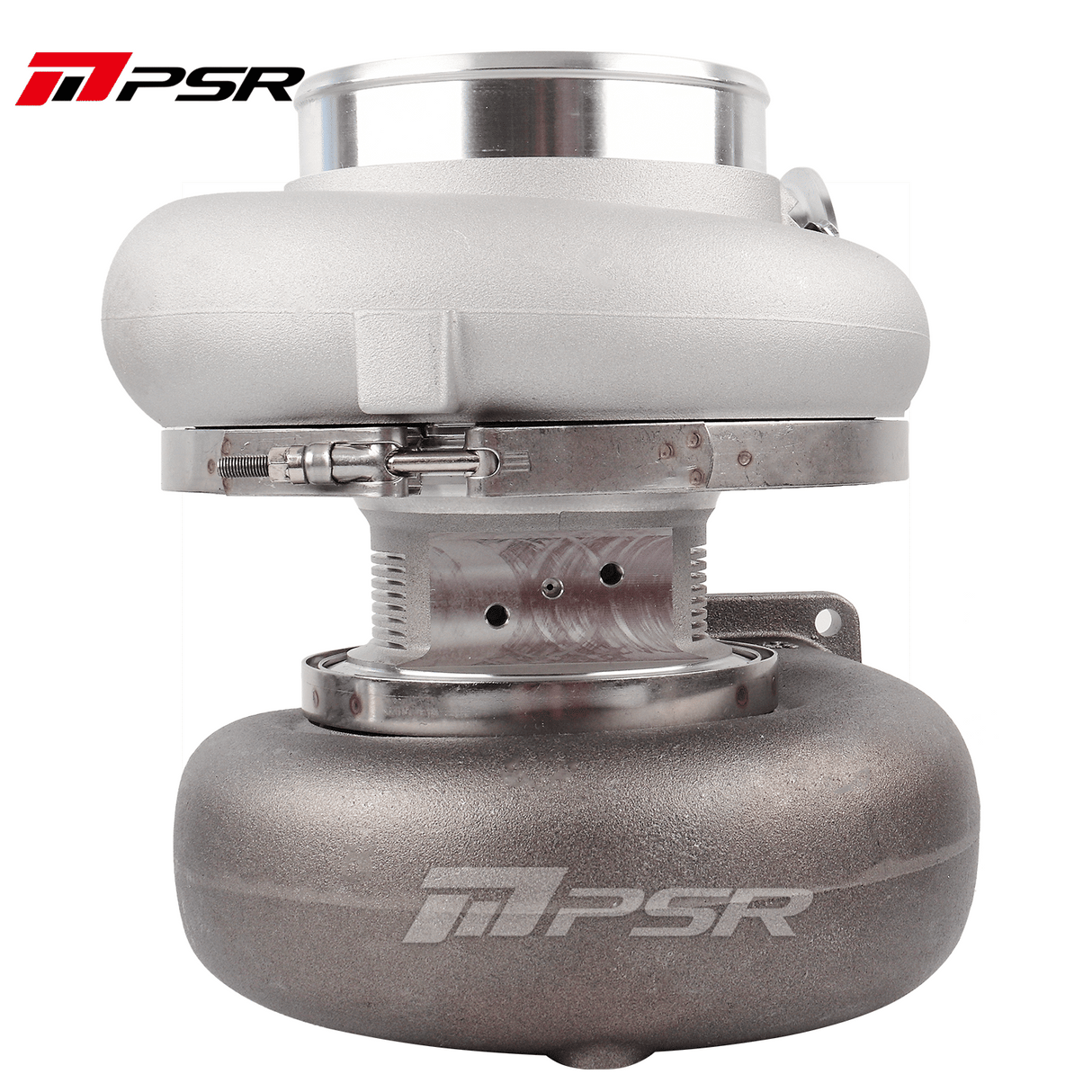

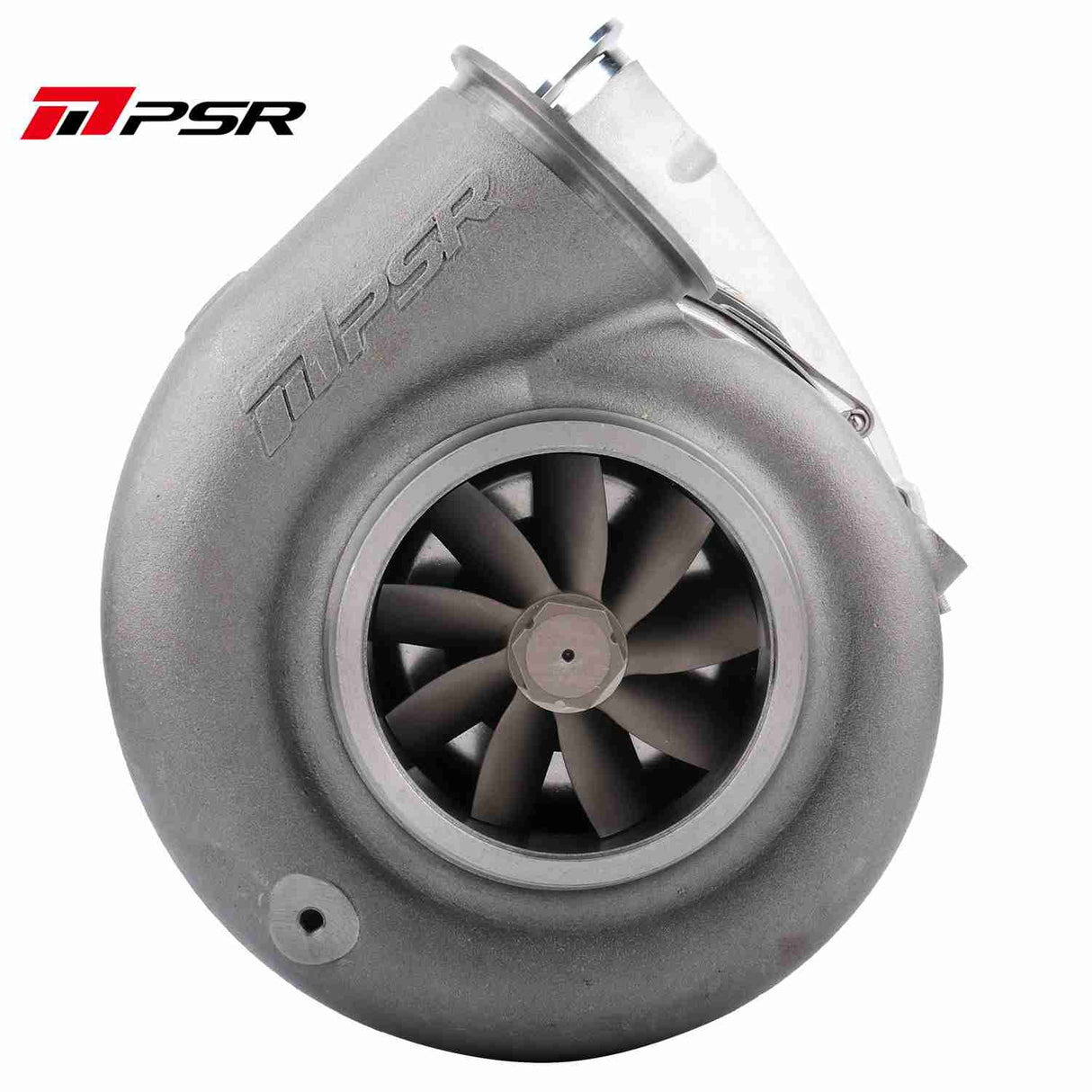

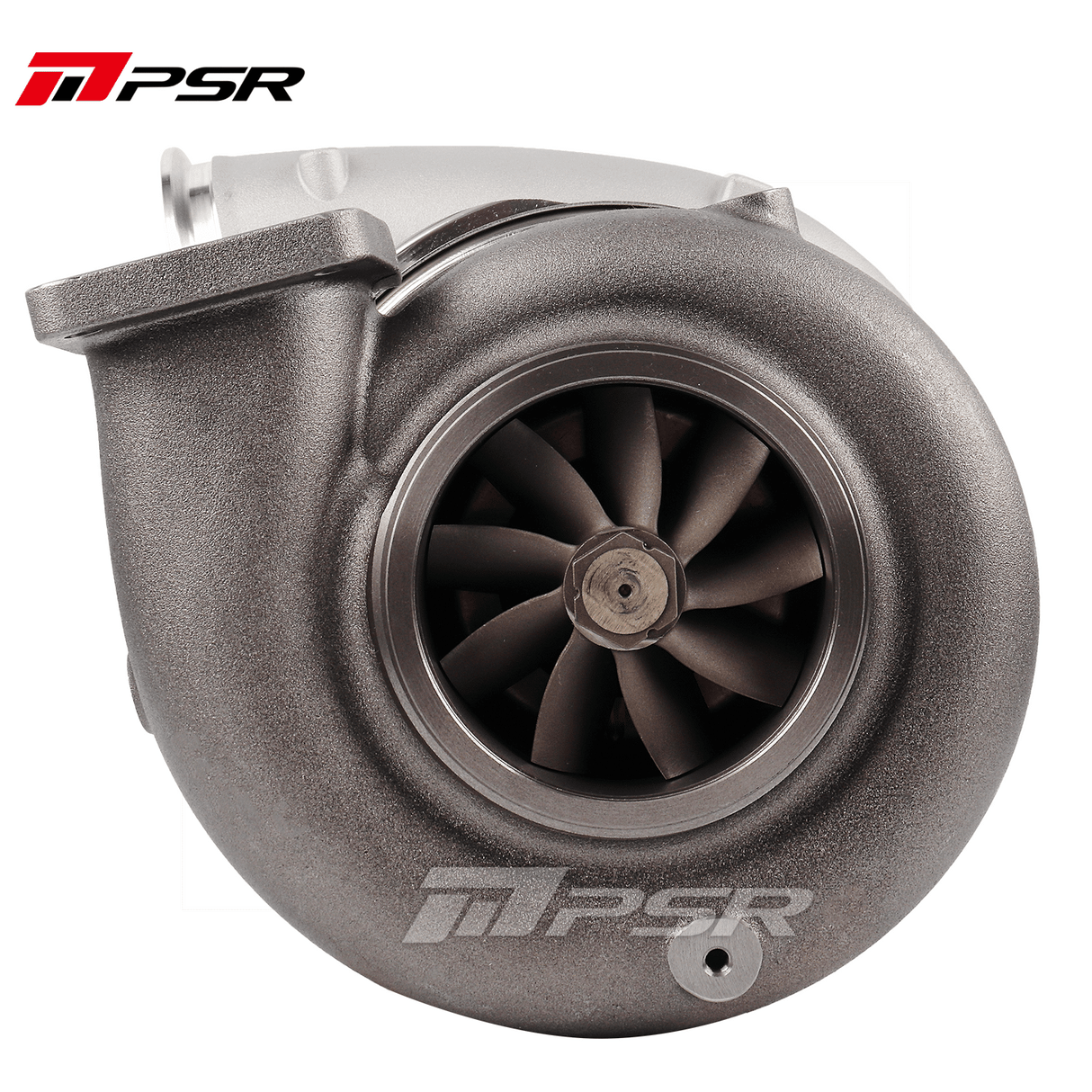

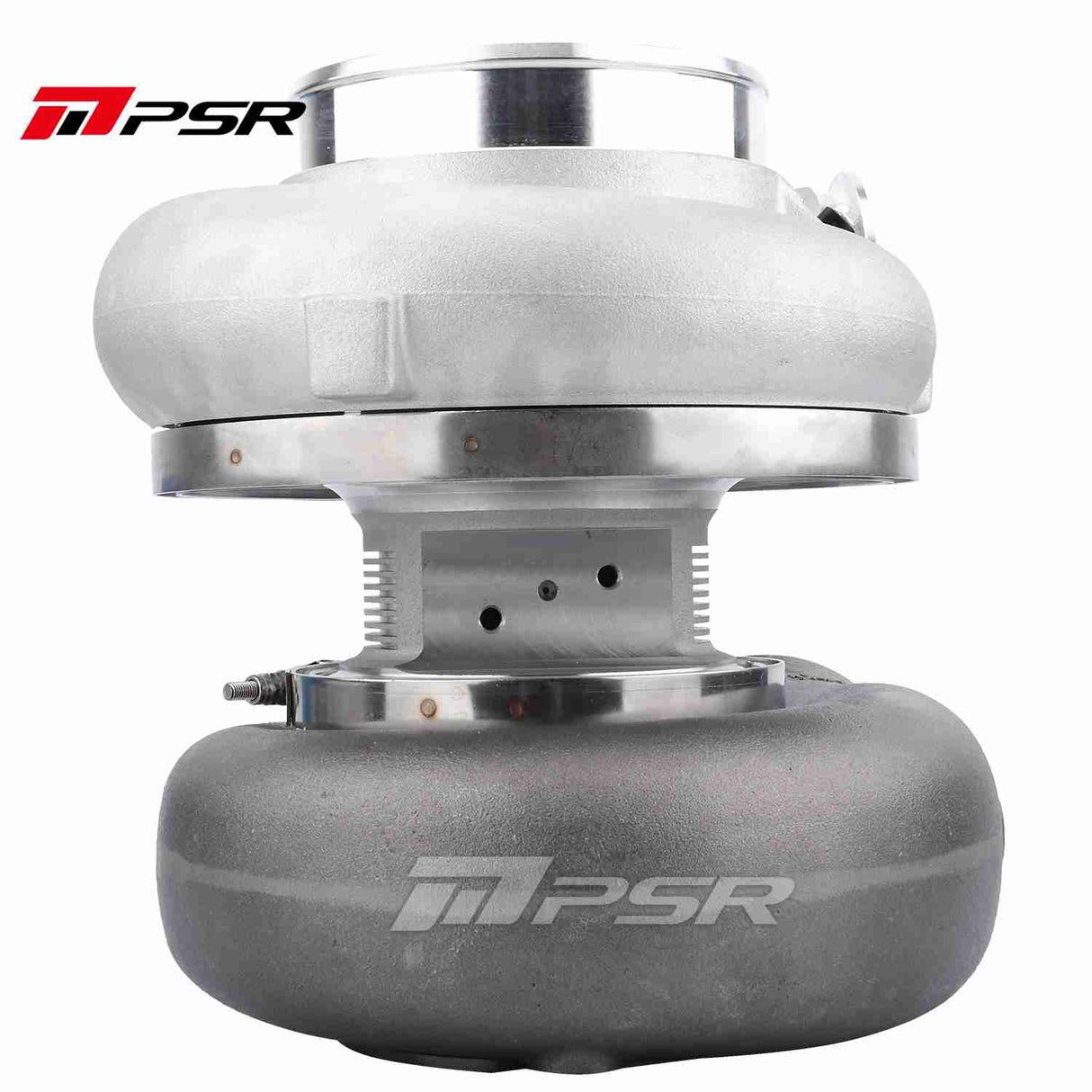

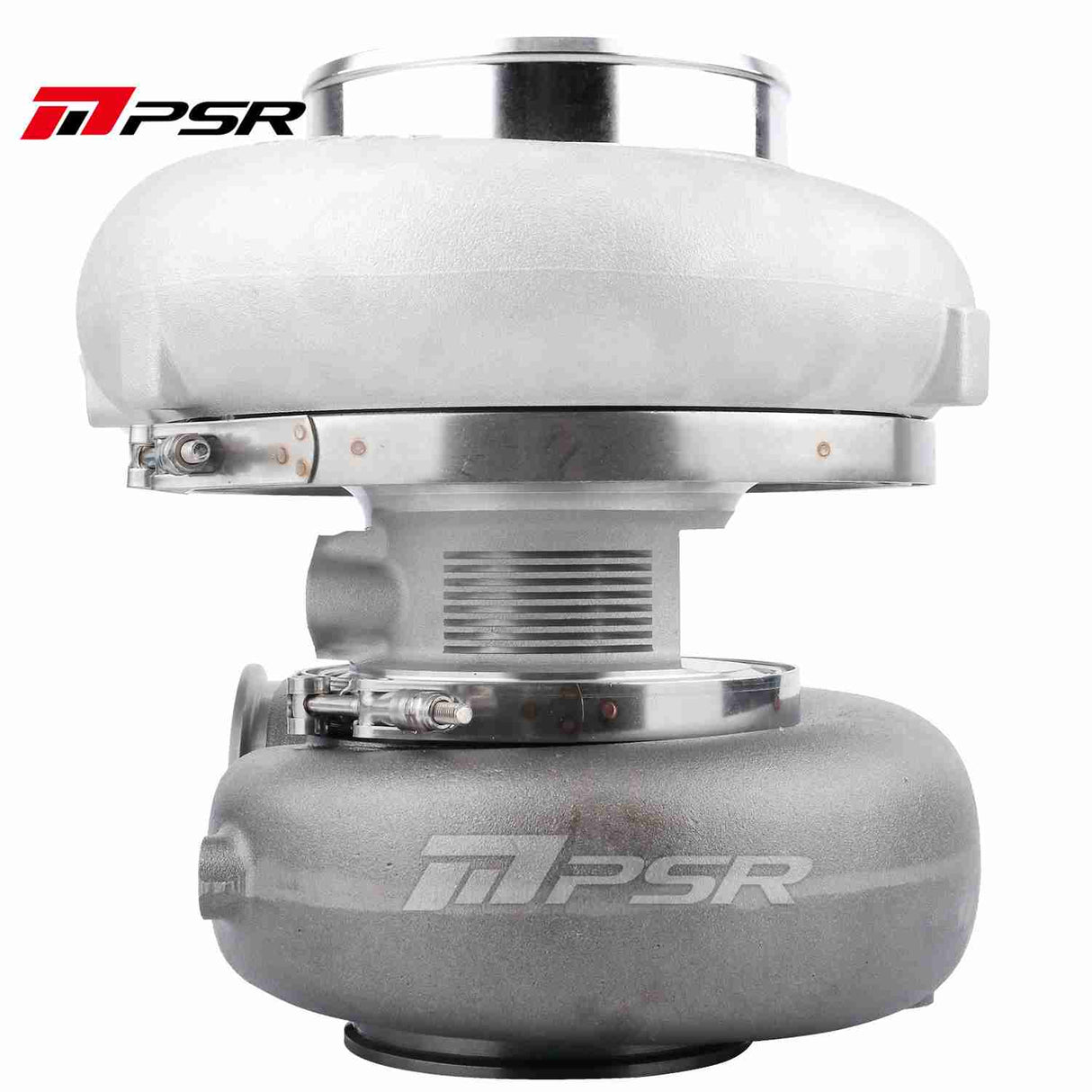

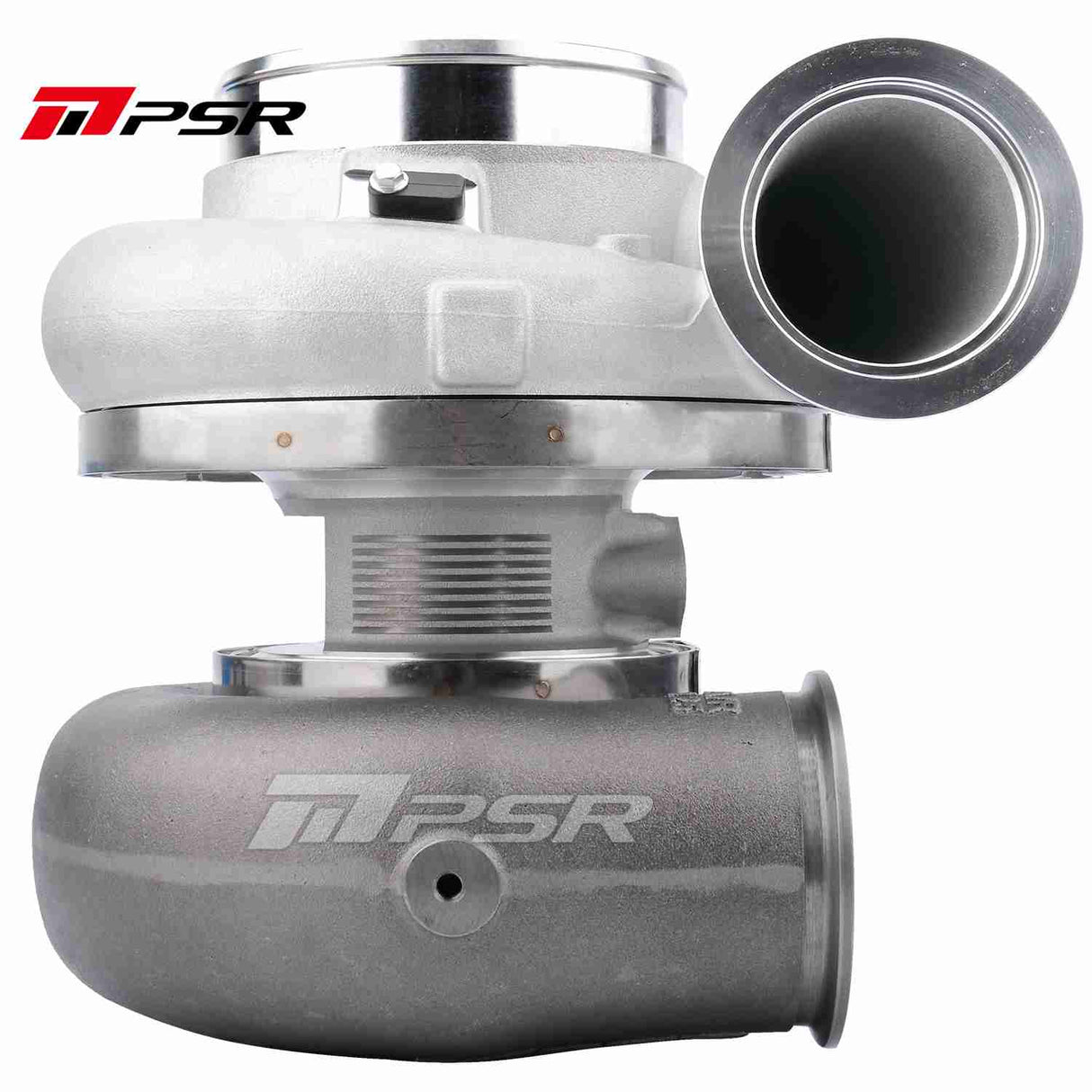

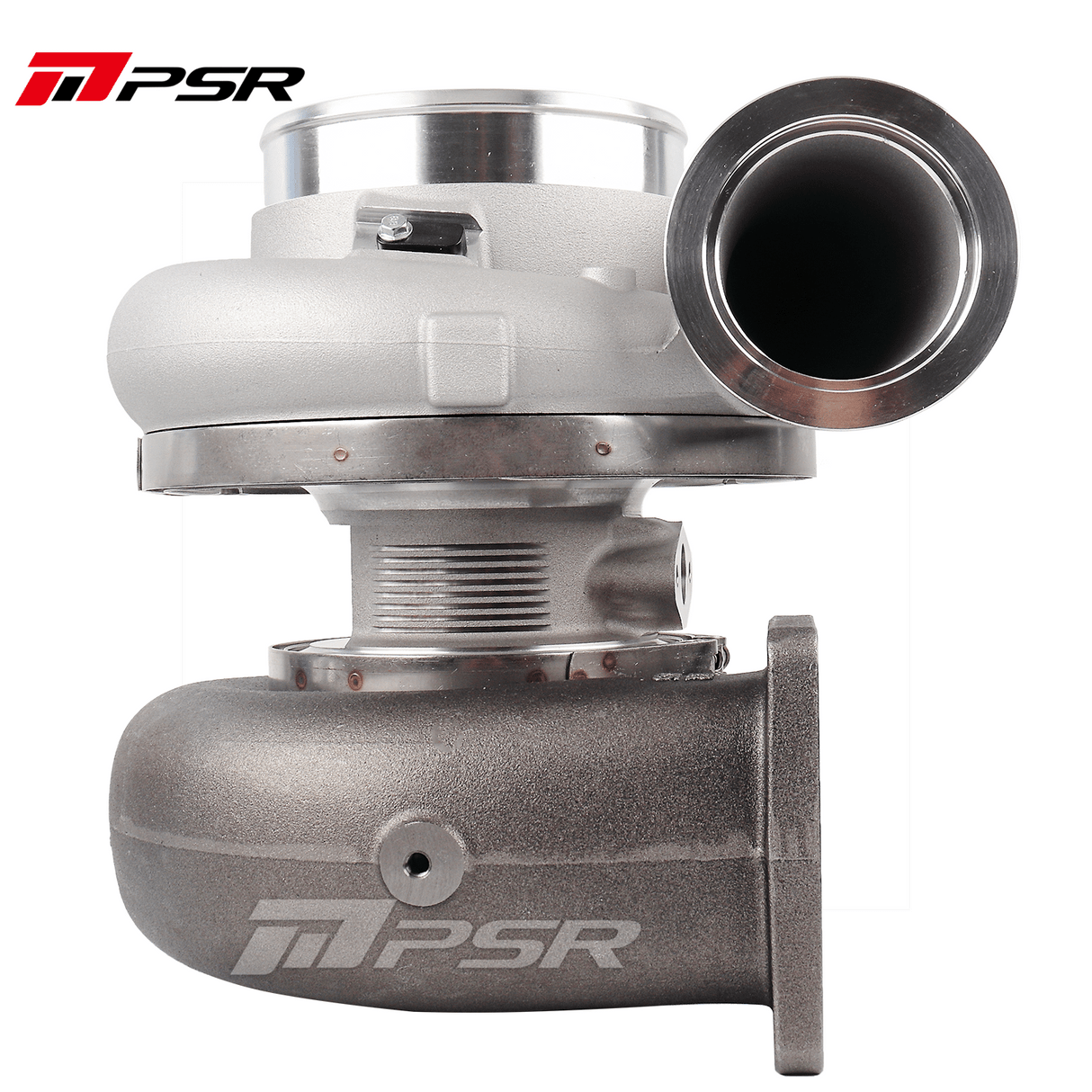

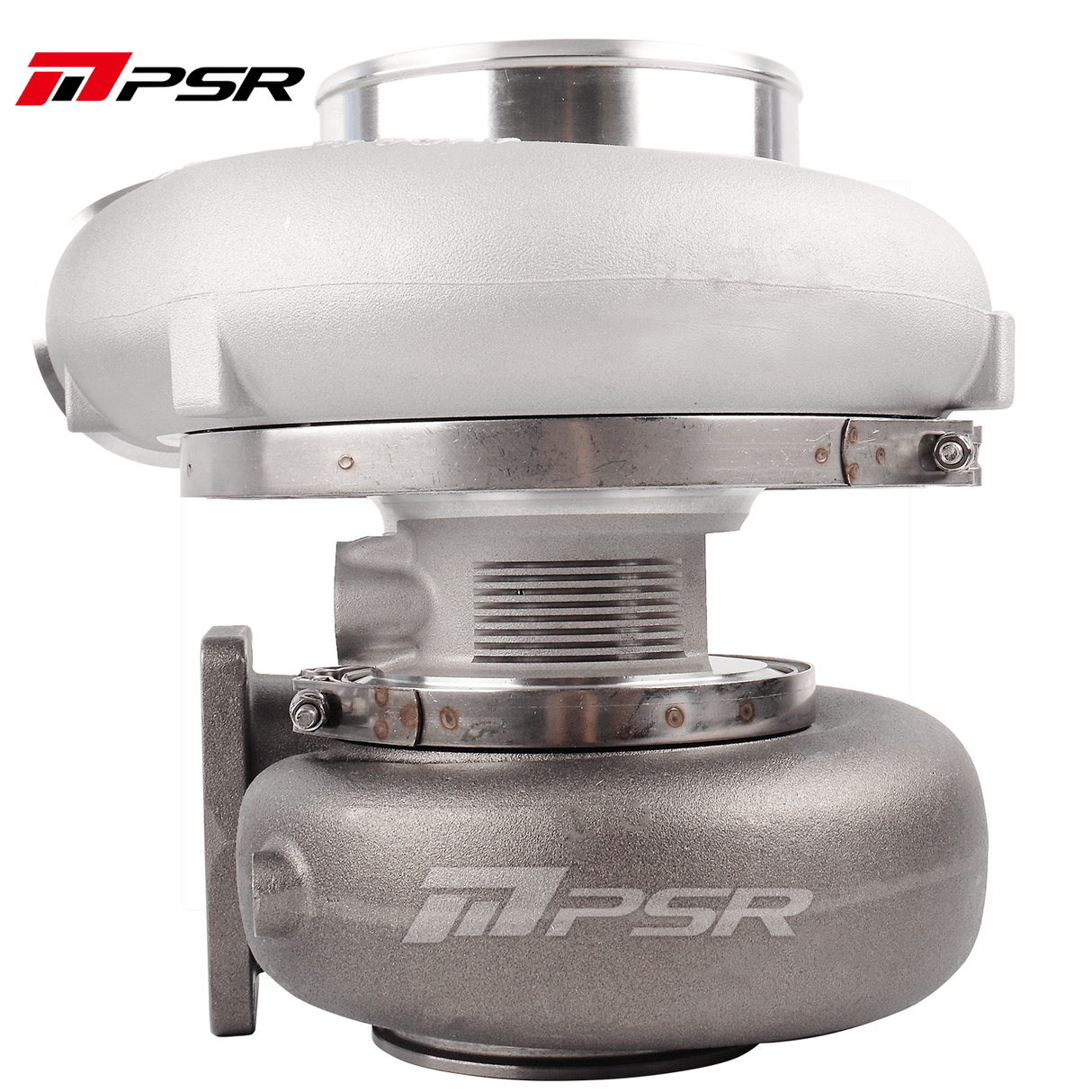

Pulsar Pro106 Pro Mod Turbocharger

Universal
$4,299.00
Turbine Housing
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The PSR Pro106 Turbocharger is built for extreme performance, featuring multiple turbine housing options for optimal exhaust flow and powerful boost delivery. This high-capacity turbo is ideal for serious performance enthusiasts aiming for maximum horsepower and reliable power output. With advanced engineering and robust construction, the Pro106 ensures consistent boost response and durability, making it a top choice for demanding race or high-powered street applications.

Features and Benefits

  • Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
  • 13 Blade G-Aero billet compressor wheel 106mm inducer produces up to 3000 hp
  • 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
  • Fin cooled aluminum center housing, lighter weight
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
  • Oil Feed Fitting needs to be bought separately, check the link if you need it

Technical Specifications

  • Compressor Wheel: 106*144mm
  • Turbine Wheel: 118*112mm
  • Compressor Inlet: 6” Hose
  • Compressor Outlet: 4” V-band
  • Compressor Housing A/R: 0.96

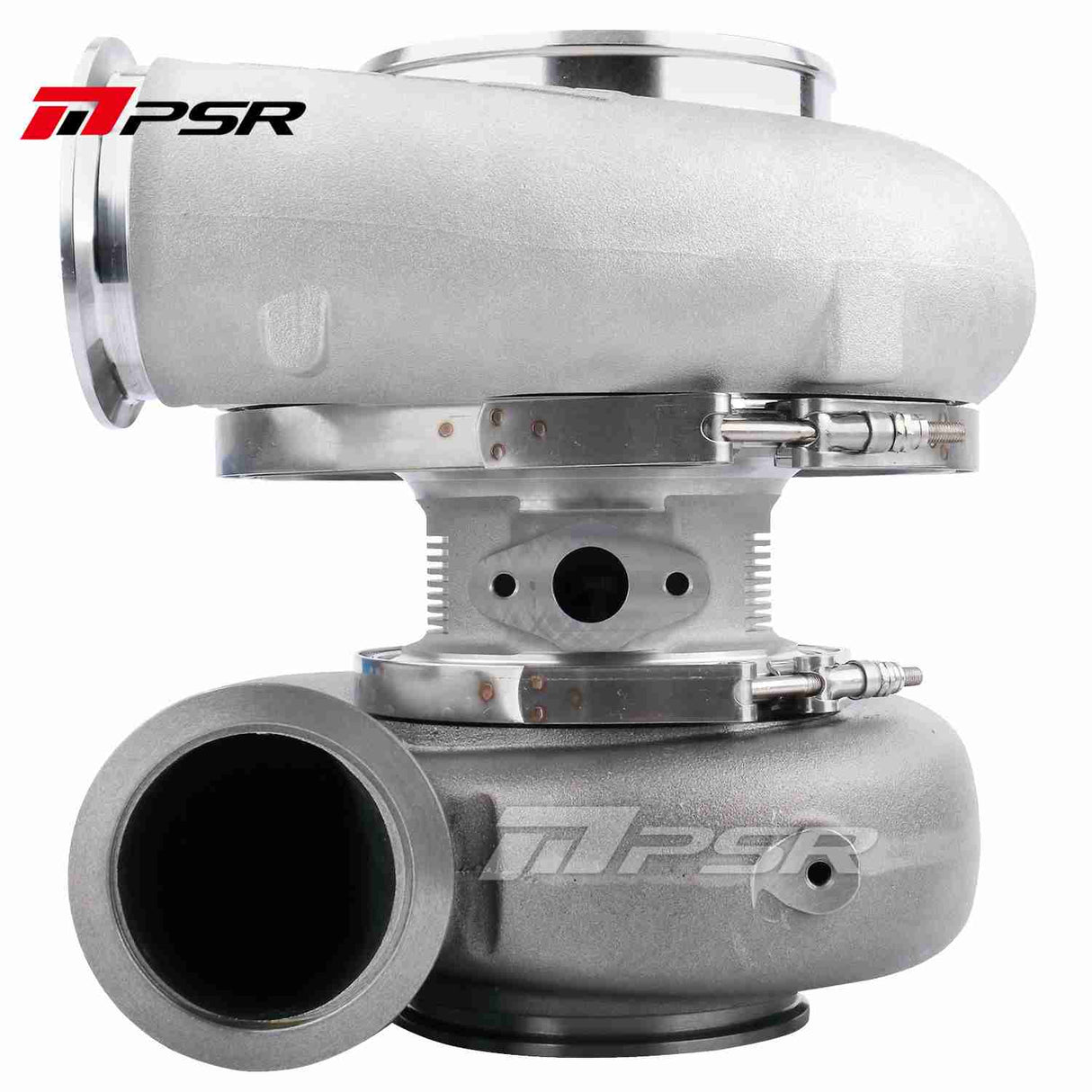

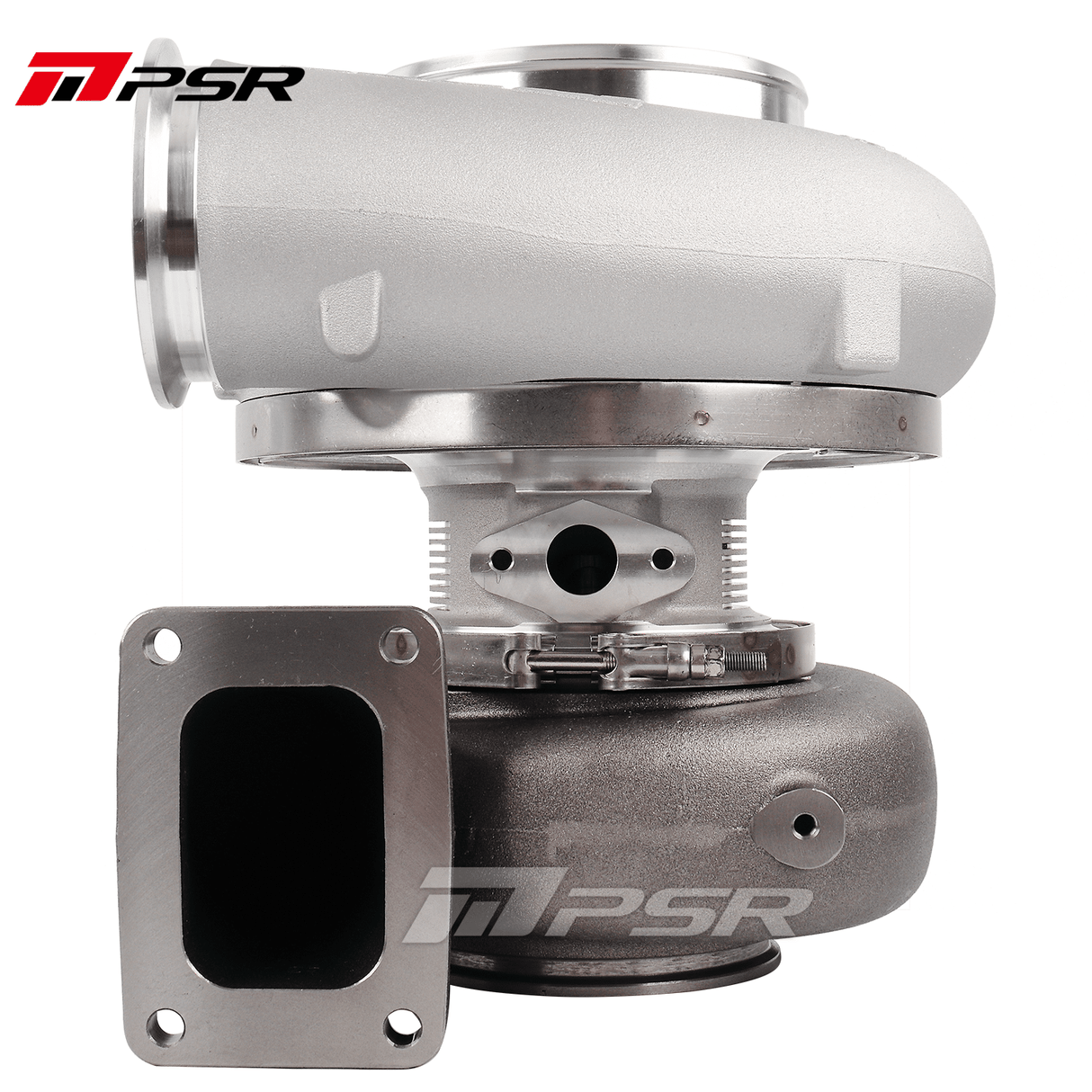

  • Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
  • Turbine Outlet: 5” V-Band
  • Turbine Housing A/R: 1.09/1.25/1.41
  • Oil Feed: See graph below(OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
  • Oil Drain: See graph below(OIL OUTLET)

Fitment Table
