 |  SKU: 102167108

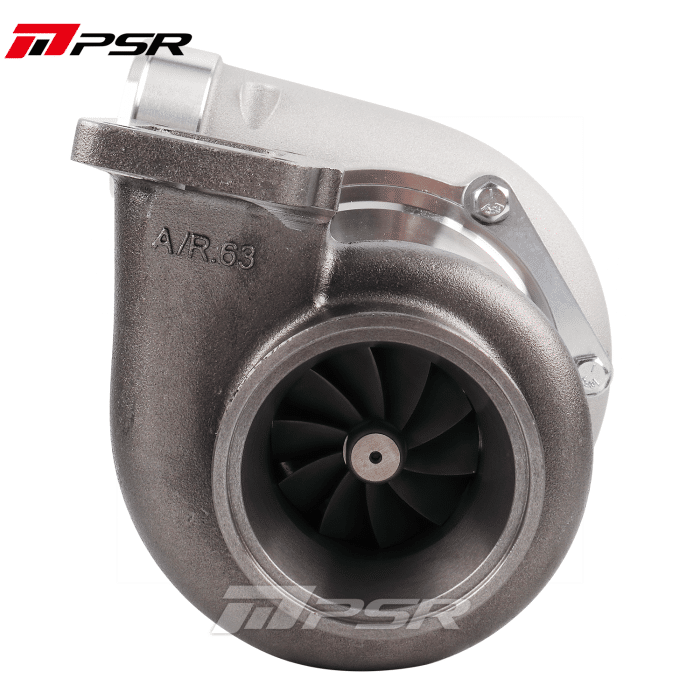

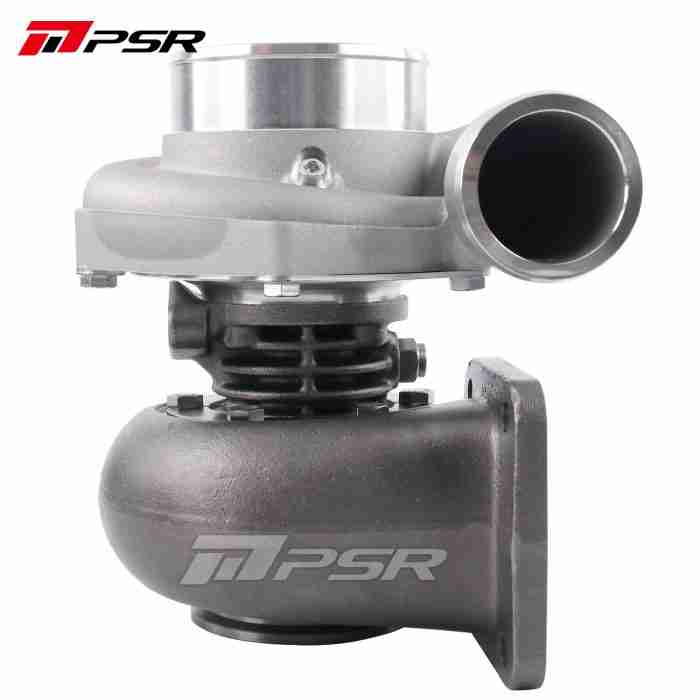

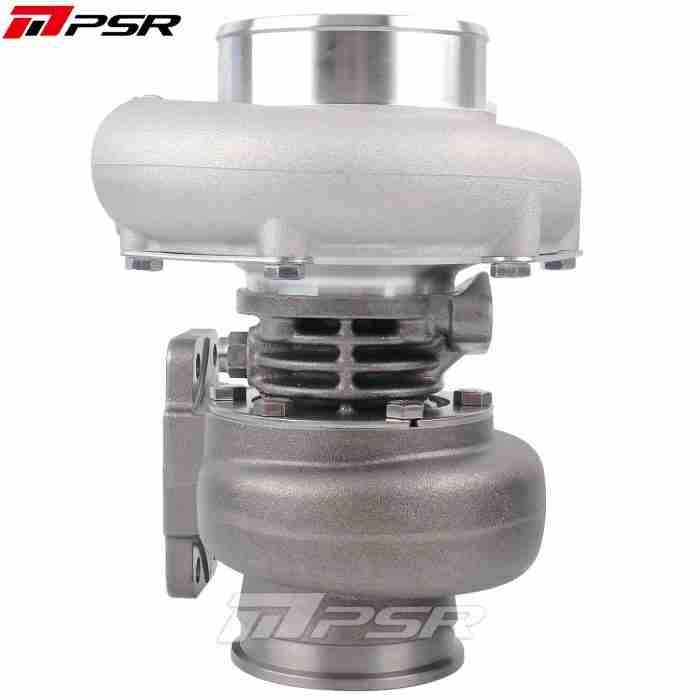

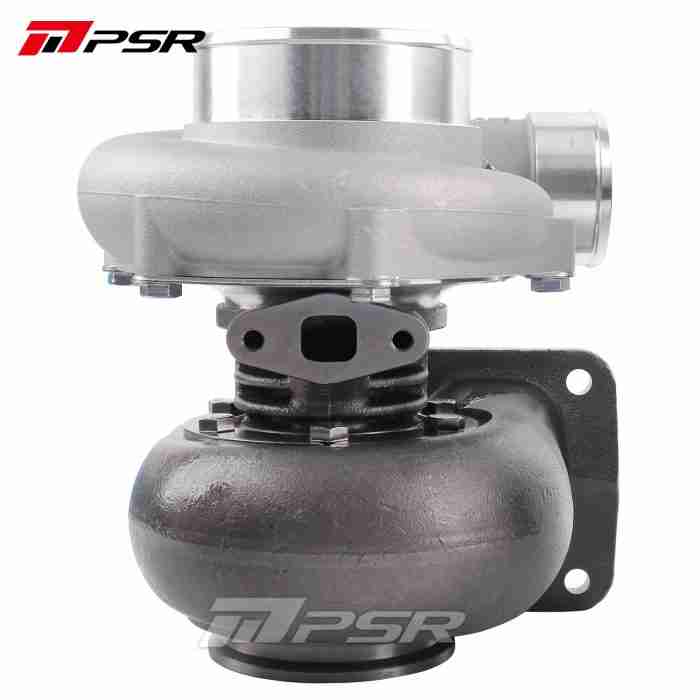

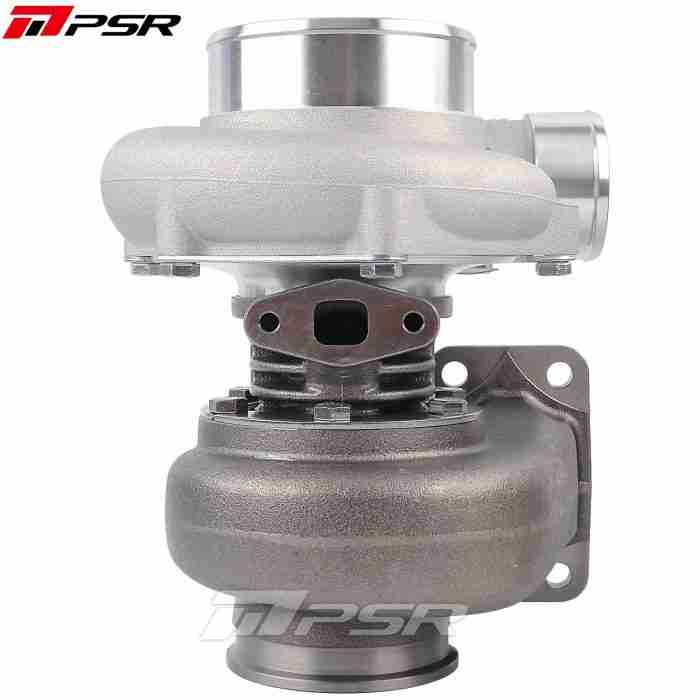

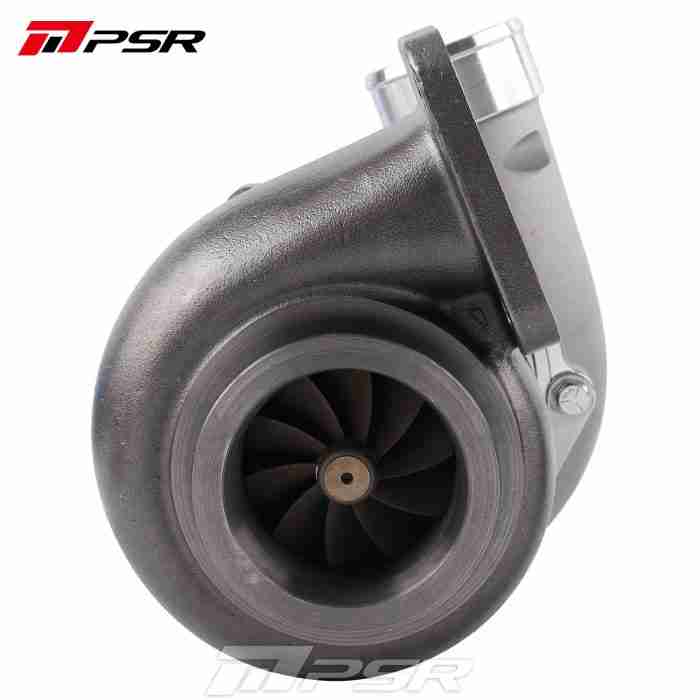

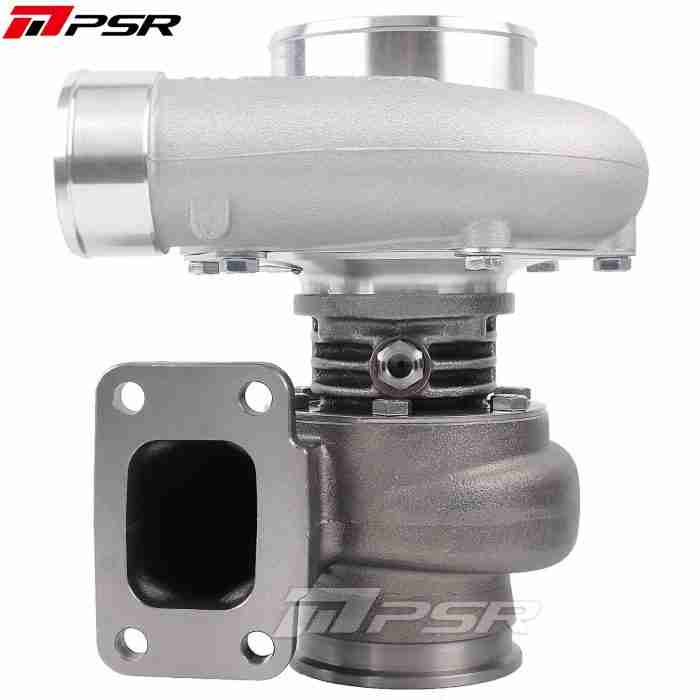

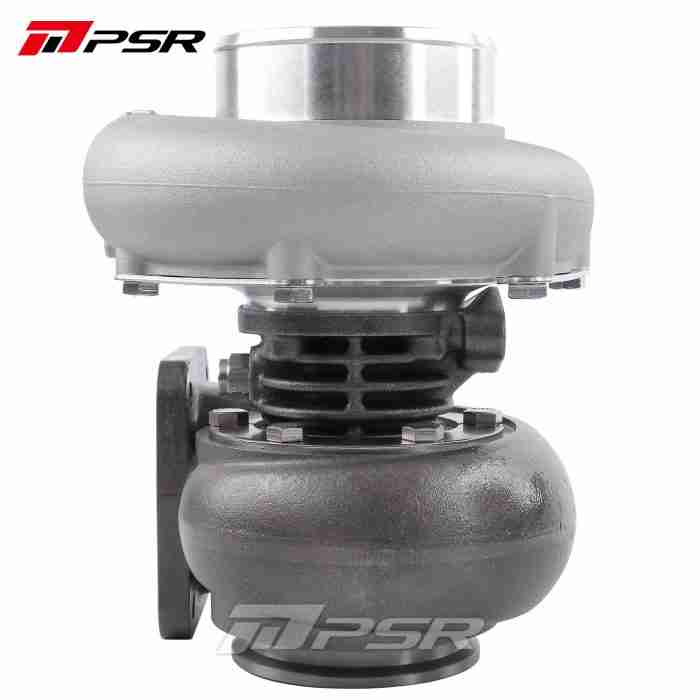

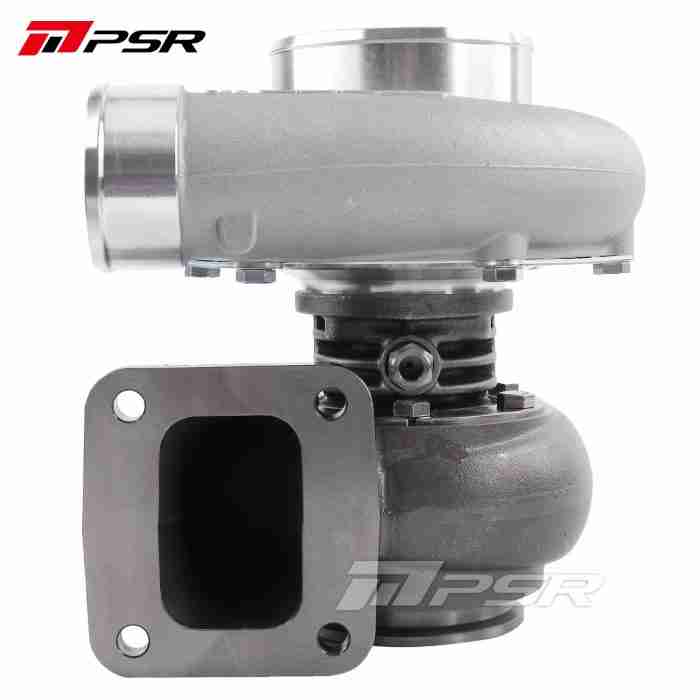

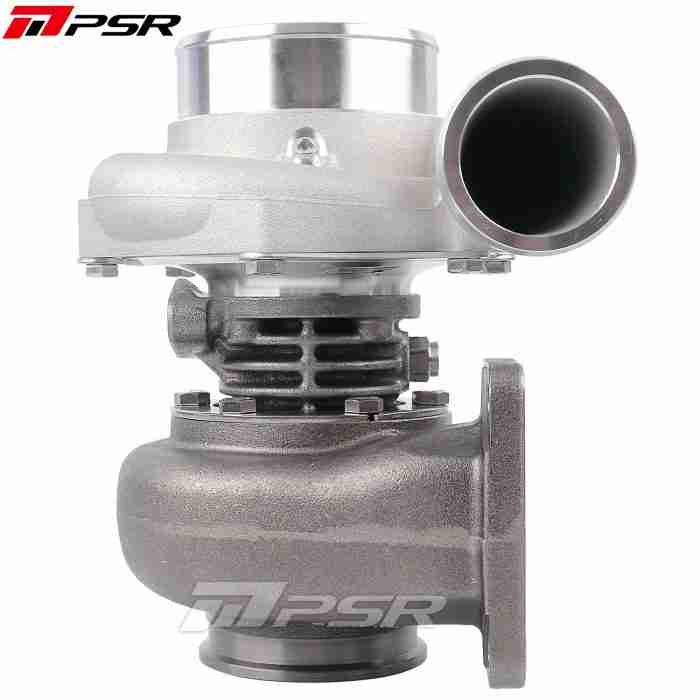

Pulsar PTE 6266 Ball Bearing Turbocharger

Universal
$1,375.00
Turbine Housing
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The PTE 6266 Ball Bearing Turbo is designed for high-performance applications, capable of producing up to 735 horsepower. Featuring precision ball bearing technology, this turbo offers improved spool times and durability, ensuring responsive and efficient power delivery. Ideal for performance enthusiasts, it balances power and reliability, making it a popular choice for racing and high-output street vehicles.

Features and Benefits

  • Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
  • Billet Compressor Wheel with Slim Nose and Hub for Reduced Weight and Faster Spool-up and Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel
  • V-Band Flange kit for the exhaust housing included
  • Max Engine Horsepower: 735

Technical Specifications

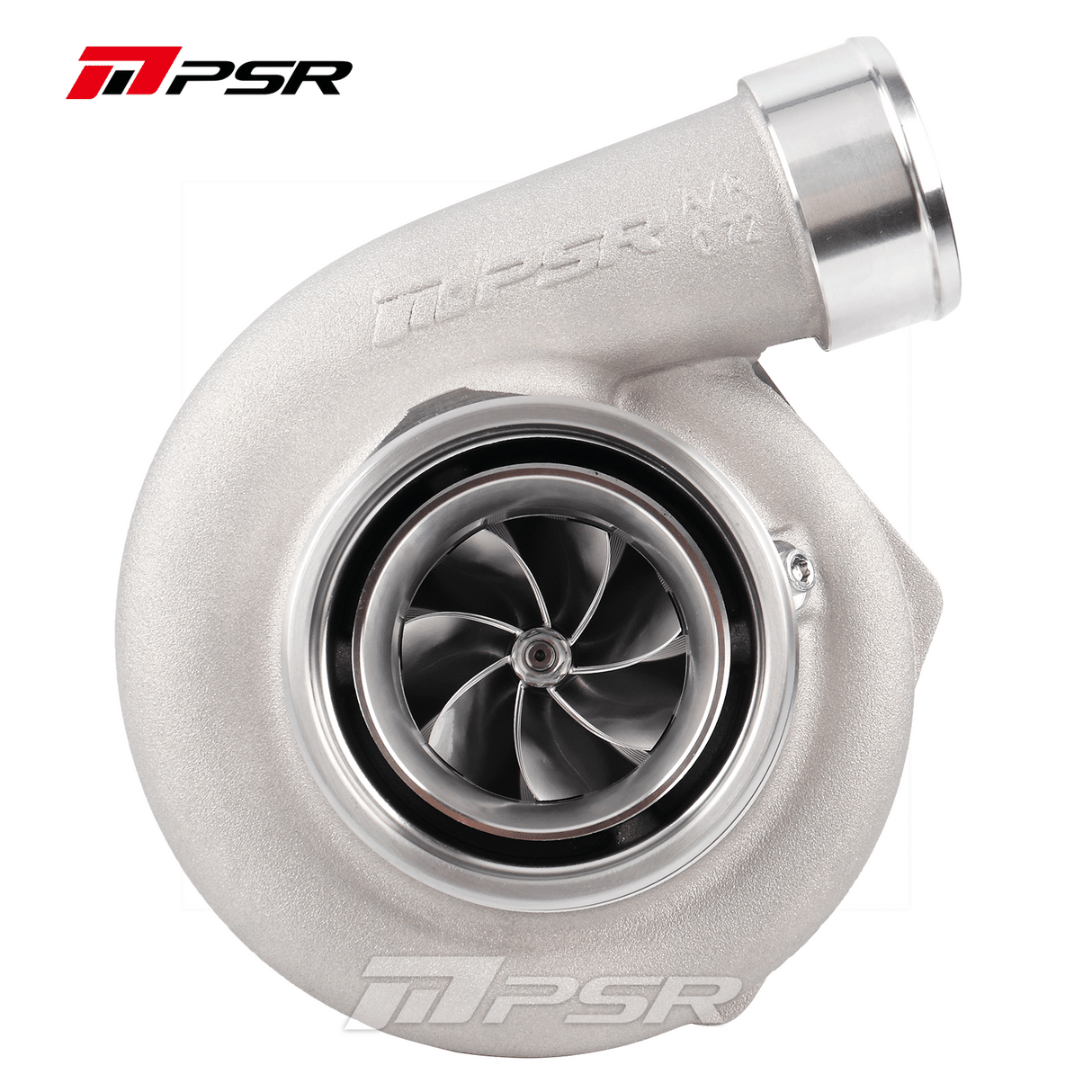

  • Billet Compressor Wheel: 62mm / 82.2mm,  7+7 Blade

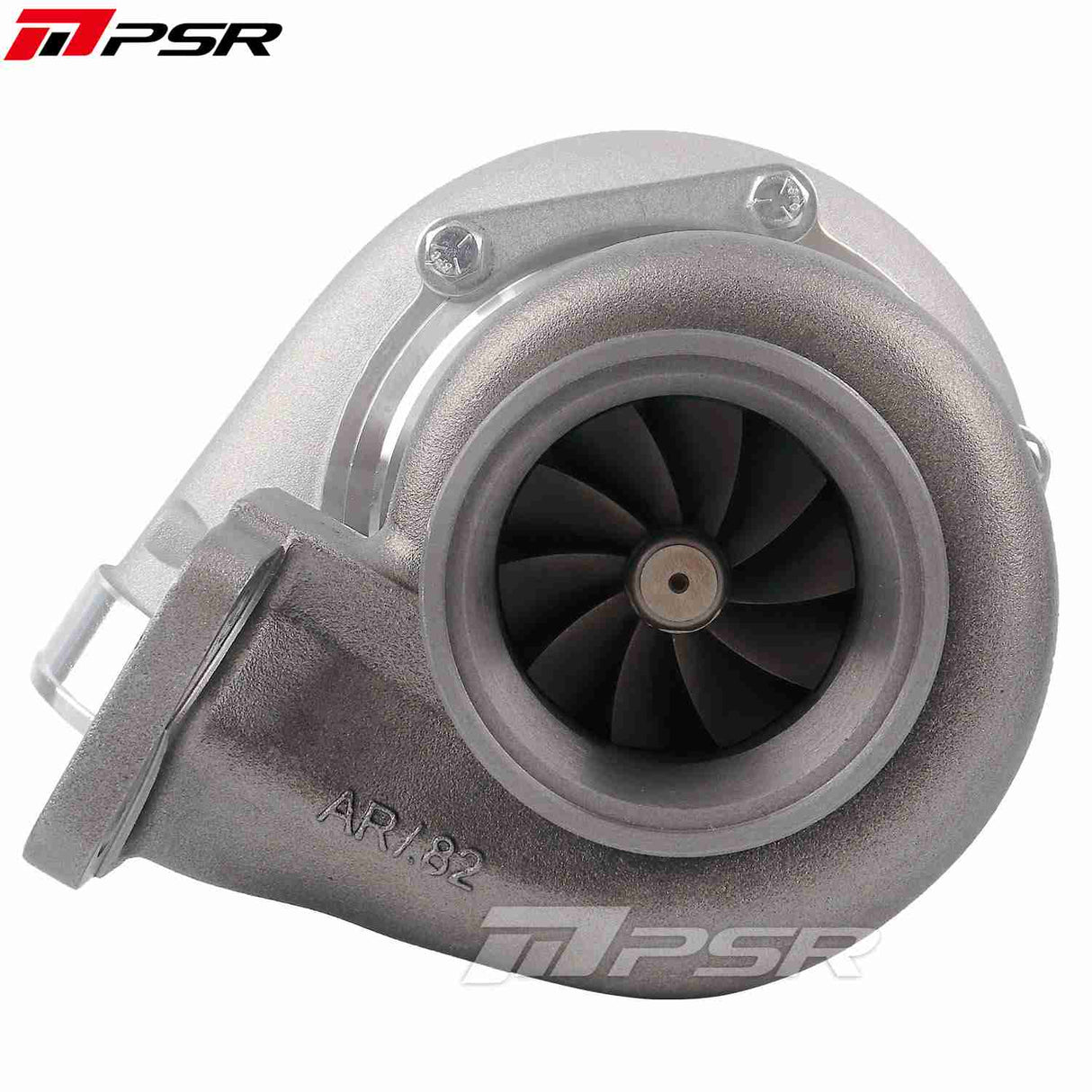

  • Turbine Wheel: 66.1 / 74.17mm, 10 Blade
  • Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
  • Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose
  • Turbine Housing: T3 0.82A/R, T4 0.96A/R
  • Internal oil feed port is 0.9mm
  • Oil feed fitting: 1/8-27 NPSF (Drawing)
  • Oil drain: T4 flange (Drawing)

Fitment Table
