 |  SKU: 100140080

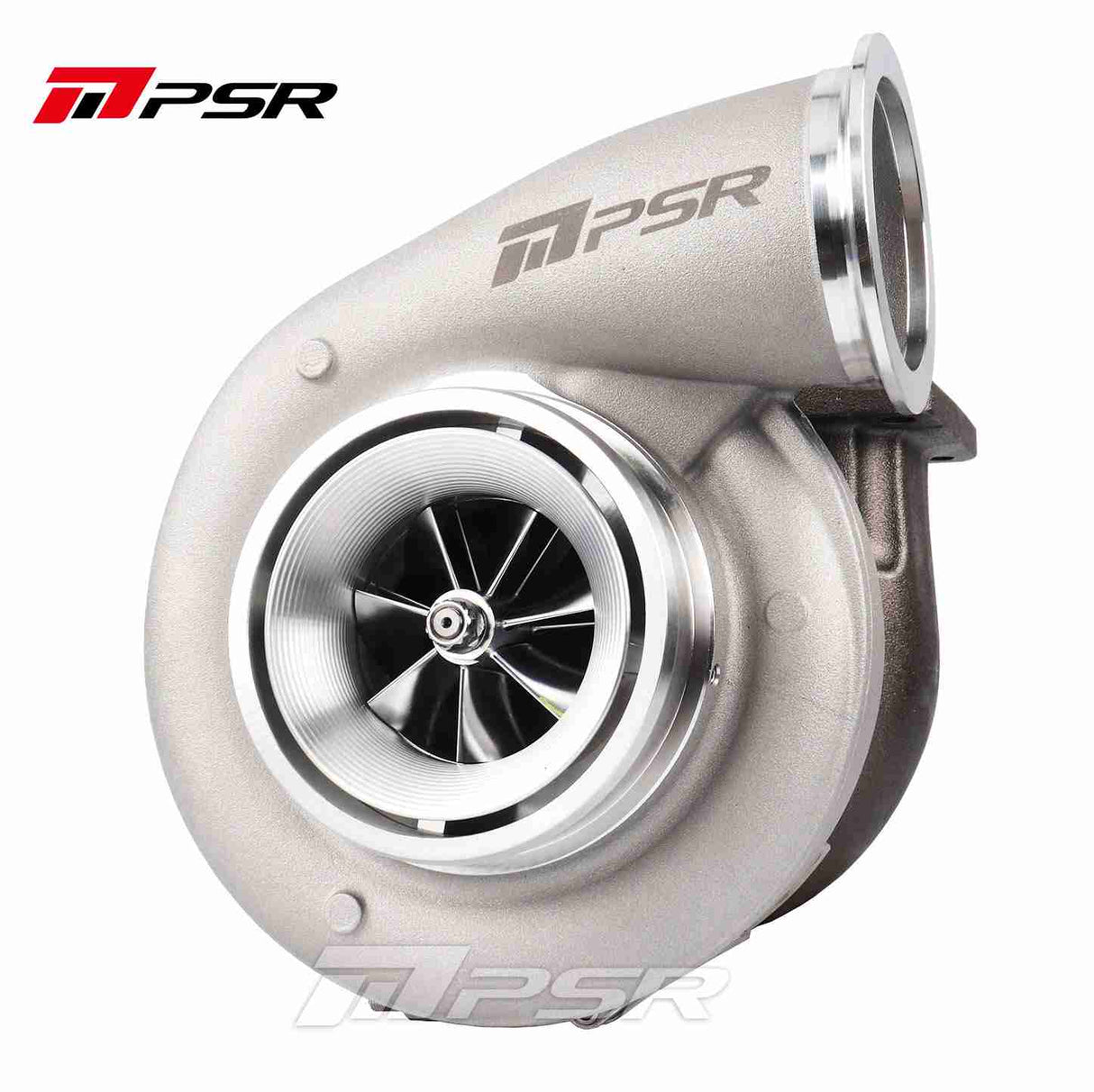

Pulsar S480/88 SX-E Dual Ceramic Ball Bearing Turbo

Universal
$1,375.00
Turbine Housing
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The Pulsar Billet 480 Series Turbocharger is engineered for high-performance applications, featuring billet compressor wheel technology for enhanced airflow and power efficiency. Designed with durability and responsiveness in mind, it delivers reliable boost and impressive power gains for enthusiasts pushing their vehicles to the next level. Ideal for both street and race environments, this turbo ensures quick spool times and sustained performance, making it a standout choice for serious tuners.

Features and Benefits

  • 7+7 blades 80*113mm billet compressor wheel with extended tip technology for the ultimate in aerodynamics
  • S400 96*88mm Inconel 713 turbine wheel for high-temperature operation
  • T6 Divided turbine housings in 1.32A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
  • T4 Divided turbine housing in 1.25 A/R or 1.10 A/R
  • Compressor flow rated at 120 lb/min capabilities ranging from 750 to 1400 horsepower

Technical Specifications

  • Compressor Wheel: 80*113mm
  • Turbine Wheel: 96*88mm or 83*74mm
  • Compressor Inlet: 5″ Hose
  • Compressor Outlet: V-Band
  • Turbine Inlet: T6 or T4
  • Turbine Outlet: 5.75″ Marmon(T6) or 4″ V-Band(T4)
  • Oil Feed: 1/4 NPT
  • Oil Drain: Std T6 Drain Flange
  • Outlet Flange and Clamp not included

Fitment Table
