 |  SKU: RWH-100-04-10M

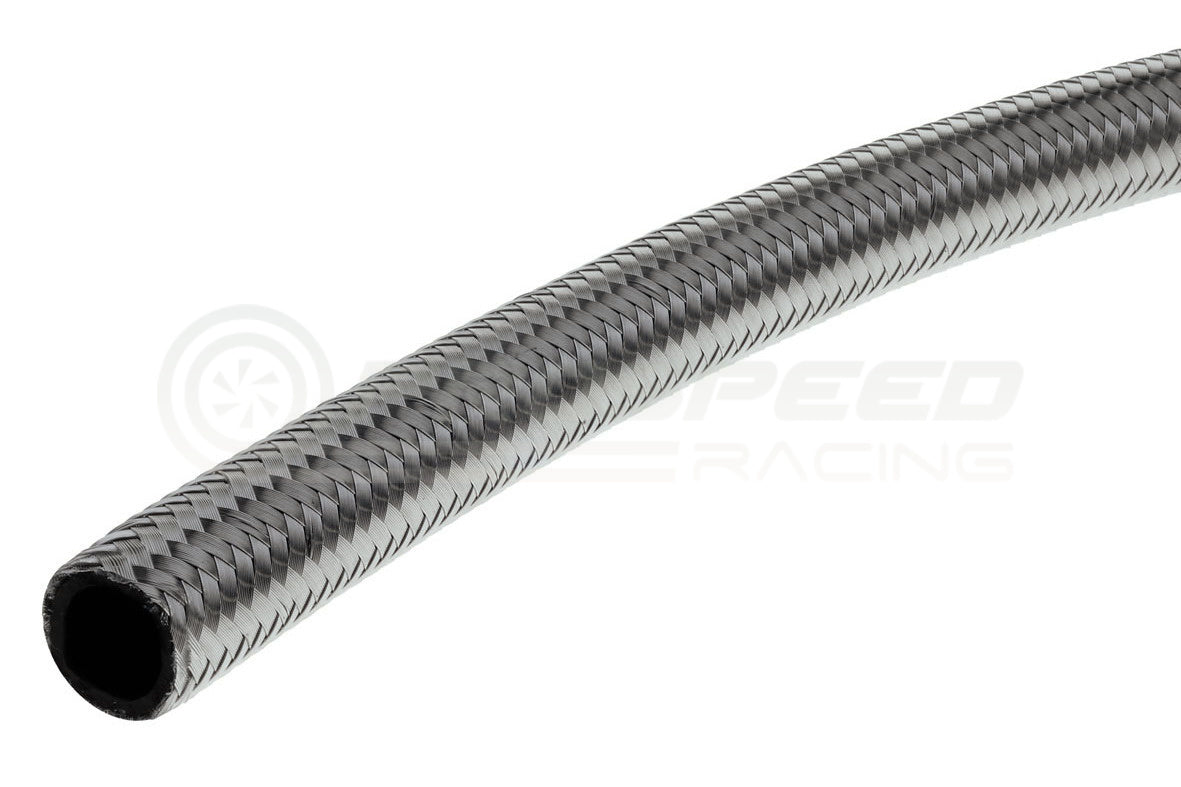

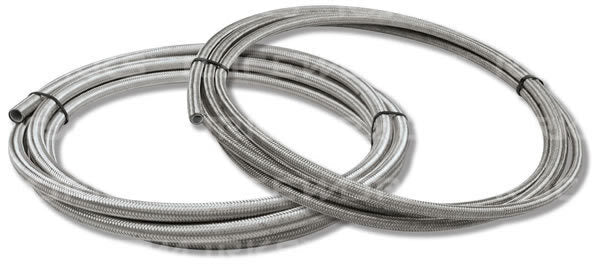

Raceworks 100 Series AN Stainless Steel Braided Cutter E85 Hose

$299.00
Length
Size
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Raceworks 100 Series Stainless Braided Hose is resistant to high pressure, temperature, abrasion and corrosion. The internal Hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a black double outer braid. Suitable for use with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant.

All Raceworks products come with a 2 year warranty.



Features:

  • Temperature range: -40°C to 150°C
  • Recommended for use with fuels*, oils, synthetic lubricants, air and coolant
  • Ethanol and methanol safe
  • Maximum operating pressure of 500psi (Sizes up to AN-12), and 350psi above AN-12
  • Not to be used inside a Fuel Tank, or with Brake Fluids



Specifications:

Size Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Bend Radius (Inch) Bend Radius (mm)
AN-4 1000psi 6000psi  7/32” 5.5mm 7/16? 11.1mm 151g 1.00? 25mm
AN-6 1000psi 6000psi 11/32”  8.7mm 9/16? 13.8mm 196g 1.30? 33mm
AN-8 1000psi 5000psi 7/16” 11.1mm 5/8” 15.7mm 253g 1.69? 43mm
AN-10 1000psi 5000psi 9/16” 14.2mm 13/16? 20.8mm 365g 2.09? 53mm
AN-12 1000psi 3750psi 11/16” 17.4mm 15/16? 23.9mm 471g 2.36? 60mm
AN-16 750psi 2500psi 7/8? 22.2mm 13/64? 30.5mm 567g 4.13? 105mm
AN-20 500psi 2000psi 1-1/8? 28.5mm 1-13/32? 35.8mm 850g 6.30? 160mm



Products:

AN Length (metres) Part Number
-4 1M RWH-100-04-1M
-4 5M RWH-100-04-5M
-4 10M RWH-100-04-10M
-4 30M RWH-100-04-30M
-6 1M RWH-100-06-1M
-6 5M RWH-100-06-5M
-6 10M RWH-100-06-10M
-6 30M RWH-100-06-30M
-8 1M RWH-100-08-1M
-8 5M RWH-100-08-5M
-8 10M RWH-100-08-10M
-8 30M RWH-100-08-30M
-10 1M RWH-100-10-1M
-10 5M RWH-100-10-5M
-10 10M RWH-100-10-10M
-10 30M RWH-100-10-30M
-12 1M RWH-100-12-1M
-12 5M RWH-100-12-5M
-12 10M RWH-100-12-10M
-12 30M RWH-100-12-30M
-16 1M RWH-100-16-1M
-16 5M RWH-100-16-5M
-16 10M RWH-100-16-10M
-16 30M RWH-100-16-30M
-20 1M RWH-100-20-1M
-20 5M RWH-100-20-5M
-20 10M RWH-100-20-10M
-20 20M RWH-100-20-20M


Fitment Table
