| SKU:
RWH-120-10-10M
Raceworks 120 Series AN Nylon Braided Cutter E85 Hose
$409.00
Unit price
/
Unavailable
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description

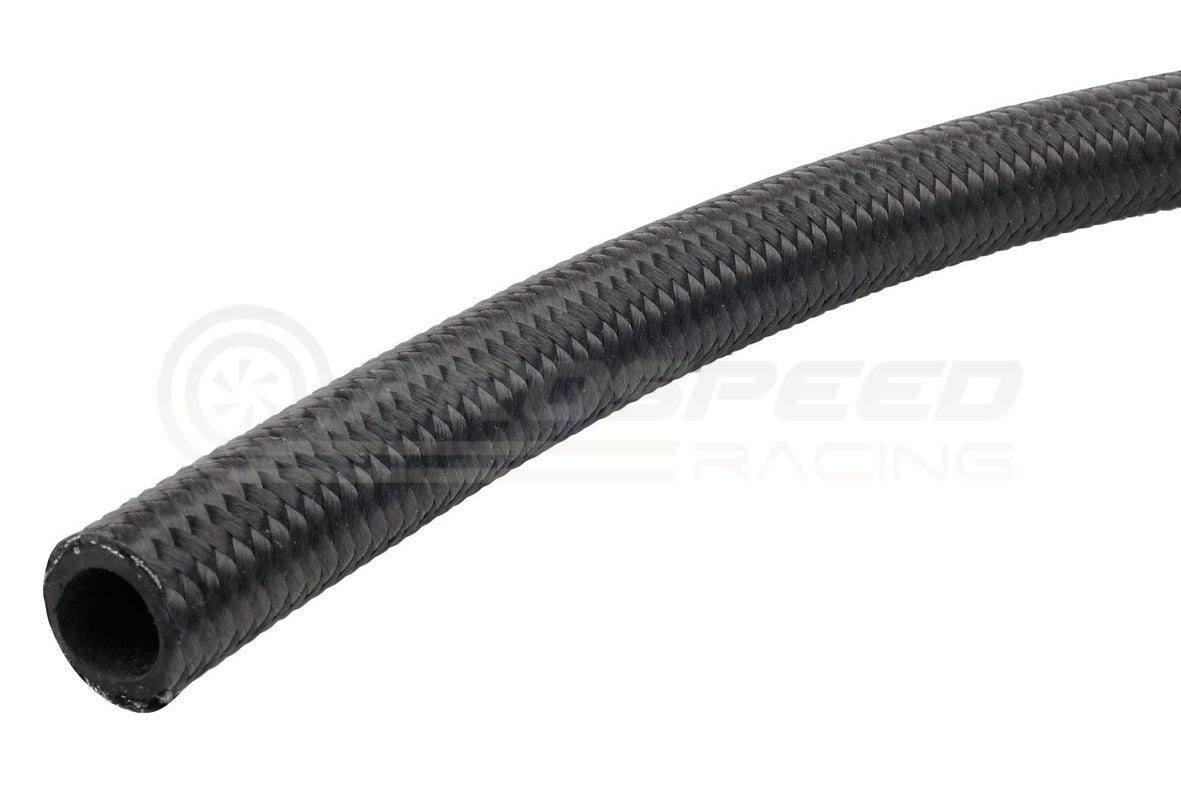

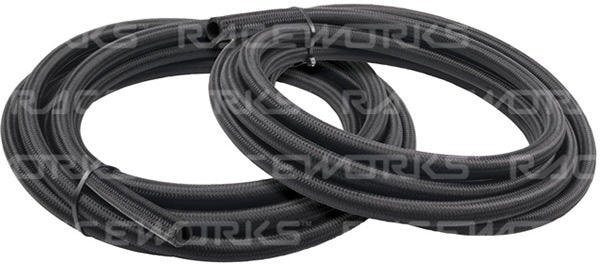

Raceworks 120 Series Nylon Braided Hose is lighter and less abrasive than traditional stainless steel braided hose. It is resistant to high pressure, temperature, abrasion and corrosion. The internal Hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a black double outer braid. Suitable for use with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant.
All Raceworks products come with a 2 year warranty.
Features:
- Temperature range: -40°C to 150°C
- Suitable for use with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant
- Maximum operating pressure of 500psi (Sizes up to AN-12), and 350psi above AN-12
- Not to be used inside a Fuel Tank, or with Brake Fluids
Specifications:
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Bend Radius (Inch) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| AN-6 | 500psi | 2000psi | 11/32” | 8.7mm | 9/16? | 13.8mm | 157g | 1.30? | 33mm |
| AN-8 | 500psi | 2000psi | 7/16” | 11.1mm | 5/8” | 15.7mm | 198g | 1.69? | 43mm |
| AN-10 | 500psi | 2000psi | 9/16” | 14.2mm | 13/16? | 20.8mm | 275g | 2.09? | 53mm |
| AN-12 | 500psi | 2000psi | 11/16” | 17.4mm | 15/16? | 23.9mm | 324g | 2.36? | 60mm |
| AN-16 | 350psi | 1400psi | 7/8? | 22.2mm | 13/64? | 30.5mm | 414g | 4.13? | 105mm |
| AN-20 | 350psi | 1400psi | 1-1/8? | 28.5mm | 1-13/32? | 35.8mm | 567g | 4.33? | 110mm |
Products:
| AN | Length (metres) | Part Number |
|---|---|---|
| -6 | 1M | RWH-120-06-1M |
| -6 | 5M | RWH-120-06-5M |
| -6 | 10M | RWH-120-06-10M |
| -6 | 30M | RWH-120-06-30M |
| -8 | 1M | RWH-120-08-1M |
| -8 | 5M | RWH-120-08-5M |
| -8 | 10M | RWH-120-08-10M |
| -8 | 30M | RWH-120-08-30M |
| -10 | 1M | RWH-120-10-1M |
| -10 | 5M | RWH-120-10-5M |
| -10 | 10M | RWH-120-10-10M |
| -10 | 30M | RWH-120-10-30M |
| -12 | 1M | RWH-120-12-1M |
| -12 | 5M | RWH-120-12-5M |
| -12 | 10M | RWH-120-12-10M |
| -12 | 30M | RWH-120-12-30M |
| -16 | 1M | RWH-120-16-1M |
| -16 | 5M | RWH-120-16-5M |
| -16 | 10M | RWH-120-16-10M |
| -16 | 30M | RWH-120-16-30M |
| -20 | 1M | RWH-120-20-1M |
| -20 | 5M | RWH-120-20-5M |
| -20 | 10M | RWH-120-20-10M |
| -20 | 20M | RWH-120-20-20M |
| -20 | 30M | RWH-120-20-30M |
