| SKU:
RWH-140-10-10M

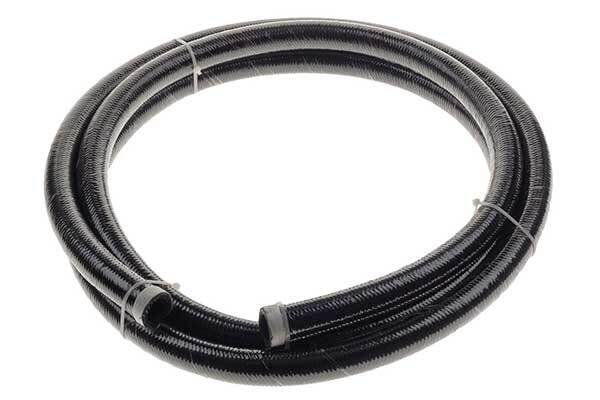

Raceworks 140 Series AN Black Stainless Steel Braided Cutter E85 Hose
$509.00
Unit price
/
Unavailable
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description

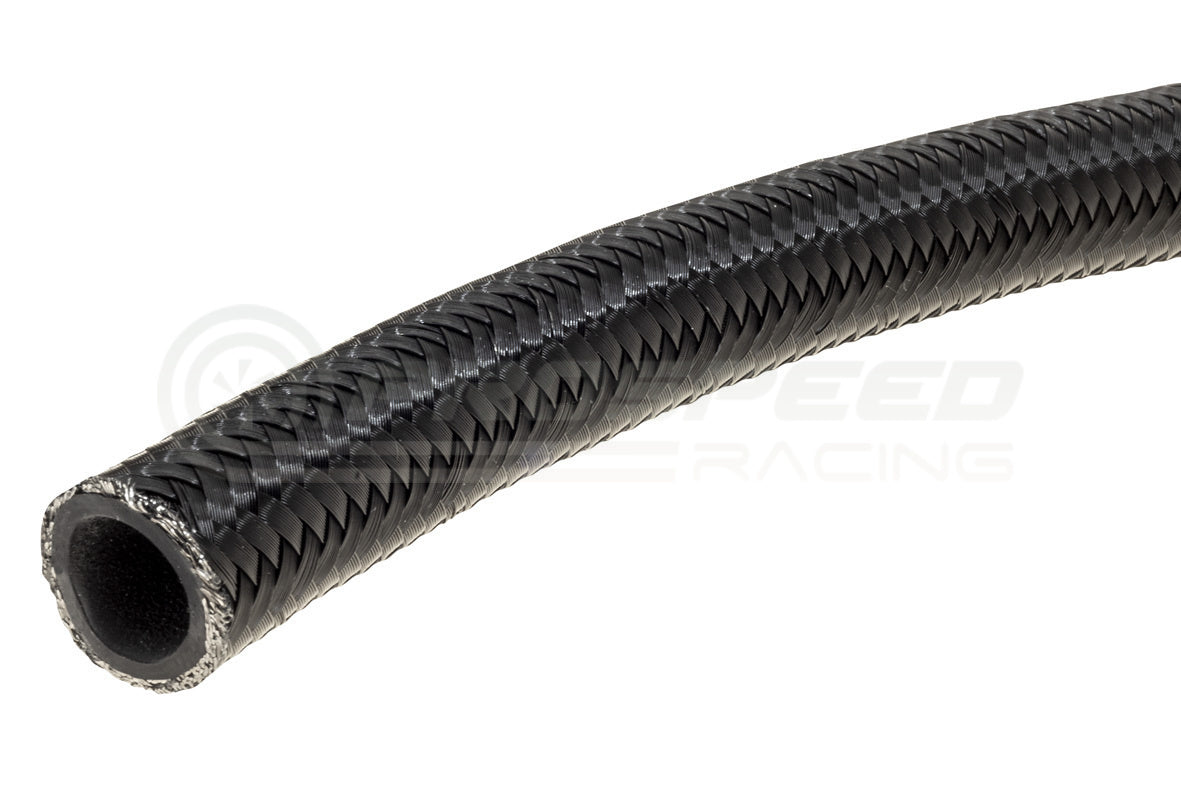

Raceworks 140 Series Black Stainless Braided Hose is resistant to high pressure, temperature, abrasion and corrosion. The internal Hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a black double outer braid. Suitable for use with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant.
All Raceworks products come with a 2 year warranty.
Features:
- Temperature range: -40°C to 150°C
- Recommended for use with fuels*, oils, synthetic lubricants, air and coolant
- Ethanol and methanol safe
- Maximum operating pressure of 500psi (Sizes up to AN-12), and 350psi above AN-12
- Not to be used inside a Fuel Tank, or with Brake Fluids
Specifications:
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Bend Radius (Inch) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| AN-4 | 1000psi | 6000psi | 7/32” | 5.5mm | 7/16? | 11.1mm | 151g | 1.00? | 25mm |
| AN-6 | 1000psi | 6000psi | 11/32” | 8.7mm | 9/16? | 13.8mm | 196g | 1.30? | 33mm |
| AN-8 | 1000psi | 5000psi | 7/16” | 11.1mm | 5/8” | 15.7mm | 253g | 1.69? | 43mm |
| AN-10 | 1000psi | 5000psi | 9/16” | 14.2mm | 13/16? | 20.8mm | 365g | 2.09? | 53mm |
| AN-12 | 1000psi | 3750psi | 11/16” | 17.4mm | 15/16? | 23.9mm | 471g | 2.36? | 60mm |
| AN-16 | 750psi | 2500psi | 7/8? | 22.2mm | 13/64? | 30.5mm | 567g | 4.13? | 105mm |
| AN-20 | 500psi | 2000psi | 1-1/8? | 28.5mm | 1-13/32? | 35.8mm | 850g | 6.30? | 160mm |
Products:
| AN | Length (metres) | Part Number |
|---|---|---|
| -4 | 1M | RWH-100-04-1M |
| -4 | 5M | RWH-100-04-5M |
| -4 | 10M | RWH-100-04-10M |
| -4 | 30M | RWH-100-04-30M |
| -6 | 1M | RWH-100-06-1M |
| -6 | 5M | RWH-100-06-5M |
| -6 | 10M | RWH-100-06-10M |
| -6 | 30M | RWH-100-06-30M |
| -8 | 1M | RWH-100-08-1M |
| -8 | 5M | RWH-100-08-5M |
| -8 | 10M | RWH-100-08-10M |
| -8 | 30M | RWH-100-08-30M |
| -10 | 1M | RWH-100-10-1M |
| -10 | 5M | RWH-100-10-5M |
| -10 | 10M | RWH-100-10-10M |
| -10 | 30M | RWH-100-10-30M |
| -12 | 1M | RWH-100-12-1M |
| -12 | 5M | RWH-100-12-5M |
| -12 | 10M | RWH-100-12-10M |
| -12 | 30M | RWH-100-12-30M |
| -16 | 1M | RWH-100-16-1M |
| -16 | 5M | RWH-100-16-5M |
| -16 | 10M | RWH-100-16-10M |
| -16 | 30M | RWH-100-16-30M |
| -20 | 1M | RWH-100-20-1M |
| -20 | 5M | RWH-100-20-5M |
| -20 | 10M | RWH-100-20-10M |
| -20 | 20M | RWH-100-20-20M |
