 |  SKU: RWH-200-03-1M

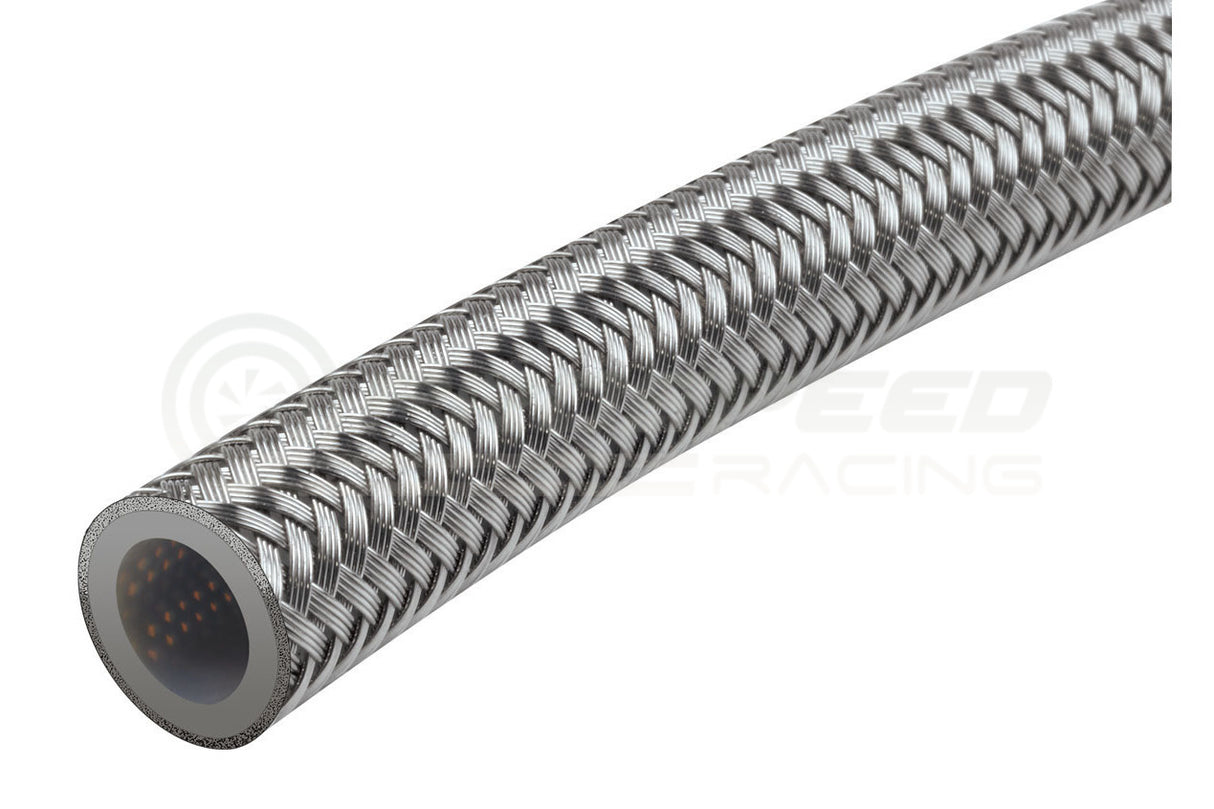

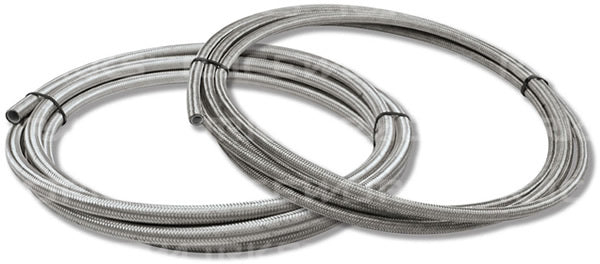

Raceworks 200 Series AN Stainless Steel Braided Teflon PTFE E85 Hose

$20.99
Length
Size

Description


Raceworks 200 Series Stainless Braided Hose is constructed from a PTFE inner tube that is compatible with all fuels, oils, nitrous, this includes brake and clutch fluids. The PTFE tube is covered by a stainless steel outer cover that is durable and resistant to abrasion and expansion. PTFE Hose is the best option for use on fuel systems as it won't allow the permeation of fuel smell, has the highest pressure and temperature rating and is the lightest of the Raceworks flexible hoses.

All Raceworks products come with a 2 year warranty.



Features:

  • Temperature range: -70°C to 250°C
  • The best Hose to use for Fuels, due to no permeation of fuel smell
  • Suitable for use with oils, synthetic lubricants, air, coolant, brake fluid, power steering, automatic transmission, vacuum and nitrous
  • Ethanol and methanol safe
  • 200 Series Hose can be used intank
  • Maximum operating pressure of 1200psi (AN-12)



Specifications:

Size Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Bend Radius (Inch) Bend Radius (mm)
AN-3 3000psi 10000psi 1/8? 3.1mm 1/4? 6.4mm 66g 0.95? 24mm
AN-4 3000psi 10000psi 3/16? 4.7mm 5/16? 7.9mm 85g 1.00? 25mm
AN-6 2500psi 9000psi 5/16? 7.9mm 15/32? 11.8mm 139g 1.30? 33mm
AN-8 2000psi 7000psi 13/32? 10.5mm 17/32? 13.3mm 176g 1.69? 43mm
AN-10 1500psi 5000psi 17/32? 13.4mm 41/64? 16.2mm 222g 2.09? 53mm
AN-12 1200psi 4500psi 41/64? 16.2mm 49/64? 19.3mm 246g 4.53? 115mm



Products:

AN Length (metres) Part Number
-3 1M RWH-200-03-1M
-3 5M RWH-200-03-5M
-3 10M RWH-200-03-10M
-3 30M RWH-200-03-30M
-4 1M RWH-200-04-1M
-4 5M RWH-200-04-5M
-4 10M RWH-200-04-10M
-4 30M RWH-200-04-30M
-6 1M RWH-200-06-1M
-6 5M RWH-200-06-5M
-6 10M RWH-200-06-10M
-6 30M RWH-200-06-30M
-8 1M RWH-200-08-1M
-8 5M RWH-200-08-5M
-8 10M RWH-200-08-08M
-8 30M RWH-200-08-30M
-10 1M RWH-200-10-1M
-10 5M RWH-200-10-5M
-10 10M RWH-200-10-10M
-10 30M RWH-200-10-30M
-12 1M RWH-200-12-1M
-12 5M RWH-200-12-5M
-12 10M RWH-200-12-10M
-12 30M RWH-200-12-30M
