 |  SKU: RWH-400-10-10M

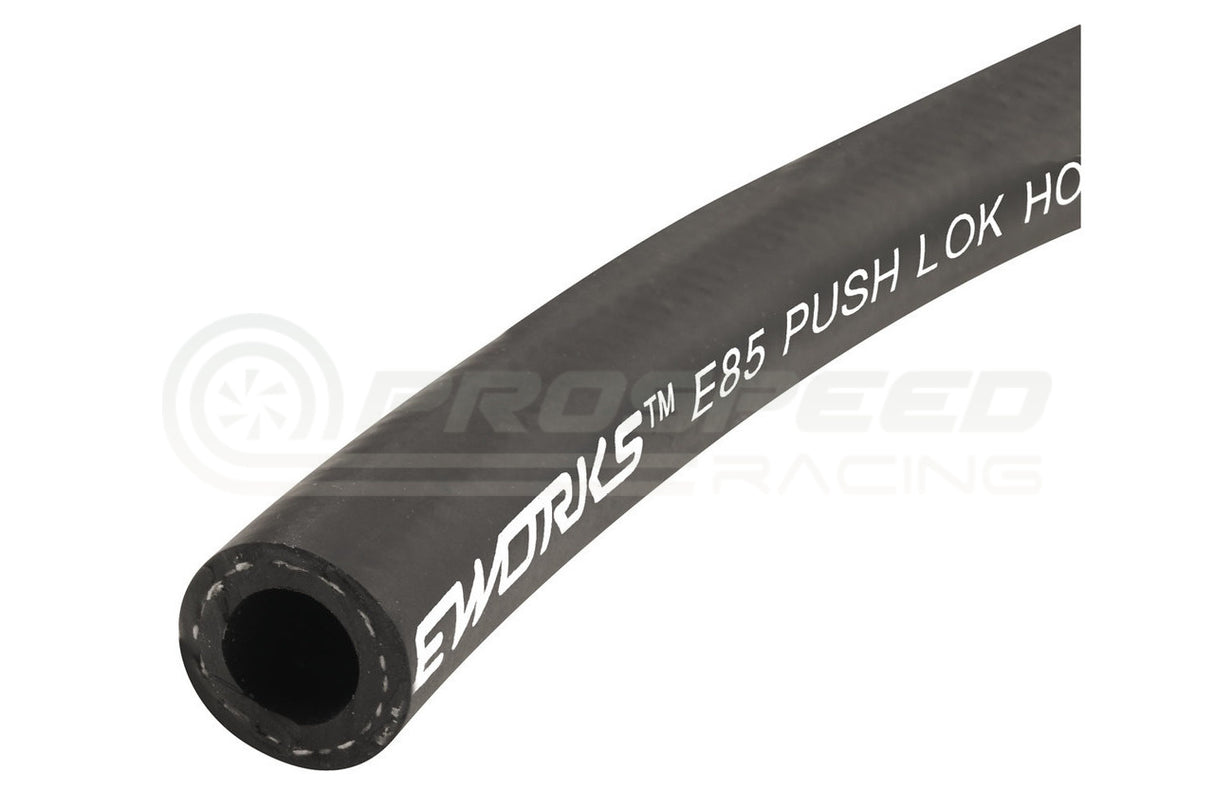

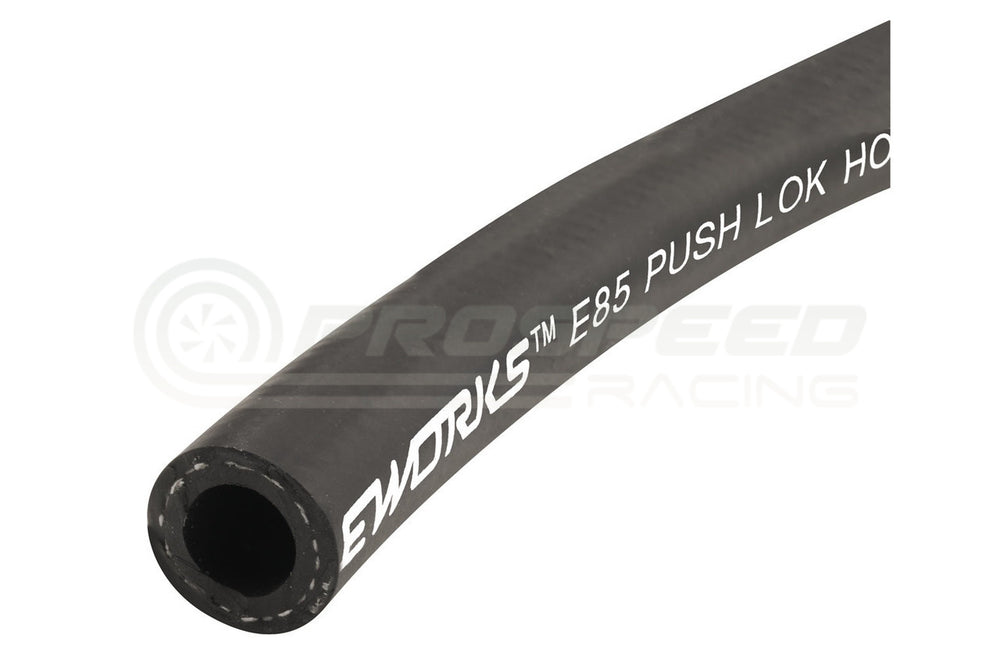

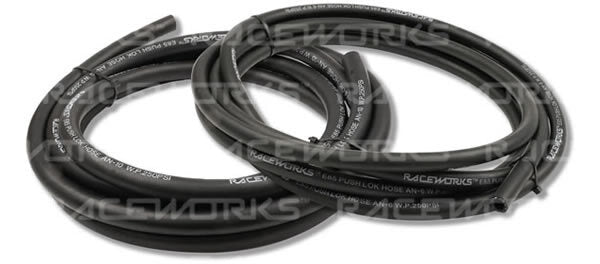

Raceworks 400 Series AN Push Lock E85 Rubber Hose

$239.00
Length
Size
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Raceworks 400 Series Rubber Hose has an inner liner of Nitrile which is reinforced with braid made from high tensile synthetic textile cord to give it extra strength. Raceworks 400 Series is safe for use with E85, methanol, oils, lubricants and coolant. Recommended for use on low pressure/temperature applications. If using in high pressure or temperatures above 70°C, we recommend securing hose ends with a clamp.

All Raceworks products come with a 2 year warranty.



Features:

  • Push lock
  • Hose is not submersible
  • Not suitable for intank use
  • Temperature range: -40C to 100C
  • Ethanol and methanol safe
  • Well priced AN Hose solution suitable for use with fuels*, oils, coolant, water and air
  • Not suitable for vacuum, brake fluid, power steering or automatic transmission lines



Specifications:

Size Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Bend Radius (Inch) Bend Radius (mm)
AN-4 250psi 750psi 1/4? 6.4mm 29/64? 11.6mm 99g 1.18? 30mm
AN-5 250psi 750psi 5/16? 7.9mm 9/16? 14.2mm 140g 1.38? 35mm
AN-6 250psi 750psi 3/8? 9.5mm 5/8? 15.8mm 175g 1.58? 40mm
AN-8 250psi 750psi 1/2? 12.7mm 3/4? 19.1mm 237g 2.17? 55mm
AN-10 250psi 750psi 5/8? 15.8mm 15/16? 22.9mm 296g 2.44? 62mm
AN-12 250psi 750psi 3/4? 19.1mm 1-1/32? 26.2mm 353g 3.54? 90mm



Products:

AN Length (metres) Part Number
-4 1M RWH-400-04-1M
-4 5M RWH-400-04-5M
-4 10M RWH-400-04-10M
-4 30M RWH-400-04-30M
-5 1M RWH-400-05-1M
-5 5M RWH-400-05-5M
-5 10M RWH-400-05-10M
-5 30M RWH-400-05-30M
-6 1M RWH-400-06-1M
-6 5M RWH-400-06-5M
-6 10M RWH-400-06-10M
-6 30M RWH-400-06-30M
-8 1M RWH-400-08-1M
-8 5M RWH-400-08-5M
-8 10M RWH-400-08-10M
-8 30M RWH-400-08-30M
-10 1M RWH-400-10-1M
-10 5M RWH-400-10-5M
-10 10M RWH-400-10-10M
-10 30M RWH-400-10-30M
-12 1M RWH-400-12-1M
-12 5M RWH-400-12-5M
-12 10M RWH-400-12-10M
-12 30M RWH-400-12-30M
