Description
Description

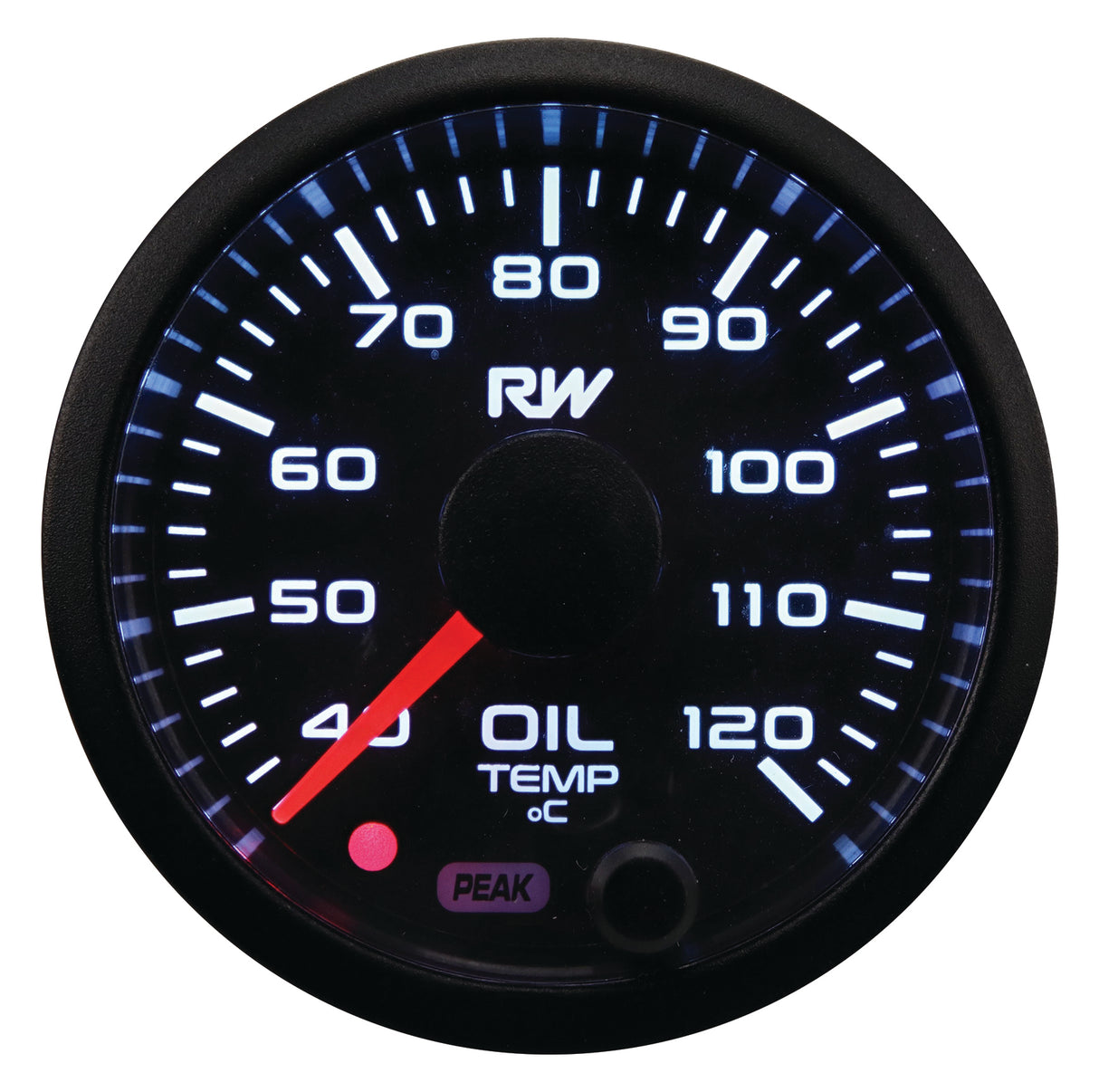

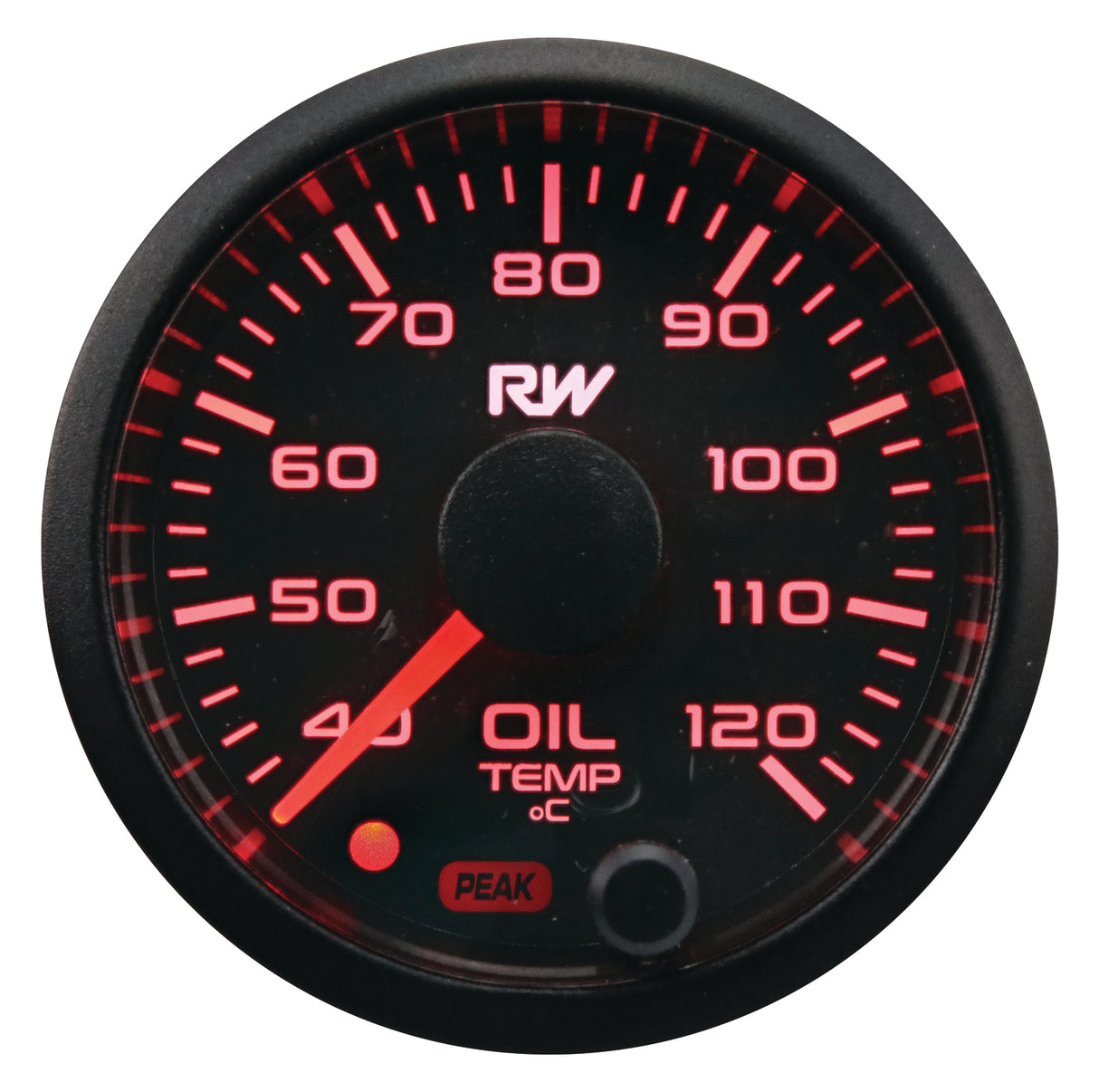

New from Raceworks is a range of 52mm performance gauges. Featuring an analogue face powered by a digital stepper mode for accuracy and faster response times and performs an exciting "opening ceremony" on startup. The LED backlight colour can be changed betwen 10 different colours using the programmable button and also features a programmable warning function.
Features and Benefits
Features and Benefits
- 52mm / 2 Inch diameter
- 10 Colour LED
- 270 deg Full Sweep
- Compact Digital Sensors, resulting in no hoses or pressure lines being run into the cabin
- Electronic Stepper Motor for the Ultimate Accuracy, complete with Opening Ceremony
- Programmable Warning
- Peak Function
- Adjustable Brightness
- Adjustable Dimmer
- Daisy Chain Wiring, meaning Power, Ground and Illumination only needs to be wired to a single gauge in a series.
- Each gauge then uses a daisy chain harness, and only requires a signal input
- All settings stored in memory, without any power
- Required sensors included
- All functions accessed by single button on face
- 2 year Warranty
- For 12V Applications only
Technical Specifications
Technical Specifications
- Diameter: 52mm
- Mounting Depth: 45mm
- Circuitry: Digital Stepper Motor
- Gauge Sweep: 270deg
- Opening Ceremony: Yes
- Programmable Warning: Yes
- Peak Function: Yes
- Adjustable Brightness: Yes
- Adjustable Dimmer: Yes
- LED Backlight: 10 Colour
- Sensor: Included - Spare Sensors available (VPR-334)
- Bezel Colour: Black
- Lens: Clear

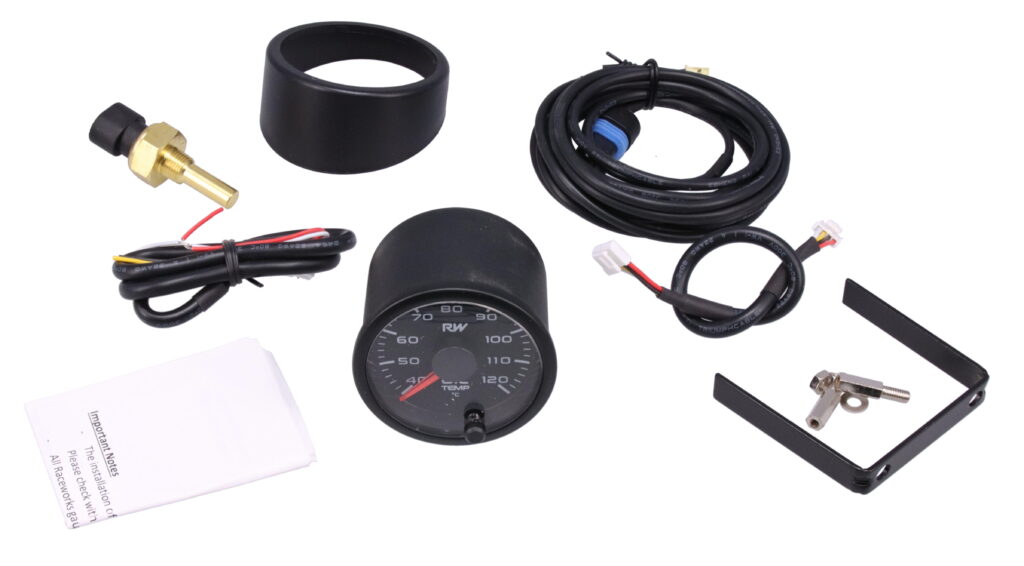

Included Components
Included Components
- Oil Temperature Gauge 1
- Sun-visor 1
- Mounting U Bracket 1
- Mounting Stand Offs 2
- Mounting Flat Washers 2
- Mounting Nuts 2
- Power Wire (80cm) 1
- Daisy Chain Wire (30cm) 1
- Sensor/Signal Wire (270cm) 1
- 1/8” NPT Oil Temperature Sensor 1
- Installation Instructions 1
