Raceworks 600 Series AN Aluminium Hard Line Tube 7 Meters

$49.99
Size
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

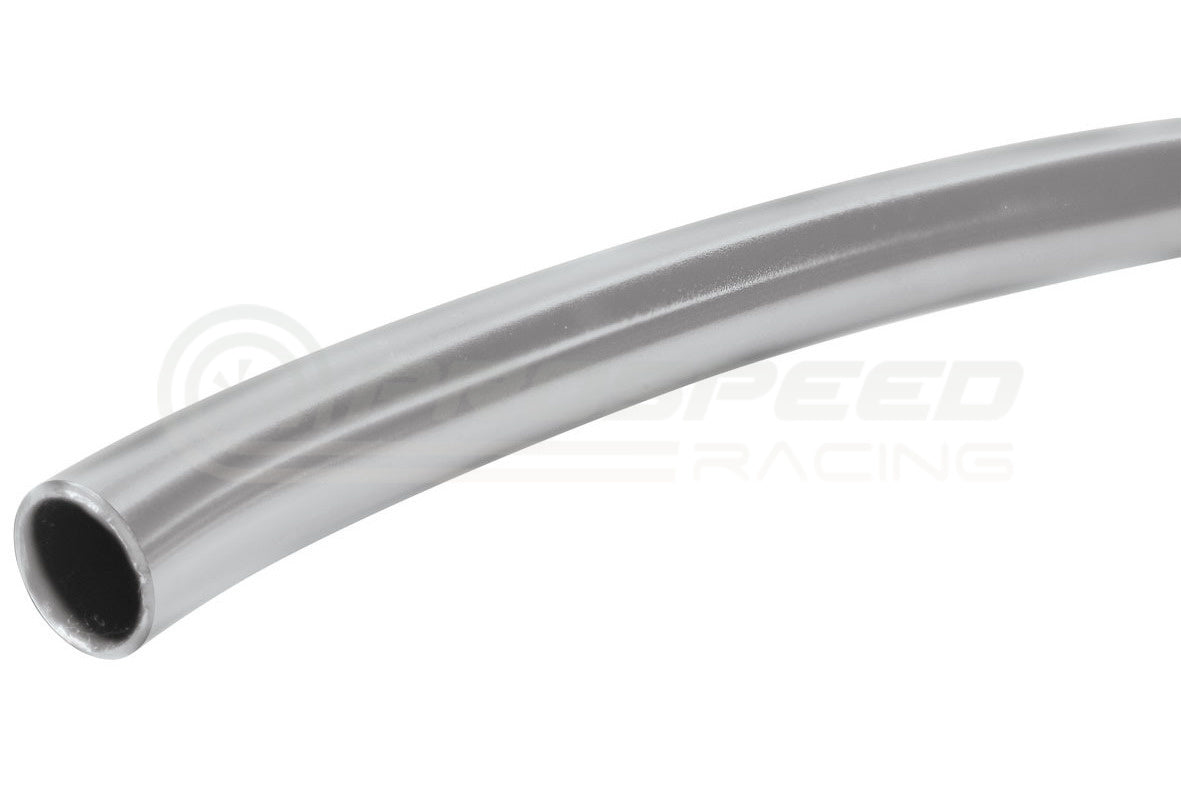

Raceworks 600 Series Aluminium Hard Line is extruded from lightweight, seamless aluminium tube. Available in a raw finish in four sizes, it can be either bent by hand or with a bender. The use of a bender results in less distortion of the shape of the tube, and as a result less creasing. Can be used with our tube straightener RWT-014.

All Raceworks products come with a 2 year warranty.



Features:

  • Wall thickness of 1mm
  • Ethanol and methanol safe



Specifications:

7M Length Part Number AN Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Finish
RWH-600-05 -5 1400psi 2100psi 15/64? 5.9mm 5/16? 7.9mm 61g Raw
RWH-600-06 -6 1100psi 1700psi 19/64? 7.5mm 3/8? 9.5mm 75g Raw
RWH-600-08 -8 550psi 1100psi 27/64? 10.7mm 1/2? 12.7mm 104g Raw
RWH-600-10 -10 420psi 550psi 35/64? 13.9mm 5/8? 15.8mm 128g Raw
