 |  SKU: INJ-208-RS3

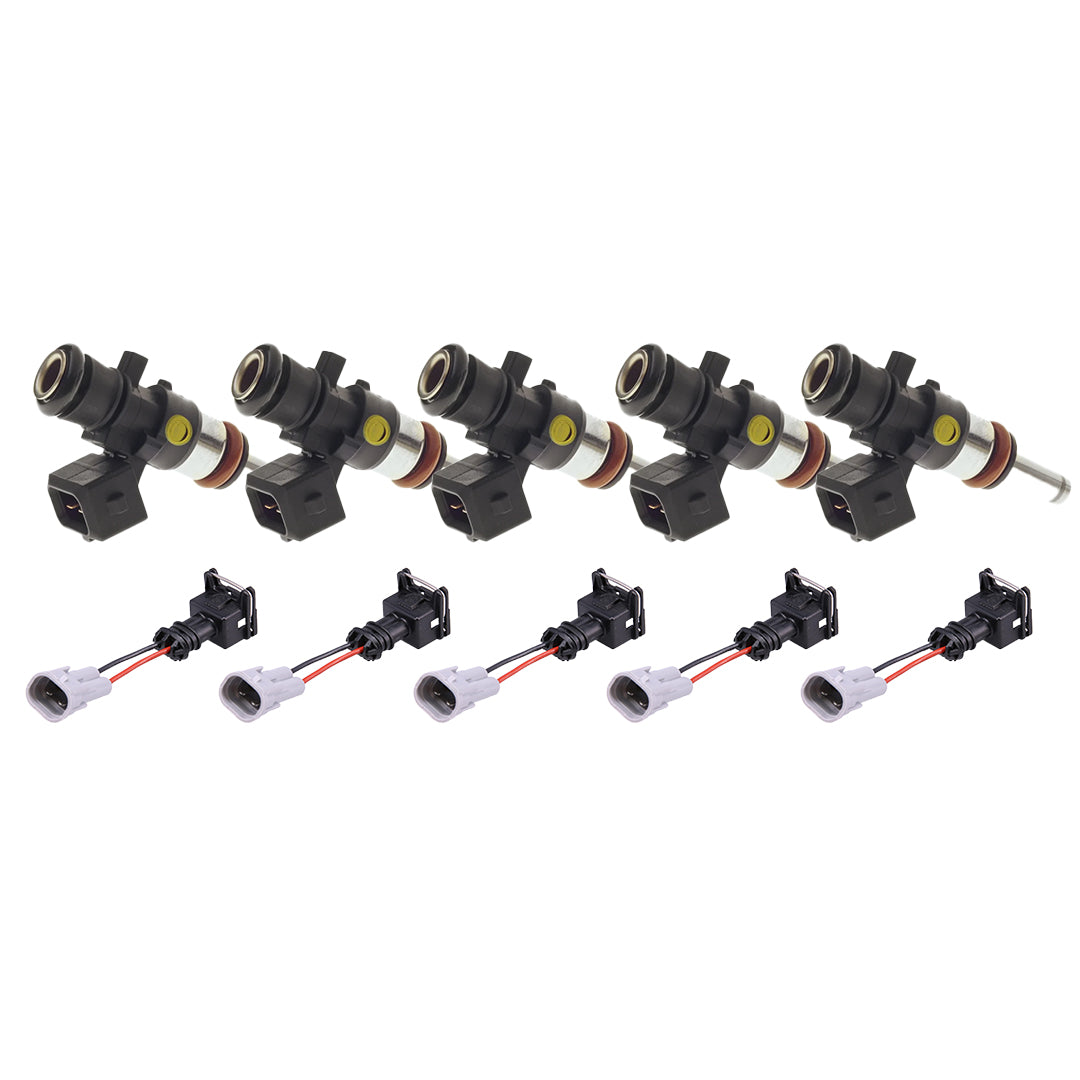

Raceworks/Bosch Set of 5 980cc Fuel Injectors Plug and Play

Audi RS3 8V, 8Y/TT RS FV/RS Q3 (DAZA/DNWA Engines)
$569.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Assembled using genuine unmodified Bosch injectors and quality Raceworks fittings, these injectors offer an affordable plug and play solution for many makes and models.



Flywheel power figures per injector (Estimated):

Normally Aspirated Gasoline 175HP 130KW
Forced Inducted Low Boost Gasoline       145HP 110KW
Forced Inducted High Boost Gasoline 155HP 120KW

Normally Aspirated E85 130HP 95KW
Forced Inducted Low Boost E85 105HP 80KW
Forced Inducted High Boost E85 115HP 85KW



Note: Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.

Features and Benefits

  • Unmodified Bosch with Raceworks Lower Adapter fitted
  • Size: 980cc (92 Lb/hr) @ 3bar and 1100cc (105 Lb/hr) @ 4bar
  • Impedance: High (12.0 Ohms)
  • Plug: Bosch Jetronic/Minitimer, Top O-Ring: 14mm
  • E85 Safe
  • Spray Pattern: Wide Cone
  • Spray Direction: Straight
  • Supplied with Plug and Play wiring plug adaptors
  • Flow variance: +3% / -2% (5% total variance)

Technical Specifications

  • Size: 980cc (92 Lb/hr) @ 3 bar and 1150cc (105 Lb/hr) @ 4 bar
  • Length: EV14K Short with Extended Nose
  • Impedance: 12.5 ohms
  • Plug: Bosch Jetronic / Minitimer
  • Top O-Ring: 14mm
  • Spray Pattern: Wide Cone
  • Spray Direction: Straight
  • E85 Safe: Yes
  • Manufacturer Part Number: INJ-208 / 0 280 158 040

Included Components

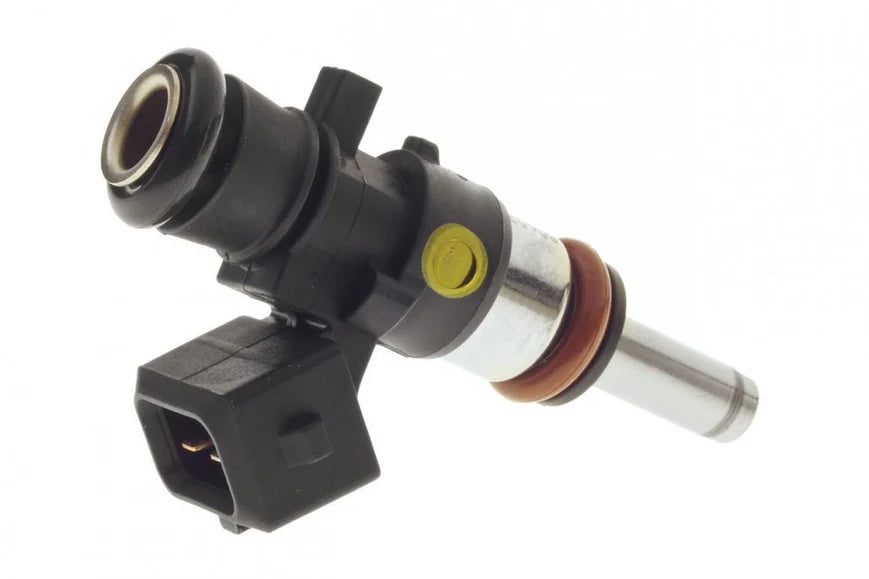

  • 4 x Raceworks/Bosch 980cc Injectors

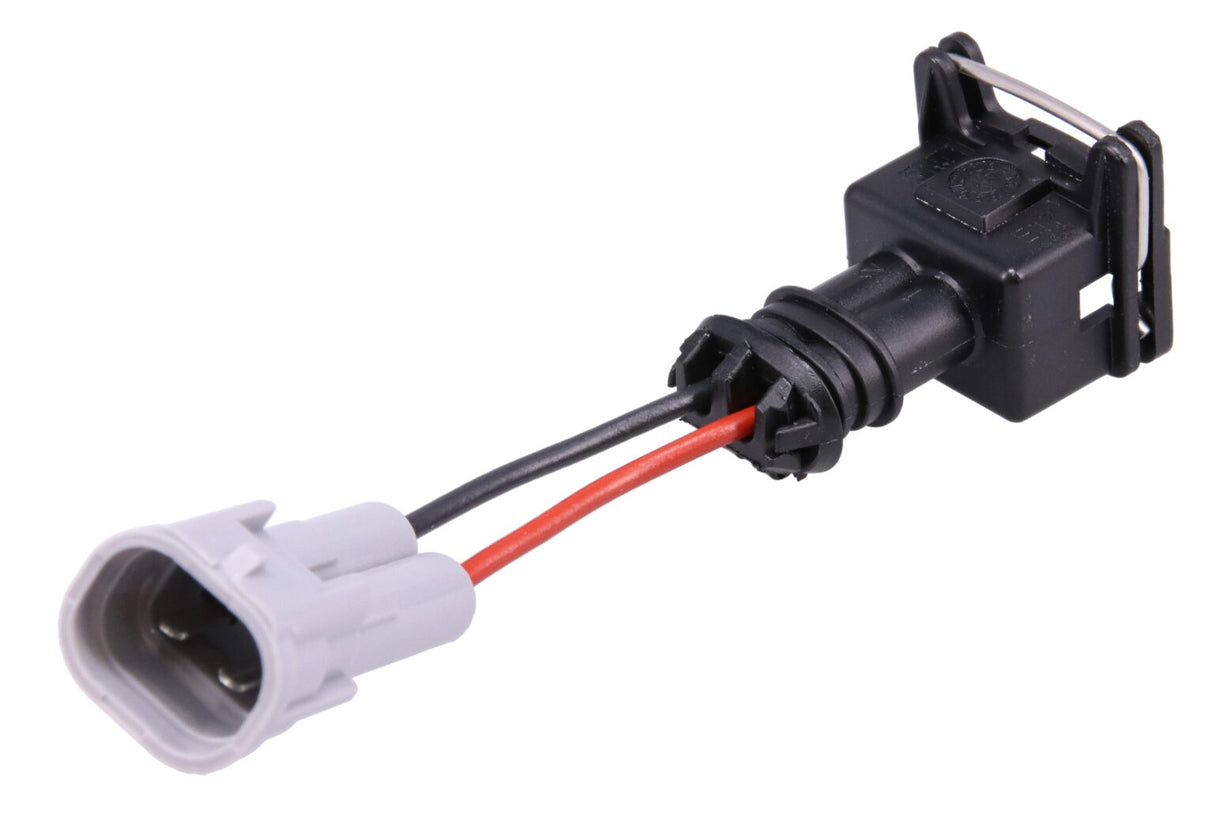

  • 4 x Denso Harness to Bosch Injector Wiring Adaptors

Fitment Table
