 |  SKU: RWH-260-03-10M

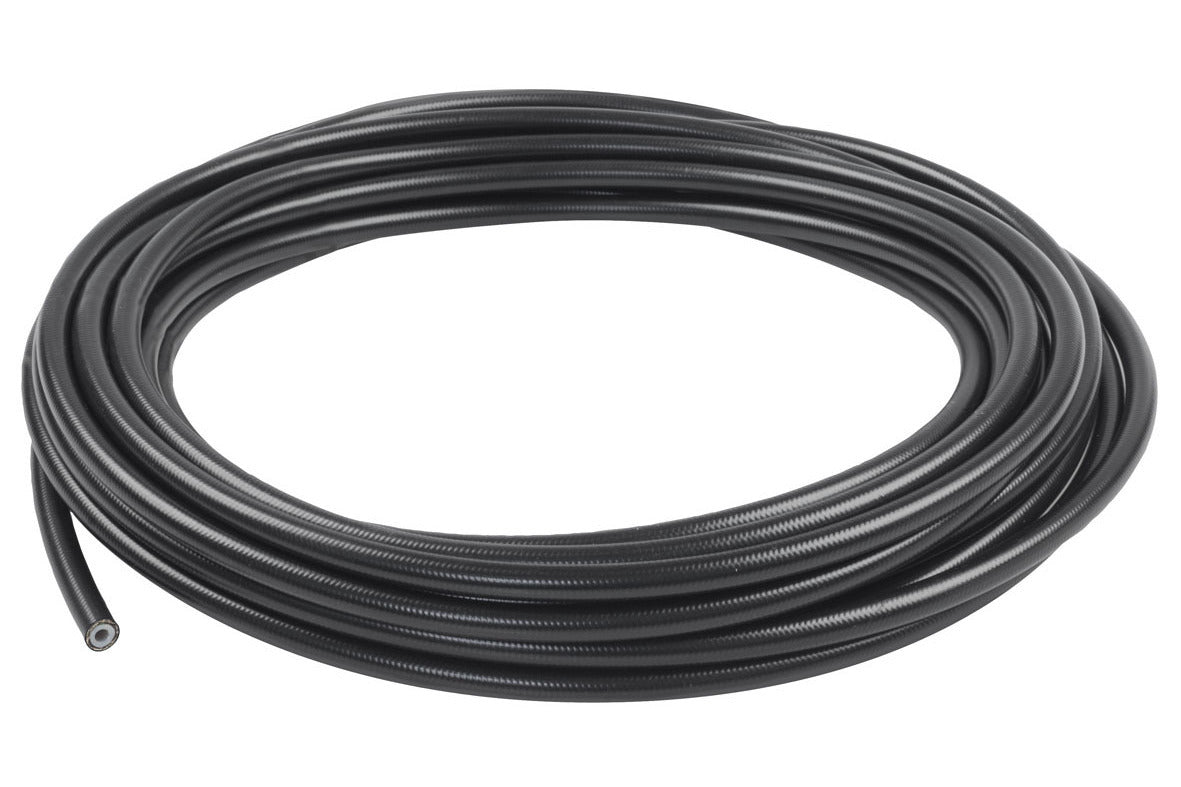

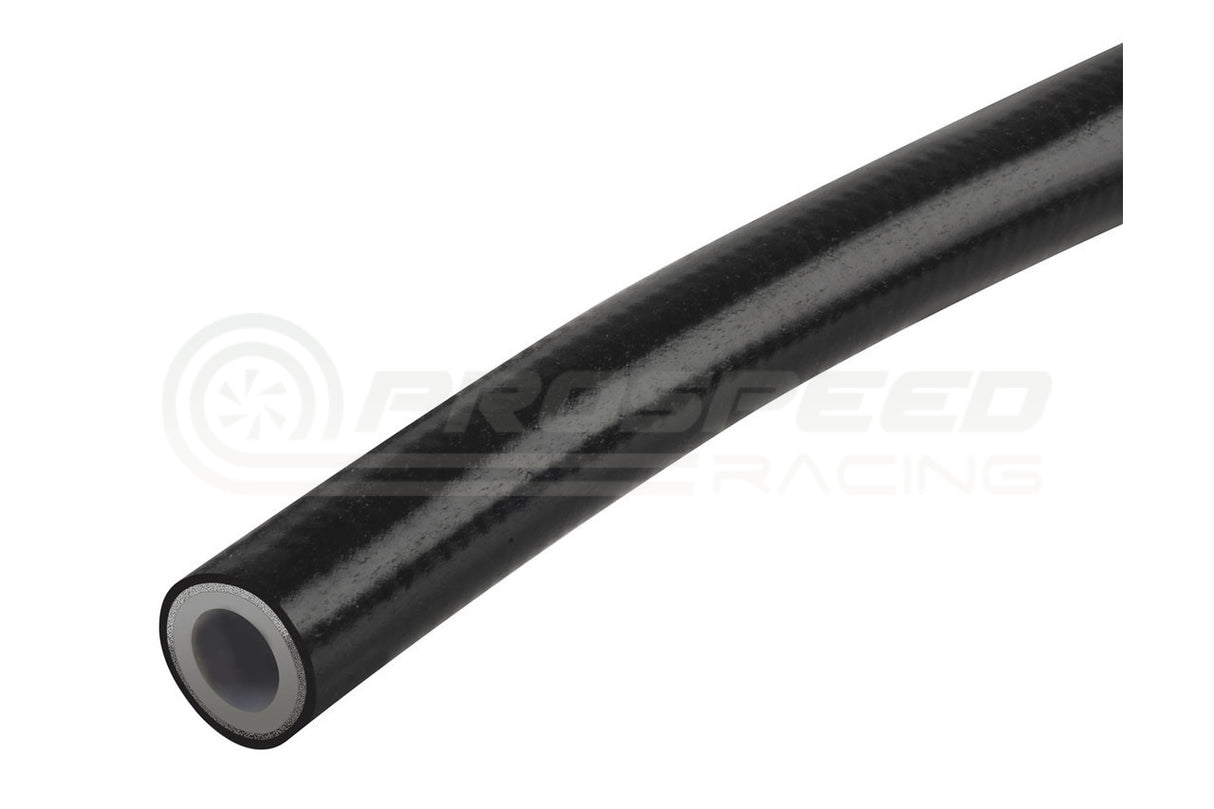

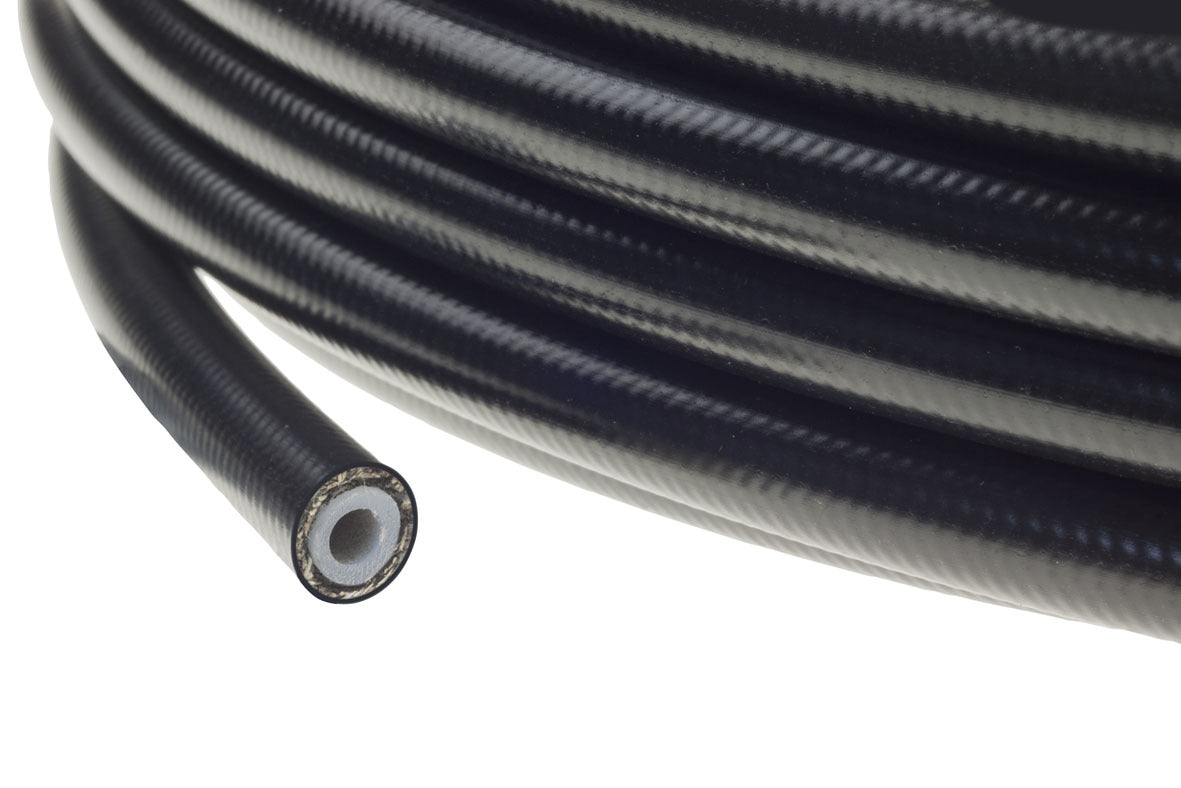

Raceworks Braided 260 Series AN-3 Black PVC Covered Teflon PTFE E85 Hose

$229.00
Length
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Raceworks 240 Series Black Nylon Hose is constructed from a PTFE inner tube that is compatible with all fuels, oils, nitrous, this includes brake and clutch fluids. The PTFE tube is covered by a stainless steel outer cover that is then covered with a black PVC cover for extra durability, and resistance to abrasion and expansion. PTFE Hose is the best option for use on fuel systems as it won't allow the permeation of fuel smell, has the highest pressure and temperature rating and is the lightest of the Raceworks flexible hoses.

All Raceworks products come with a 2 year warranty.



Features:

  • Temperature range: -70°C to 250°C
  • The best Hose to use for Fuels, due to no permeation of fuel smell
  • Suitable for use with oils, synthetic lubricants, air, coolant, brake fluid, power steering, automatic transmission, vacuum and nitrous
  • Ethanol and methanol safe
  • Maximum operating pressure of 1200psi (AN-12)



Specifications:

Size Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Bend Radius (Inch) Bend Radius (mm)
AN-3 3000psi 10000psi 9/64? 3.6mm 9/32? 7.35mm 1.0? 26mm



Products:

AN Length (metres) Part Number
-3 1M RWH-260-03-1M
-3 5M RWH-260-03-5M
-3 10M RWH-260-03-10M


Fitment Table
