 |  SKU: CPS-537

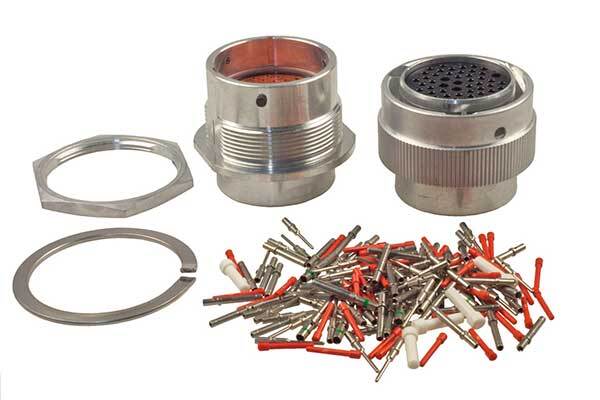

Raceworks Deutsch HD30 24-47 Kit

$299.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description
  • 24-47. Shell size 24. 5 x Size 16 Contacts and 42 x Size 20 Contacts
  • Blue Ring Extra Thin Wire Seal. For use with Extra Thin Wall Wire
  • (Recommended O.D of 1.35-3.05mm for Size 16 and 1.02-2.41mm for Size 20)

Information

Series HD30
Housing Aluminium
Seal Silicone Rubber
Shock 50G
Vibration 20G rms 10 – 2000Hz
Operating Temperature -55deg C to 125deg C



Size 16 Contacts
Wire Size 14 AWG (1.0-2.0mm^2)
Recommended Strip Length 6.4-8.0mm
Current Rating 13A @ 125deg C



Size 20 Contacts
Wire Size 20 AWG (0.2-0.5mm^2)
Recommended Strip Length 4.0-5.5mm
Current Rating 7.5A @ 125deg C
