 |  SKU: CPS-510

Raceworks Deutsch HDP20 24-21 Kit

$169.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

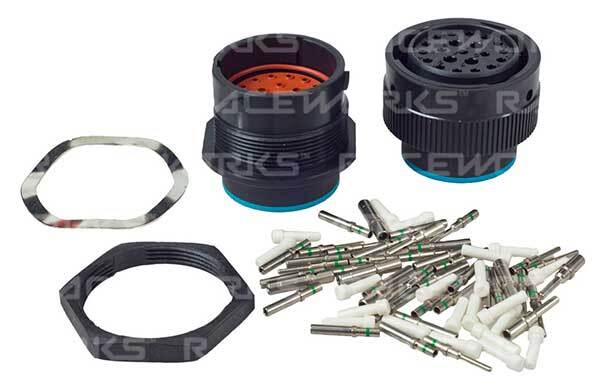

Raceworks Deutsch HDP20 24-21 Kit

24-21. Shell size 24. 4 x Size 12 Contacts and 17 x Size 16 Contacts. Blue Ring Extra Thin Wire Seal. For use with Extra Thin Wall Wire (Recommended O.D of 2.46-4.01mm for Size 12 and 1.35-3.05mm for Size 16). Can be used with thicker wall wire, but some assembly grease must be used.



Size 12 Contacts
Wire Size  12-14 AWG (2.0-3.0 mm^2)
Recommended Strip Length 5.6-7.2mm
Current Rating 25A @ 125deg C



Size 16 Contacts
Wire Size 14 AWG (1.0-2.0mm^2)
Recommended Strip Length 6.4-8.0mm
Current Rating 13A @ 125deg C



Series HDP20
Housing Thermoplastic
Seal Silicone Rubber
Shock 50G
Vibration 20G rms 10 – 2000Hz
Operating Temperature -55deg C to 125deg C
